UPJ1A471MPD1AA datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> capacitor> UPJ1A471MPD1AA

UPJ1A471MPD1AA: DescriptionAluminum Electrolytic Capacitor, Polarized, Aluminum, 10V, 20% +Tol, 20% -Tol, 470uF,; CategoryPassive components capacitor; File Size443KB，7 Pages; ManufacturerNichicon; Websitehttp://www.nichicon.co.jp; Environmental Compliance

Download Datasheet Parametric Compare View All

UPJ1A471MPD1AA Overview

Aluminum Electrolytic Capacitor, Polarized, Aluminum, 10V, 20% +Tol, 20% -Tol, 470uF,

UPJ1A471MPD1AA Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
package instruction	,
Reach Compliance Code	compliant
ECCN code	EAR99
capacitance	470 µF
Capacitor type	ALUMINUM ELECTROLYTIC CAPACITOR
diameter	8 mm
dielectric materials	ALUMINUM
JESD-609 code	e3
length	15 mm
negative tolerance	20%
Number of terminals	2
Maximum operating temperature	105 °C
Minimum operating temperature	-55 °C
Package form	Radial
method of packing	Bulk
polarity	POLARIZED
positive tolerance	20%
Rated (DC) voltage (URdc)	10 V
ripple current	595 mA
Terminal surface	Matte Tin (Sn)
Terminal pitch	5 mm

Preview

Download Datasheet

View All

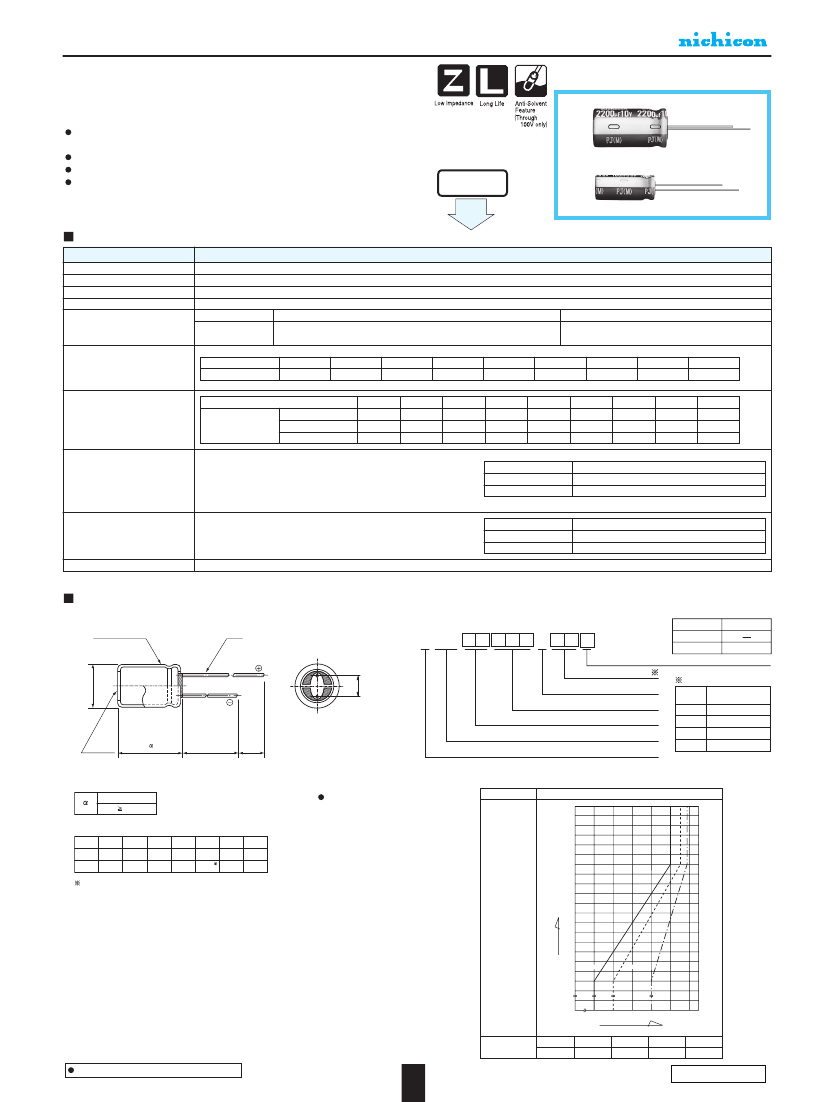

ALUMINUM ELECTROLYTIC CAPACITORS

UPJ

Low Impedance, For Switching Power Supplies

Low impedance and high reliability withstanding 5000 hours load life

at +105˚C (3000 / 2000 hours for smaller case sizes as specified below).

Capacitance ranges available based on the numerical values in E12 series under JIS.

Ideally suited for use of switching power supplies.

Compliant to the RoHS directive (2011/65/EU).

UPJ

Smaller

Specifications

Item

Category Temperature Range

Rated Voltage Range

Rated Capacitance Range

Capacitance Tolerance

Leakage Current

UPS

Performance Characteristics

–55 to +105˚C (6.3 to 100V), –40 to +105˚C (160 to 400V), –25 to +105˚C (450V)

6.3 to 450V

1 to 15000µF

± 20% at 120Hz, 20˚C

Rated Voltage (V)

Leakage current

Rated Voltage (V)

tan

δ (MAX.)

6.3 to 100

After 1 minute's application of rated voltage at 20°C, leakage current is

not more than 0.03CV or 4 (µA), whichever is greater.

160 to 450

CV < 1000 :

= 0.1CV+40 (µA) max.

1000 :

= 0.04CV+100 (µA) max.

120Hz, 20˚C

Tangent of loss angle (tan

)

6.3

0.22

0.19

6.3

•

—

0.16

—

0.14

•

—

0.12

0.10

63 to 100 160 to 350 400

•

450

0.08

0.20

0.25

250

—

For capacitance of more than 1000µF, add 0.02 for every increase of 1000µF.

Stability at Low Temperature

Rated voltage (V)

Z–25˚C / Z+20˚C

Impedance

Z–40˚C / Z+20˚C

ratio

(MAX.)

Z–55˚C / Z+20˚C

50 to 100

160

•

200

—

315

•

350

—

400

—

450

—

120Hz

Endurance

The specifications listed at right shall be met when the

capacitors are restored to 20˚C after D.C. bias plus rated ripple

current is applied for 5000 hours (2000 hours for

φD=5

and 6.3,

3000 hours for

φD=8)

at 105˚C, the peak voltage shall not

exceed the rated voltage.

After storing the capacitors under no load at 105˚C for 1000

hours and then performing voltage treatment based on JIS C

5101-4 clause 4.1 at 20°C, they shall meet the specified

values for the endurance characteristics listed at right.

Printed with white color letter on dark brown sleeve.

Capacitance change

Within ±20% of the initial capacitance value

200% or less than the initial specified value

tan

Less than or equal to the initial specified value

Leakage current

Shelf Life

Marking

Capacitance change

Within ±20% of the initial capacitance value

150% or less than the initial specified value

tan

Less than or equal to the initial specified value

Leakage current

Radial Lead Type

Sleeve (P.E.T.)

Type numbering system (Example : 25V 470µF)

9 10

11 12

Type

Small Dia

Low Profile

Configuration

Capacitance tolerance (±20%)

Rated capacitance (470

Configuration

0.5

Code

Size code

U P J 1 E 4 7 1 M PD

P ±

0.5

φD

0.5 MAX.

Sleeve(P.V.C)

d tinned CP wire

9 10

11 12

U P J 1 E 4 7 1 M HH 6

Configuration

Case size code

leadwire

Pb-freePET sleeve

Pb-free

Type

φD

0.5 MAX

Pressure

relief vent

(φ6.3up)

L+

MAX.

MIN

Pressure

relief vent

(φ6.3UP)

MIN

MAX

MIN

Rated

φD

voltage (25V)

Small Dia

Code

Capacitance tolerance(±20%)

6.3

Low Profile

Rated Capacitance(470µF)

•

Series name

6.3

Rated voltage(25V)

12.5 to 18

Series name 12.5~18

Type

Code

Type

(φD < 8) 1.0

(φD 8) 1.5

(mm)

Frequency coefficient

of rated ripple current

3.5

0.6

12.5

0.6

0.8

Rated voltage

15000

10000

6800

4700

3300

2200

15000

Frequency coefficient

φD

φd

2.0

0.5

6.3

2.5

0.5

for

7.5

5.0

In case L >25

7.5

the

φ12.5

dia. unit, lead dia.

d=0.8mm.

5.0

3300

2200

1500

1000

680

1000

470

330

In case L >25 for the

φ12.5

dia. unit, lead dia.

d=0.8mm.

6.3 to 100V

680

•

Please refer to page 20 about the end seal configuration.

470

220

330

150

Cap.(µF)

100

220

120Hz

300Hz

1kHz

(10kHz to

200kHz

6.3 to 100V

= 1)

(10kHz to

200kHz=1)

Cap.( F)

150

100

2.2

120Hz

0.5

300Hz

1kHz

0.9

1.0

0.6

0.7

0.8

Frequency coefficient

Please refer to page 20, 21, 22 about the formed or taped product spec.

Please refer to page 4 for the minimum order quantity.

160 to 450V

50Hz

0.68

0.80

0.47

120Hz

1.00

0.5

300Hz

1.25

1kHz

1.40

10kHz or more

1.60

Dimension table in next pages.

231

0.6

0.7

0.8

Frequency coefficient

CAT.8100H

0.9

1.0
