87758-0002

Description
Board Connector, 26 Contact(s), 2 Row(s), Male, Straight, 0.079 inch Pitch, Solder Terminal, Black Insulator, Receptacle
CategoryThe connector    The connector
File Size67KB,1 Pages
ManufacturerMolex
Websitehttps://www.molex.com/molex/home
Environmental Compliance

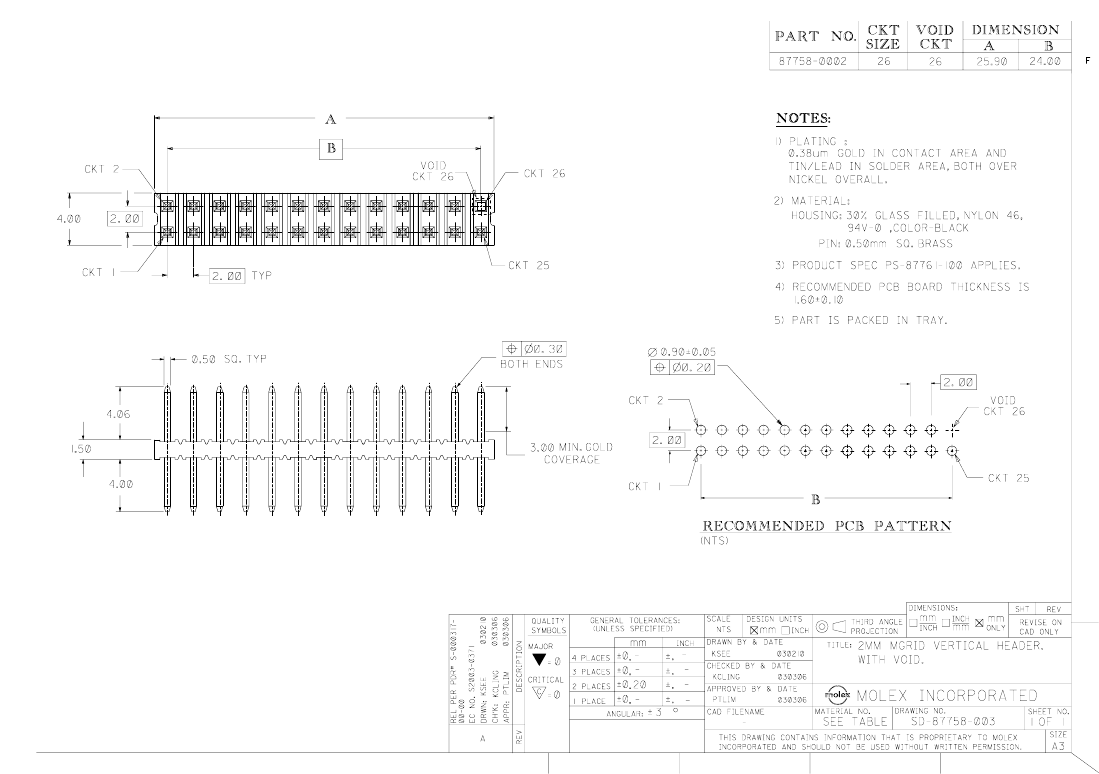

Download Datasheet Parametric View All

87758-0002 Overview

Board Connector, 26 Contact(s), 2 Row(s), Male, Straight, 0.079 inch Pitch, Solder Terminal, Black Insulator, Receptacle

87758-0002 Parametric

Parameter NameAttribute value
Is it Rohs certified?conform to
Reach Compliance Codecompliant
ECCN codeEAR99
body width0.157 inch
subject depth0.059 inch
body length1.019 inch
Body/casing typeRECEPTACLE
Connector typeBOARD CONNECTOR
Contact to complete cooperationAU ON NI
Contact completed and terminatedTIN/LEAD OVER NICKEL
Contact point genderMALE
Contact materialBRASS
contact modeRECTANGULAR
Contact styleSQ PIN-SKT
Dielectric withstand voltage500VAC V
Durability100 Cycles
Insulation resistance1000000000 Ω
Insulator colorBLACK
insulator materialGLASS FILLED NYLON
Manufacturer's serial number87758
Plug contact pitch0.079 inch
Match contact row spacing0.079 inch
Installation methodSTRAIGHT
Installation typeBOARD
Number of connectorsONE
PCB row number2
Number of rows loaded2
Maximum operating temperature125 °C
Minimum operating temperature-55 °C
PCB contact patternRECTANGULAR
PCB contact row spacing2.0066 mm
Plating thickness15u inch
Rated current (signal)2 A
GuidelineUL
reliabilityCOMMERCIAL
Terminal length0.157 inch
Terminal pitch2.0066 mm
Termination typeSOLDER
Total number of contacts26
