8D525K20AD

Description
MIL Series Connector,
CategoryThe connector    The connector
File Size422KB,2 Pages
ManufacturerEsterline Technologies Corporation
Download Datasheet Parametric View All

8D525K20AD Overview

MIL Series Connector,

8D525K20AD Parametric

Parameter NameAttribute value
Reach Compliance Codeunknown
ECCN codeEAR99
Connector typeMIL SERIES CONNECTOR
LAYOUT SHOWN AS EXAMPLE
Keying Shown as example
CHARACTERISTICS
-Standard : Based on MIL-DTL-38999 Series III
-Shell Material
-Shell Plating
-Insulator
-Contacts
-Seals & Grommet
-Contact Plating
-Durability
: Stainless Steel
: Passivated
: Thermoplastic
: Copper Alloy
: Silicon Elastomer
: Gold over copper Alloy 0.8µm minimum
: 500 Mating cycles

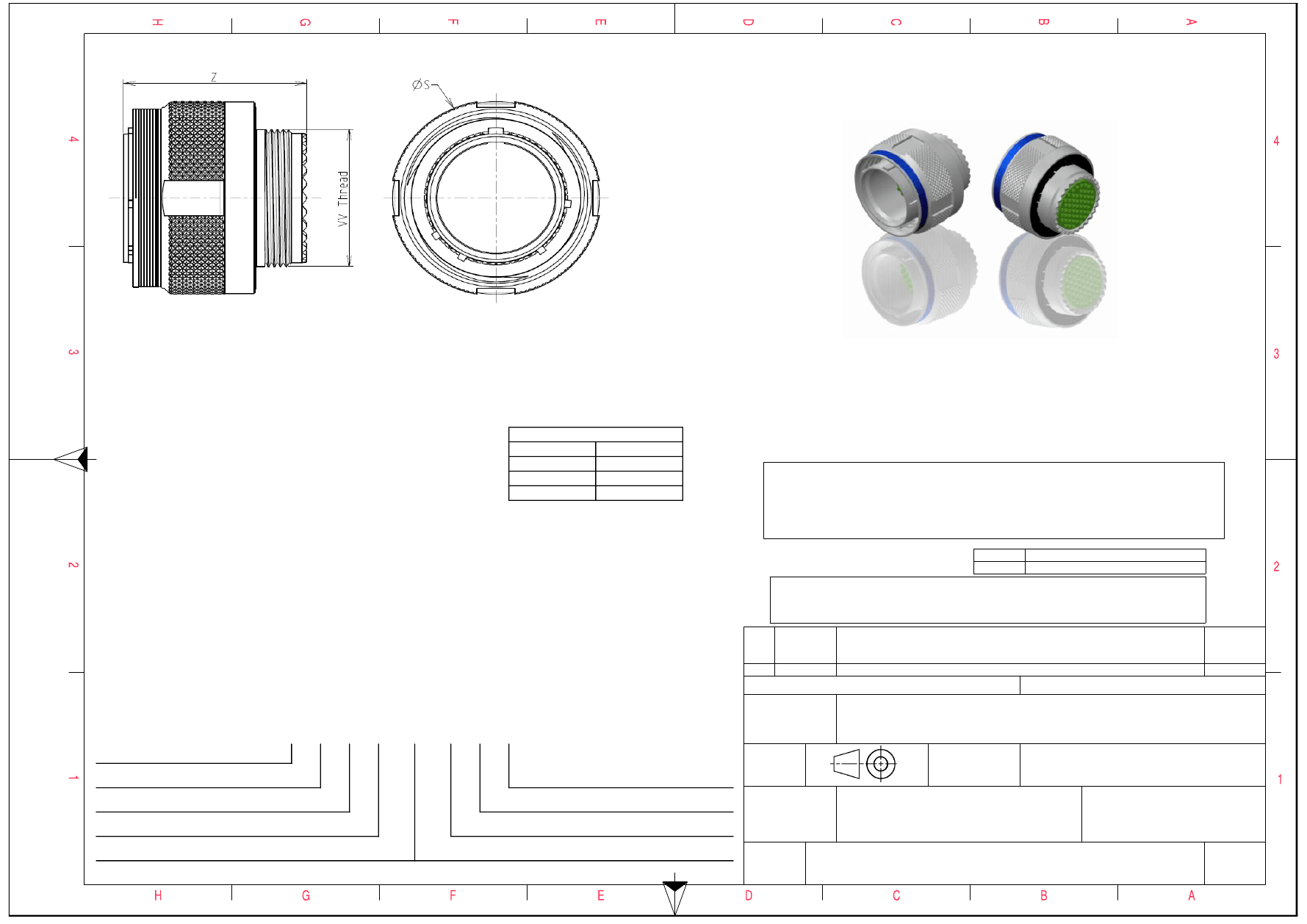

Connector dimension
Dim
Nominal
ØS
48 Max
Z
31 Max
VV THREAD
M37x1-6g
SOURIAU shall not be liable for any non-conformity or damage
due to a use of the Products which does not comply with
the Specifications issued by either of the Parties or by a third party
(professional recommendation, technical notice.)
Country
FR
Jurisdiction & Control List
Not Listed
-Delivered with Souriau contacts and Accessories
-Temperature Range
-Salt Spray
-Mass
: -65°C to +200°C
: 500 hours
: 128.4 g ± 10%
PN: 8D525K20AD
A
ISS
07-10-2016 First Release
DATE
Latest modification - by
Date:
MOD N°
CUSTOMER DRAWING
Designed By:
TITLE
BASIC SERIES:

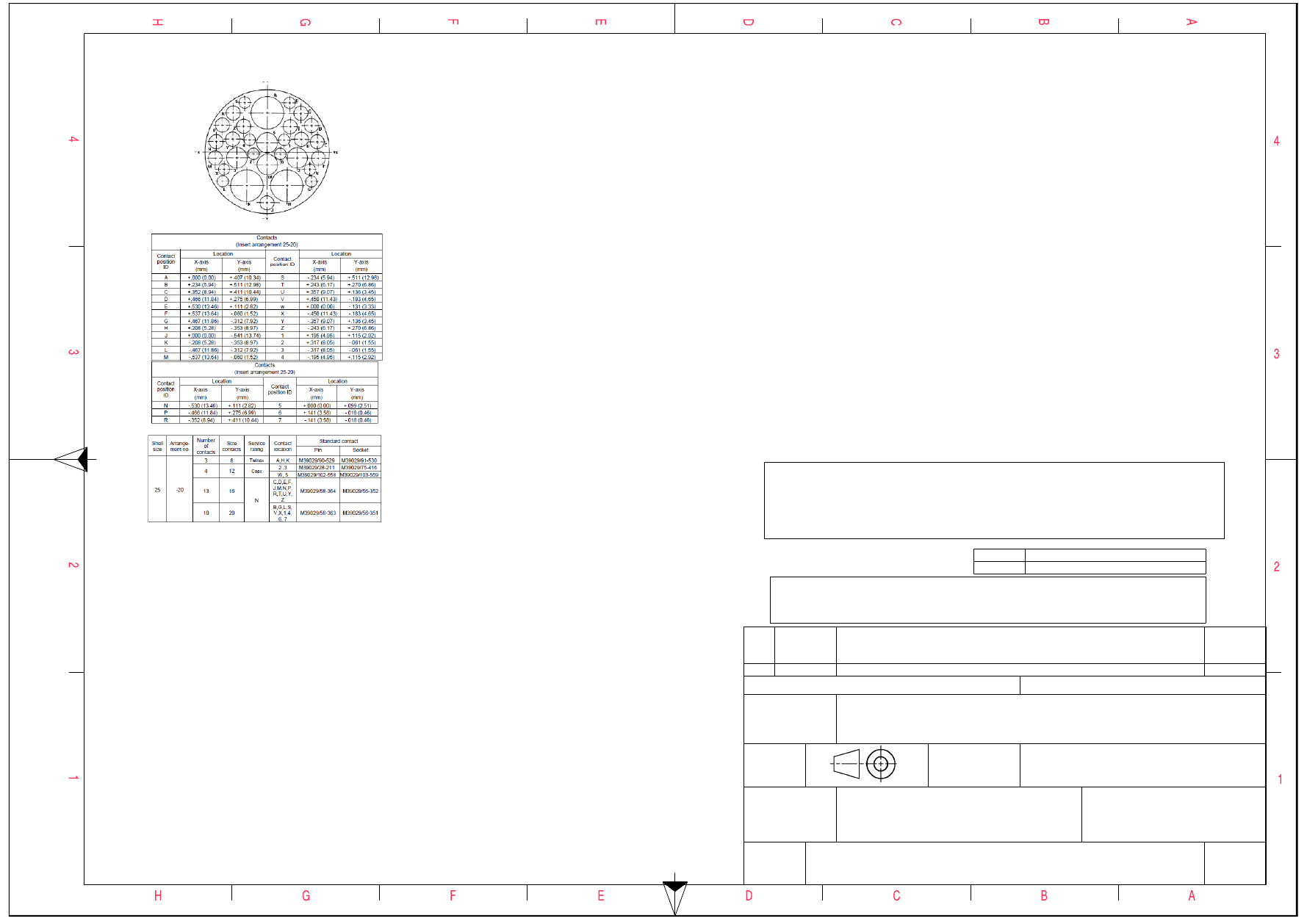

SHELL TYPE : Plug with RFI Shielding
CONTACT TYPE
SHELL SIZE : 25
PLATING
:
K =
Passivated
: Standard Crimp Contact
ORIENTATION : D
CONTACT TYPE : PIN(500 Matings)
CONTACT LAYOUT : 25-20
FORMAT
Stainless Steel Plug 8D series
General linear
Tolerances:
±--
8D
5
-
25
K
20
A
D
SCALE
NPRDS / PROJECT
NA
859
This document is the property of
SOURIAU
it must not be reproduced or
communicated without permission
SOURIAU
A3
WWW.SOURIAU.COM
SOURIAU DRG N°
8D525K20AD-C
SHEET
1/2
