Low Loss Flexible Version 086 Semi-rigid Coax
Cable Double Shielded with Gray FEP Jacket
TECHNICAL DATA SHEET
Low Loss Flexible Version 086 Semi-rigid Coax Cable Double Shielded with Gray FEP Jacket
Configuration
Cable Design
Inner Conductor Material and Plating
Dielectric Type
Shield Materials
Jacket Material and Color
Low Loss
Copper, Silver
FEP (AS)
Silver Plated Copper Tape, Silver Plated Copper Braid
FEP, Gray
PE-P086LL
Electrical Specifications
Impedance, Ohms
Velocity of Propagation, %
Time Delay, ns/ft [ns/m]
Maximum Operating Frequency, GHz
Capacitance, pF/ft [pF/m]
50
85
1.18 [3.87]
18
23.4 [76.77]
Mechanical Specifications
Inner Conductor
Number of Strands
Material
Plating
Diameter, in [mm]
Dielectric:
Type
Diameter, in [mm]
Shield:
Number of
Material 1
Material 2
Diameter, in [mm]
Jacket:
Material
Diameter, in [mm]
Color
Weight, lbs/ft [Kg/m]
1
Copper
Silver
0.025 [0.64]
FEP (AS)
0.066 [1.68]
2
Silver Plated Copper Tape
Silver Plated Copper Braid
0.086 [2.18]
FEP
0.101 [2.57]
Gray
0.013 [0.02]
Compliance Certifications
(visit www.Pasternack.com for current document)
RoHS Compliant
Yes
Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications:
Low Loss Flexible Version 086 Semi-rigid Coax Cable Double Shielded with Gray FEP Jacket
PE-P086LL
PE-P086LL REV
1
Low Loss Flexible Version 086 Semi-rigid Coax
Cable Double Shielded with Gray FEP Jacket
TECHNICAL DATA SHEET
Plotted and Other Data
Notes:
PE-P086LL
Values at 25 °C, sea level
FEP (AS) Dielectric is equivalent to an FEP Core Tube
over Dual Monofilaments twisted in a pair and helically
wrapped to create an Air Space
Low Loss Flexible Version 086 Semi-rigid Coax Cable Double Shielded with Gray FEP Jacket from Pasternack Enterprises
has same day shipment for domestic and International orders. Our RF, microwave and fiber optic products maintain a 99%
availability and are part of the broadest selection in the industry.
Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications:
Low Loss Flexible Version 086 Semi-rigid Coax Cable Double Shielded with Gray FEP Jacket
PE-P086LL
URL:
http://www.pasternack.com/low-loss-0.101-semirigid-replacement-50-ohm-coax-cable-fep-jacket-pe-p086ll-p.aspx
PE-P086LL REV
2
PE-P086LL

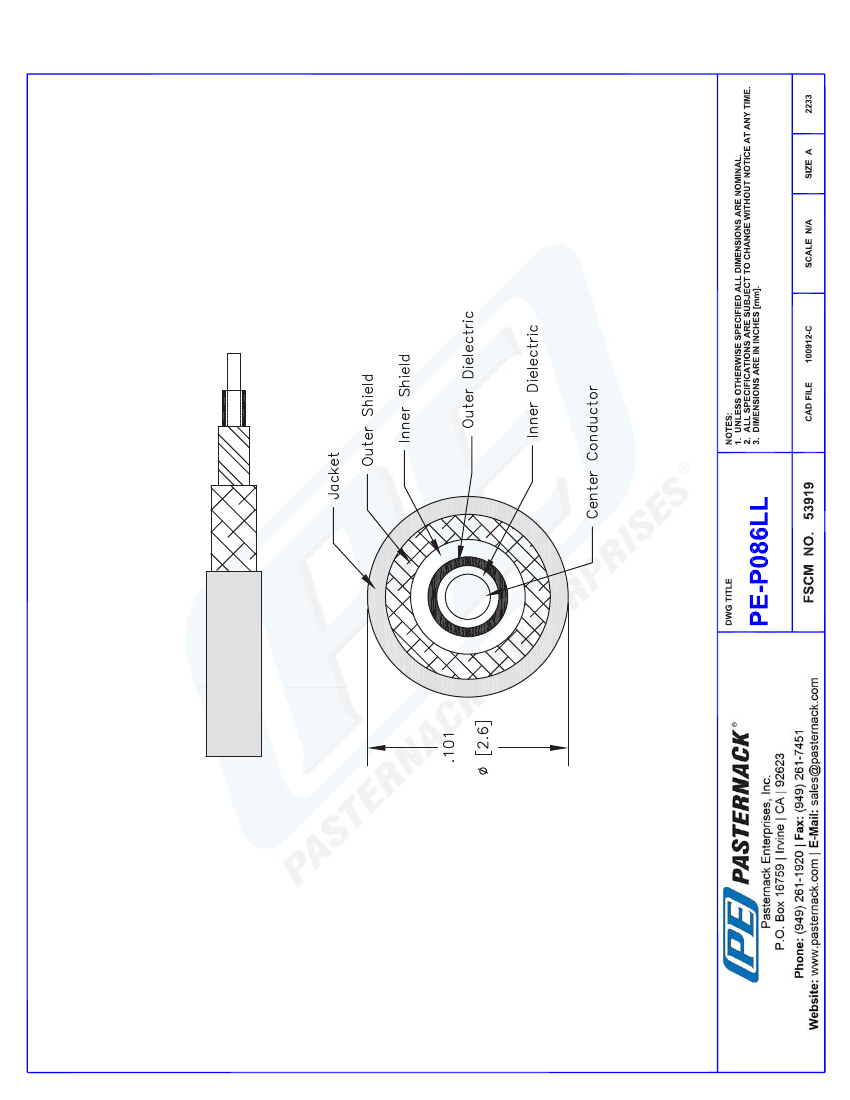

CAD Drawing
Low Loss Flexible Version 086 Semi-rigid Coax Cable
Double Shielded with Gray FEP Jacket
© 2013 Pasternack Enterprises All Rights Reserved
PE-P086LL REV
3
