300DP1R2WHTM1QEBLK

Description
RESISTOR, NETWORK, FILM, BUSSED; DIVIDER; ISOLATED; SPECIAL, 0.3 W, THROUGH HOLE MOUNT
CategoryPassive components
File Size1MB,9 Pages
ManufacturerE-Switch
Websitehttp://www.e-switch.com
Download Datasheet Parametric View All

300DP1R2WHTM1QEBLK Overview

RESISTOR, NETWORK, FILM, BUSSED; DIVIDER; ISOLATED; SPECIAL, 0.3 W, THROUGH HOLE MOUNT

300DP1R2WHTM1QEBLK Parametric

Parameter NameAttribute value
Number of terminals3 - 8
Processing package descriptionSIP
stateContact Mfr
Resistor typeARRAY/NETWORK RESISTOR
Manufacturer Series300DP1R2WHTM1QEBLK
Installation featuresTHROUGH HOLE MOUNT
Network TypeBUSSED; DIVIDER; ISOLATED; SPECIAL
packaging shapeRECTANGULAR PACKAGE
sub_categoryArray/Network Resistors
CraftsmanshipMETAL FOIL
emperature_coefficient__ppm_cel_2; 400
Terminal shapeFLAT
dditional_featurePRECISION
SERIES 300 SWITCHES
SPECIFICATIONS
Life Expectancy:
Contact Resistance:
Insulation Resistance:
Dielectric Strength:
50,000 make-and-break cycles at full load
10 mΩ max. initial @ 2-4 VDC
100 mA for both silver and gold plated contacts
1,000 MΩ min.
1,000 V RMS @ sea level
PUSHBUTTON
SWITCHES
FRAME
**
COLOR
(R6, R7 Only)
BLK= Black
WHT=White
RED= Red
YEL = Yellow
GRY= Gray
PUR= Purple
**Contact
E-Switch for
additional
colors
CAP
OPTIONS
DETECTOR
SWITCHES
ROTARY
SWITCHES
P.C. Mount:
J1
J2
J3
J4
J5
J6
BLK =Black
WHT=White
RED =Red
YEL =Yellow
GRY =Gray
PUR =Purple
M2
M6
M7
VS2
VS3
VS4
VS5
M61
VS21
Q = Silver
R = Gold
E = Epoxy
Sealed at
Base of
Terminal
Specifications subject to change without notice.
Operating Temperature: -30° C to 85° C
MATERIALS
Case:
Rockers:
Bushing:
Housing:
Contacts/Terminals:
Diallyl Phthalate (DAP)
Nylon
Brass, nickel plated
Stainless steel
Silver or gold plated copper alloy
ROCKER
SWITCHES
KEYLOCK
SWITCHES
DIP
SWITCHES
SNAP-ACTION
SWITCHES
SLIDE
SWITCHES
TOGGLE
SWITCHES
FEATURES & BENEFITS
Multiple rocker & paddle options
Up to 4 poles
Multiple termination options
Snap-in panel mount option
available
APPLICATIONS/MARKETS
Telecommunications
Instrumentation
Test equipment
Networking
Computer peripherals
Terminal/Switch Support: Brass, steel, electrotin plated

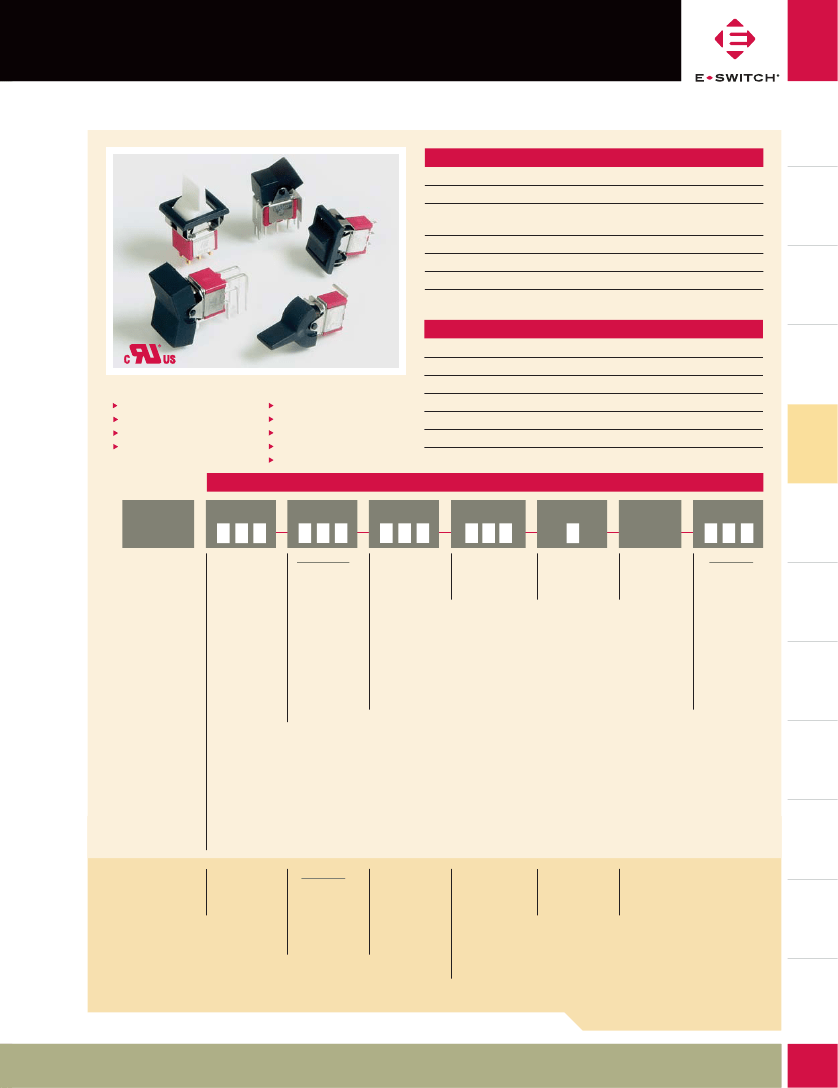

HOW TO ORDER
MODEL NO.
ACTUATOR
ACTUATOR
**
COLOR
TERMINATION
CONTACT
MATERIAL
SEAL
SERIES
300
SP1
SP2
SP3
SP4
SP5
DP1
DP2
DP3
DP4
DP5
DP6
DP7
DP8
3P1
3P2
3P3
3P4
3P5
4P1
4P2
4P3
4P4
4P5
4P6
(See Above
Model No.
Options)
Panel Mount:
R1
R2
R3
R4
R6*
R7*
R8*
R9*
R11
R16
*Snap in panel
mount
E
NONE = Black
WHT= White
RED = Red
YEL = Yellow
GRY = Gray
PUR = Purple
M1
M3
M5
Q = Silver
R = Gold
E = Epoxy
Sealed at
Base of
Terminal
**Contact
E-Switch for
additional
colors
Example Ordering Number
300_ SP1_ R6_ RED_ M1_ R_ E_ RED
www.e-switch.com
info
@
e-switch.com
NAVIGATION
SWITCHES
Contact Rating:
Dependent upon contact material
TACT
SWITCHES

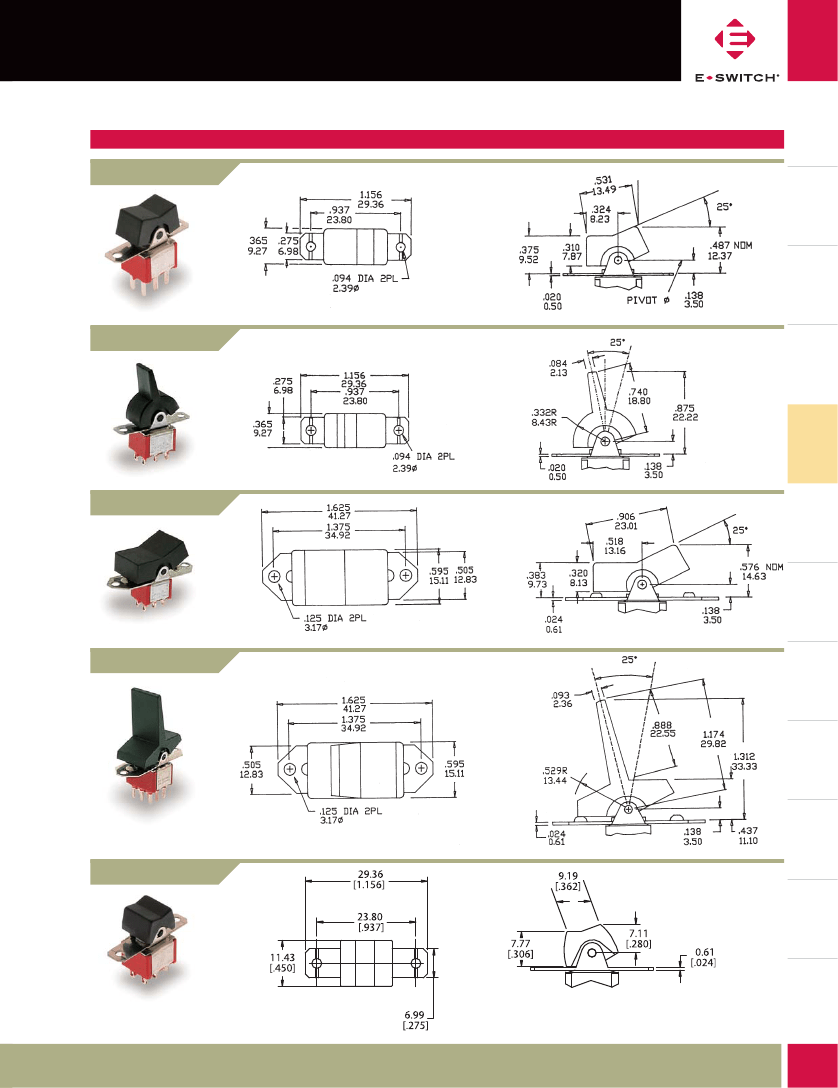

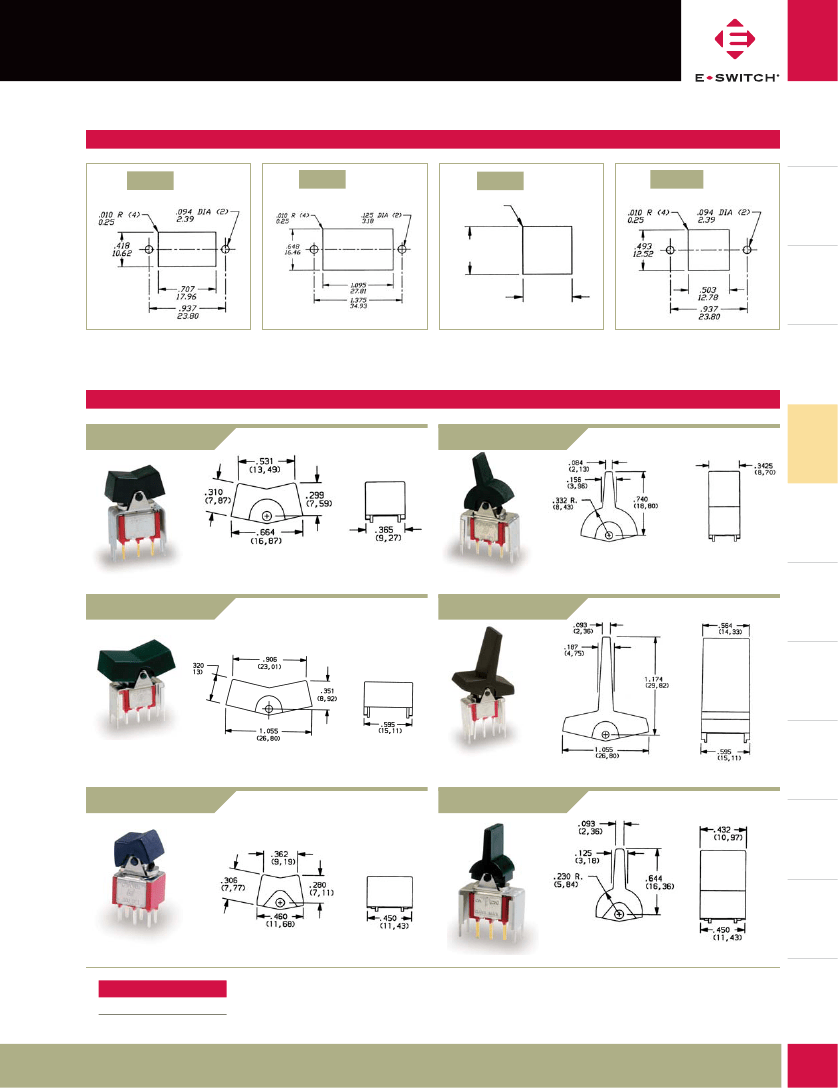

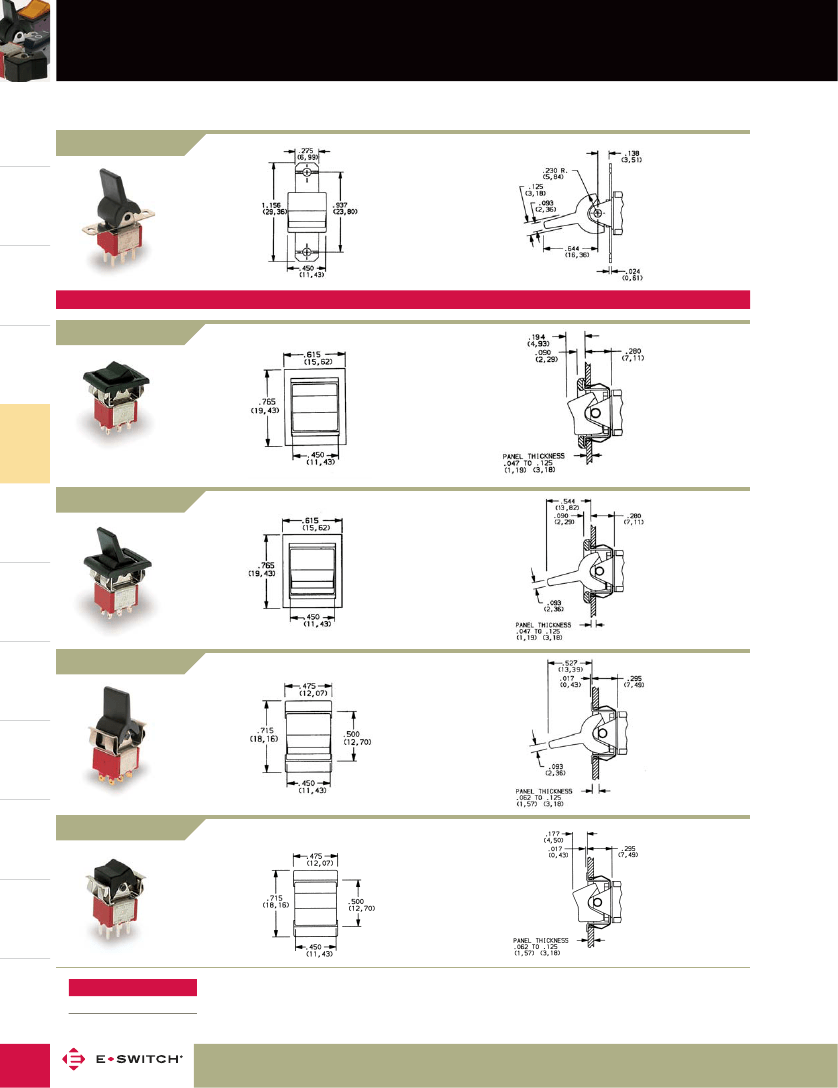

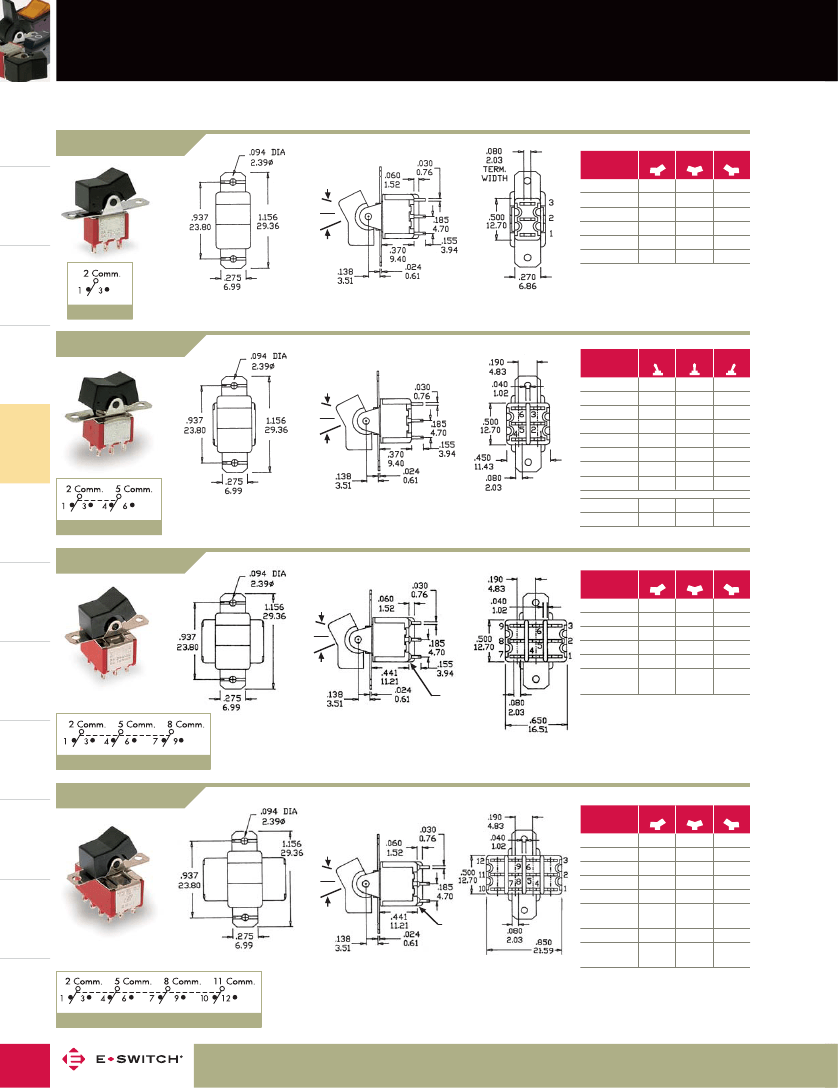

ROCKER AND PADDLE SWITCHES - MINIATURE
137
