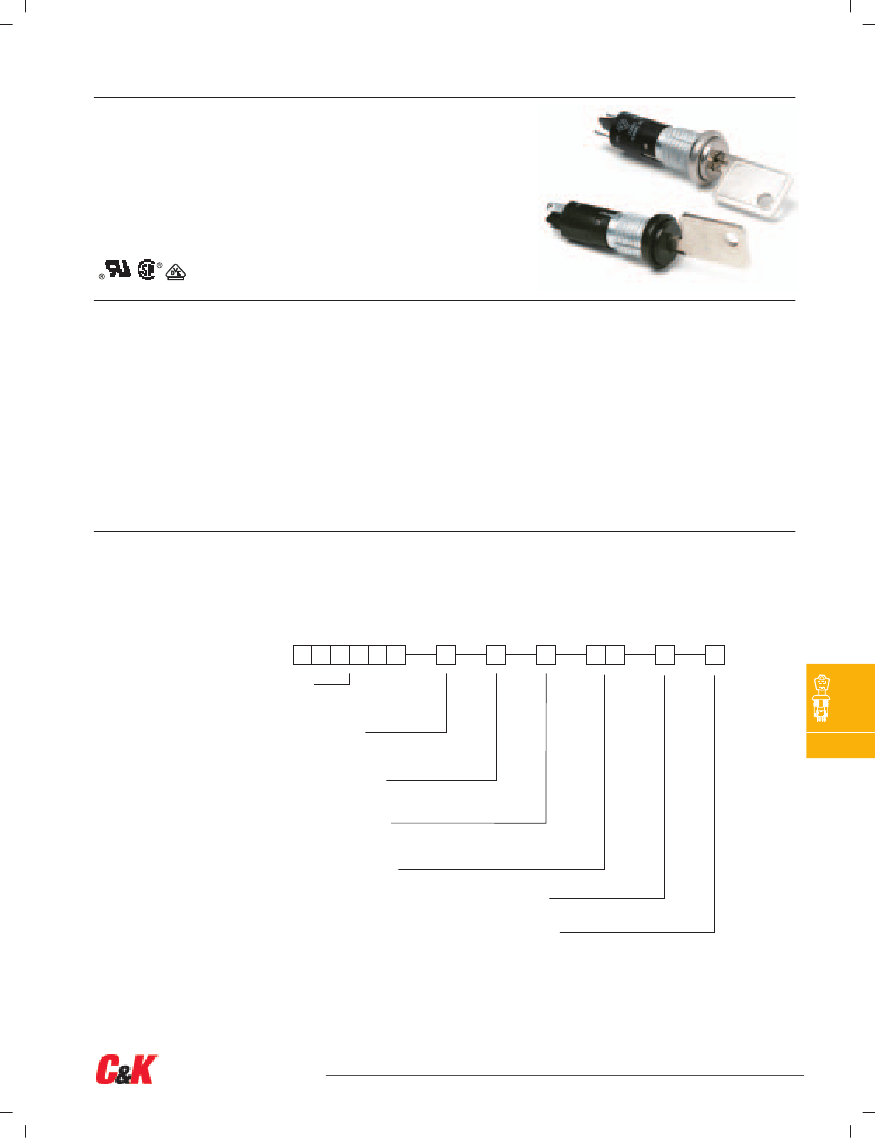

YM Series
4 Tumbler Miniature Switchlocks
Features/Benefits
•
Snap-together assembly allows
for pre-wiring of switch
•
Wire lead terminations available
•
4 Tumbler lock with positive detent
Typical Applications
•
Cable TV connectors
•
Automotive accessories
•
Computers
Models Available
Specifications
CONTACT RATING: Q contact material: 4 AMPS @ 125 V AC or
28 V DC; 2 AMPS @ 250 V AC (UL/CSA). 4 AMPS @ 125 V AC,
2 AMPS @ 250 V AC, T65, class 1 (VDE). See page M-17 for
additional ratings.
ELECTRICAL LIFE: 10,000 make-and-break cycles at full load.
CONTACT RESISTANCE: Below 10 m
Ω
typ. initial @
2-4 V DC, 100 mA.
INSULATION RESISTANCE: 109
Ω
min.
DIELECTRIC STRENGTH: 1,000 Vrms min. @ sea level.
INDEXING: 90º:2 positions.
Materials
LOCK: Zinc alloy with stainless steel facing. 4 tumbler single
bitted lock with integral detent mechanism.
KEYS: Two nickel plated brass keys with code number.
SWITCH HOUSING: 6/6 Nylon (UL 94V-2).
CONTACTS & TERMINALS: Q contact material: Copper, silver
plated. See page L-17 for additional contact materials.
MOUNTING NUT: Brass, bright zinc plated.
NOTE:
Any models supplied with Q or B contact material are RoHS compliant.
NOTE:
Specifications and materials listed above are for switchlocks with standard options.
For information on specific and custom switchlocks, consult Customer Service Center.
Build-A-Switch
To order, simply select desired option from each category and place in the appropriate box. Available options are shown and
described on pages L–16 and L–17. For additional options not shown in catalog, consult Customer Service Center.
Switch and Lock Function
YM0613
SPST, 90º Index, keypull pos. 1
YM061U
SPST, 90º Index, keypull pos. 1 & 2
Keying
2
Two nickel plated brass keys
Lock Type
C
4 Tumbler, single bitted lock
with detent
Lock Finish
2
Stainless steel facing
8
Gloss black facing
Terminations
05
Quick connect
WC
Wire lead
L
Switchlock
Mounting Style
N
With nut
Contact Material
Q
Silver
B
Gold
Dimensions are shown: Inch (mm)
Specifications and dimensions subject to change
L–15
www.ck-components.com
YM Series
4 Tumbler Miniature Switchlocks

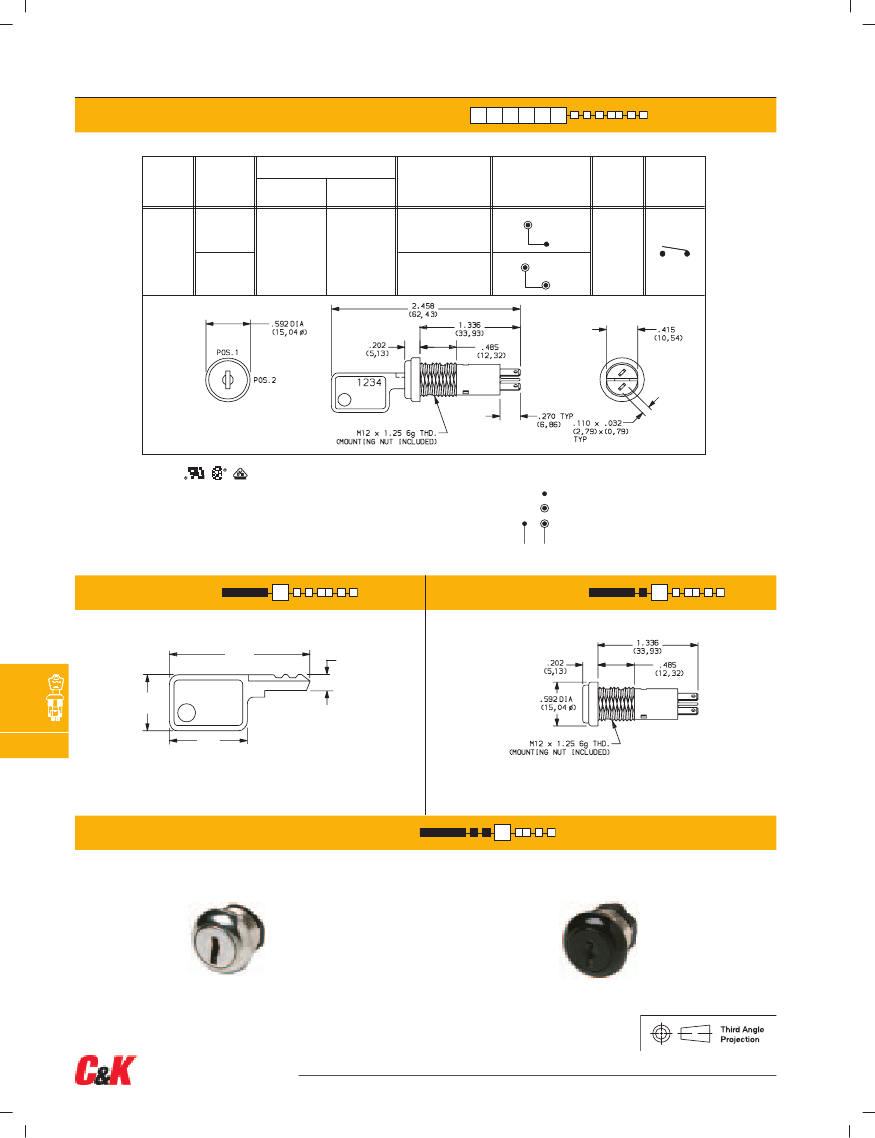

SWITCH AND LOCK FUNCTION
SWITCH FUNCTION
NO.
POLES
MODEL
NO.
POS. 1
POS. 2
KEY PULL
POSITIONS
LOCK
CONFIGURATION
POS. 1
INDEXING
SCHEMATIC
YM0613
SP
OFF
ON
Position 1
POS. 1
2
90º
YM061U
SPST
Positions 1& 2
2
Part number shown: YM0613C205NQ
All models
with all options when ordered with ‘Q’ contact material.
LEGEND
= Detent Positions (90º )
= Key pull possible in these positions
= Stop Positions
KEYING
2
TWO NICKEL PLATED BRASS KEYS
LOCK TYPE
C
.174
(4,19)
4 TUMBLER SINGLE BITTED LOCK WITH DETENT
1.435
(36,44)
.548
(13,91)
0029
.772
(19,6)
L
Switchlock
Key part number: 119091029
NOTE:
All orders keyed alike with code number on key. For more than one key code,
replacement keys, or other special features, consult Customer Service Center.
LOCK FINISH
2
STAINLESS STEEL FACING
8
GLOSS BLACK FACING
Dimensions are shown: Inch (mm)
Specifications and dimensions subject to change
L–16
www.ck-components.com
YM Series
4 Tumbler Miniature Switchlocks

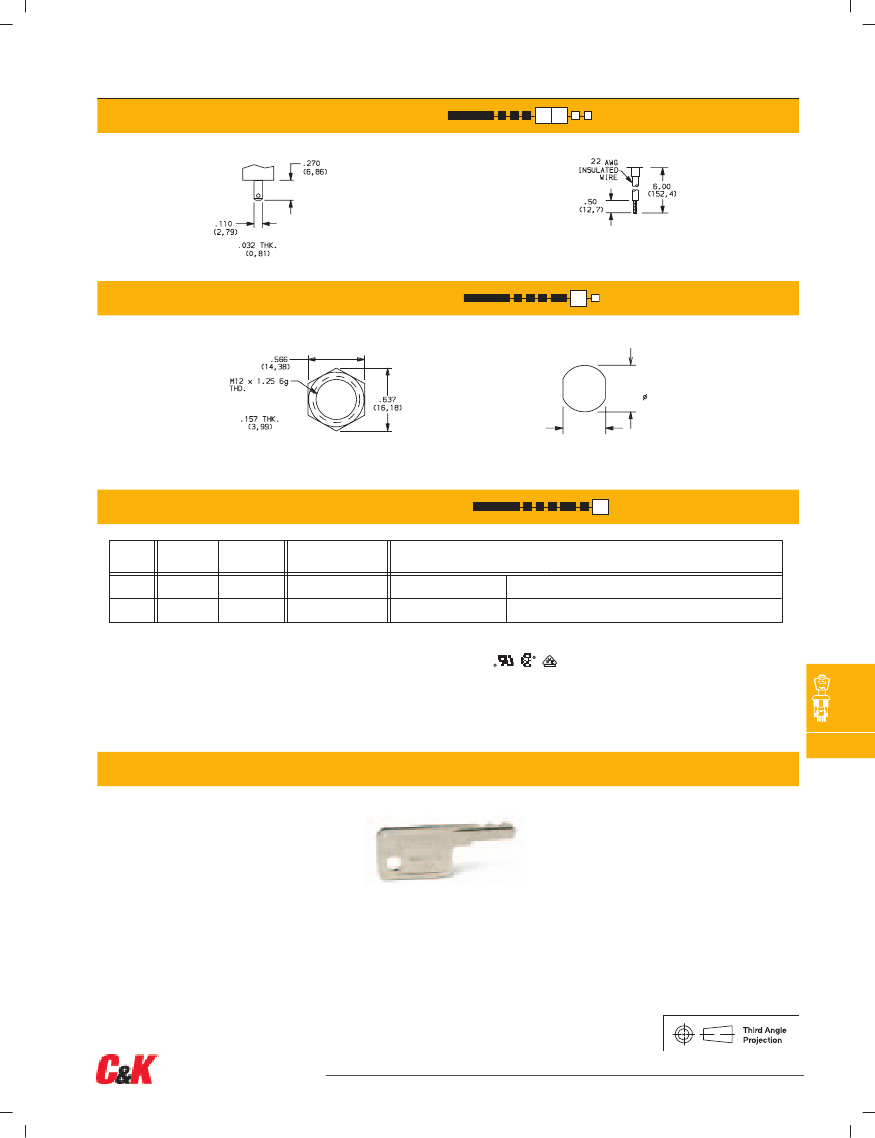

TERMINATIONS
05
QUICK CONNECT
WC
WIRE LEAD
Black wire standard, other colors and
lengths available, consult Customer
Service Center. UL style 1015.
MOUNTING STYLE
N
WITH NUT
PANEL MOUNTING
.472 DIA.
(11,99 )
.420
(10,67)
Nut part number: 179090123
Panel thickness:
.300 (7,62) max.
CONTACT MATERIAL
OPTION
CODE
RoHS
RoHS
COMPLIANT * COMPATIBLE*
YES
YES
YES
YES
CONTACT AND
TERMINAL MATERIAL
SILVER
2
GOLD
1
POWER
LOW LEVEL/DRY CIRCUIT
RATING
4 AMPS @ 125 V AC or 28 V DC; 2 AMPS @ 250 AC V AC (UL/CSA).
0.4 VA MAX. @ 20 V AC or DC MAX.
Q
B
* Note: See Technical Data section of this catalog for RoHS compliant and compatible definitions and specifications.
1
2
CONTACTS & TERMINALS: Copper, with gold plate over nickel plate.
CONTACTS & TERMINALS: Copper, silver plated (standard with all
termination options).
All models
with all options when ordered with ‘Q’ contact material.
L
AVAILABLE HARDWARE
Switchlock
Key Code: 0029
PART NO.
(ONE KEY)
960B10029
Material:
Brass
Finish: Nickel plate
Dimensions are shown: Inch (mm)
Specifications and dimensions subject to change
L–17
www.ck-components.com
