SMP Male Limited Detent Connector Solder
Attachment Thread-In Mount Pin Terminal .080 Inch
Extended Dielectric and .070 inch Pin Length
TECHNICAL DATA SHEET
Configuration
Connector
Connector Specification
Connector Interface Type
Attachment Method (Shield/Contact)
Body Style
Mount Method
SMP Male, Limited Detent
MIL-STD-348
Pin
Solder
Straight
Thread-In
PE44931
Electrical Specifications
Impedance
50 Ohms
Mechanical Specifications
Size
Length
Width/Dia.
.
0.335 in [8.51 mm]
0.189 in [4.80 mm]
0.082 lbs [37.19 g]
SMP Male
Beryllium Copper, Gold
MIL-G-45204
Passivated Stainless Steel
AMS-QQ-P-35
PTFE
Weight
Connector
Type
Contact Material and Plating
Contact Plating Specification
Body Material and Plating
Body Plating Specification
Dielectric Type
Compliance Certifications
(visit www.Pasternack.com for current document)
RoHS Compliant
Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including
price, inventory and certifications:
SMP Male Limited Detent Connector Solder Attachment Thread-In Mount Pin Terminal
.080 Inch Extended Dielectric and .070 inch Pin Length PE44931
PE44931 REV 1.1
1
SMP Male Limited Detent Connector Solder
Attachment Thread-In Mount Pin Terminal .080 Inch
Extended Dielectric and .070 inch Pin Length
TECHNICAL DATA SHEET
Plotted and Other Data
Notes:
•
Values at +25 °C, sea level
PE44931
SMP Male Limited Detent Connector Solder Attachment Thread-In Mount Pin Terminal .080 Inch Extended Dielectric and
.070 inch Pin Length from Pasternack Enterprises has same day shipment for domestic and International orders. Our RF,
microwave and millimeter wave products maintain a 99% availability and are part of the broadest selection in the industry.
Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications:
SMP Male Limited Detent Connector Solder Attachment Thread-In Mount Pin Terminal .080 Inch
Extended Dielectric and .070 inch Pin Length PE44931
URL:
http://www.pasternack.com/smp-male-standard-pin-terminal-connector-pe44931-p.aspx
PE44931 REV 1.1
2
SMP Male Limited Detent Connector Solder Attachment Thread-In Mount
Pin Terminal .080 Inch Extended Dielectric and .070 inch Pin Length
PE44931

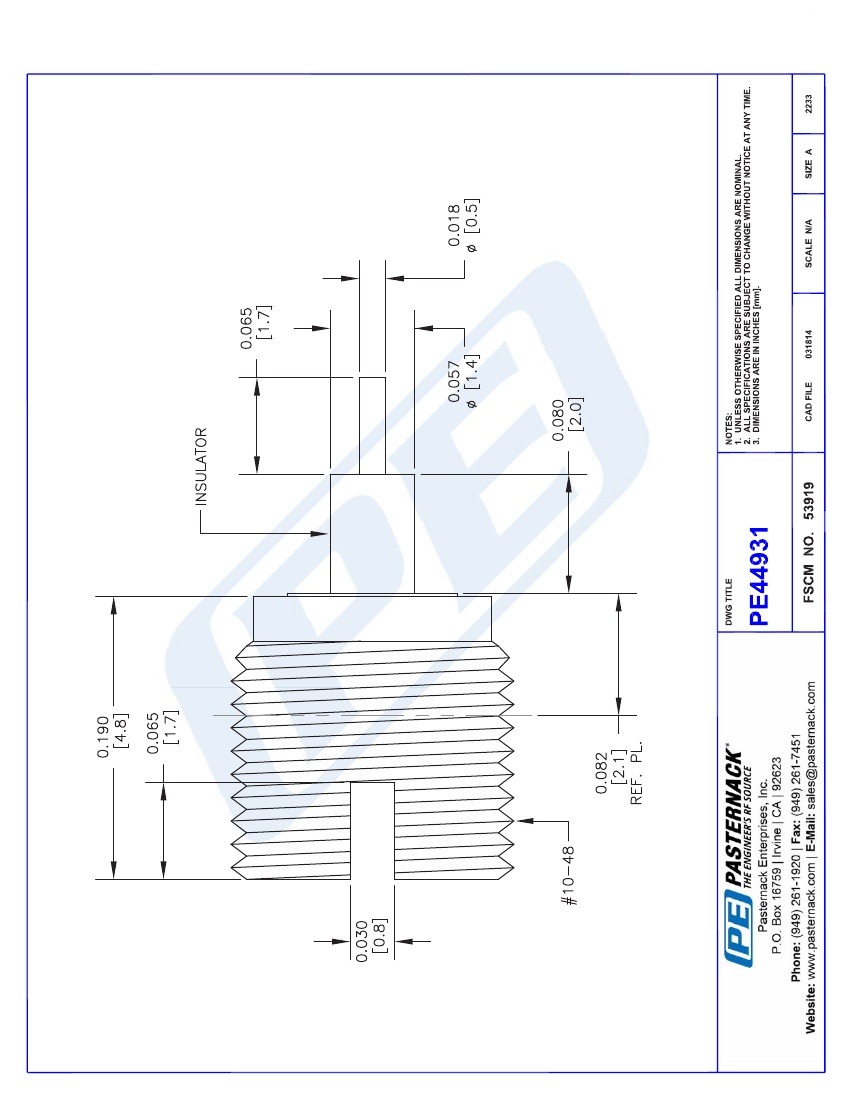

CAD Drawing
© 2014 Pasternack Enterprises All Rights Reserved
PE44931 REV 1.1
3
