4N70K-TA Overview

N-CHANNEL JUNCTIN SILICON FET

UNISONIC TECHNOLOGIES CO., LTD

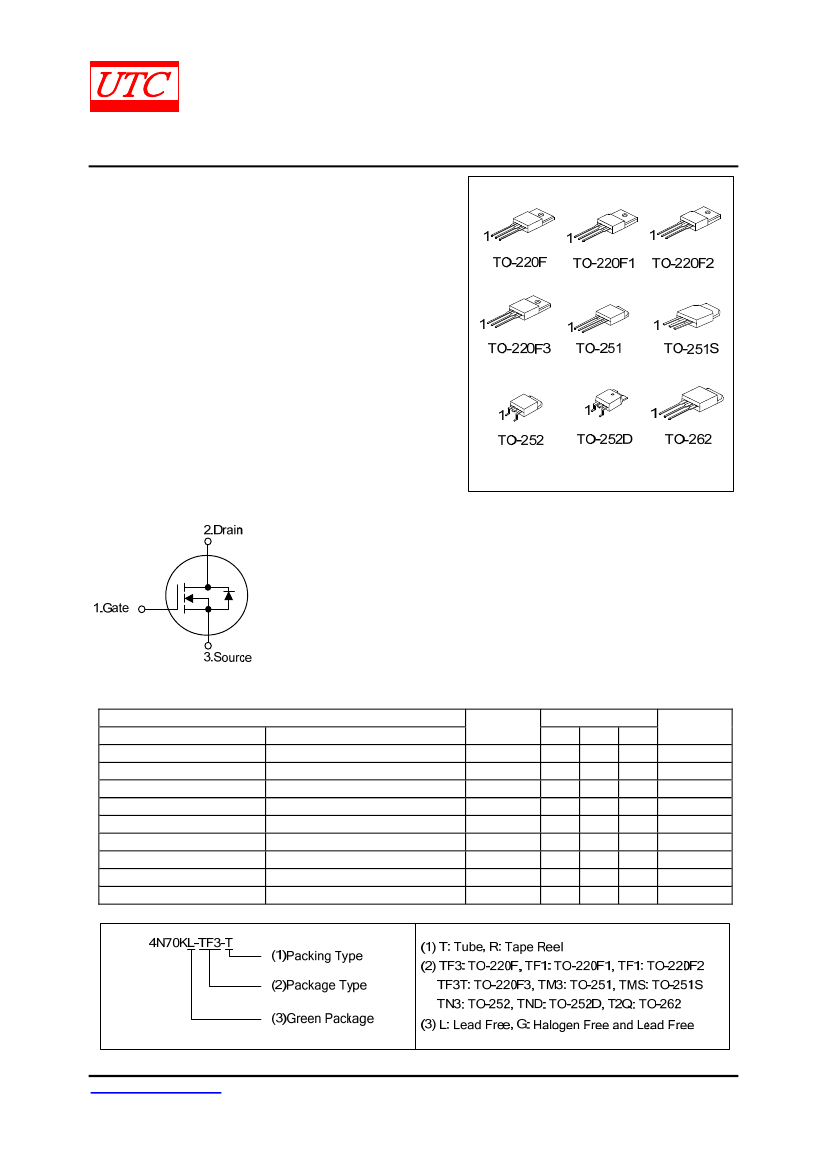

4N70K-TA
4.0A, 700V N-CHANNEL
POWER MOSFET
DESCRIPTION
The UTC
4N70K-TA
is a high voltage power MOSFET and is
designed to have better characteristics, such as fast switching
time, low gate charge, low on-state resistance and high rugged
avalanche. This high speed switching power MOSFET is usually
used in power supplies, PWM motor controls, high efficient DC to
DC converters and bridge circuits.
Power MOSFET
FEATURES
* R
DS(ON)
< 3.5Ω @ V
GS
= 10 V, I
D
= 2 A
* Fast Switching Capability
* Avalanche Energy Specified
* Improved dv/dt Capability, High Ruggedness
SYMBOL
ORDERING INFORMATION
Package
TO-220F
TO-220F1
TO-220F2
TO-220F3
TO-251
TO-251S
TO-252
TO-252D
TO-262
Pin Assignment
1
2
3
G
D
S
G
D
S
G
D
S
G
D
S
G
D
S
G
D
S
G
D
S
G
D
S
G
D
S
Packing
Tube
Tube
Tube
Tube
Tube
Tube
Tape Reel
Tape Reel
Tube
Ordering Number
Lead Free
Halogen Free
4N70KL-TF3-T
4N70KG-TF3-T
4N70KL-TF1-T
4N70KG-TF1-T
4N70KL-TF2-T
4N70KG-TF2-T
4N70KL-TF3T-T
4N70KG-TF3T-T
4N70KL-TM3-T
4N70KG-TM3-T
4N70KL-TMS-T
4N70KG-TMS-T
4N70KL-TN3-R
4N70KG-TN3-R
4N70KL-TND-R
4N70KG-TND-R
4N70KL-T2Q-T
4N70KG-T2Q-T
Note: Pin Assignment: G: Gate
D: Drain
S: Source
www.unisonic.com.tw
Copyright © 2015 Unisonic Technologies Co., Ltd
1 of 7
QW-R205-040.B
