2T100W-30 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Wireless rf/communication> Radio frequency and microwave> 2T100W-30

2T100W-30: DescriptionFixed Attenuator, 0MHz Min, 2500MHz Max, ROHS COMPLIANT PACKAGE; CategoryWireless rf/communication Radio frequency and microwave; File Size43KB，1 Pages; ManufacturerAPI Technologies; Websitehttp://www.apitech.com/about-api

Download Datasheet Parametric View All

2T100W-30 Overview

Fixed Attenuator, 0MHz Min, 2500MHz Max, ROHS COMPLIANT PACKAGE

2T100W-30 Parametric

Parameter Name	Attribute value
Reach Compliance Code	compli
Other features	TNC-F; TNC-M, I/P POWER-MAX(PEAK)=1000W
Nominal attenuation	30 dB
Characteristic impedance	50 Ω
structure	COAXIAL
Maximum input power (CW)	50 dBm
JESD-609 code	e4
Maximum operating frequency	2500 MHz
Minimum operating frequency
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
RF/Microwave Device Types	FIXED ATTENUATOR
Terminal surface	GOLD
Maximum voltage standing wave ratio	1.35
Base Number Matches	1

Preview

Download Datasheet

View All

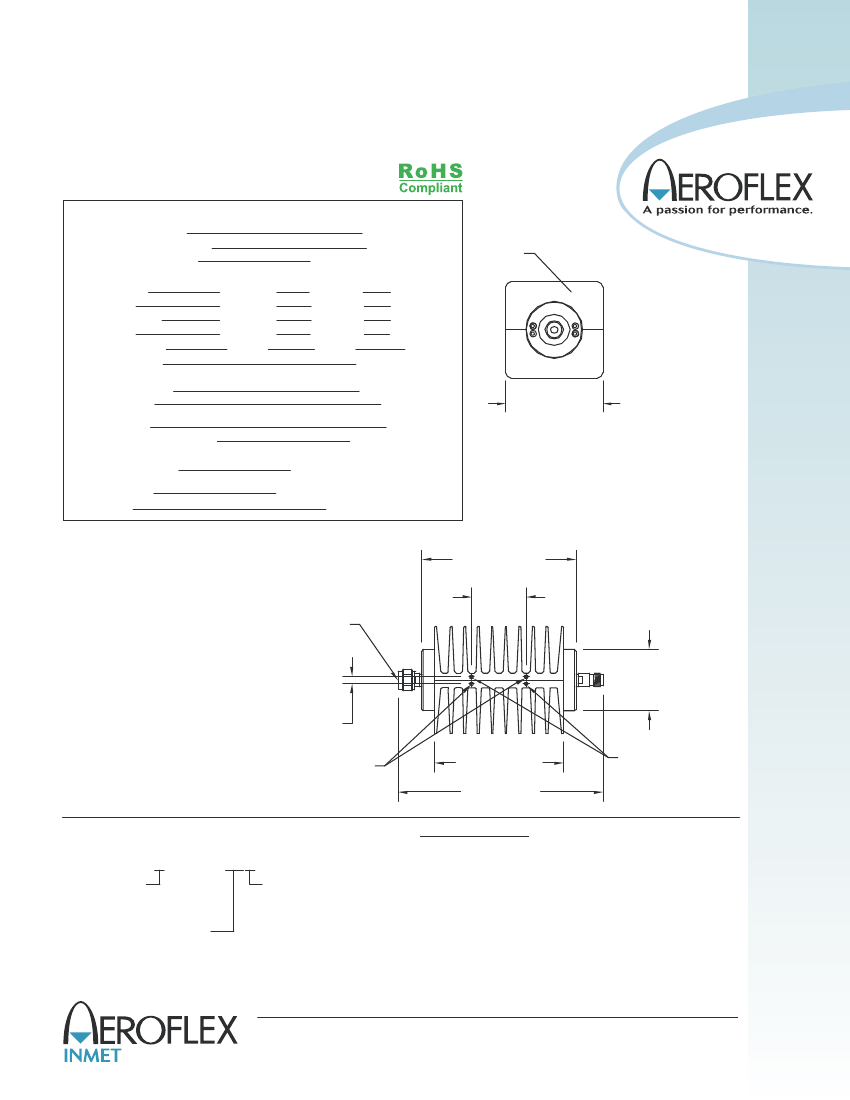

ATTENUATORS

TNC up to 6 GHz, 100 Watts

SPECIFICATIONS:

Models: XT100W-XX, XT100W-XXF, XT100W-XXM

Electrical:

Frequency Range

Standard Freq. Values

Standard dB Values

Attenuation Accuracy

3 & 6 dB

10 dB

20 & 30 dB

40 dB

VSWR (Max.)

Input Power

Reverse Power

Peak Power

Impedance

Operating Temp Range

DC - 6.0 GHz

2.5 & 6 GHz

3, 6, 10, 20, 30 & 40 dB

2.5 - 6 GHz

1.5 - 2.5 GHz

±0.50 dB

±0.75 dB

±2.50 dB

±0.75 dB

±1.50 dB

±2.50 dB

1.35:1

1.45:1

100 Watts Avg.

Derated Linearly to 20 Watts @ +1

Custom Mtg. hole Config.

may be Added to this

Surface

DC - 1.5 GHz

±0.50 dB

±0.75 dB

±1.50 dB

1.25:1

20 Watts Max.

1 kW Max.

(5uSec Pulse, .05% Duty Cycle)

3.46 [87.9]

SQ.

50 Ohms

-55°C to +1

25°C

Passivated Stainless Steel

Gold Plated Beryllium Copper

Anodized Aluminum

Mechanical:

TNC Connectors

Mates with MIL

-STD-348

END VIEW

TYPICAL

Units must be Mounted in such a way as to

Allow for Free Air Flow Around fins to Assure

Performance

Conductors

Housing

Note: Units are Unidirectional, Therefore Input Connector MUST be specified & will be Indicated on Unit

4.965 ±.025

Model Number:

XT100W-XX

[126.11 ±0.64]

Male/Female Connectors

Length: 6.53 ±.05 [165.9 ±1.3]

Pictured

INPUT

Model Number:

XT100W-XXF

Female/Female Connectors

Length: 6.62 ±.05 [168. ±1.3]

1.75

[44.5]

2x Ø1.98

[50.3]

.23 [5.8]

2X M4x0.7 TAP

x .50 [12.7] DP

4.125 [104.8]

6.53 ±.05

[165.9 ±1.3]

Ordering Examples:

Model Number:

2T100W-01

DC - 2.5 GHz, 1 dB; TNC - Male/Fem

2X 8-32UNC-2B TAP

x .50 [12.7] DP

Model Number:

XT100W-XXM

Male/Male Connectors

Length: 6.43 ±.05 [163.3 ±1.3]

HOW TO ORDER:

Model Number:

XT100W-XXY

Connector Configuration

Model Number:

2T100W-03F

= Male/Female

DC - 2.5 GHz, 3 dB; TNC - Fem/Fem

(Male Input)

F = Fem/Fem

Model Number:

6T100W-20FM

M = Male/Male

dB Value

FM = Female/Male

DC - 6 GHz, 20 dB; TNC - Female/Male

(Female Input)

Note: Dimensions in Brackets are Expressed in Millimeters and are for Reference Only.

Design, specifications are subject to change without notice. Contact factory for technical

XT100W-ATT: REV N

specifications before purchasing or use.

Freq. Range

2 = DC - 2.5 GHz

6 = DC - 6 GHz

Aeroflex / Inmet, Inc.

• 300 Dino Drive, Ann Arbor, MI 48103 • U.S.A.

888-244-6638 or 734-426-5553 • FAX: 734-426-5557

www.aeroflex.com/inmet • inmetsales@aeroflex.com
