AT28C64F-35DI datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > storage> storage> AT28C64F-35DI

AT28C64F-35DI: DescriptionEEPROM, 8KX8, 350ns, Parallel, CMOS, CDIP28; Categorystorage storage; File Size599KB，11 Pages; ManufacturerAtmel (Microchip)

Download Datasheet Parametric Compare View All

AT28C64F-35DI Overview

EEPROM, 8KX8, 350ns, Parallel, CMOS, CDIP28

AT28C64F-35DI Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Objectid	1155498986
package instruction	DIP, DIP28,.6
Reach Compliance Code	unknown
ECCN code	EAR99
Maximum access time	350 ns
command user interface	NO
Data polling	YES
JESD-30 code	R-XDIP-T28
JESD-609 code	e0
memory density	65536 bit
Memory IC Type	EEPROM
memory width	8
Number of terminals	28
word count	8192 words
character code	8000
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
organize	8KX8
Package body material	CERAMIC
encapsulated code	DIP
Encapsulate equivalent code	DIP28,.6
Package shape	RECTANGULAR
Package form	IN-LINE
Parallel/Serial	PARALLEL
power supply	5 V
Certification status	Not Qualified
ready/busy	YES
Maximum standby current	0.003 A
Maximum slew rate	0.045 mA
Nominal supply voltage (Vsup)	5 V
surface mount	NO
technology	CMOS
Temperature level	INDUSTRIAL
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
switch bit	NO
Maximum write cycle time (tWC)	0.2 ms

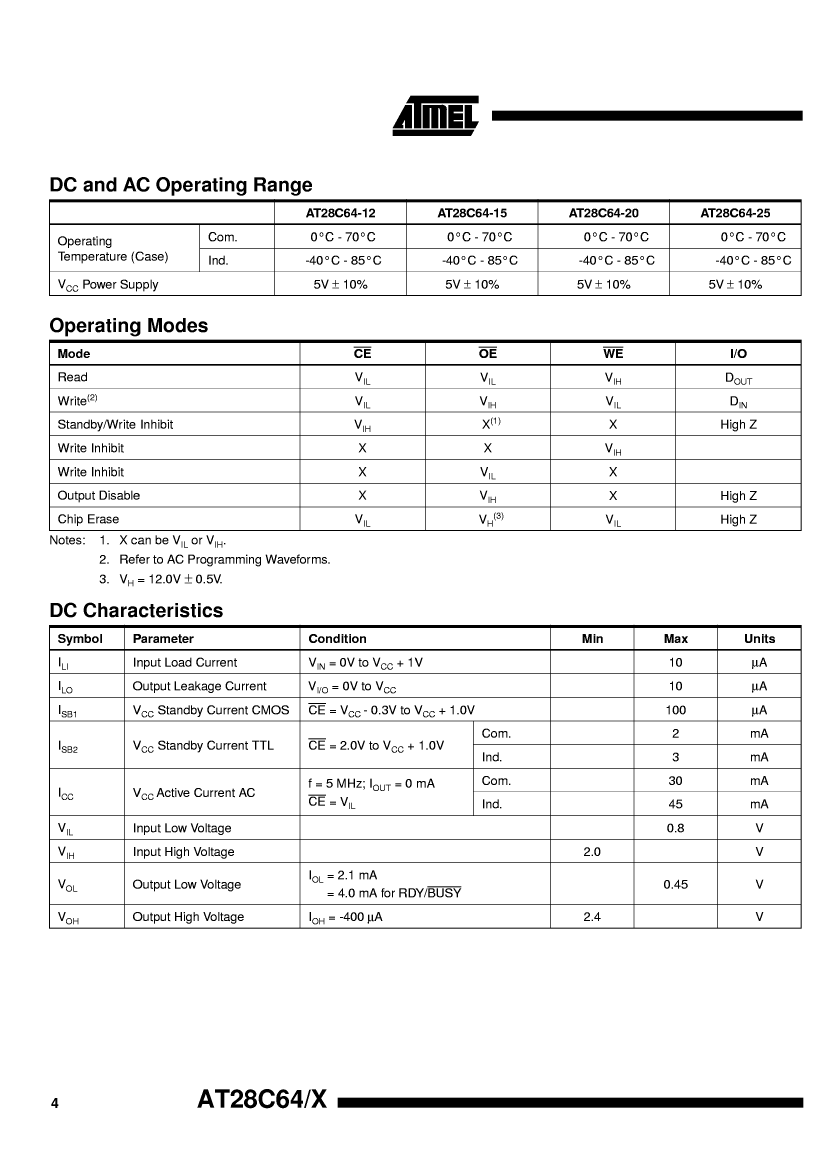

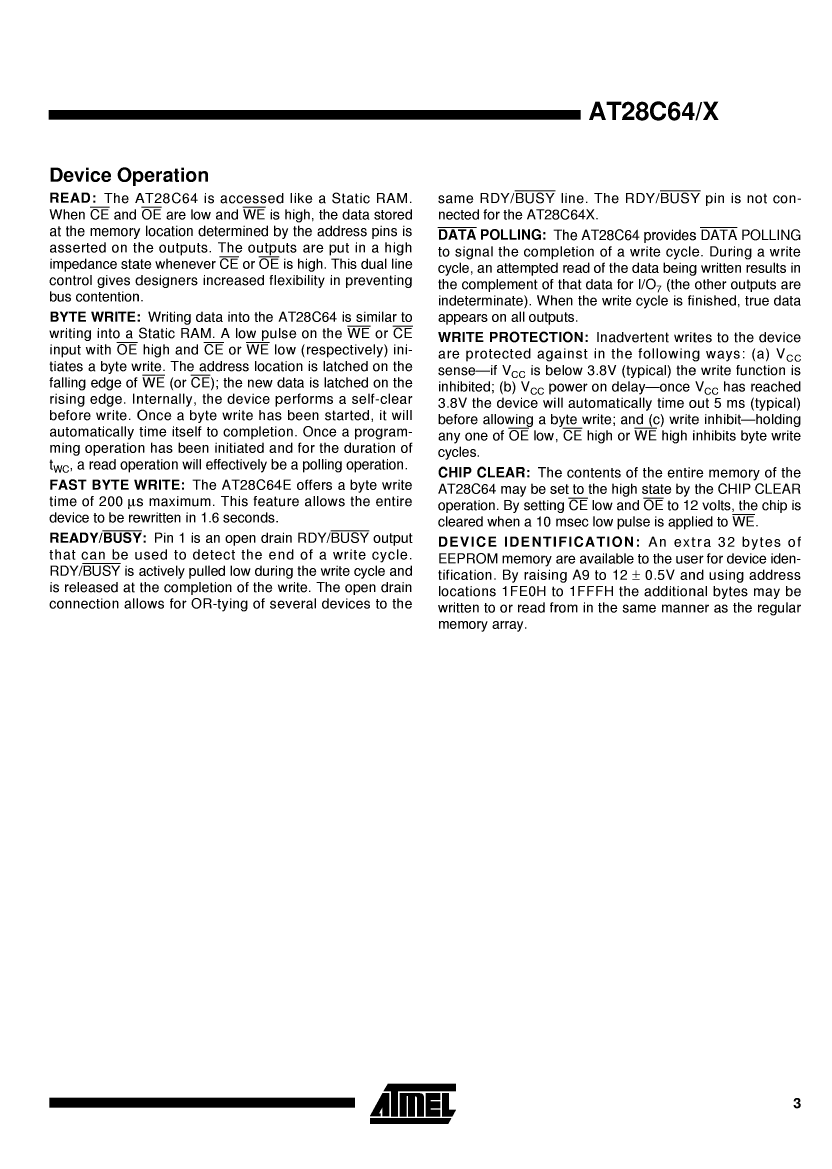

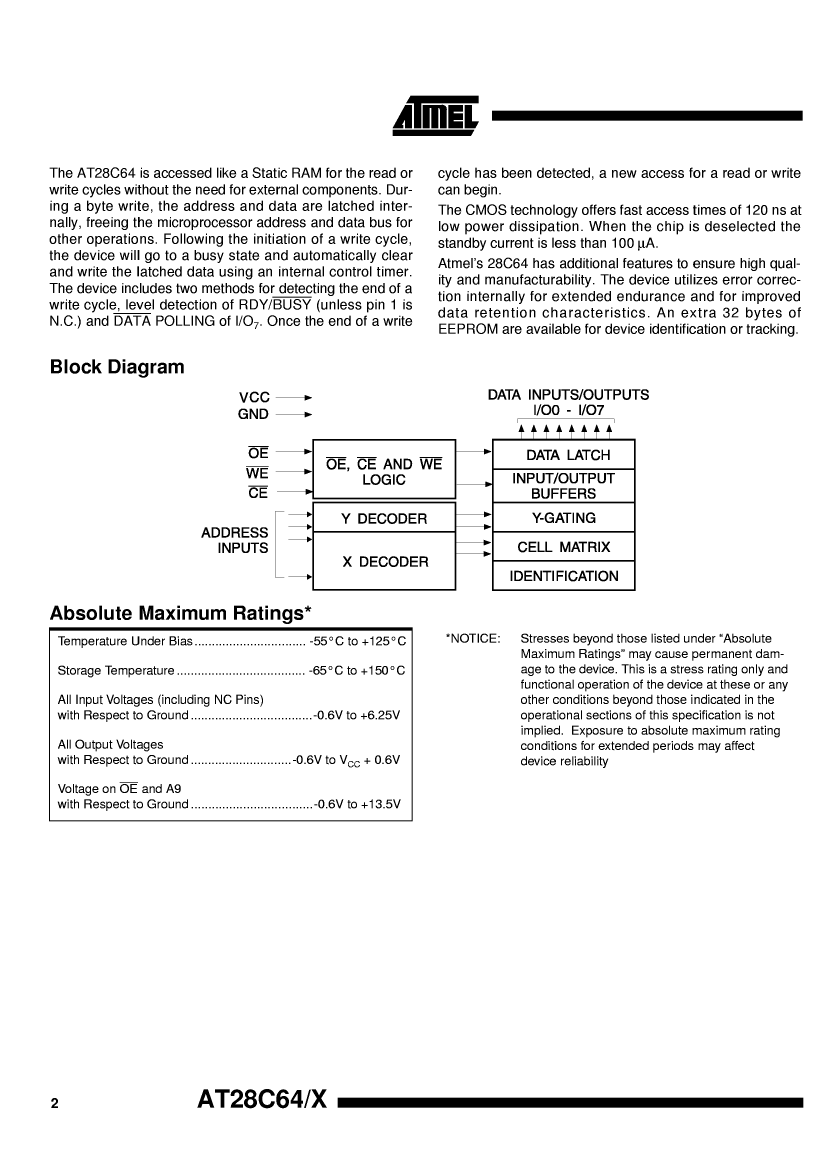

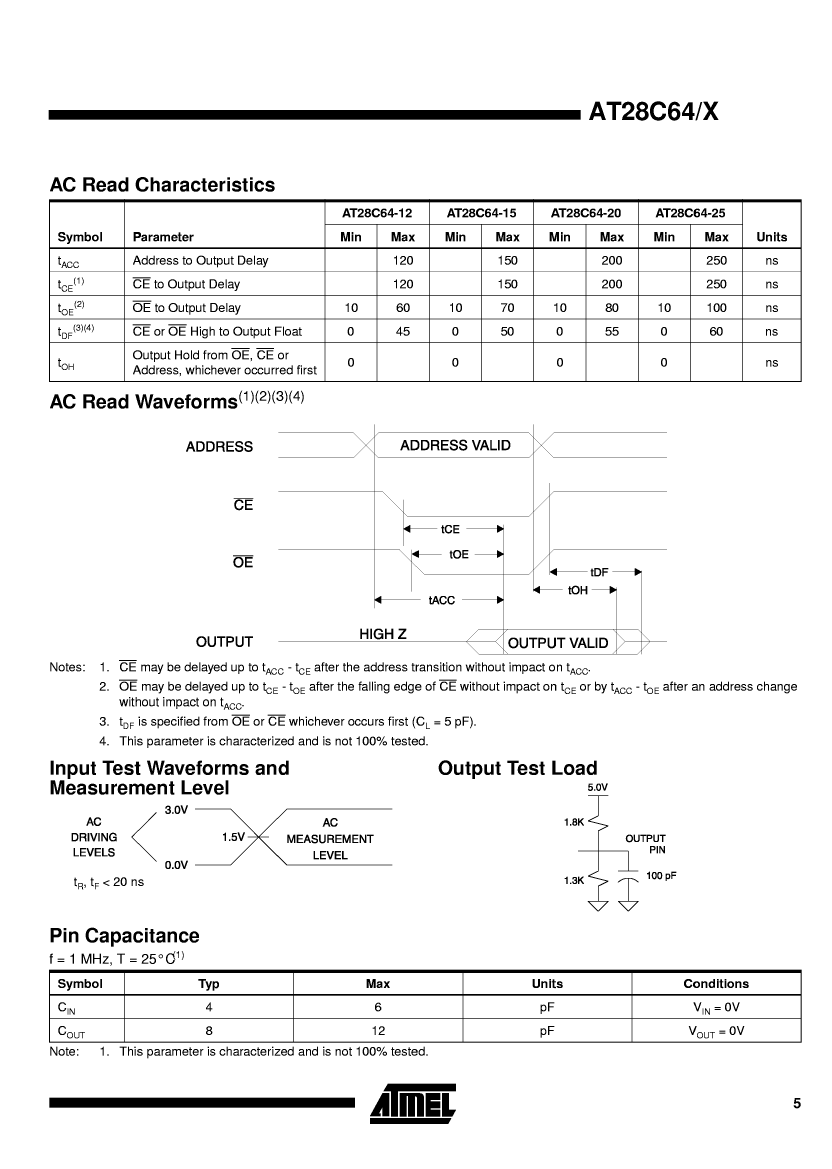

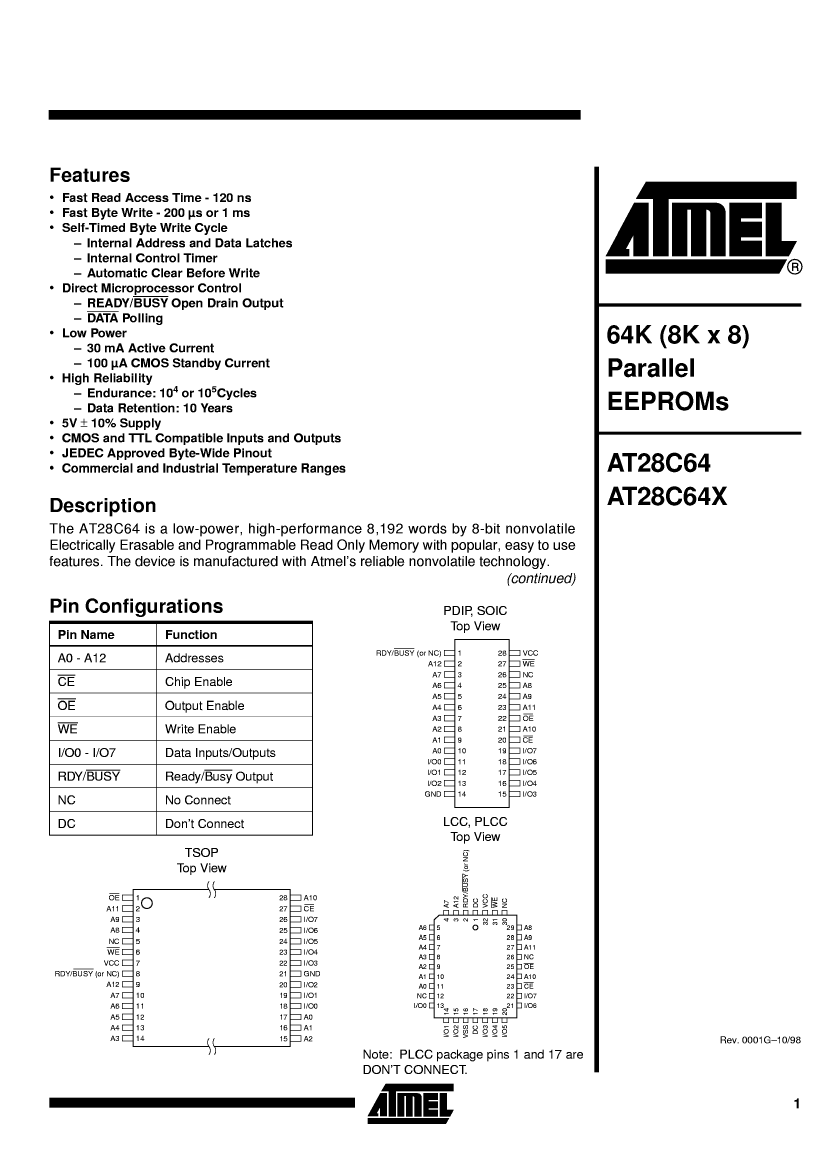

Preview

Download Datasheet

View All

AT28C64F-35DI Related Products

	AT28C64F-35DI	AT28C64X-30DI	AT28C64-35DI	AT28C64E-35DI	AT28C64E-45DC	AT28C64F-45DC
Description	EEPROM, 8KX8, 350ns, Parallel, CMOS, CDIP28	EEPROM, 8KX8, 300ns, Parallel, CMOS, CDIP28	EEPROM, 8KX8, 350ns, Parallel, CMOS, CDIP28	EEPROM, 8KX8, 350ns, Parallel, CMOS, CDIP28	EEPROM, 8KX8, 450ns, Parallel, CMOS, CDIP28	EEPROM, 8KX8, 450ns, Parallel, CMOS, CDIP28
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible
Objectid	1155498986	1164789232	1436133097	1529355746	1155498973	1155498992
package instruction	DIP, DIP28,.6	DIP, DIP28,.6	DIP, DIP28,.6	DIP, DIP28,.6	DIP, DIP28,.6	DIP, DIP28,.6
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
Maximum access time	350 ns	300 ns	350 ns	350 ns	450 ns	450 ns
command user interface	NO	NO	NO	NO	NO	NO
Data polling	YES	YES	YES	YES	YES	YES
JESD-30 code	R-XDIP-T28	R-XDIP-T28	R-XDIP-T28	R-XDIP-T28	R-XDIP-T28	R-XDIP-T28
JESD-609 code	e0	e0	e0	e0	e0	e0
memory density	65536 bit	65536 bit	65536 bit	65536 bit	65536 bit	65536 bit
Memory IC Type	EEPROM	EEPROM	EEPROM	EEPROM	EEPROM	EEPROM
memory width	8	8	8	8	8	8
Number of terminals	28	28	28	28	28	28
word count	8192 words	8192 words	8192 words	8192 words	8192 words	8192 words
character code	8000	8000	8000	8000	8000	8000
Maximum operating temperature	85 °C	85 °C	85 °C	85 °C	70 °C	70 °C
Minimum operating temperature	-40 °C	-40 °C	-40 °C	-40 °C	-	-
organize	8KX8	8KX8	8KX8	8KX8	8KX8	8KX8
Package body material	CERAMIC	CERAMIC	CERAMIC	CERAMIC	CERAMIC	CERAMIC
encapsulated code	DIP	DIP	DIP	DIP	DIP	DIP
Encapsulate equivalent code	DIP28,.6	DIP28,.6	DIP28,.6	DIP28,.6	DIP28,.6	DIP28,.6
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	IN-LINE	IN-LINE	IN-LINE	IN-LINE	IN-LINE	IN-LINE
Parallel/Serial	PARALLEL	PARALLEL	PARALLEL	PARALLEL	PARALLEL	PARALLEL
power supply	5 V	5 V	5 V	5 V	5 V	5 V
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum standby current	0.003 A	0.003 A	0.003 A	0.003 A	0.002 A	0.002 A
Maximum slew rate	0.045 mA	0.045 mA	0.045 mA	0.045 mA	0.03 mA	0.03 mA
Nominal supply voltage (Vsup)	5 V	5 V	5 V	5 V	5 V	5 V
surface mount	NO	NO	NO	NO	NO	NO
technology	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS
Temperature level	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL	COMMERCIAL	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE
Terminal pitch	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm
Terminal location	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL
switch bit	NO	NO	NO	NO	NO	NO
ready/busy	YES	-	YES	YES	YES	YES
Maximum write cycle time (tWC)	0.2 ms	-	1 ms	0.2 ms	0.2 ms	0.2 ms
