Film Capacitors – Power Factor Correction
Data logger BR6000-R12/S485 / BR7000
B44066R1311E230
DataLogSD
EPCOS AG 2011. Reproduction, publication and dissemination of this publication, enclosures hereto and the information
contained therein without EPCOS' prior express consent is prohibited.
Film Capacitors – Power Factor Correction
Data logger BR6000-R12/S485 / BR7000

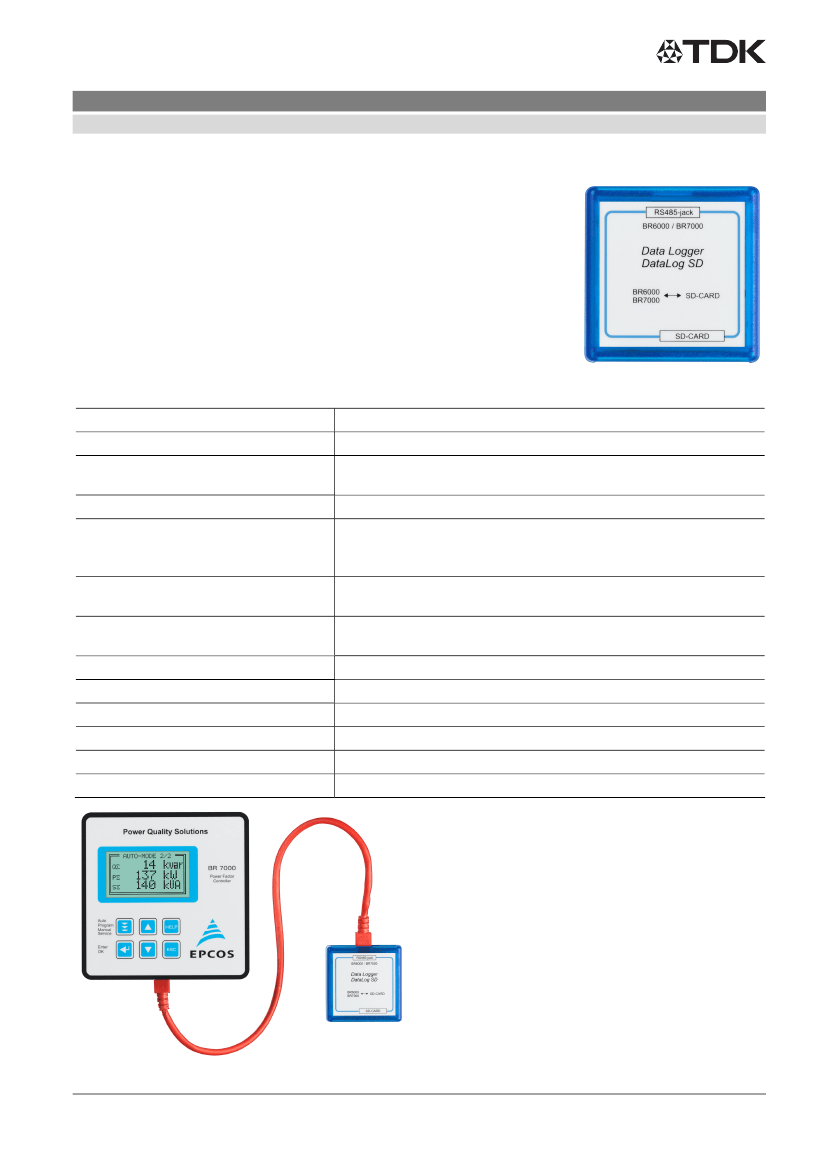

Features
Data logger for PF controller BR6000-R12/S485 / BR7000
Recording of grid parameters, switching behaviour
and temperature values of a system on SD-card
Visualisation and evaluation via comfortable
Windows-based software
Compact design in plastic casing
Evaluation software, SD-card, connection cable included
in the delivery
No extra auxiliary voltage supply needed
Technical data and specifications
Dimensions
Weight
Power supply
Power consumption
Recorded grid parameters
66 x 66 x 28 mm (h x w x d)
ca. 0.1 kg
B44066R1311E230
DataLogSD
Self-supporting via interface BR6000-R12/S485 /
BR7000
ca. 50 mA
Voltage, current, reactive, effective and apparent power, frequency,
harmonics up to 31
st
of V and I, power factor (cos
φ
), THD-V, THD-I,
energy
System temperature, step output, control history of the system
(switching operations, switching behavior, power-on-time)
BR6000-R12/S485 (version V5.0 onwards)
BR7000
1 sec./10 sec. switchable
System interface RS485 (RJ45-jack)
IP20
Compact device, SD-card 1 GB, Software-CD, patch cable 0.5 m
–10 … +50 °C
–20 … +75 °C
Recorded parameters of the
compensation system
Supported devices
Recording interval/recording time
Connections
Degree of protection (VDE 0470)
Extend of delivery
Max. ambient operating temperature
Storage temperature
FILM PFC PM
Please read
Cautions and warnings
and
Important notes
at the end of this document.
Page 2 of 4
May 2011
Film Capacitors – Power Factor Correction
Data logger BR6000-R12/S485 / BR7000

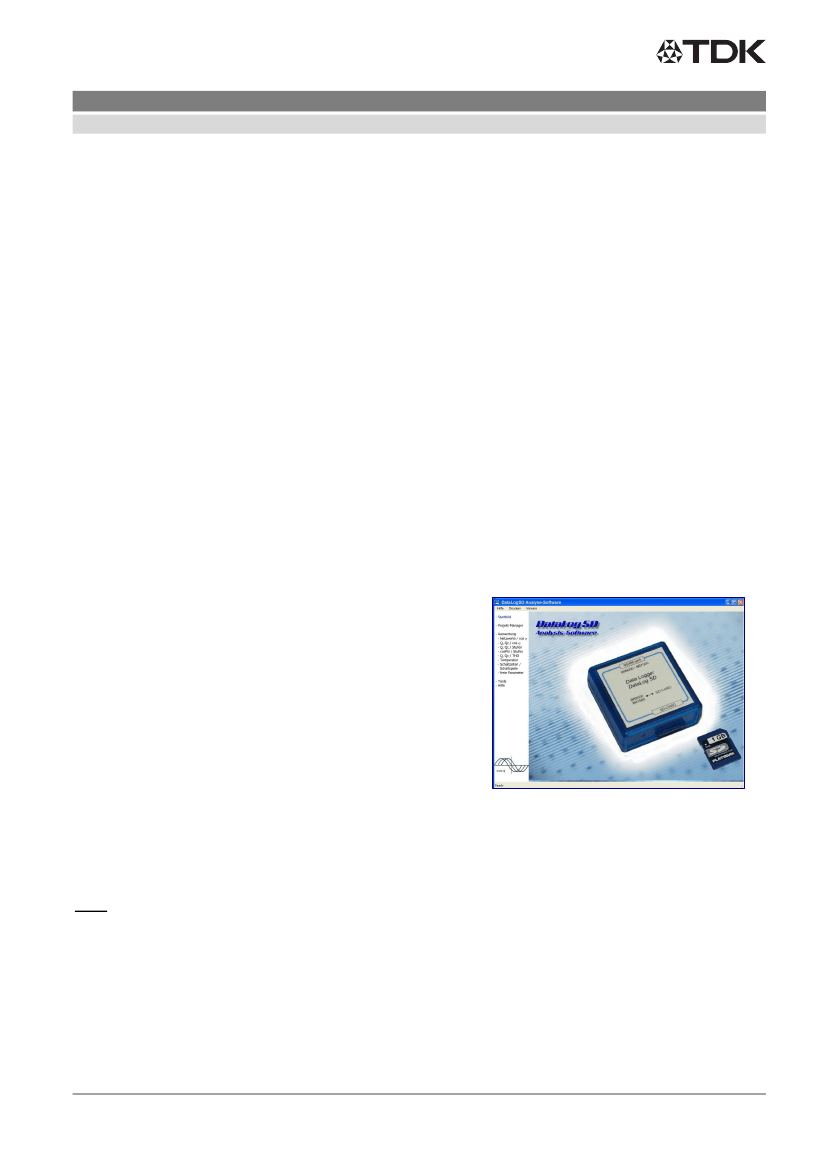

Areas of usage
B44066R1311E230
DataLogSD
Storage of grid parameters for a time interval for (graphical) evaluation via PC-software included in
the delivery
Recording and evaluation of minimum and maximum values
Recording of voltage and power curves
Recording and evaluation of harmonics in the grid
Evaluation of status and control behaviour of the compensation system by
Investigation of the correlation between switching behaviour, cos
φ
and remaining reactive power –
thus fault detection and optimization of the system settings
Evaluation of system dimensioning
Recording of switching operations and switching times of all steps: detection of wear-off of
switching devices
Review of target output of switched steps compared to the measured reactive power – detection of
defective steps possible
Recording of temperature in the compensation system, early detection of thermal problems
Evaluation software for PC (Windows-compatible) included in the delivery
The particular PC-software allows the comfortable evaluation of the measured data, assessment of
grid parameters.
Display of grid parameters, cos
φ,
reactive power
Reactive power of grid and system – cos
φ
Reactive power of grid and system – step status
Comparative display of ACTUAL and TARGET cos
φ
Diagrams of switched reactive power of the system
Harmonics
Temperature curve of the system during measuring
interval
Number of switching operations and switching times of
all steps as bar diagram – detection of wear-off
Cautions and warnings
The acquired measurement results must be considered as values that should help the user to track errors or for
evaluating a compensation system. The final rating is incumbent on the user.
Note
For detailed information about PFC capacitors and cautions, refer to the latest version of EPCOS PFC
Product Profile.
Important: Please note that the „General Safety Recommendations for Power Capacitors“ by ZVEI
(German Electrical and Electronic Manufacturers´ Association (ZVEI) have to be observed in addition
to the caution guidelines stated in the data sheet (Internet: www.epcos.com/pfc).
FILM PFC PM
Please read
Cautions and warnings
and
Important notes
at the end of this document.
Page 3 of 4
May 2011
