CMLSH05-10DA
SURFACE MOUNT SILICON
DUAL, ISOLATED OPPOSING
SCHOTTKY DIODE
w w w. c e n t r a l s e m i . c o m
DESCRIPTION:
The CENTRAL SEMICONDUCTOR CMLSH05-10DA
consists of two (2) individual electrically isolated
100 Volt Schottky diodes with opposing polarity and
packaged in the space saving SOT-563 surface
mount case. This device has been designed for size
constrained applications requiring high voltage Schottky
diodes.
MARKING CODE: 10C

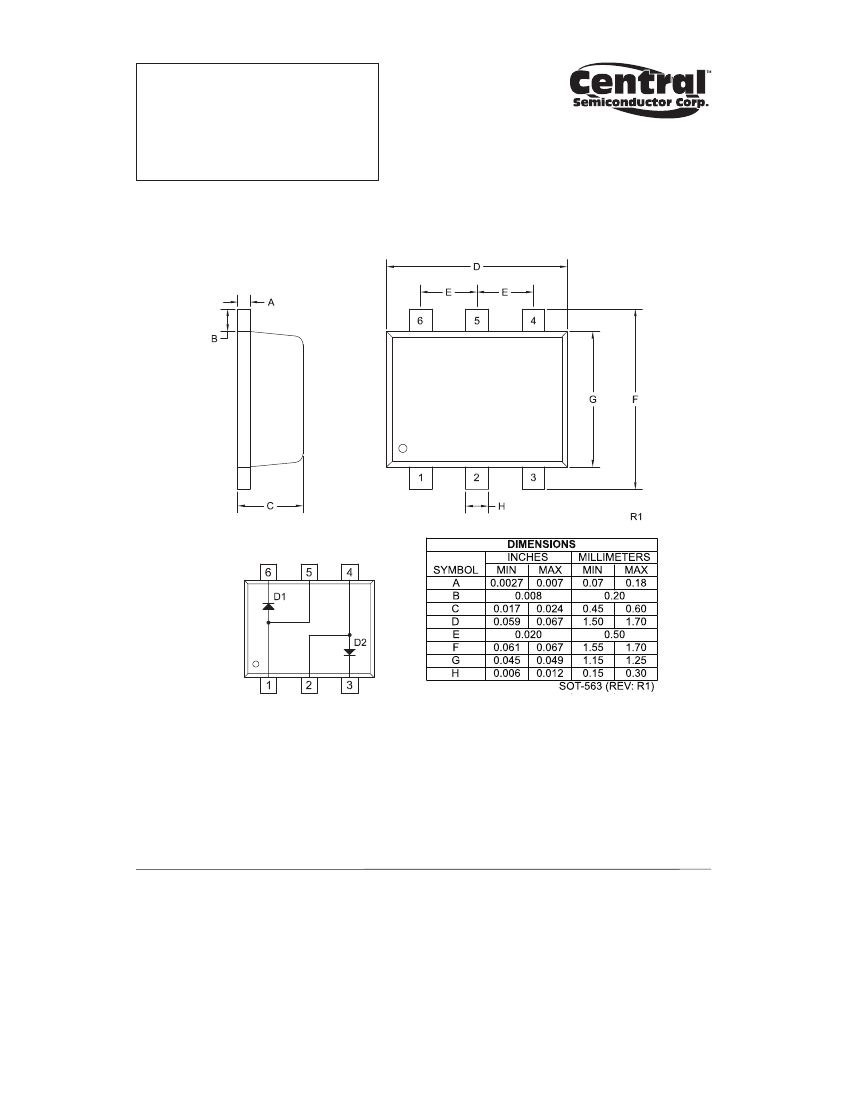

SOT-563 CASE
APPLICATIONS:
• LED drive circuits
• DC-DC converter output rectification
• Power management
• Reverse polarity protection
MAXIMUM RATINGS:
(TA=25°C)
Peak Repetitive Reverse Voltage
Continuous Forward Current
Peak Forward Surge Current, tp=10ms
Power Dissipation
Operating and Storage Junction Temperature
Thermal Resistance

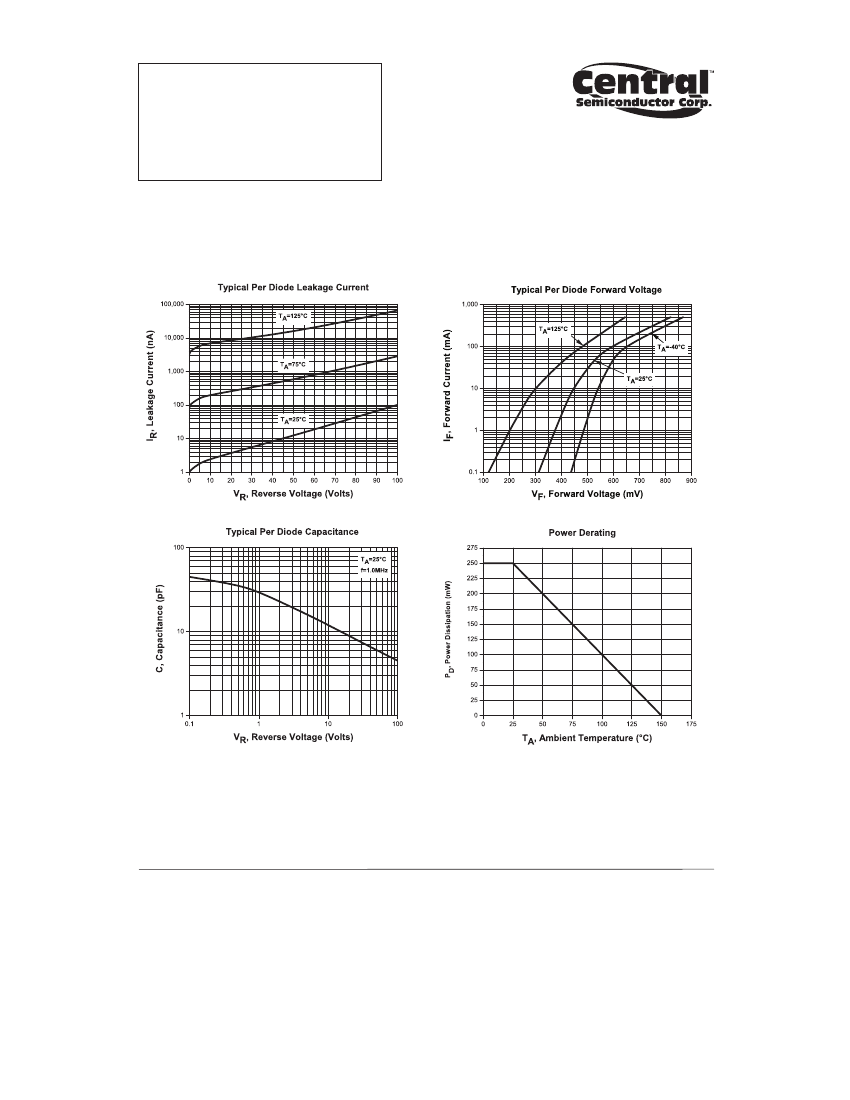

ELECTRICAL
SYMBOL
IR
BVR
VF
FEATURES:
• Smallest available 100V dual, isolated Schottky diode
• High reverse voltage
• Low forward voltage
• Low reverse leakage current
SYMBOL
VRRM
IF
IFSM
PD
TJ, Tstg
Θ
JA
UNITS
V
mA
mA
mW
°C
°C/W
100
500
750
250
-65 to +150
500
CHARACTERISTICS PER DIODE:
(TA=25°C unless otherwise noted)
TEST CONDITIONS
MIN
TYP
MAX
VR=100V
0.1
5.0
IR=200μA
100
110
IF=500mA
0.82
0.85
UNITS
μA
V
V
R3 (21-January 2014)
