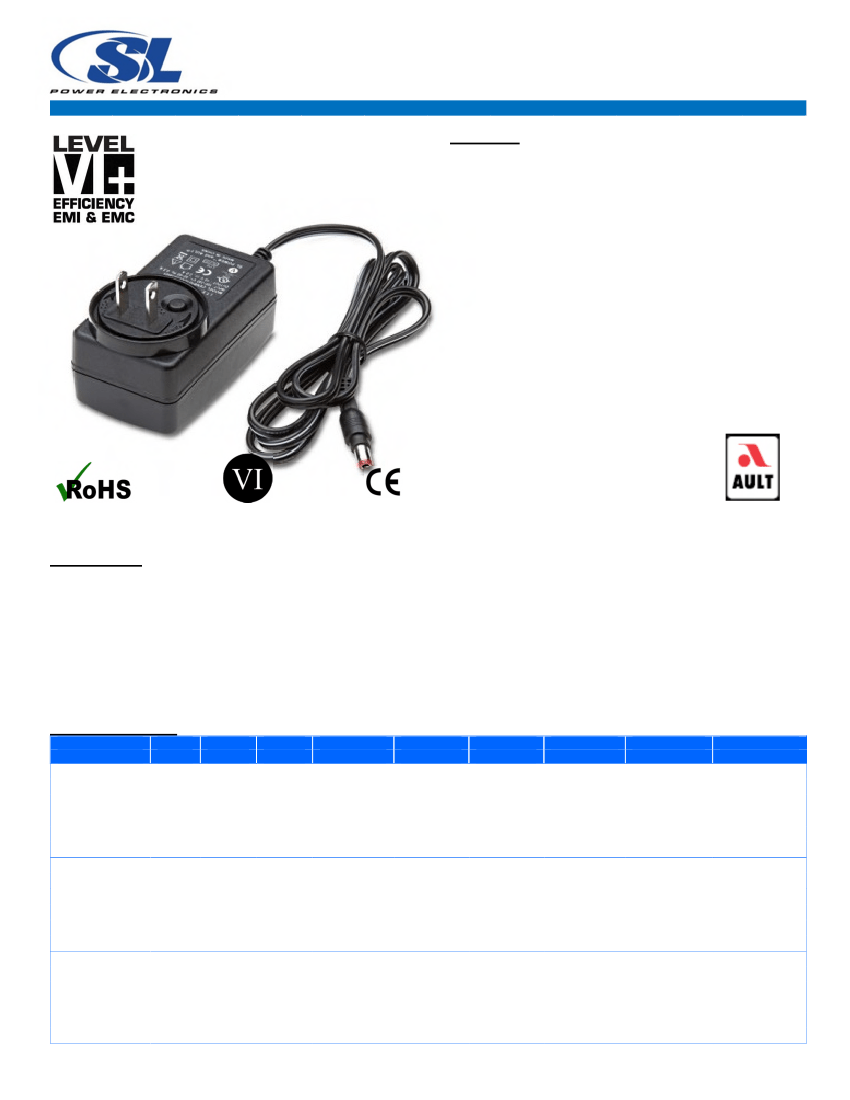

A high performance AC to DC external power supply family designed for medical applications. The ME30A Medical Series
low power external AC-DC power supplies are approved to safety EN/IEC/UL60601-1, 3rd edition with isolation levels
*
which satisfy the 2 MOPP requirements and designed to UL/EN/IEC60601-1-2, 4th edition for EMC . The ME30A Series
models will operate at universal input range of 90 to 264Vac over the wide temperature range of -20°C to +50°C,
delivering full rated output power up to +40°C and applicable output power derating at 50°C. These models are available
in desktop and wall-plug versions, include an IP22 rating per IEC60529 for the enclosure, and output cable terminated at
a variety of output connectors.
*
Consult Factory for Table 9 compliance information.
Model Selection
Model
Number
ME30A0503F01
ME30A1203F01
ME30A1503F01
ME30A1803F01
ME30A2403F01
ME30A4803F01
ME30A0503N01
ME30A1203N01
ME30A1503N01
ME30A1803N01
ME30A2403N01
ME30A4803N01
ME30A0503Q01
ME30A1203Q01
ME30A1503Q01
ME30A1803Q01
ME30A2403Q01
ME30A4803Q01
www.slpower.com
Volts
5.0V
12.0V
15.0V
18.0V
24.0V
48.0V
5.0V
12.0V
15.0V
18.0V
24.0V
48.0V
5.0V
12.0V
15.0V
18.0V
24.0V
48.0V
Output
Current
4.00A
2.50A
2.00A
1.67A
1.33A
0.63A
4.00A
2.50A
2.00A
1.67A
1.33A
0.63A
4.00A
2.50A
2.00A
1.67A
1.33A
0.63A
Output
Power
20W
30W
30W
30W
30W
30W
20W
30W
30W
30W
30W
30W
20W
30W
30W
30W
30W
30W
Ripple &
Noise¹
75mV pk-pk
120mV pk-pk
150mV pk-pk
180mV pk-pk
240mV pk-pk
480mV pk-pk
75mV pk-pk
120mV pk-pk
150mV pk-pk
180mV pk-pk
240mV pk-pk
480mV pk-pk
75mV pk-pk
120mV pk-pk
150mV pk-pk
180mV pk-pk
240mV pk-pk
480mV pk-pk
Line
Regulation
±1%
±1%
±1%
±1%
±1%
±1%
±1%
±1%
±1%
±1%
±1%
±1%
±1%
±1%
±1%
±1%
±1%
±1%
Load
Regulation
±5%
±5%
±5%
±5%
±5%
±5%
±5%
±5%
±5%
±5%
±5%
±5%
±5%
±5%
±5%
±5%
±5%
±5%
Overvoltage
Trip Range
5.75V-7.75V
14.4V-16.8V
18.0V-21.0V
21.6V-25.2V
28.8V-33.6V
55.0V-60.0V
5.75V-7.75V
14.4V-16.8V
18.0V-21.0V
21.6V-25.2V
28.8V-33.6V
55.0V-60.0V
5.75V-7.75V
14.4V-16.8V
18.0V-21.0V
21.6V-25.2V
28.8V-33.6V
55.0V-60.0V
Output
Connector
2.5 x 5.5 x
9.5mm
Straight Barrel
Type, center
positive
Input
Configuration
Class I
Desktop,
IEC60320 C14
Receptacle
2.5 x 5.5 x
9.5mm
Straight Barrel
Type, center
positive
Class II
Desktop,
IEC60320 C8
Receptacle
2.5 x 5.5 x
9.5mm
Straight Barrel
Type, center
positive
Class II
Desktop,
IEC60320 C18
Receptacle
ME30 Rev 1.6
1-FEB-16
PRELIMINARY
1
ME30
20 to 30W Single Output External Power
Medical Series
Model
Number
ME30A0503B01
ME30A1203B01
ME30A1503B01
ME30A1803B01
ME30A2403B01
ME30A4803B01
ME30A0503C01
ME30A1203C01
ME30A1503C01
ME30A1803C01
ME30A2403C01
ME30A4803C01
Notes:
Volts
5.0V
12.0V
15.0V
18.0V
24.0V
48.0V
5.0V
12.0V
15.0V
18.0V
24.0V
48.0V
Output
Current
4.00A
2.50A
2.00A
1.67A
1.33A
0.63A
4.00A
2.50A
2.00A
1.67A
1.33A
0.63A
Output
Power
20W
30W
30W
30W
30W
30W
20W
30W
30W
30W
30W
30W
Ripple &
Noise¹
75mV pk-pk
120mV pk-pk
150mV pk-pk
180mV pk-pk
240mV pk-pk
480mV pk-pk
75mV pk-pk
120mV pk-pk
150mV pk-pk
180mV pk-pk
240mV pk-pk
480mV pk-pk
Line
Regulation
±1%
±1%
±1%
±1%
±1%
±1%
±1%
±1%
±1%
±1%
±1%
±1%
Load
Regulation
±5%
±5%
±5%
±5%
±5%
±5%
±5%
±5%
±5%
±5%
±5%
±5%
Overvoltage
Trip Range
5.75V-7.75V
14.4V-16.8V
18.0V-21.0V
21.6V-25.2V
28.8V-33.6V
55.0V-60.0V
5.75V-7.75V
14.4V-16.8V
18.0V-21.0V
21.6V-25.2V
28.8V-33.6V
55.0V-60.0V
Output
Connector
2.5 x 5.5 x
9.5mm
Straight Barrel
Type, center
positive
Input
Configuration
Class II Wall-
Plug,
Interchangeabl
e Blades
(North
American Blade
included)²
2.5 x 5.5 x
9.5mm
Straight Barrel
Type, center
positive
Class II Wall-
Plug, Fixed
North American
Blades³
1. Measured at the output connector, with noise probe directly across output and load terminated with 0.1μF ceramic and 10μF low ESR capacitors. For 5V and
6V models, values listed are typical, 100mV pk-pk maximum with 0.1μF ceramic and 47μF low ESR capacitors used at measurement point.
2. Order blade kit KT-1027K for other blades (EU. UK, Australia)
3. For EU fixed blades, replace “C” in the model number with “M”, for UK blades, replace “C” with “G”, for Australia blades, replace “C” with “H”.
4
.
All specifications are typical at nominal input, full load, at 25°C ambient unless noted.
General Specifications
AC Input
Input Current
Inrush Current
Input Fuses
Earth Leakage
Current
Efficiency
Output Power
No Load Input
Power
Ripple and Noise
Output Voltage
Transient
Response
Regulation
Drop Test
100-240Vac, ±10%, 47-63Hz, 1∅
115Vac: 1.2A, 230Vac:0.6A
264Vac, cold start: will not exceed 40A
F1, F2: 2.0A, 250Vac fuses (line & neutral
lines) provided on all models
Input-GND: <500μA@264Vac, 60Hz, NC
Output-GND: <4mA@264Vac, 60Hz, NC
>87%, typical
20 to 30W continuous – See models chart for
specific voltage model ratings.
<0.1W per DoE Efficiency Level VI
Requirements
See models chart on pg 1.
See models chart on pg 1.
500µs response time for return to within 0.5%
of final value for any 50% load step over the
range of 5% to 100% of rated load,
∆i/∆t<
0.2A/µs. Max. voltage deviation is +/-3.5%.
See models chart on pg 1.
1.4m from table top to wooden platform, 6
faces.
Operating: 0.003g/Hz, 1.5grms overall, 3
axes, 10 min/axis, 1-500Hz.
Non-Oper.: random waveform, 3 minutes per
axis, 3 axes and Sine waveform, Vib.
frequency/acceleration: 10-500Hz/1g, sweep
rate of 1 octave / minutes, Vibration time of 10
sweeps / axes, 3 axes
See outline drawings
Turn On Time
Hold-up Time
Overtemperature
Protection
Overload Protection
Short Circuit
Protection
Overvoltage
Protection
Isolation
Safety Standards
Operating
Temperature
Temperature
Derating
Storage Temperature
Altitude
Relative Humidity
Less than 700mS @115Vac, full load
20mS min., at full Load, 100Vac input
Will shutdown upon an overtemperature
condition, auto-recovery.
130 to 180% of rating, Hiccup Mode
Hiccup Mode, auto recovery.
Hiccup mode, see models chart for trip
ranges.
Input-Output: 2 MOPP
Input-Ground: 1 MOPP
Output-Ground: 1 MOPP
EN/IEC/UL60601-1-1, 3rd edition
-20°C to +50°C
Start Up at -40°C, full load,
(warmup period before
all parameters are within published specifications).
Derate output power above 40°C to TBD at
50°C
-40°C to +85°C
Operating: to 5000m.
Non-operating: -500 to 40,000 ft.
5% to 95%, non-condensing
Operating: Half-sine, 20gpk, 10mS, 3 axes,
6 shocks total
Non-Operating: Half-sine waveform, impact
acceleration of 100G, Pulse duration of 6
mS, Number of shocks: 3 for each of the
three axis
>1,000,000 hours, full load, 110 & 220Vac
input, 25°C amb., per Telcordia 332 Issue 6.
>8 year life based on calculations at
115Vac/60Hz & 230Vac/50Hz, ambient 25°C
at 24 hrs per day, 365 days/year, 6 power up
cycles per day.
Vibration
Shock
Dimensions
Weight
MTBF
E-Cap Life
250g
All specifications are typical at nominal input, full load, at 25°C ambient unless noted.
www.slpower.com
ME30 Rev 1.6
1-FEB-16
PRELIMINARY
2
ME30
20 to 30W Single Output External Power
Medical Series
EMI/EMC Compliance
Conducted Emissions:
Radiated Emissions:
Common Mode Noise:
Electro-Static Discharge (ESD)
Immunity on Power ports:
Radiated RF EM Fields Susceptibility
Electrical Fast Transients (EFT) /Bursts:
Surges, Line to Line (Diff Mode) and Line
to GND (CMN Mode)
Conducted Disturbances induced by RF
Fields
Rated Power frequency magnetic fields
EN55011/CISPR22 Class B, FCC Part 15.107, Class B:
>
6db margin typ, at 115 and 230Vac
EN55022/CISPR22 Class B, FCC Part 15.109, Class B: >3db margin typ, at 115 and 230Vac
EN55024/IEC61000-4-5, Level 4, +/-2kV DM, +/-4kV CM, Criteria A
Surpasses IEC60601-1-2, 4
th
Edition requirements.
EN55022/IEC61000-4-6, 3.6V/m – Level 4, 0.15 to 80Mhz; and 12V/m) in ISM and amateur
radio bands between 0.15Mhz and 80Mhz, 80% AM at 1KHz
IEC60601-1-2, 4
th
Edition, Table 5.
EN55024/IEC1000-4-8, Level 4: 30A/m, 50/60 Hz
IEC60601-1-2, 4th Edition, Table 4
EN55024/IECEN61000-4-11: --100% dip for 10 mS, at 0, 45, 90, 135, 180, 225,
270 and 315 degrees, Criteria A
--100% dip for 20mS, Criteria A
--100% dip for 5000mS (250/300 cycles), Criteria B
-- 60% dip for 100mS, Criteria B
-- 30% dip for 500mS, Criteria A
IEC60601-1-2, 4th Edition, Table 5
EN55011/EN61000-3-2, Class A
EN61000-3-3
Voltage Interruptions, Dips, Sags &
Surges
Harmonic Current Emissions
Flicker Test
All specifications are typical at nominal input, full load, at 25°C ambient unless noted. Consult factory for information regarding testing for or usage under special
environments.

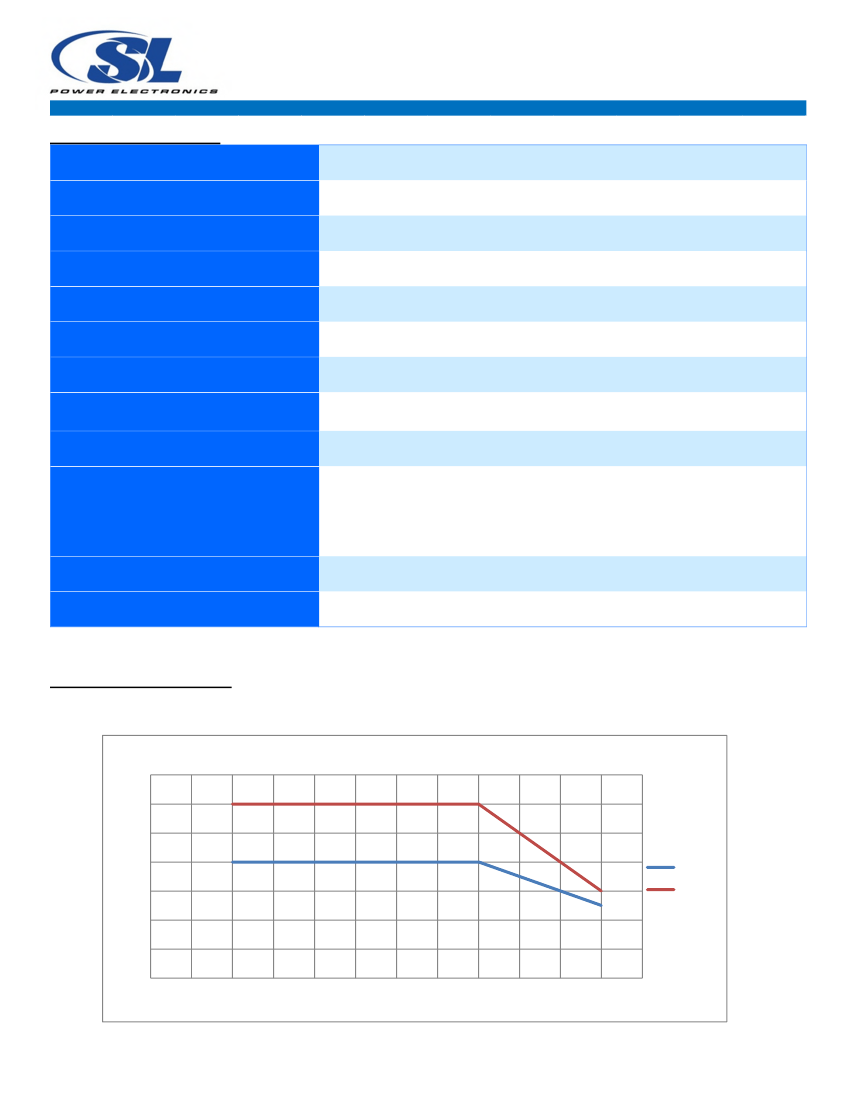

Output Power Derating
Output power is derated above 40°C as follows, for operation over the entire AC input range (90-264Vac).
35
30
Output Power - Watts
25
20
15
10
5
0
-40
-30
-20
-10
0
10
20
30
40
Ambient Temperature ͦ
C
ME30 Rev 1.6
1-FEB-16
5V
12V-48V
50
60
70
80
www.slpower.com
PRELIMINARY
3
ME30
20 to 30W Single Output External Power
Medical Series

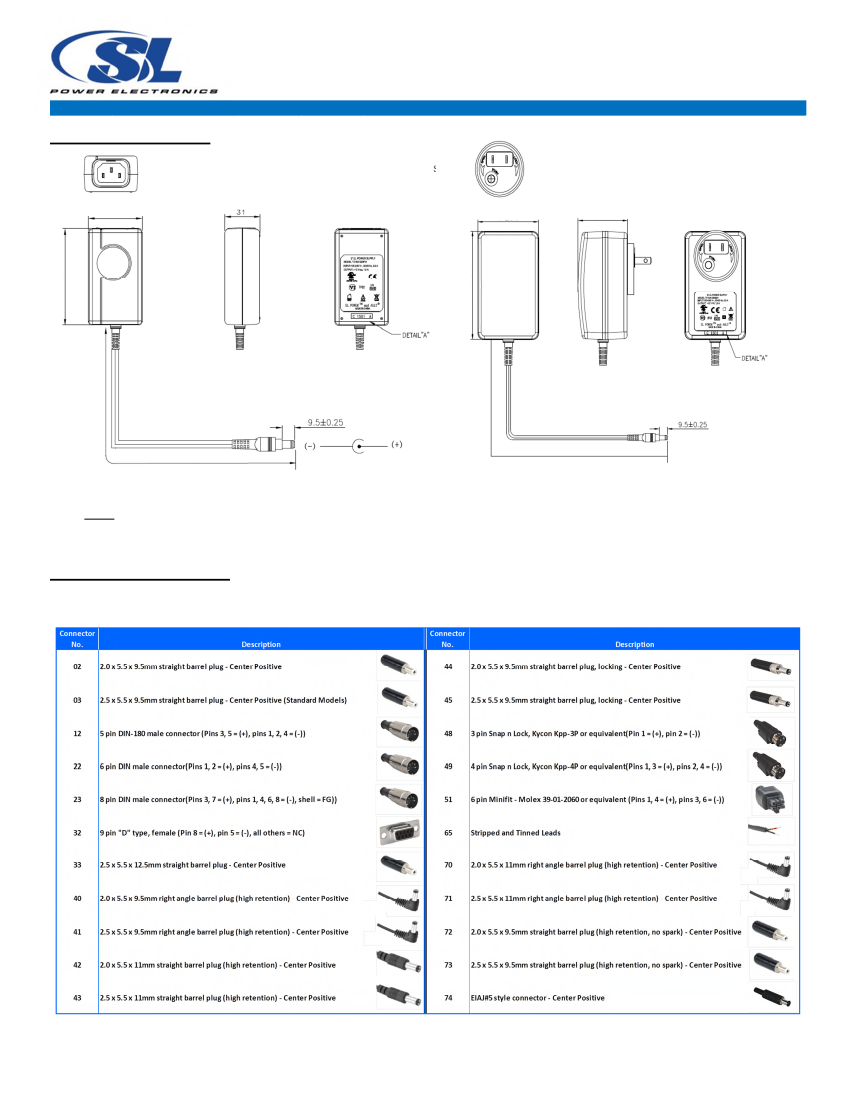

Mechanical Drawing
54
55
33.6
95.5
96
IEC60320 C14 Receptacle, 2.5 x 5.5 x 9.5mm Barrel Connector
Notes:
1450±50
Interchangeable N.A. Blade, 2.5 x 5.5 x 9.5mm barrel connector
1. All dimensions in mm.
2. Interchangeable blade models come with North American blade fitted. For other blades (EU, UK, Aust.) order blade kit KT1027K.
3. Cable length for 5V models is 1200 +/- 50mm.
Connector Information
Standard models include a 2.5 x 5.5 x 9.5mm straight barrel type connector (Ault #3), center positive. Other standard options are listed below.
The “03” in the standard model number is replaced by the applicable digits below:
