SSM-130-L-SV-P datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> SSM-130-L-SV-P

SSM-130-L-SV-P: DescriptionBoard Connector, 30 Contact(s), 1 Row(s), Female, Straight, 0.1 inch Pitch, Surface Mount Terminal, Black Insulator, Socket, ROHS COMPLIANT; CategoryThe connector The connector; File Size582KB，1 Pages; ManufacturerSAMTEC; Websitehttp://www.samtec.com/; Environmental Compliance

Download Datasheet Parametric View All

SSM-130-L-SV-P Overview

Board Connector, 30 Contact(s), 1 Row(s), Female, Straight, 0.1 inch Pitch, Surface Mount Terminal, Black Insulator, Socket, ROHS COMPLIANT

SSM-130-L-SV-P Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Objectid	1930856481
package instruction	ROHS COMPLIANT
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	E.L.P., TIGER CLAW
body width	0.1 inch
subject depth	0.29 inch
body length	3 inch
Body/casing type	SOCKET
Connector type	BOARD CONNECTOR
Contact to complete cooperation	GOLD (10) OVER NICKEL (50)
Contact completed and terminated	Matte Tin (Sn) - with Nickel (Ni) barrier
Contact point gender	FEMALE
Contact material	PHOSPHOR BRONZE
contact mode	RECTANGULAR
Contact resistance	10 mΩ
Contact style	SQ PIN-SKT
DIN compliance	NO
Dielectric withstand voltage	1000VAC V
Filter function	NO
IEC compliance	NO
maximum insertion force	1.39 N
Insulation resistance	5000000000 Ω
Insulator color	BLACK
insulator material	LIQUID CRYSTAL POLYMER
JESD-609 code	e3
MIL compliance	NO
Manufacturer's serial number	SSM
Plug contact pitch	0.1 inch
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	1
Maximum operating temperature	125 °C
Minimum operating temperature	-65 °C
Options	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR
PCB contact row spacing	2.8448 mm
Plating thickness	10u inch
Rated current (signal)	1 A
Guideline	UL
Terminal pitch	2.54 mm
Termination type	SURFACE MOUNT
Total number of contacts	30
Evacuation force-minimum value	.556 N

Preview

Download Datasheet

View All

F-214

SSM–115–L–SH

SSM–116–S–SV

(2,54 mm) .100"

SSM–120–S–DV

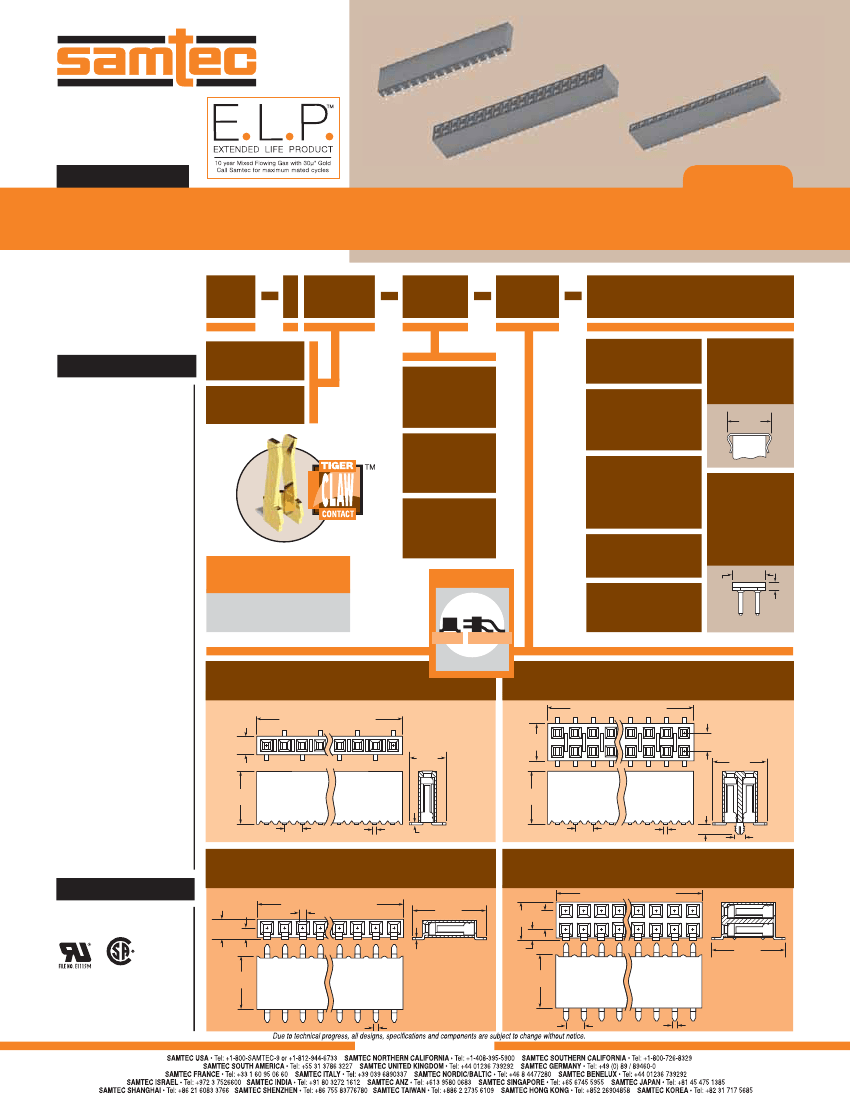

SSM SERIES

TIGER CLAW SURFACE MOUNT SOCKET

Mates with:

TSW, MTSW, TST,

TSS, ZST, ZSS, DW,

EW, ZW, TSM, HMTSW,

HTSW, TSSH, BST,

HTSS, TLW, MTLW

™

SSM

NO. PINS

PER ROW

PLATING

OPTION

ROW

OPTION

OTHER

OPTION

SPECIFICATIONS

For complete speciﬁcations

and recommended PCB layouts

see www.samtec.com?SSM

Insulator Material:

Black Liquid Crystal Polymer

Contact Material:

Phosphor Bronze

Plating:

Au or Sn over

50µ" (1,27 µm) Ni

Current Rating (SSM/TSW):

5.2 A per pin

(1 pin powered per row)

Voltage Rating:

475 VAC (-SV/-DV mated

with TSW)

450 VAC (-SH/-DH mated

with TSM)

Operating Temp Range:

-55°C to +125°C with Gold

-55°C to +105°C with Tin

Contact Resistance:

10 mΩ

Insertion Depth:

SV/DV is (4,34 mm) .171" to

(7,24 mm) .285" or pass-through

from top; (5,56 mm) .219" plus

board thickness minimum from

bottom; SH/DH is (4,34 mm)

.171" to (6,35 mm) .250"

Insertion Force:

(Single contact only)

5 oz (1,39 N) average

Normal Force:

125 grams (1,21 N) average

Withdrawal Force:

(Single contact only)

2 oz (0,56 N) average

RoHS Compliant:

Yes

02 thru 36

(–SV, – SH, –DH)

02 thru 40

(–DV)

–F

= Gold ﬂash

on contact,

Matte Tin on tail

= Bottom Entry

(–DV & –SV only)

–BE

–LC

= Metal Pick &

Place Pad

(5 positions min.)

–DV only

(5,94) .234

(5,72) .225

–M

–L

= 10µ" (0,25 µm)

Gold on contact,

Matte Tin on tail

= Locking Clip

(–DV & –SV only)

Contact Samtec for

–DH & –SH

–S

= 30µ" (0,76 µm)

Gold on contact,

Matte Tin on tail

= (6,50 mm) .256" DIA

Polyimide ﬁlm

Pick & Place Pad

(2 positions min.)

–DV & –SV only

–K

ALSO AVAILABLE

(MOQ Required)

• Alignment pin

Contact Samtec.

= Polarized Position

(–BE not available)

–“XXX”

–TR

= Plastic Pick

& Place Pad

(–DV & –SV only)

(6 pos. minimum,

contact Samtec

for availability on

smaller positions)

(4,95)

.195

(10,03)

.395

–P

APPLICATIONS

TSM

SSM TSSH

= Tape & Reel Packaging

(29 positions max.)

(1,27)

.050

–SV

= Single Row Vertical Pin

(2,54) .100 x No. of Positions

(2,54)

.100

HORIZONTAL

–DV

= Double Row Vertical Pin

(2,54) .100 x No. of Positions

(5,08)

.200

(4,42)

.174

(2,54)

.100

(7,04)

.277

Processing:

Lead–Free Solderable:

Yes

–DH Coplanarity:

Less than 28 positions

(0,15 mm) .006" max

More than 27 positions

(0,20 mm) .008" max

–SH, –SV, –DV Coplanarity:

(0,15 mm) .006" max

(7,37)

.290

(7,37)

.290

(2,54) .100

(0,51) .020

(0,13) .005

(2,54) .100

(0,51) .020

(1,27) .050

(1,42) .056

–SH

= Single Row Horizontal Pin

(1,78)

.070

(3,18)

.125

(0,25)

.010

(2,54) .100 x No. of Positions

(0,89) .035 SQ TYP

(11,00)

.433

(5,72) (2,54)

.225 .100

(1,78)

.070

(8,13)

.320

–DH

= Double Row Horizontal Pin

(2,54) .100 x No. of Positions

RECOGNITIONS

For complete scope

of recognitions see

www.samtec.com/quality

(11,18)

.440

FILE NO: 090871_0_000

(8,13)

.320

Note:

Some lengths, styles
