RB151-RB157 / W005-W10 /
W005G-W10G / W005M-W10M / W005GM-W10GM
Glass Passivated Single-Phase Bridge Rectifiers
Reverse Voltage 50 to 1000 Volts Forward Current 1.5 Amperes
Features
Surge overload ratings to 40 or 50 amperes peak
Ideal for printed circuit board
Reliable low cost construction technique results in inexpensive
product
High temperature soldering guaranteed:
260
o
C / 10 seconds / 0.375” (9.5mm)
lead length at 5 lbs. (2.3 kg) tension
Mechanical Data
Case: Molded plastic
Lead: solder plated
Polarity: As marked
Weight: 1.07 grams (RB-15), 1.10 grams (WOB)

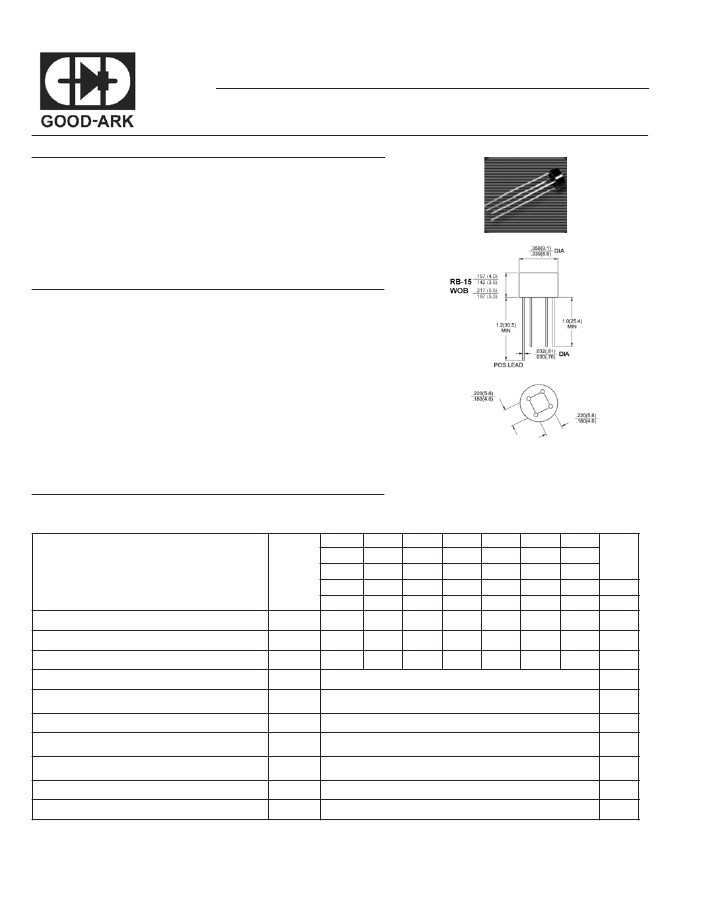

Package outline dimensions in inches (millimeters)
Maximum Ratings and Electrical Characteristics
Rating at 25
o
C ambient temperature unless otherwise specified.
Single phase, half wave, 60 Hz, resistive or inductive load.
For capacitive load, derate current by 20%
R B 151
W005
Parameter
Symbols
W005M
W005G
W005GM
R B 152
W01
W01M
W01G
W01GM
R B 153
W02
W02M
W02G
W02GM
R B 154
W04
W04M
W04G
W04GM
R B 155
W06
W06M
W06G
W06GM
R B 156
W08
W08M
W08G
W08GM
R B 157
W10
W10M
W10G
W10GM
Units
Maximum recurrent peak reverse voltage
Maximum RMS voltage
Maximum DC blocking voltage
Maximum average forward rectified current at T
A
=50
o
C
Peak forward surge current, 8.3ms single half sine-wave
superimposed on rated load (JEDEC Method)
Max. instantaneous forward voltage drop per element at 0.75A
Maximum DC reverse current
at rated DC blocking voltage per element
Typical thermal resistance per leg (Note 1)
Operating junction temperature range
Storage temperature range
T
A
=25 C
o
V
RRM
V
RMS
V
DC
I
F(AV)
I
FSM
V
F
I
R
R
θ
JA
R
θ
JL
T
J
T
STG
50
35
50
100
70
100
200
140
200
400
280
400
1.5
600
420
600
800
560
800
1000
700
1000
Volts
Volts
Volts
Amps
Amps
Volt
uA
o
Wxxx or WxxxM 40.0, RB15x, WxxxG & WxxxGM 50.00
1.0
10.0
500
(RB15x, Wxxx, WxxxM @T
A
=100
o
C, WxxxG or WxxxGM @T
A
=125
o
C)
36
13
Wxxx or WxxxM -55 to +125, RB15x, WxxxG & WxxxGM -55 to +150
-55 to +150
C/W
o
C
C
o
Notes:
1. Thermal resistance from junction to ambient and from junction to lead mounted on P.C.B. with 0.2 x 0.2" (5 x 5mm) copper pads
428

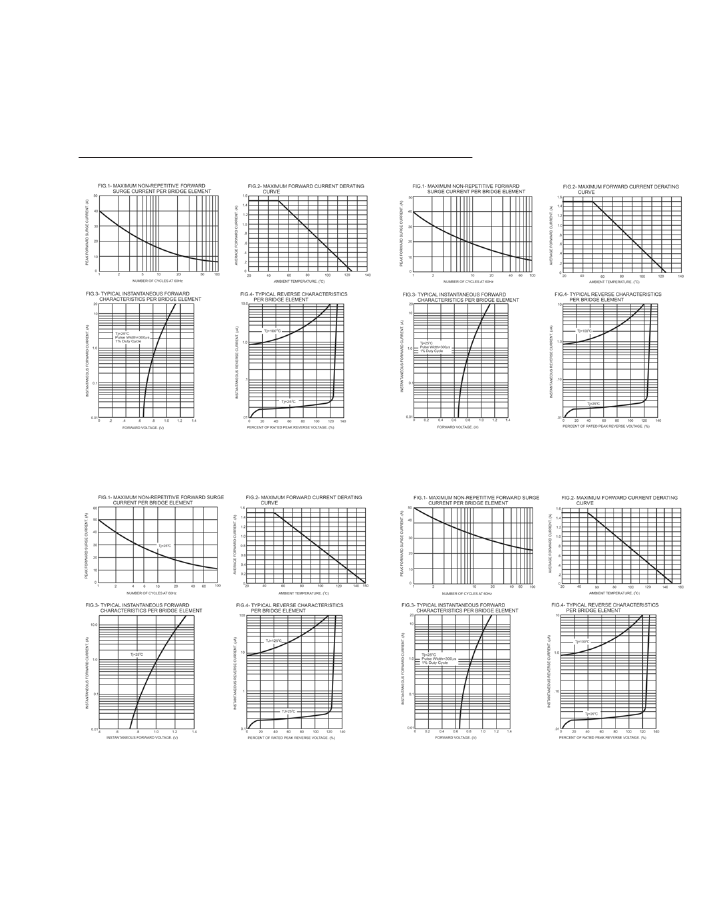

RATINGS AND CHARACTERISTIC CURVES
(T
A
= 25
o
C unless otherwise noted) - W005 thru W10
(T
A
= 25
o
C unless otherwise noted) - W005M thru W10M
(T
A
= 25
o
C unless otherwise noted) - RB151 thru RB157, W005G thru W10G
(T
A
= 25
o
C unless otherwise noted) - W005GM thru W10GM
429
