N Male to 7/16 DIN Female LSZH Jacketed Low PIM Cable
200 CM Length Using SR401FLJ Low PIM Coax, RoHS
TECHNICAL DATA SHEET
Configuration
Connector 1
Connector 2
Cable Type
N Male
7/16 DIN Female
PE-SR401FLJ Low PIM
PE3C2014-200CM
Electrical Specifications
Frequency Range
Impedance
Maximum VSWR
RF Shielding
Maximum Input Power
Passive Intermodulation
Typical Performance by Frequency
Frequency 1
Frequency
Insertion Loss,
Power Handling, KWatts
Frequency 2
Frequency
Insertion Loss
Power Handling
Frequency 3
Frequency
Insertion Loss
Power Handling
500 MHz
0.3 dB
2
DC to 3 GHz
50 Ohms
1.15:1
-100 dB
2 KWatts
-160 dBc
1000 MHz
0.525 dB
1.5 KWatts
3 GHz
0.918 dB
950 Watts
Mechanical Specifications
Temperature
Temperature Operating Range
Size
Length
.
-55 to +125 deg C
78.74 in [200 cm]
5 in [127 mm]
One Time Minimum Bend Radius
Cable
Cable Type
Cable Inner Conductor
Cable Outer Conductor
Dielectric Type
Jacket Material
Jacket Diameter
PE-SR401FLJ Low PIM
Copper, Silver
Copper, Tin
PTFE
PVC LSZH
0.276 in [7.01 mm]
Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications:
N Male to 7/16 DIN Female LSZH Jacketed Low PIM Cable 200 CM Length Using SR401FLJ
Low PIM Coax, RoHS PE3C2014-200CM
PE3C2014-200CM REV 1.0
1
N Male to 7/16 DIN Female LSZH Jacketed Low PIM Cable
200 CM Length Using SR401FLJ Low PIM Coax, RoHS
TECHNICAL DATA SHEET
Connector 1
Type
Configuration
Inner Conductor Material and Plating
Coupling Nut Material and Plating
Hex Size
Body Material and Plating
Dielectric Type
Connector 2
Type
Configuration
Inner Conductor Material and Plating
Body Material and Plating
Dielectric Type
N Male
Straight
Brass, Silver
Brass, Tri-Metal
3/4 inch
Brass, Silver
PTFE
PE3C2014-200CM
7/16 DIN Female
Straight
Beryllium Copper, Silver
Brass, Silver
PTFE
Compliance Certifications
(visit www.Pasternack.com for current document)
RoHS Compliant
Notes:
• Values at +25 °C, sea level
Yes
N Male to 7/16 DIN Female LSZH Jacketed Low PIM Cable 200 CM Length Using SR401FLJ Low PIM Coax, RoHS from
Pasternack Enterprises has same day shipment for domestic and International orders. Our RF, microwave and millimeter
wave products maintain a 99% availability and are part of the broadest selection in the industry.
Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications:
N Male to 7/16 DIN Female LSZH Jacketed Low PIM Cable 200 CM Length Using SR401FLJ
Low PIM Coax, RoHS PE3C2014-200CM
URL:
http://www.pasternack.com/n-male-7-16-female-sr401flj-low-pim-cable-assembly-pe3c2014-200cm-p.aspx
PE3C2014-200CM REV 1.0
2
N Male to 7/16 DIN Female LSZH Jacketed Low PIM Cable
200 CM Length Using SR401FLJ Low PIM Coax, RoHS
PE3C2014-200CM

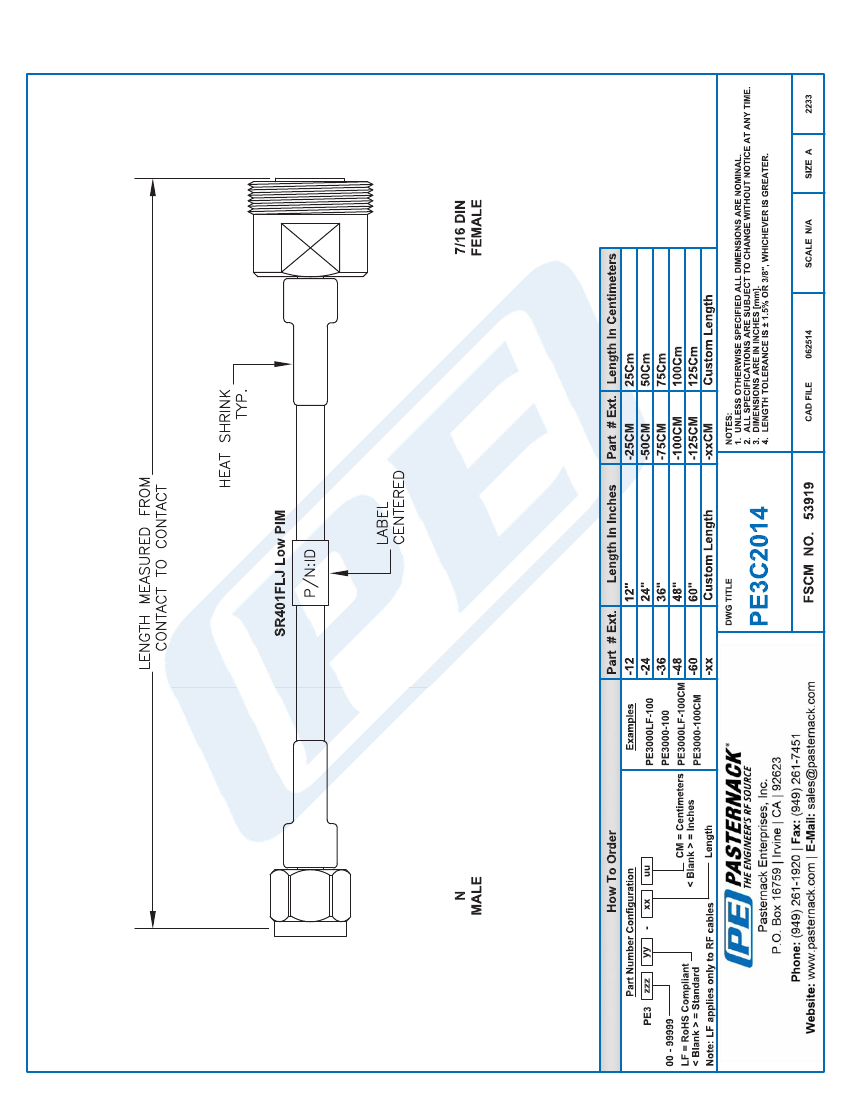

CAD Drawing
© 2014 Pasternack Enterprises All Rights Reserved
PE3C2014-200CM REV 1.0
