SUT461N
Epitaxial planar NPN silicon transistor
Descriptions
•
Complex type bipolar transistor
Features
•
Reduce quantity of parts and mounting cost
•
High collector power dissipation : P
C
=300mW(Max.)
•
Two 2SC5343 chips in SOT-26 Package
Package : SOT-26
Ordering Information
Type NO.
SUT461N
Marking
69
□
□
: Year & Week Code
Package Code
SOT-26
Equivalent circuit & PIN Connections
•
Equivalent Circuit
4
5
6
PIN Connections
1.
2.
3.
4.
Collector 1
Base 2
Emitter 2
Collector 2
Tr2
Tr1
5. Base 1
6. Emitter 1
2
1
3
Absolute Maximum Ratings
[Tr1, Tr2]
Characteristic
Collector-base voltage
Collector-emitter voltage
Emitter-base voltage
Collector current
Collector power dissipation
Junction temperature
Storage temperature range
(Ta=25°C)
Symbol
V
CBO
V
CEO
V
EBO
I
C
P
C
※
T
J
T
stg
Rating
60
50
5
150
300
150
-55~150
Unit
V
V
V
mA
mW
°C
°C
※:
Total rating(Each terminal mounted on a recommended solder land)
KSD-T5P001-002
1
SUT461N
Electrical Characteristics
[Tr1, Tr2]
Characteristic
Collector-emitter breakdown voltage
Collector cut-off current
Emitter cut-off current
DC current gain
Collector-emitter saturation voltage
Base-emitter voltage
Transition frequency
Collector output capacitance
(Ta=25°C)
Symbol
BV
CEO
I
CBO
I
EBO
h
FE
V
CE(sat)
V
BE
f
T
C
ob
Test Condition
I
C
=1mA, I
B
=0
V
CB
=60V, I
E
=0
V
EB
=5V, I
C
=0
V
CE
=6V, I
C
=2mA
I
C
=100mA, I
B
=10mA
V
CE
=6V, I
C
=2mA
V
CE
=10V, I
C
=10mA
V
CB
=10V, I
E
=0, f=1MHz
Min. Typ. Max.
50
-
-
120
-
-
-
-
-
-
-
-
-
0.65
200
2
-
0.1
0.1
400
0.25
-
-
-
Unit
V
μA
μA
-
V
V
MHz
pF
KSD-T5P001-002
2
SUT461N

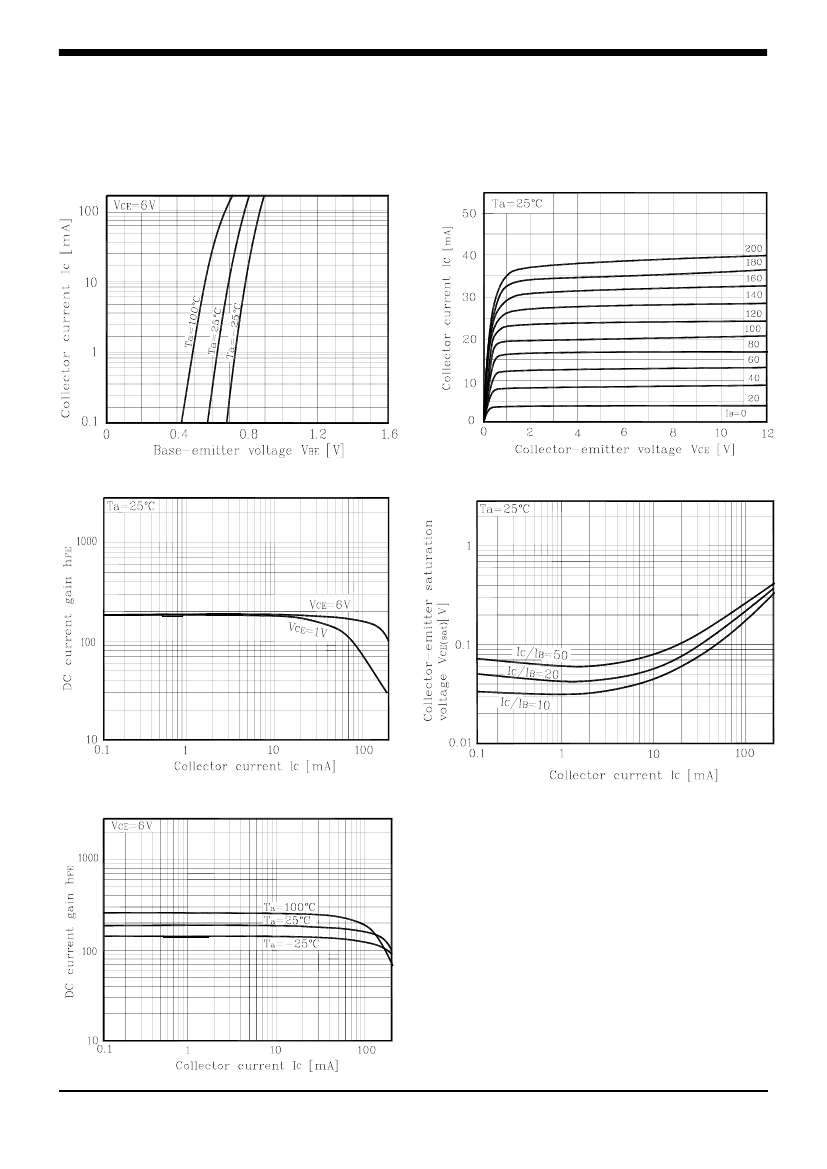

Electrical Characteristic Curves
[Tr1,Tr2]
Fig. 1 I
C
-V
BE
Fig. 2 I
C
-V
CE
㎂
Fig. 3 h
FE-
I
C
Fig. 4 V
CE(sat)
-I
C
Fig. 5 h
FE
- I
C
KSD-T5P001-002
3
SUT461N

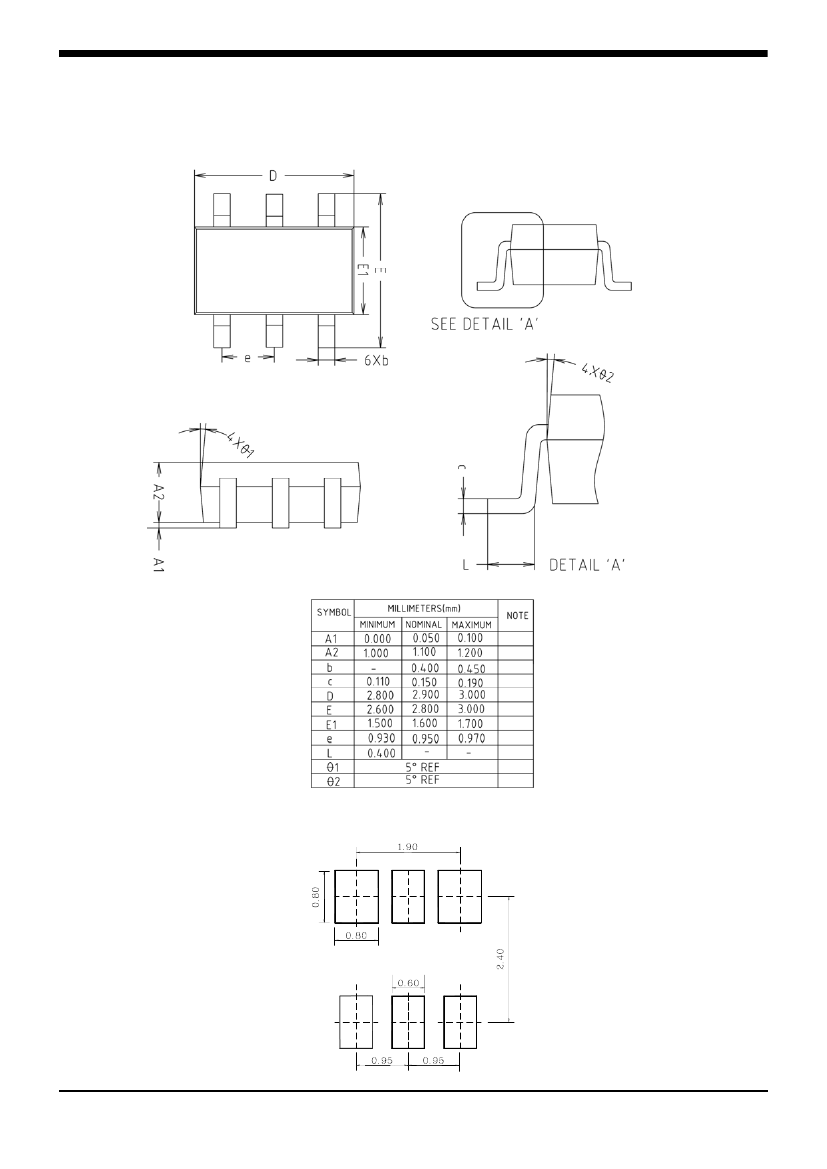

Outline Dimension(mm)
※
Recommend PCB solder land
[Unit: mm]
KSD-T5P001-002
4
SUT461N
