DATA SHEET

SEMICONDUCTOR

YSBLCxxC

LOW CAPACITANCE TVS DIODE ARRAY

APPLICATIONS

◆

Cell Phone Handsets and Accessories

◆

Microprocessor based equipment

◆

Personal Digital Assistants (PDA’s)

◆

Notebooks, Desktops, and Servers

◆

Portable Instrumentation

◆

Peripherals

◆

USB Interface

SOD-323

IEC COMPATIBILITY

◆

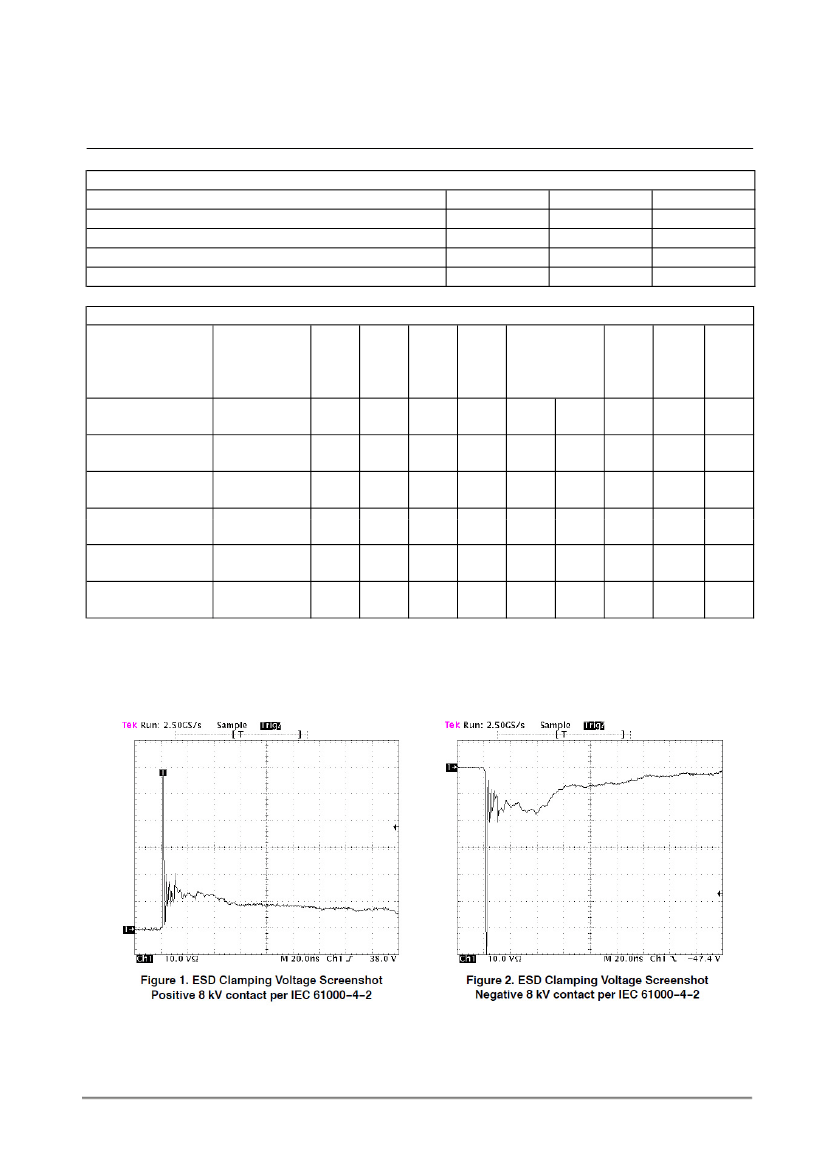

IEC61000-4-2 (ESD) ±15kV (air), ±8kV (contact)

◆

IEC61000-4-4 (EFT) 40A (5/50ηs)

◆

IEC61000-4-5 (Lightning) 12A (8/20µs)

FEATURES

◆

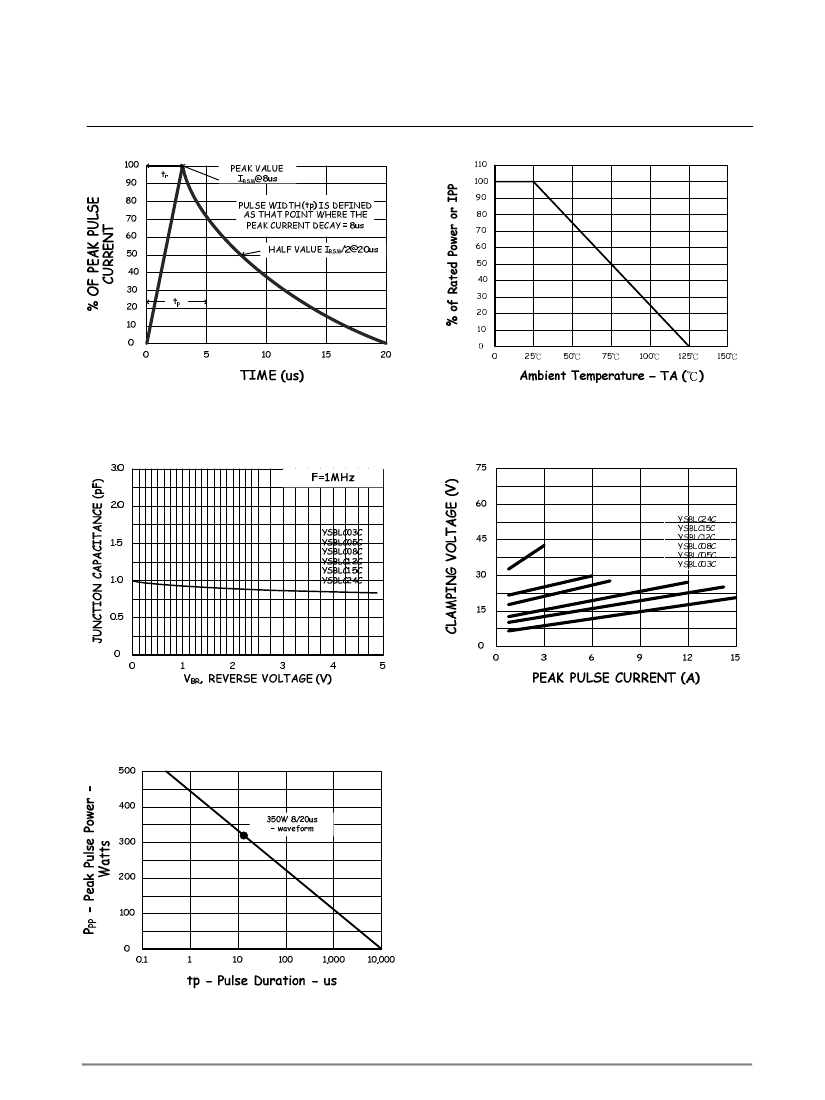

350 Watts Peak Pulse Power per Line (tp=8/20µs)

Protects one I/O line (bidirectional)

Low clamping voltage

Working voltages: 3V, 5V, 8V, 12V, 15V, 24V

Low leakage current

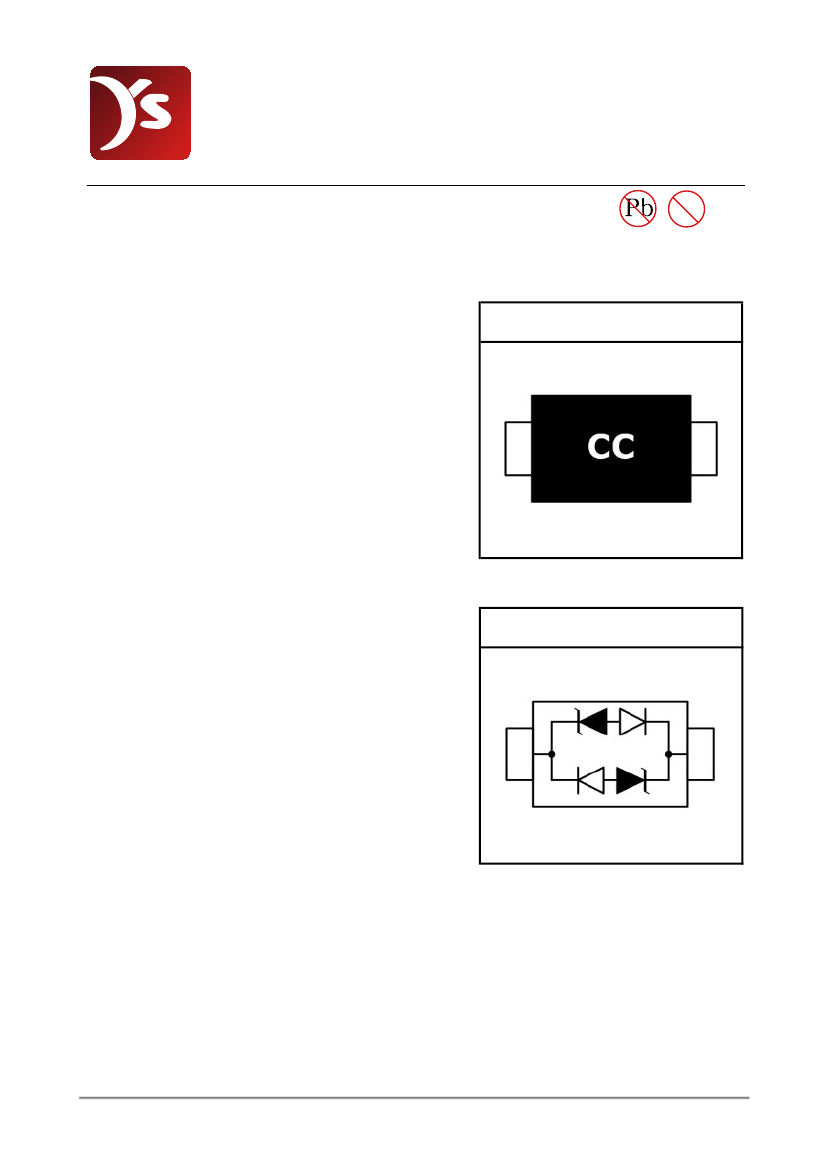

PIN CONFIGURATION

MECHANICAL CHARACTERISTICS

◆

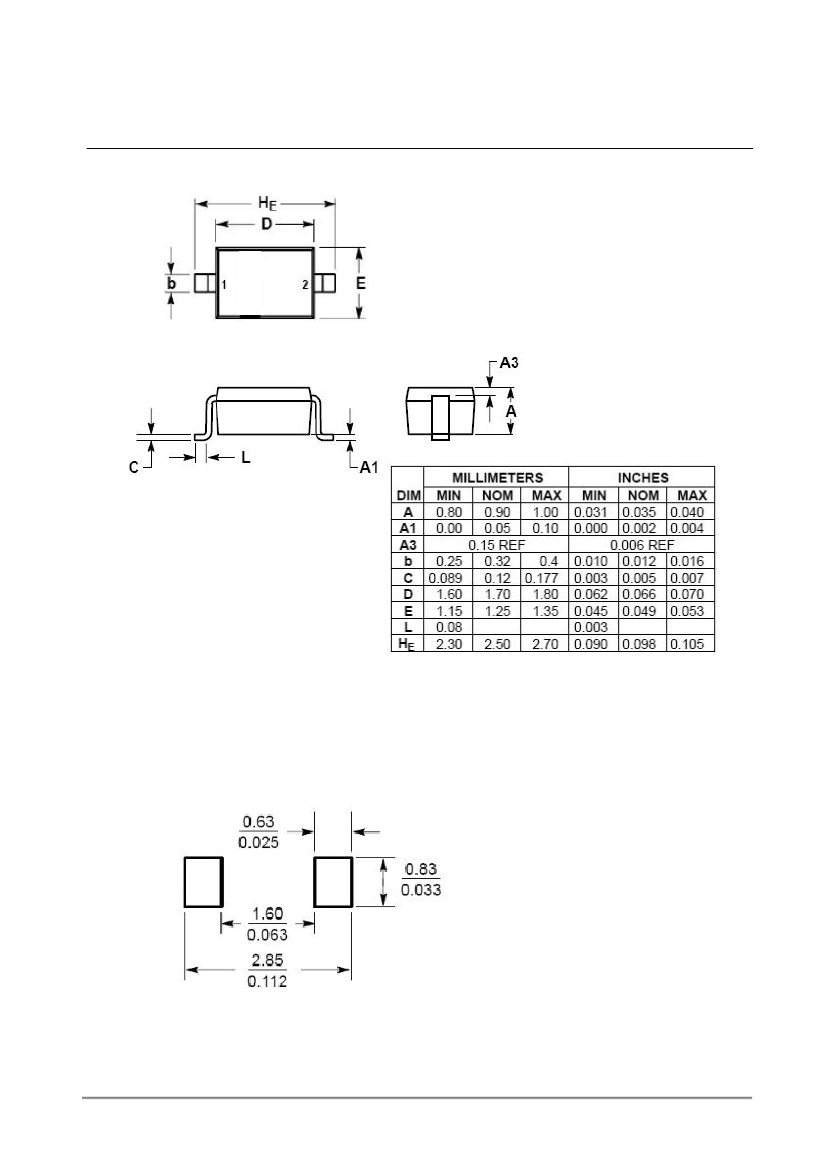

JEDEC SOD-323 Package

Molding Compound Flammability Rating : UL 94V-O

Weight 5 Millgrams (Approximate)

Quantity Per Reel : 3,000pcs

Reel Size : 7 inch

Lead Finish : Lead Free

http://www.yeashin.com

REV.04 20141117
