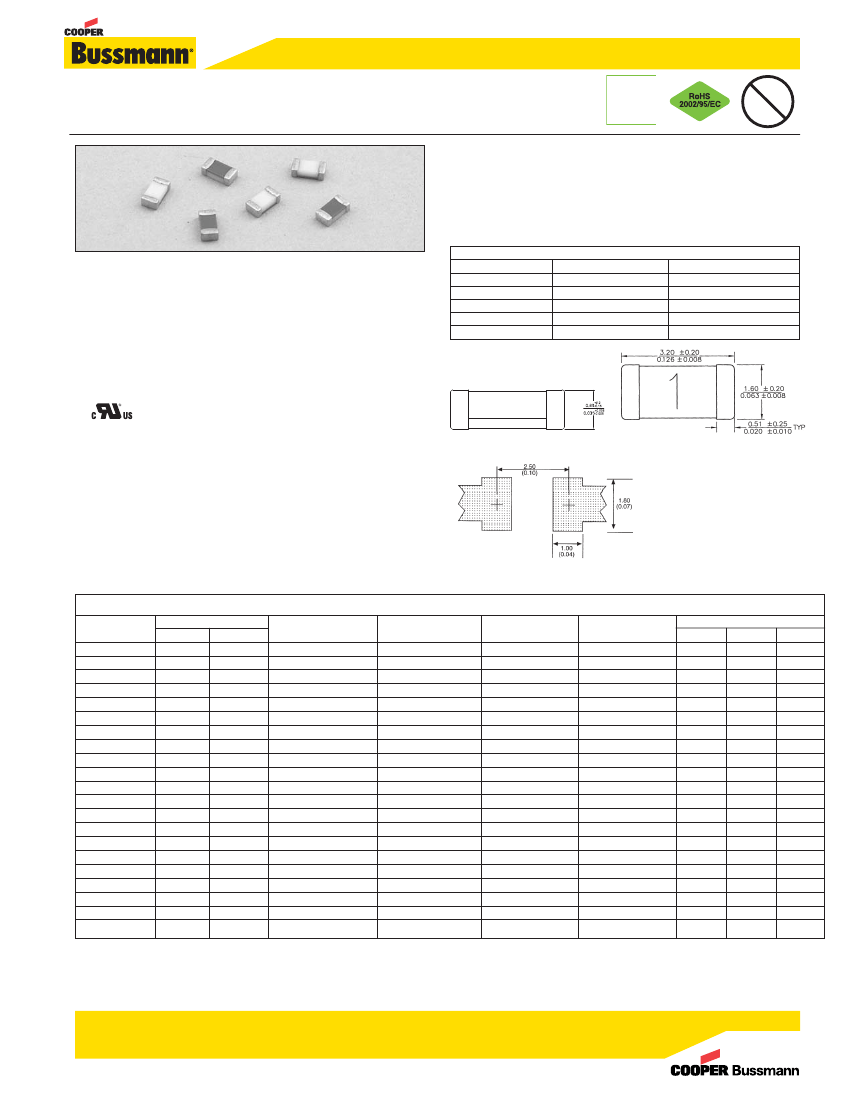

Chip
™
Fuses
3216FF Series, Fast-Acting
HF
FREE
Ordering
• Specify packaging and product code
(i.e., TR/3216FF250-R)
Soldering Method
• Wave Immersion: 260°C, 10 sec max.
• Infrared Reflow: 260°C, 30 sec max.
HALOGEN
Pb
Description
• Fast-acting surface mount fuse
• Ratings up to 30 amps
• Excellent temperature and cycling characteristics
• Compatible with reflow and wave solder
Agency Information
• UL Recognition Guide JDYX2 & File E19180.
• CSA Component Acceptance: 053787 C 000 &
Class No: 1422 30.
•
Recognition File: E19180, Guide JDYX2/JDYX8
Environmental Data
• Thermal Shock: MIL-STD-202, Method 107,
Test Condition B (-65°C to 125°C)
• Vibration: MIL-STD-202, Method 204,
Test Condition C (55Hz - 2kHz, 10G)
• Moisture Resistance: MIL-STD-202, Method 106,
10 day cycle
• Solderability: ANSI/J-STD-002, Test B
• Additional resistance to solder heat teast: MIL-STD-202G Method
210F Condition A
• Operating Temperature: -55ºC to 125ºC
Part
Number
3216FF250-R
3216FF375-R
3216FF500-R
3216FF750-R
3216FF1-R
3216FF1.25-R
3216FF1.5-R
3216FF2-R
3216FF2.5-R
3216FF3-R
3216FF4-R
3216FF4.5-R
3216FF5-R
3216FF6.5-R
3216FF7-R
3216FF10-R
3216FF12-R
3216FF15-R
3216FF20-R
3216FF25-R
3216FF30-R
Volt Ratings
Vdc
63
63
63
63
63
63
63
63
63
63
32
32
32
32
32
24
24
24
24
24
24
Interrupting Rating*
(amps) AC/DC
50
50
50
50
50
50
50
50
50
50
50
50
50
50
50
150
150
150
150
250
300
Amp Rating
250mA - 30A
1.25A - 3A
250mA - 3A
4A - 7A
10A - 30A
Drawing Not to Scale
Electrical Characteristics
% of Amp Rating
100%
200%
250%
350%
350%
Opening Time
4 Hrs. Min.
60 Sec. Max.
5 Sec. Max.
1 Sec. Max.
5 Sec. Max.
Dimension - mm/inches
Recommended Pad Layout - mm (in)
Specifications
Vac
32
32
32
32
32
32
32
32
32
32
32
32
32
32
32
Typical DC Cold
Resistance (
W
)**
3.5000
1.7500
0.9800
0.5400
0.2190
0.1700
0.1190
0.0660
0.0460
0.0360
0.0180
0.0160
0.0140
0.0086
0.0070
0.0045
0.0039
0.0031
0.0018
0.0014
0.0012
Typical Melt
I
2
t (A
2
S) DC***
0.00038
0.00077
0.00190
0.0053
0.030
0.046
0.093
0.126
0.260
0.275
0.337
0.405
0.534
2.294
3.623
2.0
7.0
25.5
48.6
32.0
43.0
Typical Voltage
Drop (V)†
1.40
0.73
0.66
0.63
0.20
0.18
0.18
0.16
0.14
0.13
0.11
0.10
0.09
0.076
0.078
0.062
0.070
0.066
0.060
0.057
0.068
UR
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
Agency Approvals
CSA
cURus
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
* AC Interrupting Rating measured at rated voltage with a unity power factor; DC Interrupting Rating measured at rated voltage, time constant of less than 50 microseconds, battery source
**Typical DC Cold Resistance measured at 10% of rated current
***Typical Melting I
2
t measured with a battery bank at rated DC voltage, 10x-rated current, not to exceed IR, time constant of calibrated circuit less than 50 microseconds (6.5A - 30A measured at interrupting rating)
†Typical Voltage Drop measured at rated current after temperature stabilizes. It is recommended that fuses be mounted with ceramic (white) side facing up.
Device designed to carry rated current for four hours minimum. An operating current of 80% or less of rated current is recommended, with further derating required at elevated ambient temperatures.
0411
BU-SB11302
Page 1 of 2
Data Sheet 3001

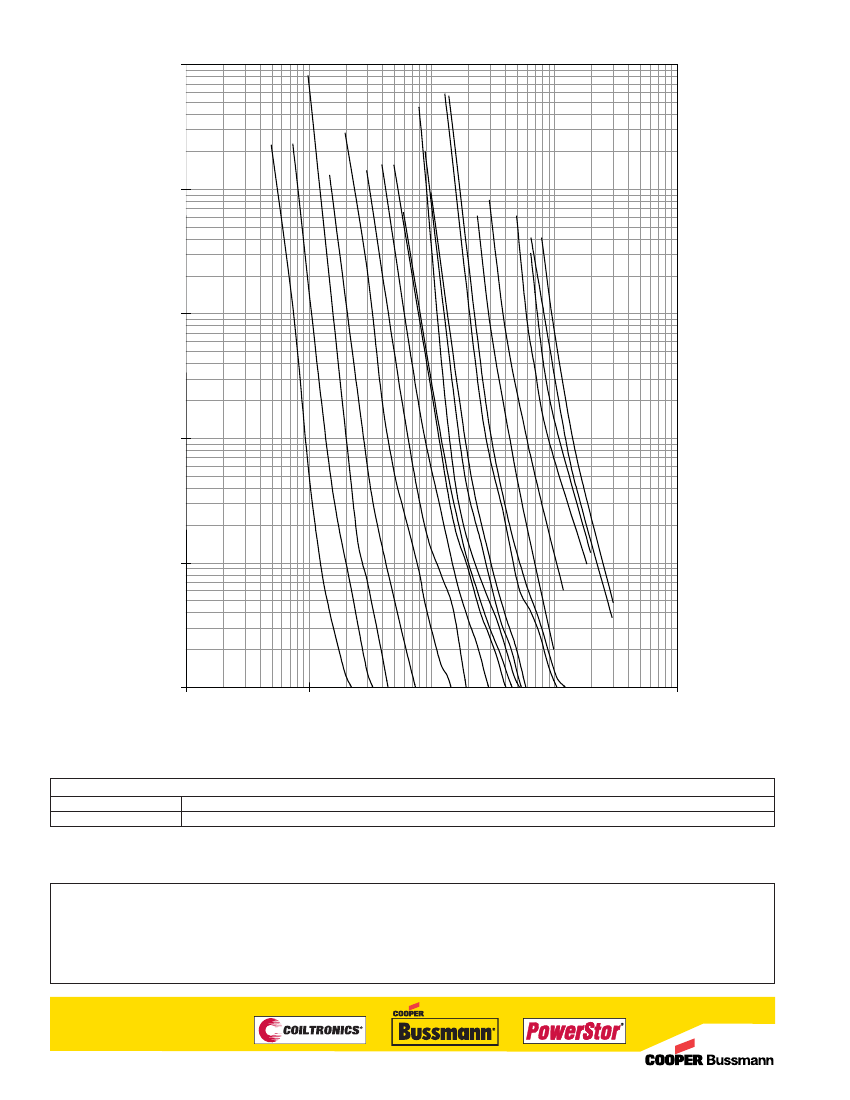

Time-Current Curve
0.5A
6.5A
7A
1.5A
2A
2.5A
3A
4A
4.5A
0.75A
1A
0.375A
0.25A
10A
12A
15A
Time in Seconds
Current in Amps
Packaging
Packaging Code Prefix
TR
Description
3000 fuses on 8mm tape-and-reel on a 7 inch (178mm) reel per EIA Standard RS481
The only controlled copy of this Data Sheet is the electronic read-only version located on the Cooper Bussmann Network Drive. All other copies of this document are by definition uncontrolled. This bulletin is
intended to clearly present comprehensive product data and provide technical information that will help the end user with design applications. Cooper Bussmann reserves the right, without notice, to change
design or construction of any products and to discontinue or limit distribution of any products. Cooper Bussmann also reserves the right to change or update, without notice, any technical information con-
tained in this bulletin. Once a product has been selected, it should be tested by the user in all possible applications.
Life Support Policy: Cooper Bussmann does not authorize the use of any of its products for use in life support devices or systems without the express written approval of an officer of the Company. Life sup-
port systems are devices which support or sustain life, and whose failure to perform, when properly used in accordance with instructions for use provided in the labeling, can be reasonably expected to result
in significant injury to the user.
© 2011 Cooper Bussmann
www.cooperbussmann.com
0411
BU-SB11302
Page 2 of 2
20A
25A
30A
Data Sheet 3001
5A
