MATERIAL - POLICARBONATE MAKROLON CLEAR.
TERMINAL - 0.36 THICK PHOSPAR BRONZE PLATED WITH 0.178 microm
[.000007] MINIMUM HARD GOLD OVER 0.762microm [.000030] MINIMUM
PALLADIUM / NICKEL IN LOCALIZED AREA, OVER 2.54microm [.000100]
MINIMUM NICKEL UNDERPLATE.
WIRE HOLDER - POLICARBONATE MAKROLON CLEAR.
SHIELD - BRASS DIN 17660 - CuZn33.
DIMENSION ARE NOMINAL UNLESS OTHERWISE SPECIFIED.
PLUG WILL BE ACCEPT A 24-26 AWG STRANDED CONDUCTOR, PROVIDED THE
INSULATION CONDUCTOR DIAMETER IS WITHIN 0,89 - 1,09; WITH THE SUM
OF DIAMETERS FOR ALL EIGHT CONDUCTORS WITHIN THE CABLE MUST NOT
EXCEED 7,8 mm. CABLE JACKET DIAMETER OF 5,3 - 6,0 mm.
TERMINATED DIMENSION 6,15 MAXIMUM.
PACKAGE: 1000 SUB-ASSEMBLIES, 1000 WIRE HOLDERS AND 1000 SHIELDS.
PACKAGE: 500 SUB-ASSEMBLIES, 500 WIRE HOLDERS AND 500 SHIELDS.
PACKAGE: 100 SUB-ASSEMBLIES, 100 WIRE HOLDERS AND 100 SHIELDS.
PACKAGE: 25 SUB-ASSEMBLIES, 25 WIRE HOLDERS AND 25 SHIELDS.
MODULAR PLUG BOOT, PART NUMBER 737893-X (X- DENOTES VARIOUS COLORS),
MAY BE USED WITH KIT ASSEMBLY SHOWN.
17.15
2
3.
10.6
C
11.68
8.93
11.74
4
5
6
7
1.02
18.05
C
8
9.
10. FLAMABILITY RATING: UL 94V-0
B
OBSOLETE
8
7
5-1711345-4
5-1711345-3
5-1711345-2
5-1711345-1
PART NO
TE Connectivity
B
ACTIVE
6
5
STATUS
THIS DRAWING IS A CONTROLLED DOCUMENT.
DWN
CHK
DIMENSIONS:
PACKAGE
L. de Dios
M. Maqueda
10Feb06
10Feb06
10Feb06
NAME
A
SCALE
2:1
mm
TOLERANCES UNLESS
OTHERWISE SPECIFIED:
APVD
0
1
2
3
4
MATERIAL
ANGLES
PLC
PLC
PLC
PLC
PLC
-
-
-
-
-
PRODUCT SPEC
J. Sanabra
2
-
APPLICATION SPEC
108-1990
114-93006
-
1470-19 (3/13)
-
1
-
FINISH
-
1
-
WEIGHT
CUSTOMER DRAWING
A3
SIZE
CAGE CODE

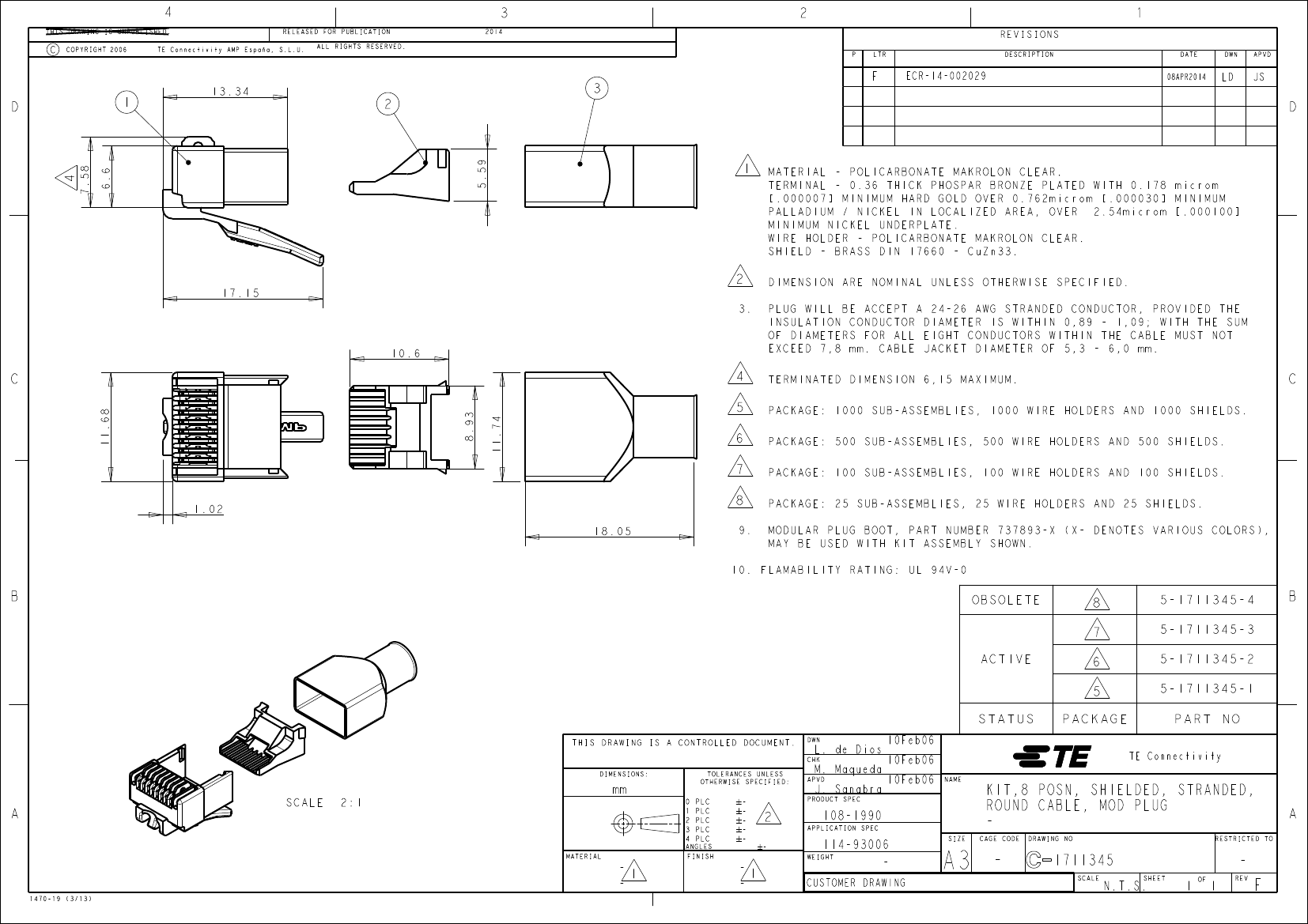

KIT,8 POSN, SHIELDED, STRANDED,
