M22-6242146

Description
Board Connector, 42 Contact(s), 2 Row(s), Female, Right Angle, Solder Terminal
CategoryThe connector    The connector
File Size592KB,1 Pages
ManufacturerHarwin
Websitehttp://www.harwin.com/
Environmental Compliance
Download Datasheet Parametric View All

M22-6242146 Overview

Board Connector, 42 Contact(s), 2 Row(s), Female, Right Angle, Solder Terminal

M22-6242146 Parametric

Parameter NameAttribute value
Is it lead-free?Lead free
Is it Rohs certified?conform to
Reach Compliance Codeunknow
Other featuresPOLARIZED
Connector typeBOARD CONNECTOR
Contact to complete cooperationTIN
Contact completed and terminatedTIN
Contact point genderFEMALE
Contact materialNOT SPECIFIED
DIN complianceNO
Filter functionNO
IEC complianceNO
JESD-609 codee3
MIL complianceNO
Manufacturer's serial numberM22
Mixed contactsNO
Installation methodRIGHT ANGLE
Installation typeBOARD
Number of rows loaded2
OptionsGENERAL PURPOSE
Terminal pitch2 mm
Termination typeSOLDER
Total number of contacts42
Base Number Matches1

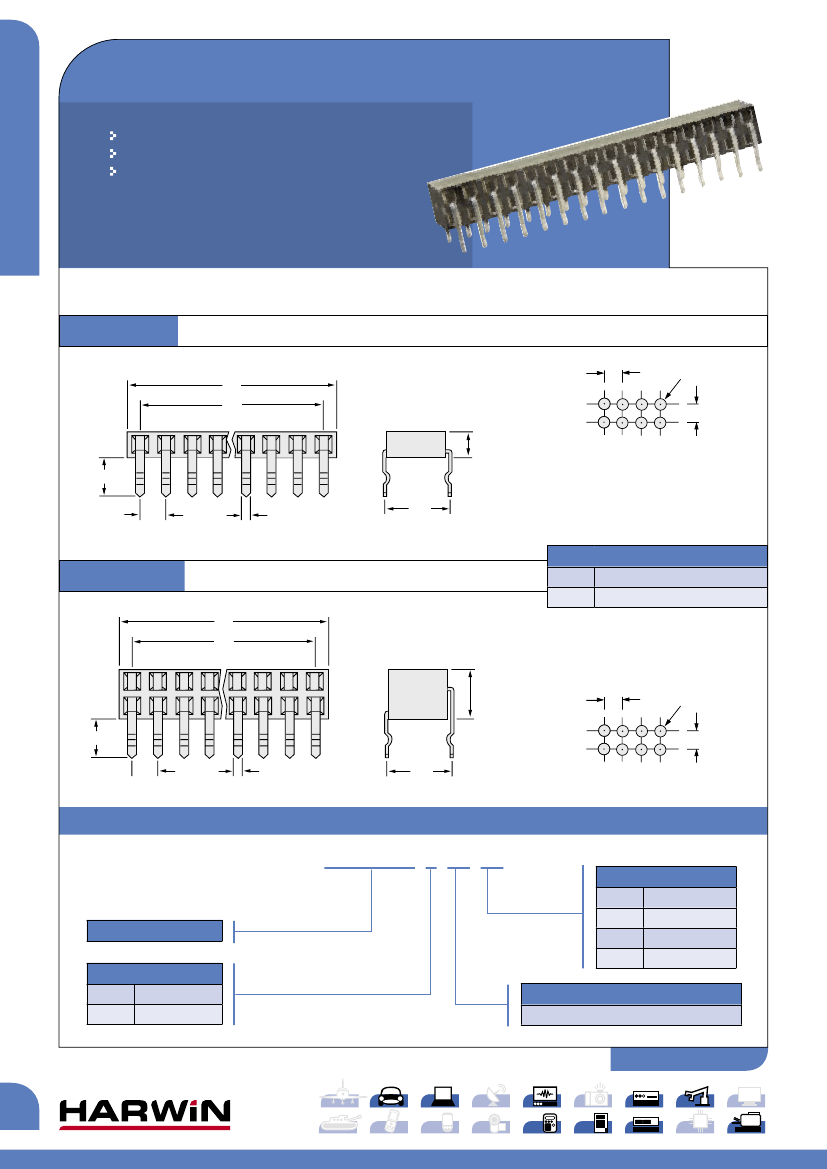

M22 Connectors
2mm (.080") PITCH
2.4
Horizontal PC Tail Female Connectors
Joggled tails to help board retention prior to soldering.
Suitable for use with male connectors show on page 34 to 39.
For Polarising Key use
order code M22-0140091.
SINGLE ROW
A
B
5.00
2.00
Hole
ø
0.8
2.0
2.4
2.00
0.48
5.0
Recommended PC Board Pattern
CALCULATION
DOUBLE ROW
A
B
A
B
2.00 x No. of ways per row
2.00 x (No. of ways per row – 1)
4.0
2.00
Hole
ø
0.8
5.00
2.00
0.48
5.0
Recommended PC Board Pattern
HOW TO ORDER
M22 – 62 X XX XX
FINISH
06
Tin/Lead
Gold + Tin/Lead
Gold + Tin
Tin
SERIES CODE
NO. OF ROWS
3
4
SIL Female
DIL Female
22
42
46
NO. OF WAYS PER ROW
03 to 25
