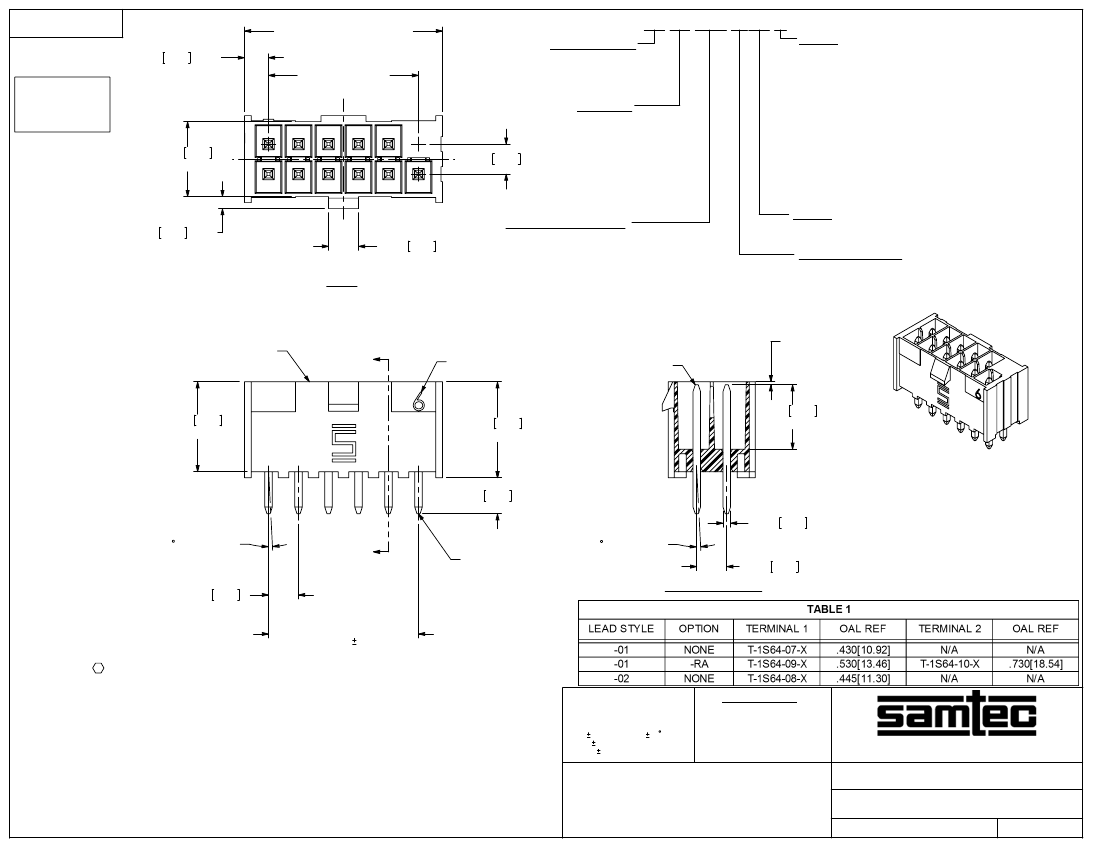

REVISION AD
.080 2.03 REF
DO NOT
SCALE FROM
THIS PRINT
.250 6.35
REF
07
(No OF POS x .100[2.54])
+ .060[1.52] REF
(No OF POS -1)
x .100[2.54] REF
01
02
IPL1-1XX-XX-XXX-D-XX-X
No OF POSITIONS
-02 THRU -25
(PER ROW)
LEAD STYLE
-01: THROUGH HOLE
(USE T-1S64-XX-XX)
-02: SURFACE MOUNT
(SEE FIG 2, SHT 2)
(USE T-1S64-XX-XX)
C
L
.100 2.54 REF
OPTION
-P: POLARIZATION (SEE FIG 1)
(USE IPL1-XX-D-P)
(NOT AVAILABLE W/ -K, OPTIONS)
-K: KEYED POLARIZATION
(USE IPL1-XX-D-K)
(SEE FIG 5, SHEET 3)
(NOT AVAILABLE W/ -P, OPTIONS)
-G: GUIDE POSTS (SEE FIG 6 & 7, SHEET 3)
(USE IPL1-XX-D-GP)
(NOT AVAILABLE W/-P, -K OPTIONS)
(LEAVE BLANK FOR NO POLARIZATION
(SEE FIG 4, SHEET 3), SAMTEC WILL ONLY SUPPORT
EXISTING BUSINESS AS OF REV U)
.040 1.02 REF
C
L
.100 2.54 REF
IPL1-106-01-XXX-D-P SHOWN
FIG 1
OPTION
PLATING SPECIFICATION
-RA: RIGHT ANGLE (SEE FIG. 3, SHT 2)
(AVAILABLE WITH -01 LEAD STYLE ONLY)
-F: FLASH SELECTIVE (USE T-1S64-XX-F)
-L: LIGHT SELECTIVE (USE T-1S64-XX-L)
ROW SPECIFICATION
-S: SELECTIVE (USE T-1S64-XX-S)
-D: DOUBLE (USE IPL1-XX-D)
-H: HEAVY GOLD (T-1S64-XX-H)
-FM: FLASH SELECTIVE/MATTE TIN TAILS (USE T-1S64-XX-F)
-LM: LIGHT SELECTIVE/MATTE TIN TAILS (USE T-1S64-XX-L)
-SM: SELECTIVE/MATTE TIN TAILS (USE T-1S64-XX-S)
-STL: SELECTIVE/ TIN/LEAD TAILS (USE T-1S64-XX-STL)
SEE NOTE 9
IPL1-XX-D-P
"A"
(SEE NOTE 11)
SEE NOTE 5
.300 7.62
REF
.320 8.13
REF
.215 5.46
REF
.120 3.05 REF
.025 0.64 SQ REF
2 MAX SWAY
(EITHER DIRECTION)
.100 2.54
((No OF POS -1)
x .100[2.54]) .008[.20]
"A"
T-1S64-07-XXX
2 MAX SWAY
(EITHER DIRECTION)
.100 2.54
SECTION "A"-"A"
NOTES:
1.
C
REPRESENTS A CRITICAL DIMENSION.
2. NOTE DELETED.
3. MINIMUM TERMINAL RETENTION: 1 LB.
4. PARTS TO BE MOLDED TO POSITION.
5. POST MUST BE WITHIN .005[.13] OF EACH OTHER.
6. ALL PIN TO PIN DIMENSIONS TO BE MEASURED
FROM TIP TO TIP.
7. NOTE DELETED.
8. DIMENSION TO BE MEASURED AT BEND.
9. TIP TO BE FLUSH TO .015 BELOW TOP OF SHROUD.
10. BOTH ROWS TO BE SYMMETRIC WITHIN .010[0.25].
11.THIS NUMBER REPRESENTS THE NUMBER OF POSITIONS
PER ROW ONLY AND IS NOT INTENDED TO BE USED IN
POSITION NUMBERING.
12. 1 OR 2 GATE PADS TO BE PRESENT AT VENDOR DISCRETION.
UNLESS OTHERWISE SPECIFIED,
DIMENSIONS ARE IN INCHES.
TOLERANCES ARE:
.XX: .01[.3]
.XXX: .005[.13]
.XXXX: .0020[.051]
MATERIAL:
DECIMALS
ANGLES
2
THIS DOCUMENT CONTAINS INFORMATION
CONFIDENTIAL AND PROPRIETARY TO
SAMTEC, INC. AND SHALL NOT BE REPRODUCED
OR TRANSFERRED TO OTHER DOCUMENTS OR
DISCLOSED TO OTHERS OR USED FOR ANY
PURPOSE OTHER THAN THAT WHICH IT WAS
OBTAINED WITHOUT THE EXPRESSED WRITTEN
CONSENT OF SAMTEC, INC.
PROPRIETARY NOTE
DO NOT SCALE DRAWING
SHEET SCALE: 3:1
520 PARK EAST BLVD, NEW ALBANY, IN 47150
PHONE: 812-944-6733
FAX: 812-948-5047
e-Mail info@SAMTEC.com
code 55322
DESCRIPTION:
INSULATOR: LCP UL94-V0, COLOR: BLACK
-K INSULATOR: LCP UL94-V0, COLOR: NATURAL
TERMINAL: PHOS BRONZE
F:\DWG\MISC\MKTG\IPL1-1XX-XX-XXX-D-XX-X-MKT.SLDDRW
.100[2.54] DOUBLE ROW TERMINAL ASSEMBLY
DWG. NO.
BY:
KEVIN B
IPL1-1XX-XX-XXX-D-XX-X
03/11/02
SHEET
1
OF
3

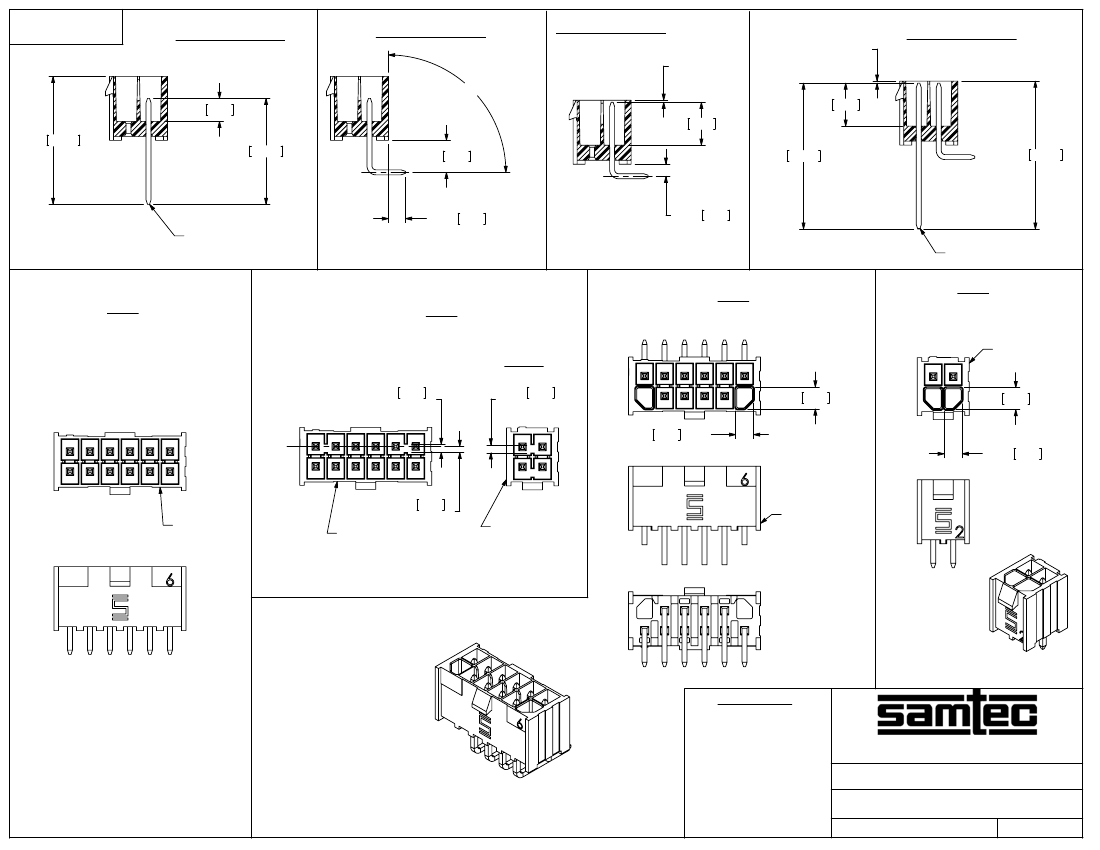

REVISION AD
IPL1-106-02-XXX-D-P SHOWN
[DIFFERENT AS SHOWN, OTHERWISE SAME AS FIG 1]
FIG 2
-02: SURFACE MOUNT INPROCESS 1
-02: SURFACE MOUNT INPROCESS 2
SEE NOTE 9
90°
- 4°
.345 8.76
(SEE NOTE 8)
.215 5.46
REF
SEE TABLE 2
T-1S64-08-XXX
SEE NOTE 10
.235 5.97
.125 3.17
90°
- 4°
.115 2.92 REF
+0°
+0°
.377 9.58
REF
.377±.010 9.58±0.25
T-1S64-08-XXX
01
02
(ASSEMBLIES TO HAVE POSITION #1 LOADED IN THE SAME
DIRECTION AS ARROW ON TUBE, EXCEPT WITH -RA OPTION)
PT-1-24-04-40
PT-1-24-15-29
PT-1-24-02-08
07
PACKAGING VIEWS
IPL1-106-01-XXX-D-RA-P SHOWN
(DIFFERENT AS SHOWN, OTHERWISE SAME AS FIG 1)
.290 7.37 REF
T-1S64-09-XXX
T-1S64-10-XXX
"B"
.215 5.46
REF
.100 2.54
SEE NOTE 9
FIG 3
.060 1.52
(SEE NOTE 8)
"B"
.085 2.16 REF
SECTION "B"-"B"
F:\DWG\MISC\MKTG\IPL1-1XX-XX-XXX-D-XX-X-MKT.SLDDRW
PROPRIETARY NOTE
THIS DOCUMENT CONTAINS INFORMATION
CONFIDENTIAL AND PROPRIETARY TO
SAMTEC, INC. AND SHALL NOT BE REPRODUCED
OR TRANSFERRED TO OTHER DOCUMENTS OR
DISCLOSED TO OTHERS OR USED FOR ANY
PURPOSE OTHER THAN THAT WHICH IT WAS
OBTAINED WITHOUT THE EXPRESSED WRITTEN
CONSENT OF SAMTEC, INC.
520 PARK EAST BLVD, NEW ALBANY, IN 47150
PHONE: 812-944-6733
FAX: 812-948-5047
e-Mail info@SAMTEC.com
code 55322
DESCRIPTION:
DWG. NO.
DO NOT SCALE DRAWING
SHEET SCALE: 2:1
.100[2.54] DOUBLE ROW TERMINAL ASSEMBLY
BY:
KEVIN B
IPL1-1XX-XX-XXX-D-XX-X
03/11/02
SHEET
2
OF
3

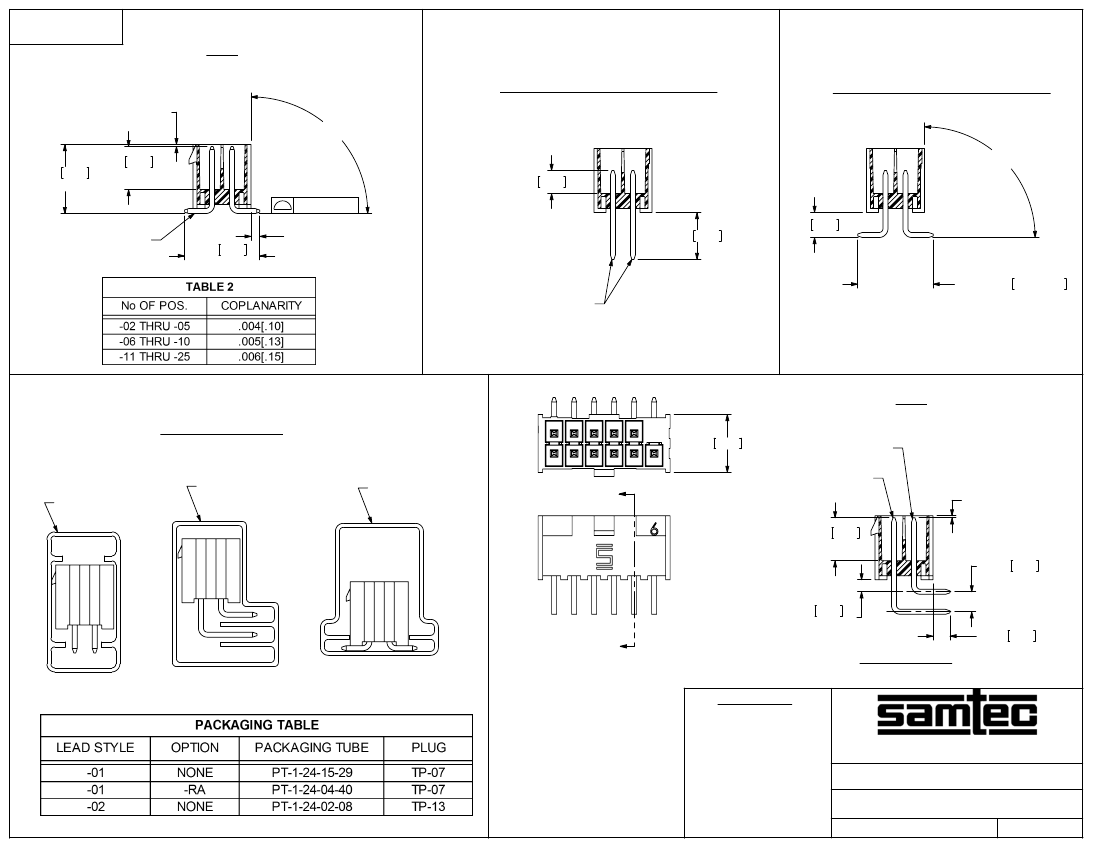

REVISION AD
-RA: INPROCESS 1
-RA: INPROCESS 2
-RA: INPROCESS 3
SEE NOTE 9
SEE NOTE 9
-RA: INPROCESS 4
90°
.115 2.92 REF
.640 16.26
.215 5.46 REF
.215 5.46 REF
.160 4.06
.730 18.54 REF
.740 18.80
.530 13.46 REF
.085 2.16 REF
T-1S64-09-XXX
.060 1.52
T-1S64-10-XXX
(IPL1-106-01-XXX-D SHOWN)
(DIFFERENT AS SHOWN,
OTHERWISE SAME AS FIG 1)
SAMTEC WILL ONLY SUPPORT
EXISTING BUSINESS AS OF REV. U)
FIG 4
(IPL1-106-01-XXX-D-K SHOWN)
(DIFFERENT AS SHOWN, OTHERWISE SAME AS FIG 4)
-02 POS
(DIFFERENT AS SHOWN)
.040 1.02
REF
.040 1.02
REF (TYP)
01 02
FIG 5
(IPL1-106-01-XXX-D-RA-G SHOWN)
(DIFFERENT AS SHOWN, OTHERWISE SAME AS FIG 3)
01 02
FIG 6
(IPL1-102-01-XXX-D-G SHOWN)
(DIFFERENT AS SHOWN,
OTHERWISE SAME AS FIG 1)
01
02
IPL1-02-D-GP
FIG 7
.110 2.79 REF
07
.090 2.28 REF
03
.110 2.79 REF
01
02
01
C
L
02
.090 2.28 REF
07
07
IPL1-XX-D
.030 0.76
REF
IPL1-06-D-K
03
IPL1-02-D-K
IPL1-06-D-GP
PROPRIETARY NOTE
THIS DOCUMENT CONTAINS INFORMATION
CONFIDENTIAL AND PROPRIETARY TO
SAMTEC, INC. AND SHALL NOT BE REPRODUCED
OR TRANSFERRED TO OTHER DOCUMENTS OR
DISCLOSED TO OTHERS OR USED FOR ANY
PURPOSE OTHER THAN THAT WHICH IT WAS
OBTAINED WITHOUT THE EXPRESSED WRITTEN
CONSENT OF SAMTEC, INC.
520 PARK EAST BLVD, NEW ALBANY, IN 47150
PHONE: 812-944-6733
FAX: 812-948-5047
e-Mail info@SAMTEC.com
code 55322
DESCRIPTION:
DWG. NO.
DO NOT SCALE DRAWING
SHEET SCALE: 2:1
.100[2.54] DOUBLE ROW TERMINAL ASSEMBLY
F:\DWG\MISC\MKTG\IPL1-1XX-XX-XXX-D-XX-X-MKT.SLDDRW
BY:
KEVIN B
IPL1-1XX-XX-XXX-D-XX-X
03/11/02
SHEET
3
OF
3
