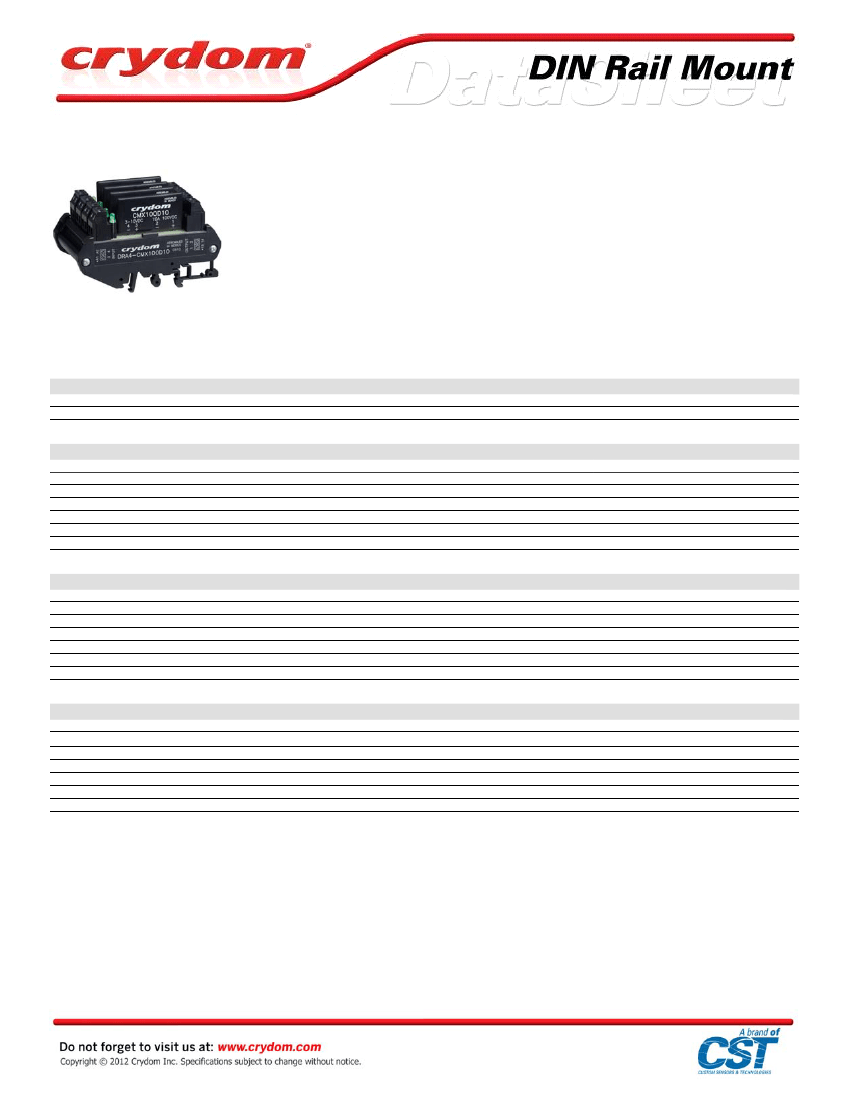

DRA4 CMX Series
• 54mm 4 Channel DIN Rail Mount SSR Assembly
• DC Ratings up to 200 VDC and 8 Amps
• 3-10 and 20-28VDC control
• Cage style screw terminals for easy connection
• Fits standard 35mm DIN rail
• Includes LED Status indicator
PRODUCT SELECTION
Description
3-10 VDC Control
20-28 VDC Control
3A
DRA4-CMX200D3
DRA4-CMXE200D3
8 A (3)
DRA4-CMX100D10
DRA4-CMXE100D10
OUTPUT SPECIFICATIONS (1)
Description
Operating Voltage [VDC]
Maximum Off-State Leakage Current @ Rated Voltage [µAdc]
Maximum Load Current [A] (2) (3)
Minimum Load Current [A]
Maximum On-State Resistence [Ohm]
Maximum Surge Current (10msec) [Apk]
Maximum On-State Voltage Drop @ Rated Current [VDC]
3A
1-200
100
3
0
0.2
30
0.6
8 A (3)
1-100
100
8
0
0.01
100
0.1
INPUT SPECIFICATIONS (1)
Description
Control Voltage Range
Must Turn On Voltage
Must Turn Off Voltage
Typycal Input Current
Nominal Input Impedance
Maximum Turn-On Time [msec]
Maximum Turn-Off Time [µsec]
DRA4-CMX
3.0-10.0 VDC
3.0 VDC
1 .0 VDC
15 mAdc @ 5Vdc
300 Ohm
1
300
DRA4-CMXE
20.0-28.0 VDC
20.0 VDC
1 .0 VDC
12 mAdc @ 20 Vdc
780 Ohm
1
300
GENERAL SPECIFICATIONS
Description
Dielectric Strength (4)
Minimum Insulation Resistance (@ 500 VDC)(4)
Maximum Capacitance, Input/Output
Ambient Operating Temperature Range
Ambient Storage Temperature Range
Weight (typical)
Encapsulation
Parameters
2500 Vrms
10
9
Ohms
15 pF
-30 to 80°C
-30 to 125°C
0.23 oz. (104.6g)
Thermally Conductive Epoxy
GENERAL NOTES
1) All parameters at 25°C unless otherwise specified.

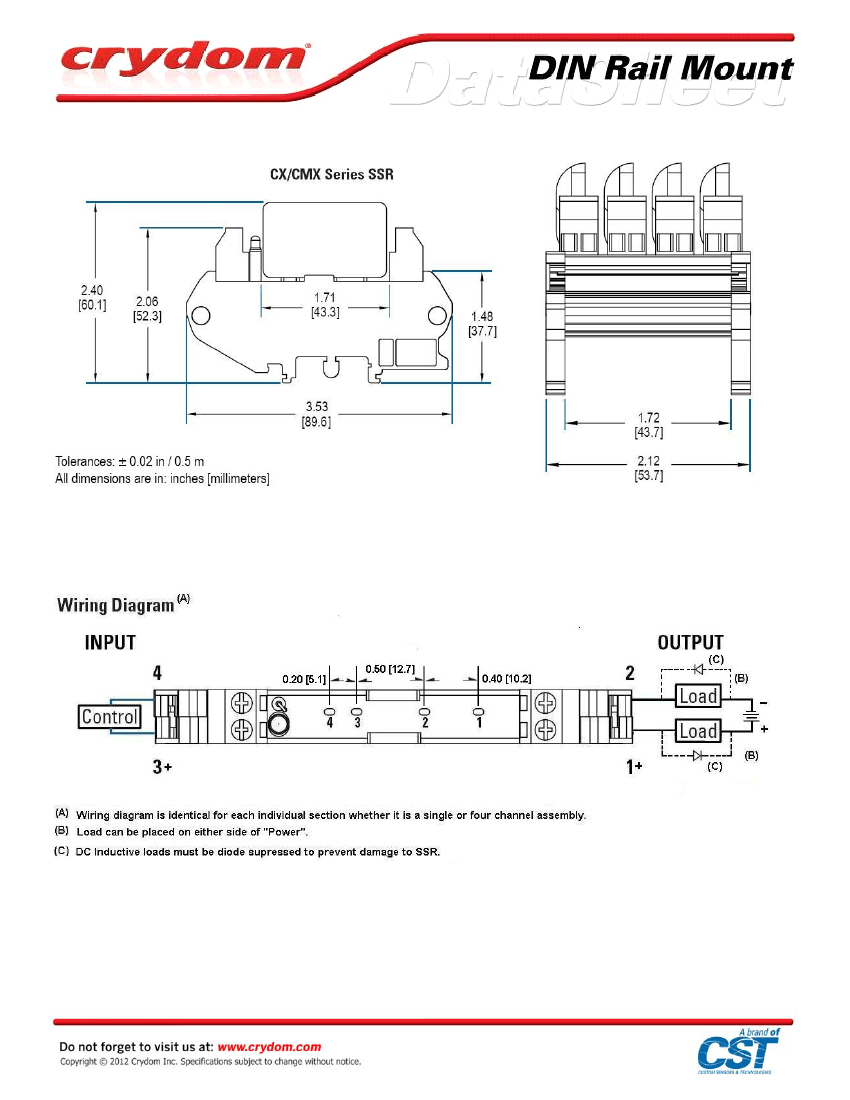

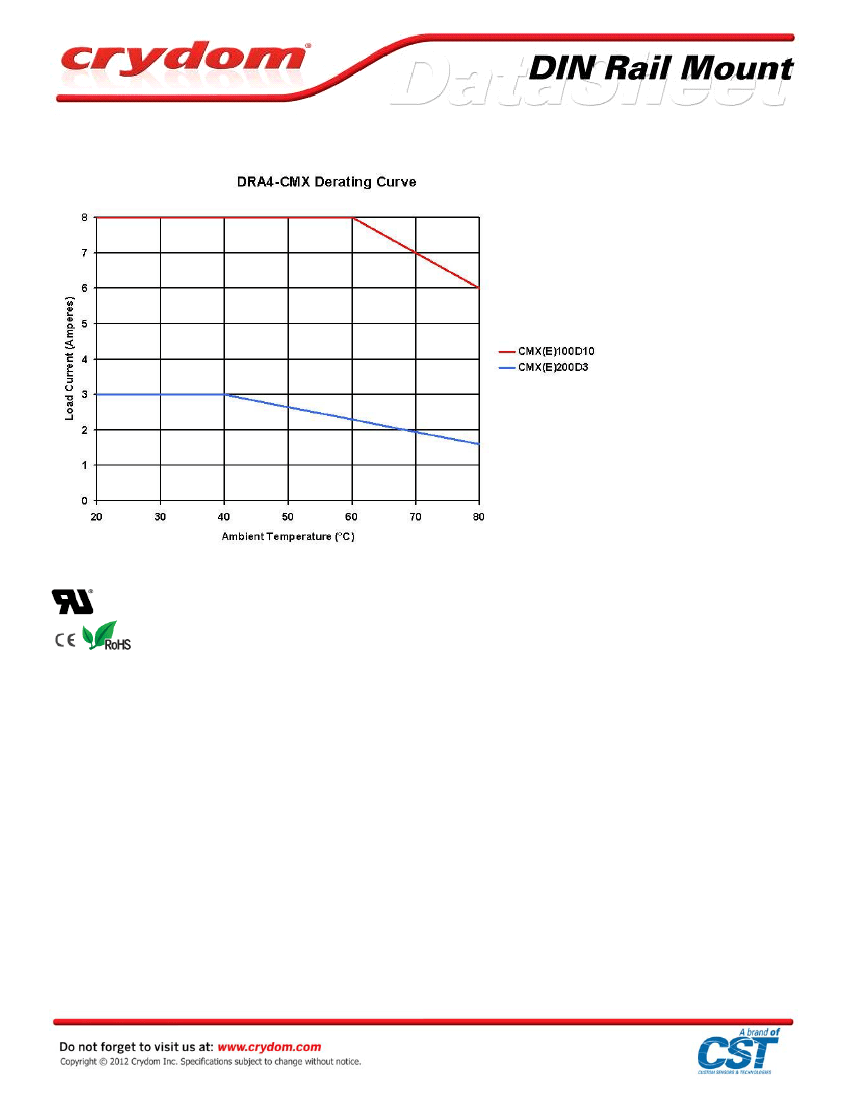

2) See derating chart on page 3.
3) Steady state load Current exceeding 8 amps will damage socket.
4).Dielectric and insulation resistance is measured between input and output.
