LEC-BTS1-2G-ER datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Module/solution> LEC-BTS1-2G-ER

LEC-BTS1-2G-ER: Descriptioncomputer-On-modules - com smarc-compact intel e3815 bay trail 2G; CategoryModule/solution; File Size328KB，2 Pages; ManufacturerAll Sensors; Environmental Compliance

Download Datasheet Parametric Compare View All

LEC-BTS1-2G-ER Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	LEC-BTS1-2G-ER	-	-	View	Buy Now

LEC-BTS1-2G-ER Overview

computer-On-modules - com smarc-compact intel e3815 bay trail 2G

LEC-BTS1-2G-ER Parametric

Parameter Name	Attribute value
Manufacture	ADLINK Technology
Product Category	Computer-On-Modules - COM
RoHS	Yes
Form Fac	SMARC
Processor Brand	Intel
Processor Type	Intel Atom E3815
Frequency	1.46 GHz
Memory Size	2 GB
Memory Type	DDR3L
Interface Type	Audio, Camera, Ethernet, GPIO, MMC, PCIe, SATA, SDIO, Serial, USB
Operating Supply Voltage	5.25 V
Maximum Operating Temperature	+ 85 C
Dimensions	82 mm x 50 mm
Backup Battery	N
Description/Functi	SMARC short module with Intel Atom E3815, single core, 2 GB DDR3L, extreme rugged operating temperature
Minimum Operating Temperature	- 40 C
Power Consumpti	5 W
Processor Series	Intel Atom E3815

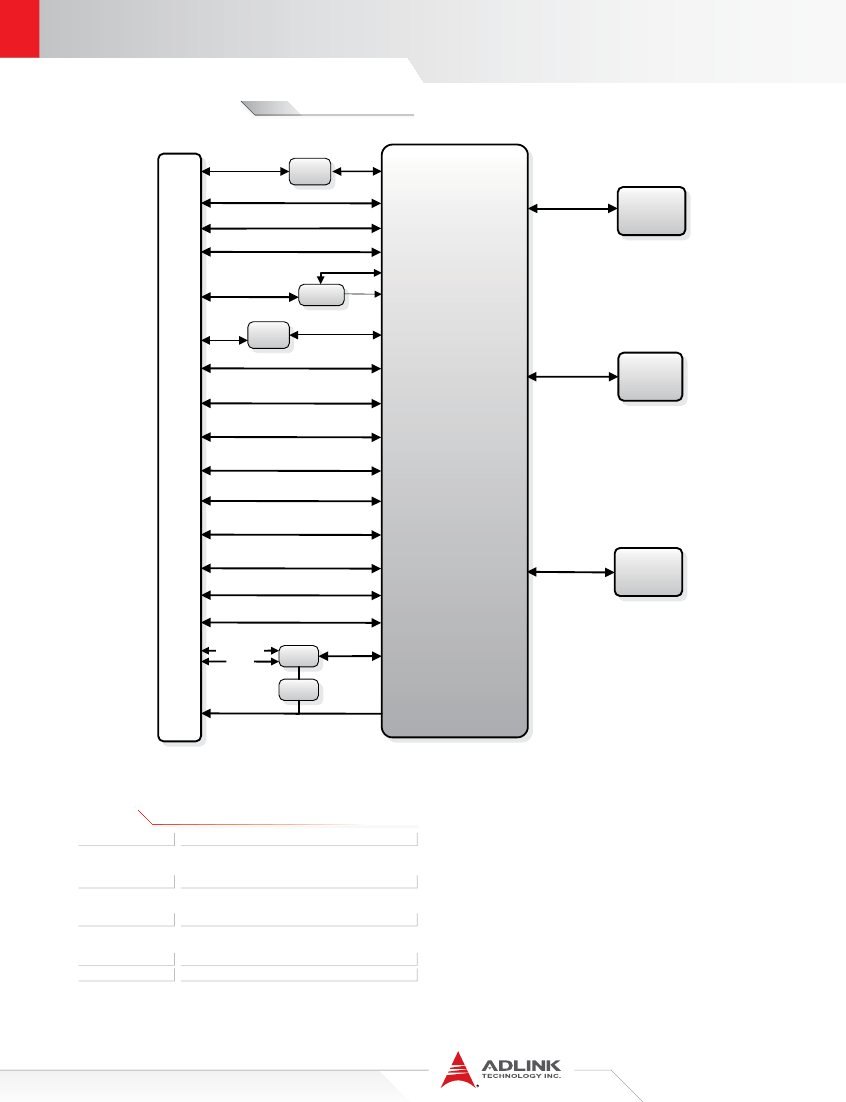

Preview

Download Datasheet

View All

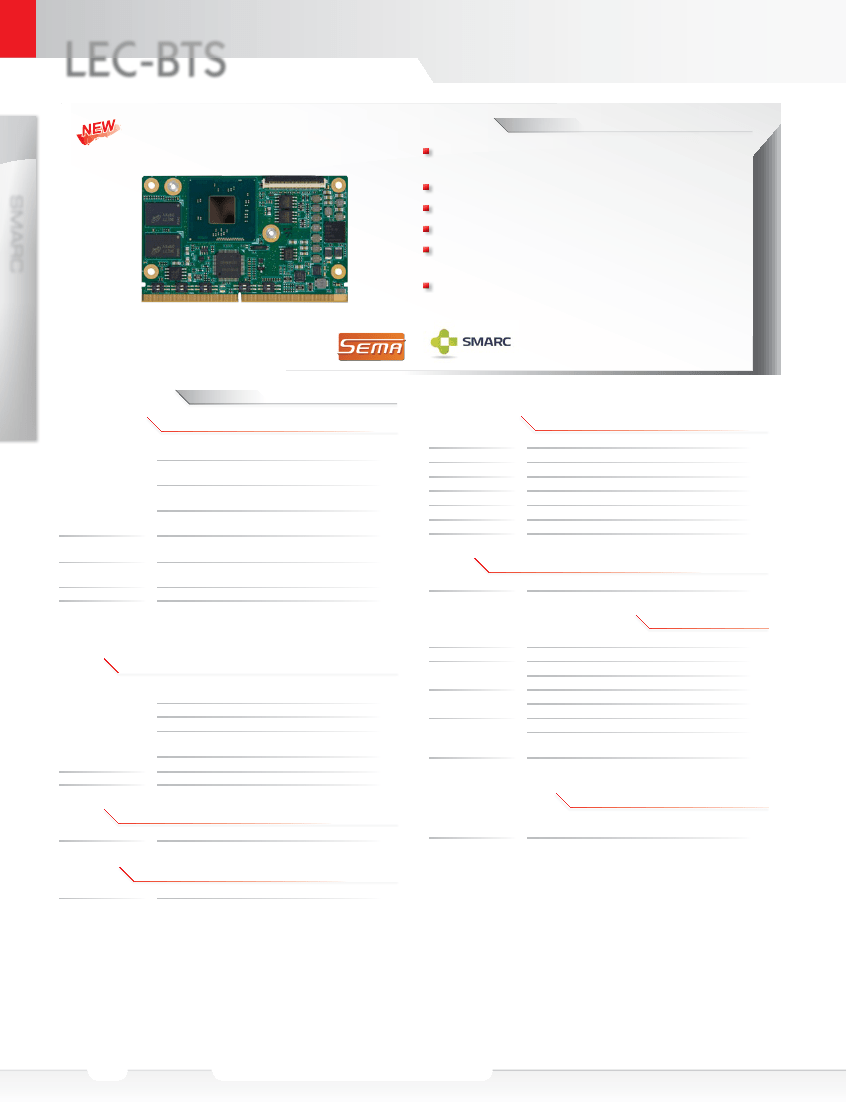

LEC-BTS

SMARC

Short Size Module with Intel

Atom™

Processor E3800 Series System-on-Chip

Features

Single, dual or quad-core Intel

Atom™ Processor

E3800 Series System-on-Chip

Up to 4 GB DDR3L at 1066/1333 MHz (non-ECC)

HDMI and LVDS

GbE, camera interface

1x SATA 3Gb/s, 1x USB 3.0, 3x USB 2.0,

max. 12x GPIO

Extreme Rugged™ operating temperature:

-40°C to +85°C

*LEC = Low Energy Computer-on-Module

Specifications

Core System

Intel Atom™ E3800 Series, single, dual or quad-core SoC

with integrated graphics

Atom™ E3845 (4C/1333), 1.91 GHz, Gfx 542/792 MHz

(Turbo), 10 W TDP

Atom™ E3826 (2C/1066), 1.46 GHz, Gfx 533/667 MHz

(Turbo), 7 W TDP

Atom™ E3815 (1C/1066), 1.46 GHz, Gfx 400/- MHz

5 W TDP

Memory

Up to 4 GB DDR3L at 1066/1333 MHz, memory down

non-ECC

Embedded BIOS

AMI UEFI with CMOS backup in 8 MB SPI BIOS, Fast Boot

support

Cache

512 kB to 2 MB L2 cache

SEMA Board Controller Supports: Voltage/Current monitoring, Power Sequencing,

Logistics and Forensic Information, Flat Panel Control, I²C

Bus Control, GPIO Control, User Flash, Failsafe BIOS (dual

BIOS), Watchdog Timer and Fan Control

I/O Interfaces

PCIe

USB

SATA

MMC

SDIO

GPIO

Camera

Serial

3x PCIe x1 Gen2

1x USB 3.0 + 3x USB 2.0

1x SATA 3 Gb/s

1x MMC interface to carrier

1x SDIO (4-bit)

12x GPIO, 5x used for camera, 7x available

CSI 4L/1L

2x SPI, 4x I

C, 1x I

S, Power Management, 2x UART

CPU

Power

Standard Input

Power States

3.0 V ~ 5.25 V DC ±5%

Supports C0-C6, S0, S3, S4, S5

Mechanical and Environmental

Form Factor

SMARC Specification v1.0

Dimension

SMARC short size module, 82 mm x 50 mm

Operating Temperature Standard: 0°C to +60°C

Extreme Rugged ™: -40°C to +85°C

Humidity

5-90% RH operating, non-condensing

5-95% RH storage (and operating with conformal coating)

Shock and Vibratio

IEC 60068-2-64 and IEC-60068-2-27

MIL-STD-202F, Method 213B, Table 213-I, Condition A and

Method 214A, Table 214-I, Condition D

HALT

Thermal Stress, Vibration Stress, Thermal Shock and

Combined Test

Video

GPU Feature Support

7th generation Intel

graphics core architecture with four

execution units, supports two independent displays

2D and 3D graphics hardware acceleration

Support for DirectX 11.1, OGLES 2.0, OGL 3.2

Video decode HW acceleration for H.264, MPEG2, VC1, VP8

formats

Video encode HW acceleration for H.264, MPEG2 formats

Single channel 24-bit LVDS from DDI0

HDMI 1.4a from DDI1

LVDS

HDMI

Audio

Chipset

Ports

Intel HD Audio integrated in SOC

S and HDA for audio codec on carrier

Operating Systems

Standard Support

Linux, VxWorks, Windows 7/8, Windows Embedded

Compact 7

Extended Support (BSP) QNX, Android

Ethernet

Intel

MAC/PHY

Interface

1x Intel

i210IT Ethernet controller

10/100/1000 GbE

http://www.adlinktech.com/Computer-on-Module

LEC-BTS1-2G-ER Related Products

	LEC-BTS1-2G-ER	LEC-BTS4-2G-ER	LEC-BTS2-2G-ER
Description	computer-On-modules - com smarc-compact intel e3815 bay trail 2G	computer-On-modules - com smarc-compact intel e3845 bay trail 2G	computer-On-modules - com smarc-compact intel e3826 bay trail 2G
Manufacture	ADLINK Technology	ADLINK Technology	ADLINK Technology
Product Category	Computer-On-Modules - COM	Computer-On-Modules - COM	Computer-On-Modules - COM
RoHS	Yes	Yes	Yes
Form Fac	SMARC	SMARC	SMARC
Processor Brand	Intel	Intel	Intel
Processor Type	Intel Atom E3815	Intel Atom E3845	Intel Atom E3826
Frequency	1.46 GHz	1.91 GHz	1.46 GHz
Memory Size	2 GB	2 GB	2 GB
Memory Type	DDR3L	DDR3L	DDR3L
Interface Type	Audio, Camera, Ethernet, GPIO, MMC, PCIe, SATA, SDIO, Serial, USB	Audio, Camera, Ethernet, GPIO, MMC, PCIe, SATA, SDIO, Serial, USB	Audio, Camera, Ethernet, GPIO, MMC, PCIe, SATA, SDIO, Serial, USB
Operating Supply Voltage	5.25 V	5.25 V	5.25 V
Maximum Operating Temperature	+ 85 C	+ 85 C	+ 85 C
Dimensions	82 mm x 50 mm	82 mm x 50 mm	82 mm x 50 mm
Backup Battery	N	N	N
Description/Functi	SMARC short module with Intel Atom E3815, single core, 2 GB DDR3L, extreme rugged operating temperature	SMARC short module with Intel Atom E3845, quad core, 2 GB DDR3L, extreme rugged operating temperature	SMARC short module with Intel Atom E3826, dual core, 2 GB DDR3L, extreme rugged operating temperature
Minimum Operating Temperature	- 40 C	- 40 C	- 40 C
Power Consumpti	5 W	10 W	7 W
Processor Series	Intel Atom E3815	Intel Atom E3845	Intel Atom E3826
