1206 Fast Acting Surface Mount Fuses
Features:
•
•
•
•
•
•
•
•
•
Fast acting at 250% overload current level
Excellent inrush current withstanding capability
Extremely thin body for space saving
Much safer with wire-in-air design
Operating temperature range: -55°C to +125 °C (with de-rating)
Fiberglass enforced epoxy fuse body
Copper termination with nickel and tin plating
Halogen free, RoHS compliant
100% lead-free
Agency Approval:
Recognized Under the Components Program of Underwriters
Laboratories. File Number: E232989

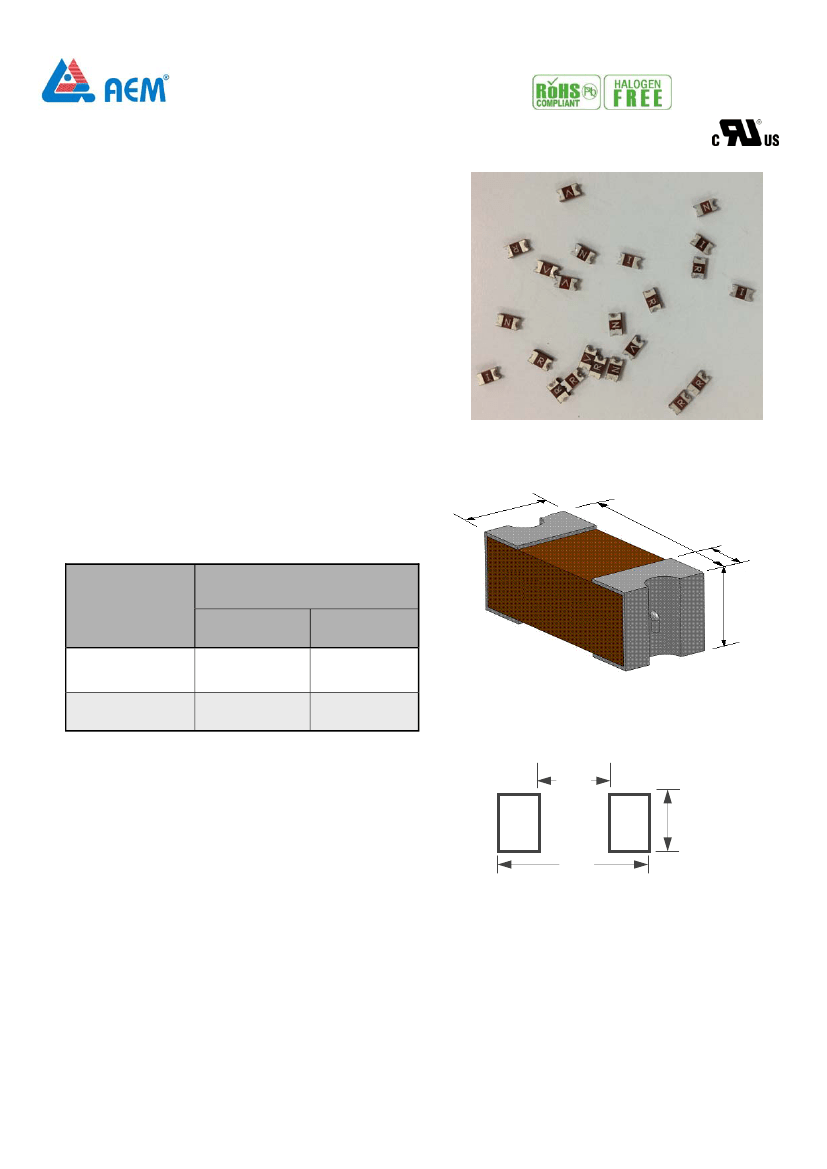

Shape and Dimensions:
0.063 – 0.004/+ 0.012
(1.60 – 0.10/+ 0.30)
0.126 ± 0.008
(3.20 ± 0.20)
0.033 ± 0.012
(0.85 ± 0.30)

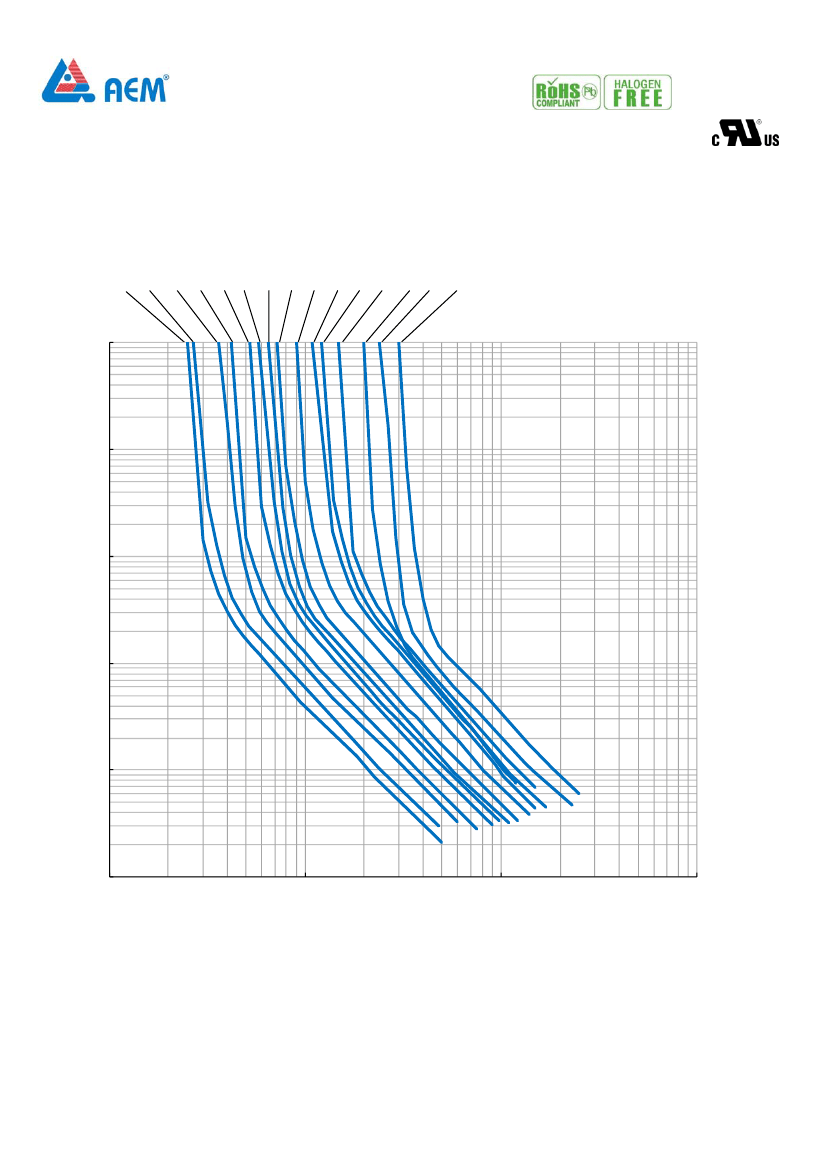

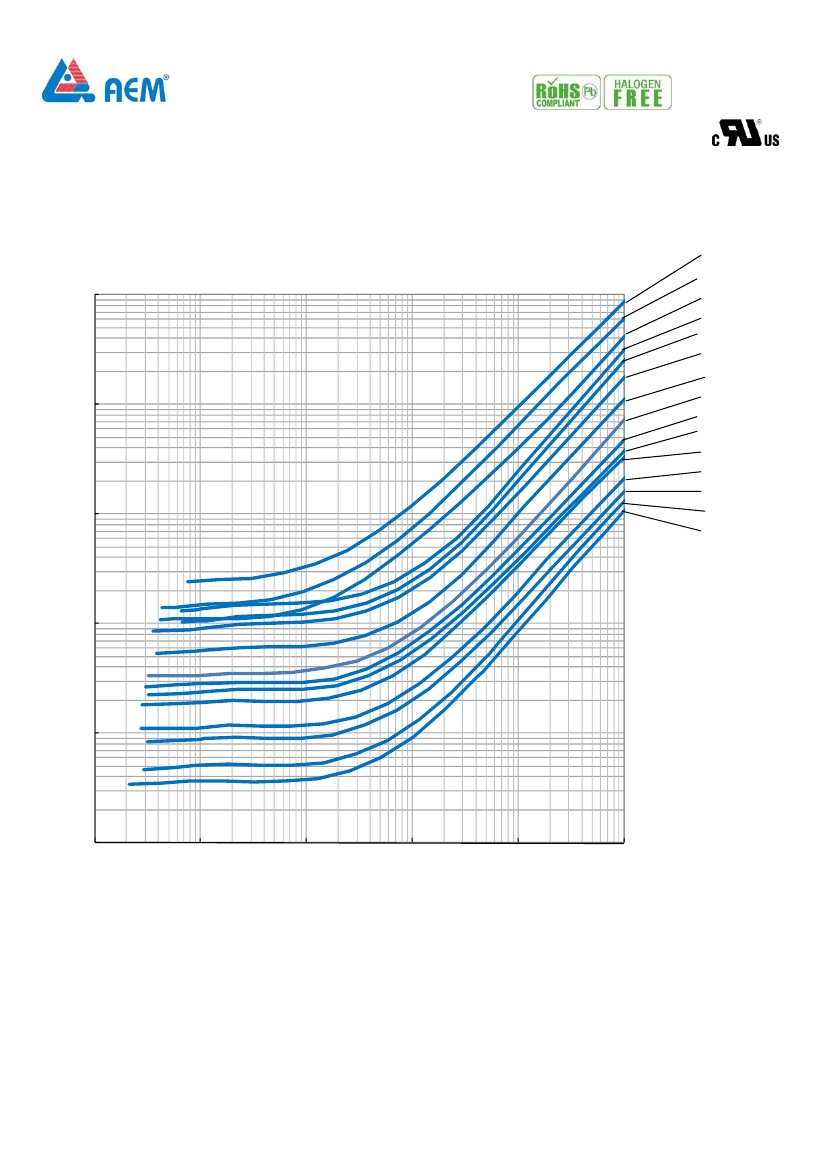

Time/Current Characteristics:
Clearing Time at 25°C
%
of Current Rating
Min.
100%
250%
4 hour
5 seconds
Max.
0.042 ± 0.006
(1.08 ± 0.15)
Recommended Land Pattern:
Typical Application:
·
Notebook, Ultrabook
·
Backlight Driver
·
DC/DC Converter
·
Low voltage lighting power
·
Automotive electronics
0.059
(1.50)
0.071
(1.80)
0.173
(4.40)
Inch (mm)
Website:
www.aemchina.com & www.aemcomponents.com
Rev. Jan. 14
AirMatrix
TM
1206 Fast Acting Surface Mount Fuses
Ordering Information:
Part Number
Current Rating
(A)
1.50
1.60
2.00
2.50
3.00
3.15
3.50
4.00
5.00
6.30
7.00
8.00
10.0
12.0
15.0
Marking
( White )
G
T
I
J
65
AF1206F3.00TM
AF1206F3.15TM
AF1206F3.50TM
AF1206F4.00TM
AF1206F5.00TM
AF1206F6.30TM
AF1206F7.00TM
AF1206F8.00TM
AF1206F10.0TM
AF1206F12.0TM
AF1206F15.0TM
K
V
L
M
N
O
P
R
Q
X
Y
32
50A@32VDC
50A@65VDC
0.022
0.020
0.018
0.016
0.013
0.010
0.0092
0.0084
0.0050
0.0041
0.0035
1.9
2.2
2.6
3.3
5.4
8.9
10.4
13.5
11.2
15.0
24.5
Voltage Rating
(VDC)
Interrupting
Rating
Nominal DCR
(Ω)
0.050
0.043
0.032
0.028
Nominal I
2
t
(A
2
s)
0.37
0.52
0.88
1.1
AF1206F1.50TM
AF1206F1.60TM
AF1206F2.00TM
AF1206F2.50TM
Notes:
- Resistance is measured at
≤10%
of rated current and 25℃ ambient.
- Melting l
2
t is calculated at 0.001 second pre-arcing time.
Website:
www.aemchina.com & www.aemcomponents.com
Rev. Jan. 14
AirMatrix
TM
1206 Fast Acting Surface Mount Fuses
Product Identification:
AF 1206 F 2.00 T M
(1)
(2) (3) (4) (5) (6)
(1)
(2)
(3)
(4)
(5)
Series code: AF
Size code: 1206
Time/Current characteristic: F
Current rating: 2.00 — 2.00A
Package code:
T - Tape & Reel
B - Bulk
(6)
Marking code: M - with mark
Environmental Tests:
Reliability Test
Reflow & Bend
Test Condition and Requirement
3 reflows at 245°C followed by a 2 mm bend, 20% DCR change
max., no mechanical damage
245°C, 5 seconds, new solder coverage 90% minimum
Test Reference
Refer to
AEM QIQ034 ,QIQ048
MIL-STD-202
Method 208
Solderability
Soldering Heat Resistance
260°C, 10 seconds, 20% DCR change max. new solder coverage MIL-STD-202
Method 210
75% minimum
25°C, 2000 hours, 80% rated current, voltage drop change
≤
±20%
-65°C to +125°C, 100 cycles, 10% DCR change max., no
mechanical damage
5 – 3000 Hz, 0.4 inch double amplitude or 30 G peak, 10% DCR
change max., no mechanical damage
1500 G, 0.5 milliseconds, half-sine shocks, 10% DCR change
max., no mechanical damage
5% salt solution, 48 hour exposure, 10% DCR change max., no
excessive corrosion
10 cycles, 15% DCR change max., no excessive corrosion
Refer to AEM QIQ106
MIL-STD-202
Method 107
MIL-STD-202
Method 204
MIL-STD-202
Method 213
MIL-STD-202
Method 101
MIL-STD-202
Method 106
Life
Thermal Shock
Mechanical Vibration
Mechanical Shock
Salt Spray
Moisture Resistance
