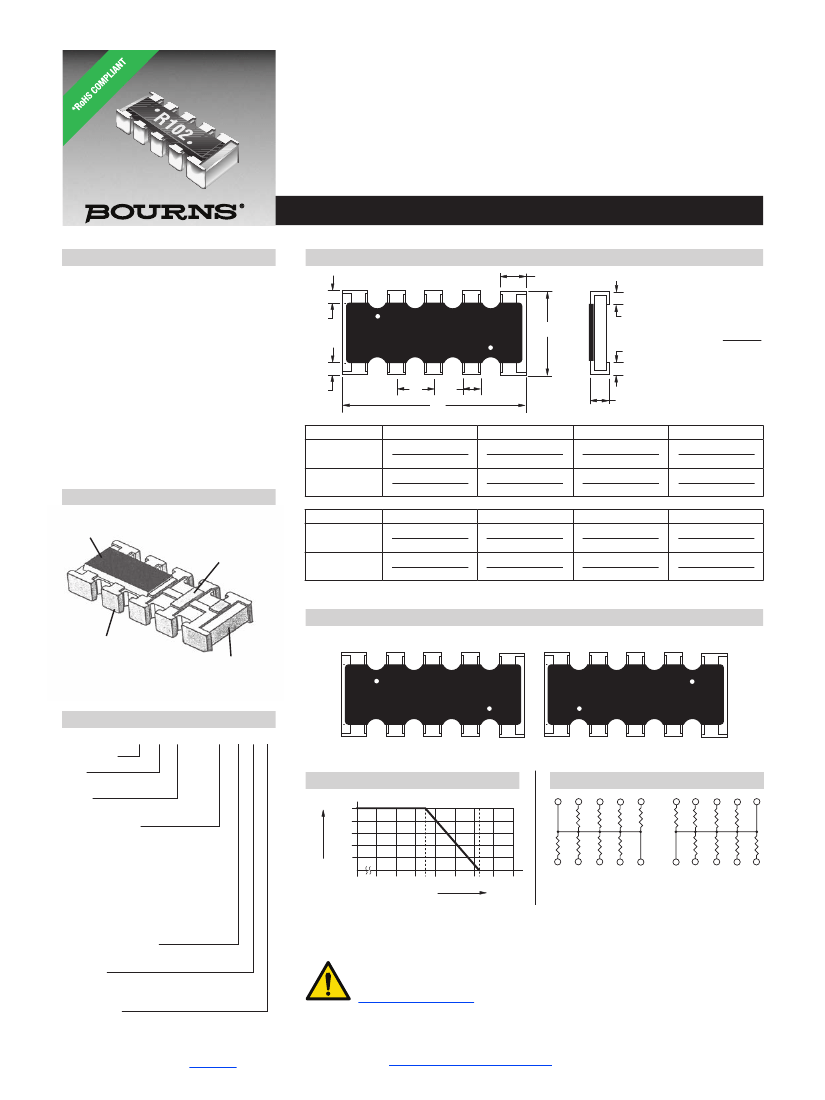

Features
n
JA version available to 100K ohms
n
10 pin with 8 resistors in bussed type for
pull up/down circuit
n
Convex termination style
n
Resistance tolerance ±5 %
n
E24 Series from 10 ohms to 43K ohms
n
Suitable for all types of soldering processes
n
Paper tape on plastic reel for automatic
placement
n
RoHS compliant*
Model CAY17 - Bussed Resistor Array
Number of Resistors .. 8 (bussed circuit)
Power Rating per Resistor @ 70 °C
............................................ 0.0625 W
Package Power Rating @ 70 °C
...............................................0.250 W
Operating Temperature Range
............................... -55 °C to +155 °C
Derated to 0 Load @..................+125 °C
Max. Working Voltage......................25 V
Max. Overload Voltage ....................50 V
Resistance Tolerance .................... ±5 %
Resistance Range/E24 Series
JA version ..... 10 ohms to 100K ohms
JB version ....... 10 ohms to 43K ohms
T.C.R. ................................ ±250 ppm/°C
Construction
Protective
Glass Overcoat
Thick Film
Resistive Element
Characteristics
Product Dimensions
d
b
R 1 02
P
L
a
c
W
c
DIMENSIONS:
MM
(INCHES)
b
t
Model
CAY17-JA
CAY17-JB
Model
CAY17-JA
CAY17-JB
L
3.20 ± 0.20
(0.126 ± 0.008)
3.20 ± 0.20
(0.126 ± 0.008)
a
0.35 ± 0.20
(0.014 ± 0.008)
0.40 ± 0.10
(0.016 ± 0.004)
W
1.60 ± 0.15
(0.063 ± 0.006)
1.60 ± 0.10
(0.063 ± 0.004)
b
0.30 ± 0.20
(0.012 ± 0.008)
0.30 ± 0.20
(0.012 ± 0.008)
t
0.50 ± 0.10
(0.020 ± 0.004)
0.50 ± 0.10
(0.020 ± 0.004)
c
0.30 ± 0.20
(0.012 ± 0.008)
0.25 ± 0.10
(0.010 ± 0.004)
p
0.64 ± 0.05
(0.126 ± 0.002)
0.64 ± 0.05
(0.126 ± 0.002)
d
0.50 ± 0.10
(0.020 ± 0.004)
0.55 ± 0.10
(0.022 ± 0.004)
Typical Part Marking
Termination
High Purity
Alumina
Substrate
CAY17-JA
CAY17-JB
How To Order
Chip Arrays
Type
• Y = Convex
R 1 02
102
CA Y 17 - 103 J A LF
Derating Curve
100
Rated Load (%)
80
60
40
20
0
-55
40 60
80
Ambient Temp. (°C)
100 120 140
160
70 °C
125 °C
Bussed Circuits
6
7
R5
R1
R2
8
R6
R3
9
10
R7
R4
R8
6
7
R5
R6
R1
8
R7
R2
9
10
R8
R3
R4
Model
• 17 = 1206 Package Size
Resistance Code
• <10 ohms: “R” represents decimal
point (example: 4R7 = 4.7 ohms).
• ≥10 ohms: First two digits are signifi-
cant, third digit represents number of
zeros to follow (example: 474 = 470k
ohms)
(JA range: 10 ohms to 100K ohms;
JB range: 10 ohms to 43K ohms)
Resistance Tolerance
• J = ±5 %
Resistors
• A = Common from terminal 5 to 10
• B = Common from terminal 1 to 6
Terminations
• LF = Tin-plated (RoHS compliant)
2
1
4
5
3
R1=R2=R3=R4=R5=R6=R7=R8
CAY17-JA
2
5
4
1
3
R1=R2=R3=R4=R5=R6=R7=R8
CAY17-JB
WARNING Cancer and Reproductive Harm
www.P65Warnings.ca.gov
*RoHS Directive 2015/863, Mar 31, 2015 and Annex.
Specifications are subject to change without notice.
Users should verify actual device performance in their specific applications.
The products described herein and this document are subject to specific legal disclaimers as set forth on the last page of
this document, and at www.bourns.com/docs/legal/disclaimer.pdf.
For Standard Values Used in Capacitors,
