BD069-05-A-0240-L-E datasheet, PDF

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > The connector> The connector> BD069-05-A-0240-L-E

Preview

BD069-05-A-0240-L-E: DescriptionBoard Connector, 5 Contact(s), 1 Row(s), Female, Straight, 0.05 inch Pitch, Solder Terminal, Plug,; CategoryThe connector The connector; File Size169KB，1 Pages; ManufacturerGlobal Connector Technology; Environmental Compliance

Download Datasheet Parametric View All

BD069-05-A-0240-L-E Overview

Board Connector, 5 Contact(s), 1 Row(s), Female, Straight, 0.05 inch Pitch, Solder Terminal, Plug,

BD069-05-A-0240-L-E Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Objectid	7017403469
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	ROHS COMPLIANT
body width	0.094 inch
subject depth	0.181 inch
body length	0.25 inch
Body/casing type	PLUG
Connector type	BOARD CONNECTOR
Contact to complete cooperation	GOLD FLASH
Contact completed and terminated	Gold (Au) - with Nickel (Ni) barrier
Contact point gender	FEMALE
Contact material	COPPER ALLOY
contact mode	RECTANGULAR
Contact resistance	20 mΩ
Contact style	DUAL PRONG
Dielectric withstand voltage	300VAC V
Insulation resistance	1000000000 Ω
insulator material	LIQUID CRYSTAL POLYMER (LCP)
JESD-609 code	e4
Plug contact pitch	0.05 inch
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	1
Number of rows loaded	1
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
PCB contact pattern	RECTANGULAR
Plating thickness	FLASH inch
Rated current (signal)	1 A
Guideline	UL
reliability	COMMERCIAL
Terminal length	0.094 inch
Terminal pitch	1.27 mm
Termination type	SOLDER
Total number of contacts	5

Preview

Download Datasheet

View All

H

ø0

.65

ø1.27

1.66

0.55

G

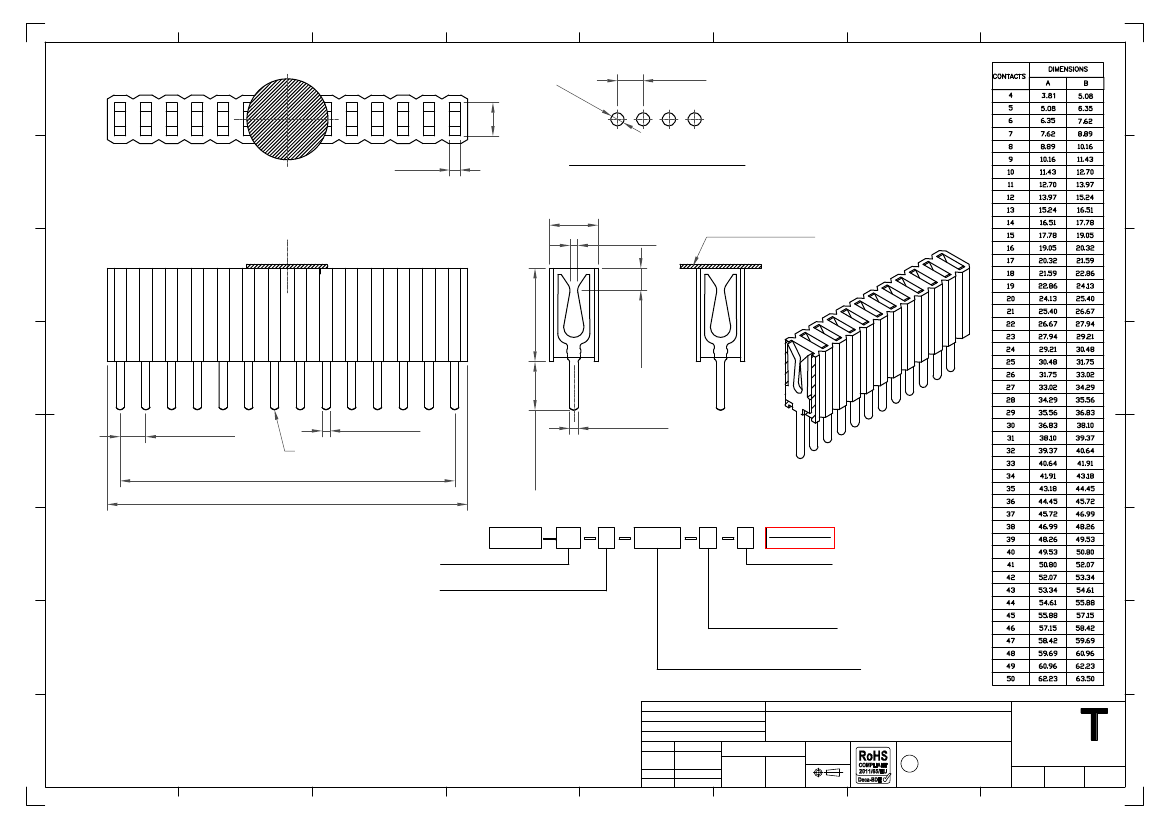

Recommended PCB Layout

(Tolerance:±0.05mm)

2.40

0.38 ref.

F

acetate tape

(Ø4.0X0.20)

4.60

E

D

Pin 0.40 x 0.42

A±0.20

B±0.35

Specifications

规格

:

Ordering Grid

2.40±0.20

1.27±0.10

0.40±0.05

0.42±0.05

1.08 ref.

C

BD069

XX

X

0240

X

B

A

Current Rating

电流额定值

: 1 amp

Insulator Resistance

绝缘电阻值

: 1000 MΩ min.

Dielectric Withstanding

耐电压

: AC 300 V

Contact Resistance

接触电阻值:

20 mΩ max.

Operating Temperature

工½温度

: -40°C to +105°C

Contact Material

端子物料

: Copper Alloy

Insulator Material

绝缘½物料

:

Standard

标准物料

: Polyester, LCP, UL 94V-0

Option

可选物料

: Polyamide, Nylon 6T, UL 94V-0

Soldering Process

可焊性

:

LCP (Standard

标准物料

) -

IR Reflow

回流焊

: 260°C for 10 sec.

Wave

波峰焊

: 250°C for 5-10 sec

Manual Solder

人工焊接

: 350°C for 3-5 sec

Nylon 6T (Option

可选物料

) -

IR Reflow

回流焊

: 260°C for 10 sec.

Wave

波峰焊

: 230°C for 5-10 sec.

Manual Solder

人工焊接

: 350°C for 3-5sec

Mates with

配套之母座

(subject to pin length

在端子长度适合的条件下

):

BD020 (recommended mating post height 3.00mm

推荐配合高度

3.00)

Request Samples

and Quotation

No. of Contacts

04 to 50

Contact Plating

A = Gold Flash All Over

(Standard)

B = Selective Gold Flash Contact Area/

Tin On Tail

C = Tin All Over

G = 10µ" Gold Contact Area/Tin On Tail

I = 30µ" Gold Contact Area/Tin On Tail

Packing Options

D = Tube

(Standard)

E = Tube with Cap

F = Tube with Film

G = Plastic Box

Insulator Material

L = LCP

(04-25 contacts only)

N = Nylon 6T

(26-50 contacts only)

Tail Length (1/100mm)

0240 = 2.40mm

Part Number

Product Description

BD069

Drawing Date

21st April 2008

By

Detail

Revision

Date

AJO

BD069

H PCN

H

08/09/14

Length

1.27mm Pitch Socket, Single Row,

Through Hole, Vertical

Tolerances

(Except as Noted)

Angle

1

2

3

4

5

X.° ± 5°

X. ± 0.30

X.X° ± 3°

X.X ± 0.25

X.XX ± 0.15 X.XX° ± 2°

X.XXX ± 0.10 X.XXX° ± 1°

Units:

Metric (mm)

C

7

3rd Angle Projection

This drawing is confidential and

copyright of Global Connector

Technology, Ltd (GCT).

This drawing must not be copied

or disclosed without written

consent. E & OE

Global Connector Technology

GC

Drawn By

ASE

www.gct.co

Not to

Scale

Sheet No.

1/1

6

8
