7706581/130P: DescriptionArray/Network Resistor, Terminator, Cermet, 0.96W, 81ohm, 100V, 2% +/-Tol, -100,100ppm/Cel, Through Hole Mount, 6010, SIP, ROHS COMPLIANT; CategoryPassive components The resistor; File Size139KB，3 Pages; ManufacturerCTS; Environmental Compliance

Download Datasheet Parametric Compare View All

7706581/130P Overview

Array/Network Resistor, Terminator, Cermet, 0.96W, 81ohm, 100V, 2% +/-Tol, -100,100ppm/Cel, Through Hole Mount, 6010, SIP, ROHS COMPLIANT

7706581/130P Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	CTS
package instruction	SIP, 6010
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	DUAL TERMINATOR
structure	Rectangular
Component power consumption	0.15 W
The first element resistor	81 Ω
JESD-609 code	e1
Lead length	3.43 mm
lead spacing	2.54 mm
Manufacturer's serial number	770
Installation features	THROUGH HOLE MOUNT
Network Type	TERMINATOR
Number of components	2
Number of functions	4
Number of terminals	6
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package height	4.95 mm
Package length	15.24 mm
Package shape	RECTANGULAR PACKAGE
Package form	SIP
Package width	2.5 mm
method of packing	BULK
Rated power dissipation(P)	0.96 W
Rated temperature	25 °C
resistance	81 Ω
Resistor type	ARRAY/NETWORK RESISTOR
Second/last element resistor	130 Ω
series	770
size code	6010
surface mount	NO
technology	CERMET
Temperature Coefficient	-100,100 ppm/°C
Terminal surface	Tin/Silver/Copper (Sn/Ag/Cu)
Terminal shape	FLAT
Tolerance	2%
Operating Voltage	100 V
Base Number Matches	1

Preview

Download Datasheet

View All

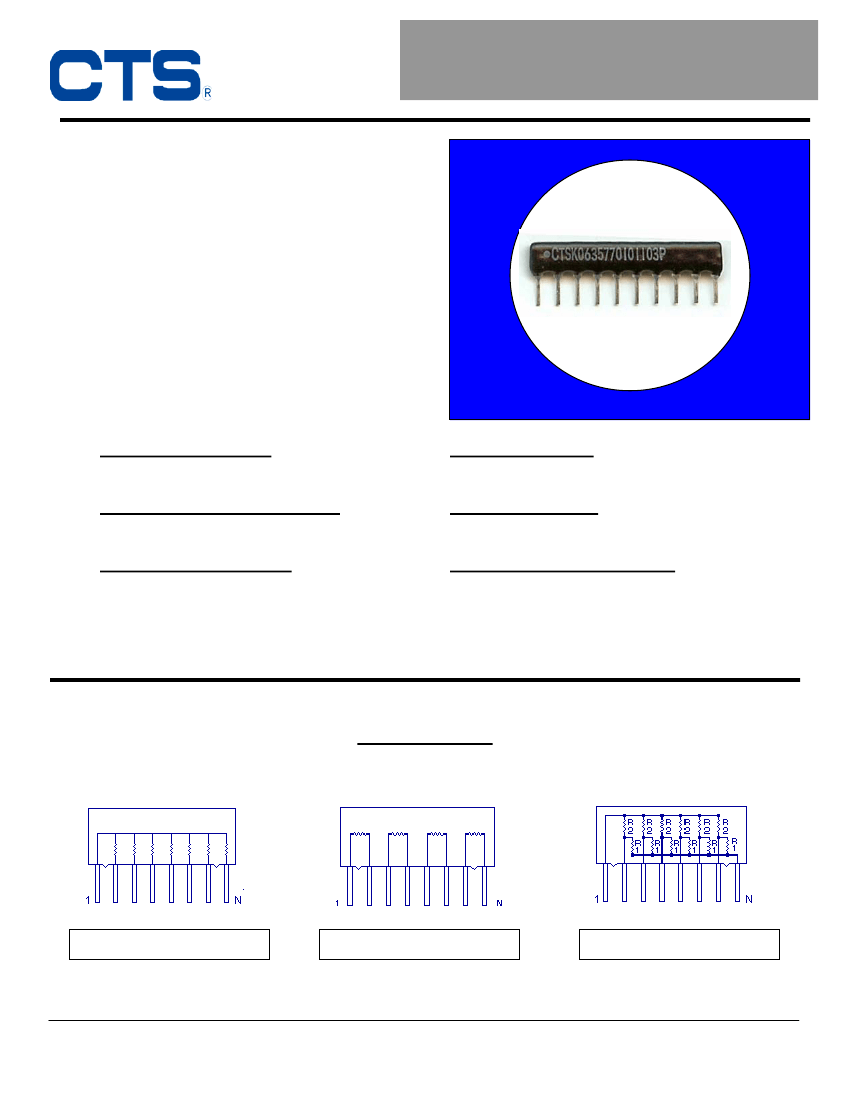

Single In-Line Conformal Series 770

Technical

Data

Features

•

High-Reliability Cermet Resistors

Space Saving Over Individual Resistors

Available in Odd or Even Number of Pins

From 4 to 12 Leads

2.54mm/.100 in. Pin Spacing

Packaged in Bulk

RoHS Compliant

Resistance Tolerance:

Resistance Range:

Standard: ±2% or 0.5Ω (whichever is greater) Standard: 10Ω to 1 MegΩ

Operating Temperature Range:

-55°C to +125°C

Temperature Coefficient:

Standard: 100Ω to 1 MegΩ

100PPM/°C typical

22Ω to 99Ω

±200PPM/°C typical

Dielectric Strength:

100 VAC

Maximum Operating Voltage:

100V not to exceed rated power

Types of Circuits

Bussed (Schematic 1)

Isolated (Schematic 3)

Dual Terminator (Schematic 5)

Available in 4 through 12 Pins

Available in 4, 6, 8, 10, 12 Pins

Available in 6, 8, 10 Pins

1 of 3

March 2007

CTS Electronic Components

www.ctscorp.com

7706581/130P Related Products

	7706581/130P	77065220/330P	77065121/195P
Description	Array/Network Resistor, Terminator, Cermet, 0.96W, 81ohm, 100V, 2% +/-Tol, -100,100ppm/Cel, Through Hole Mount, 6010, SIP, ROHS COMPLIANT	RES NET,CERMET,220 OHMS,100WV,2% +/-TOL,6010 CASE	Array/Network Resistor, Terminator, Cermet, 0.96W, 121ohm, 100V, 2% +/-Tol, -100,100ppm/Cel, Through Hole Mount, 6010, SIP, ROHS COMPLIANT
Is it Rohs certified?	conform to	conform to	conform to
Maker	CTS	CTS	CTS
package instruction	SIP, 6010	SIP, 6010	SIP, 6010
Reach Compliance Code	compliant	compliant	compliant
ECCN code	EAR99	EAR99	EAR99
structure	Rectangular	Rectangular	Rectangular
Lead length	3.43 mm	3.43 mm	3.43 mm
lead spacing	2.54 mm	2.54 mm	2.54 mm
Manufacturer's serial number	770	770(DT)	770
Network Type	TERMINATOR	Dual Terminator	TERMINATOR
Number of terminals	6	6	6
Maximum operating temperature	125 °C	125 °C	125 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C
Package height	4.95 mm	4.95 mm	4.95 mm
Package length	15.24 mm	15.24 mm	15.24 mm
Package shape	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE
Package form	SIP	SIP	SIP
Package width	2.5 mm	2.5 mm	2.5 mm
method of packing	BULK	Bulk	BULK
Rated power dissipation(P)	0.96 W	0.64 W	0.96 W
resistance	81 Ω	220 Ω	121 Ω
Resistor type	ARRAY/NETWORK RESISTOR	ARRAY/NETWORK RESISTOR	ARRAY/NETWORK RESISTOR
series	770	770	770
size code	6010	6010	6010
technology	CERMET	CERMET	CERMET
Temperature Coefficient	-100,100 ppm/°C	-100,100 ppm/°C	-100,100 ppm/°C
Tolerance	2%	2%	2%
Operating Voltage	100 V	100 V	100 V
Base Number Matches	1	1	1
Other features	DUAL TERMINATOR	-	DUAL TERMINATOR
Component power consumption	0.15 W	-	0.15 W
The first element resistor	81 Ω	-	121 Ω
JESD-609 code	e1	-	e1
Installation features	THROUGH HOLE MOUNT	-	THROUGH HOLE MOUNT
Number of components	2	-	2
Number of functions	4	-	4
Rated temperature	25 °C	-	25 °C
Second/last element resistor	130 Ω	-	195 Ω
surface mount	NO	-	NO
Terminal surface	Tin/Silver/Copper (Sn/Ag/Cu)	-	Tin/Silver/Copper (Sn/Ag/Cu)
Terminal shape	FLAT	-	FLAT
