HN27C256FP-25T: Description32768 WORD X 8 BIT CMOS ONE TIME ELECTICALLY PROGRAMMABLE ROM; Categorystorage storage; File Size370KB，6 Pages; ManufacturerHitachi （Renesas ）; Websitehttp://www.renesas.com/eng/

Download Datasheet Parametric Compare View All

HN27C256FP-25T Overview

32768 WORD X 8 BIT CMOS ONE TIME ELECTICALLY PROGRAMMABLE ROM

HN27C256FP-25T Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Parts packaging code	SOIC
package instruction	SOP, SOP28,.5
Contacts	28
Reach Compliance Code	unknow
ECCN code	EAR99
Is Samacsys	N
Maximum access time	250 ns
I/O type	COMMON
JESD-30 code	R-PDSO-G28
JESD-609 code	e0
length	18.3 mm
memory density	262144 bi
Memory IC Type	OTP ROM
memory width	8
Number of functions	1
Number of terminals	28
word count	32768 words
character code	32000
Operating mode	ASYNCHRONOUS
Maximum operating temperature	70 °C
Minimum operating temperature
organize	32KX8
Output characteristics	3-STATE
Package body material	PLASTIC/EPOXY
encapsulated code	SOP
Encapsulate equivalent code	SOP28,.5
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Parallel/Serial	PARALLEL
power supply	5 V
Programming voltage	12.5 V
Certification status	Not Qualified
Maximum seat height	3 mm
Maximum standby current	0.00002 A
Maximum slew rate	0.024 mA
Maximum supply voltage (Vsup)	5.25 V
Minimum supply voltage (Vsup)	4.75 V
Nominal supply voltage (Vsup)	5 V
surface mount	YES
technology	CMOS
Temperature level	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	GULL WING
Terminal pitch	1.27 mm
Terminal location	DUAL
width	8.4 mm
Base Number Matches	1

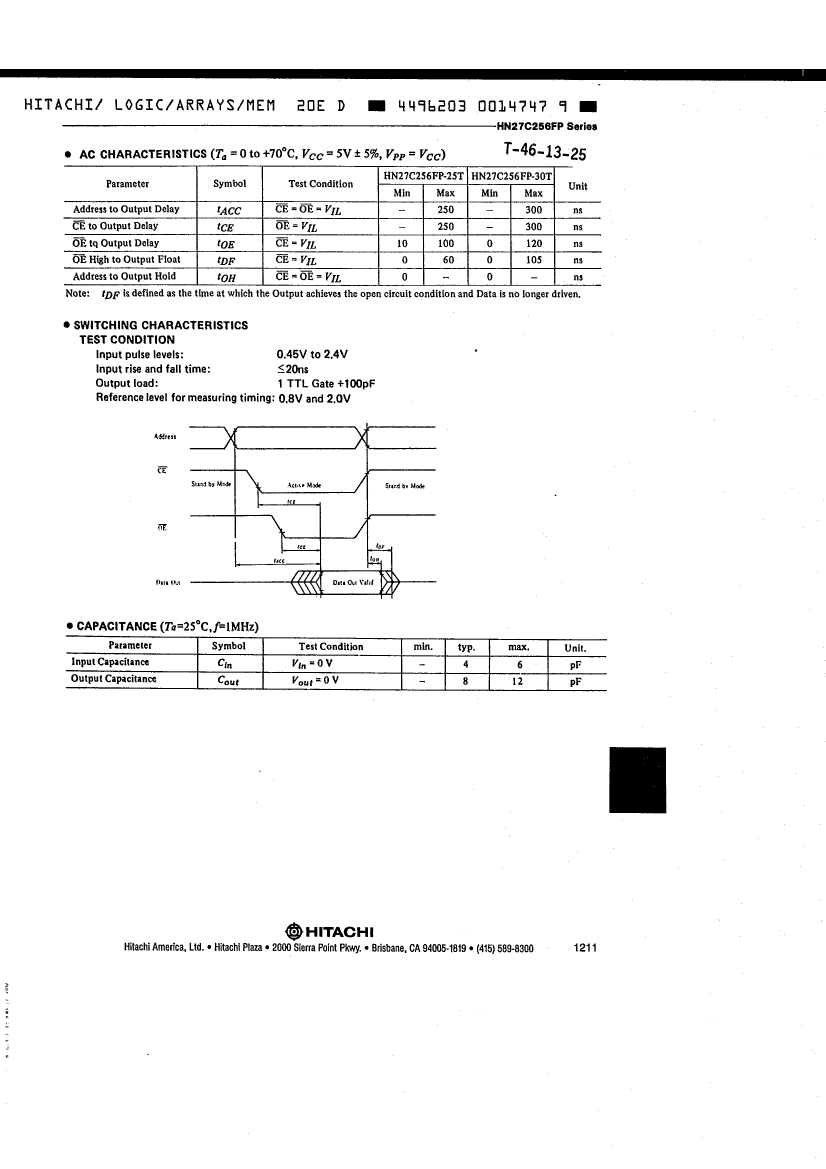

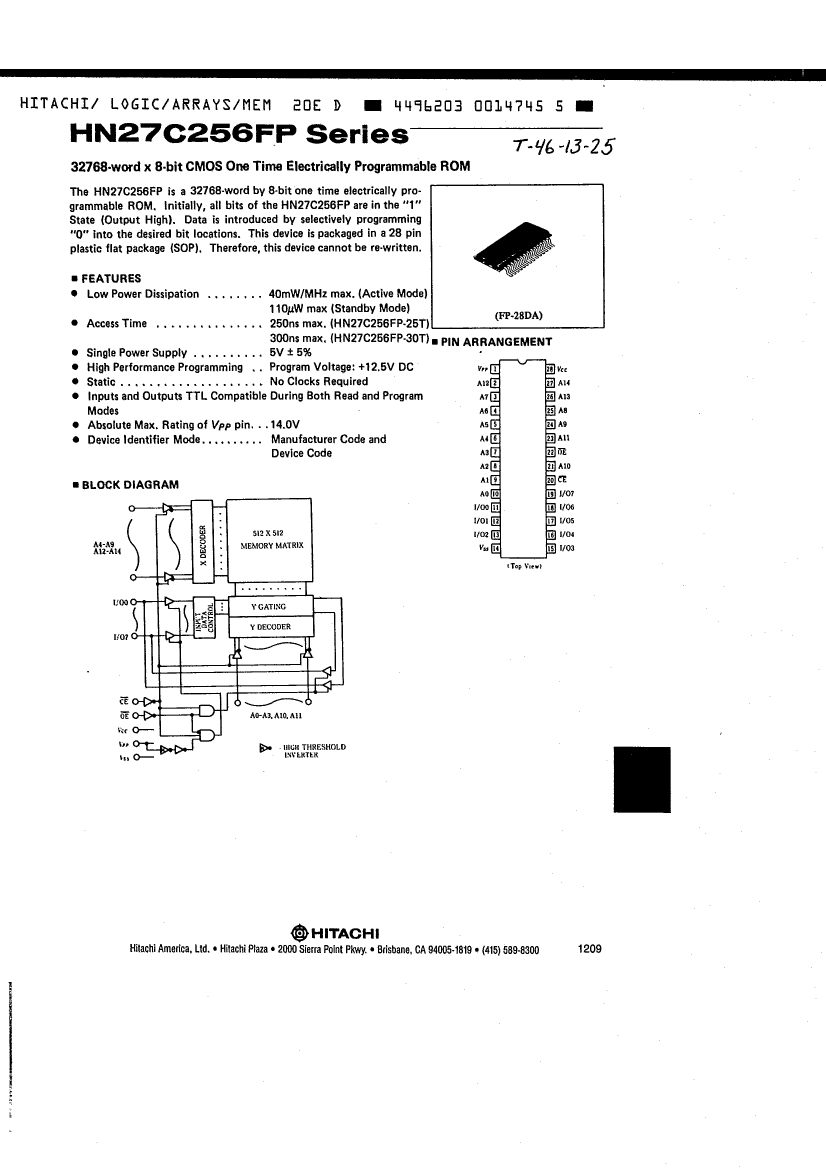

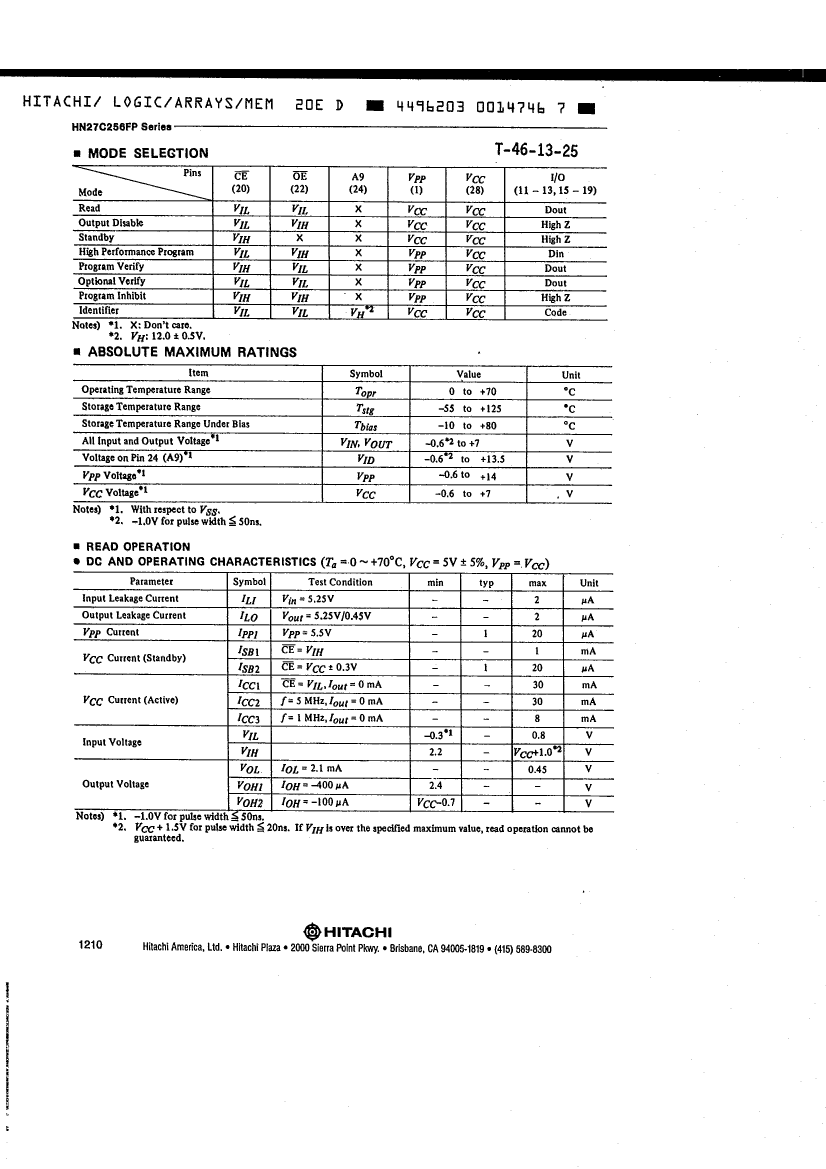

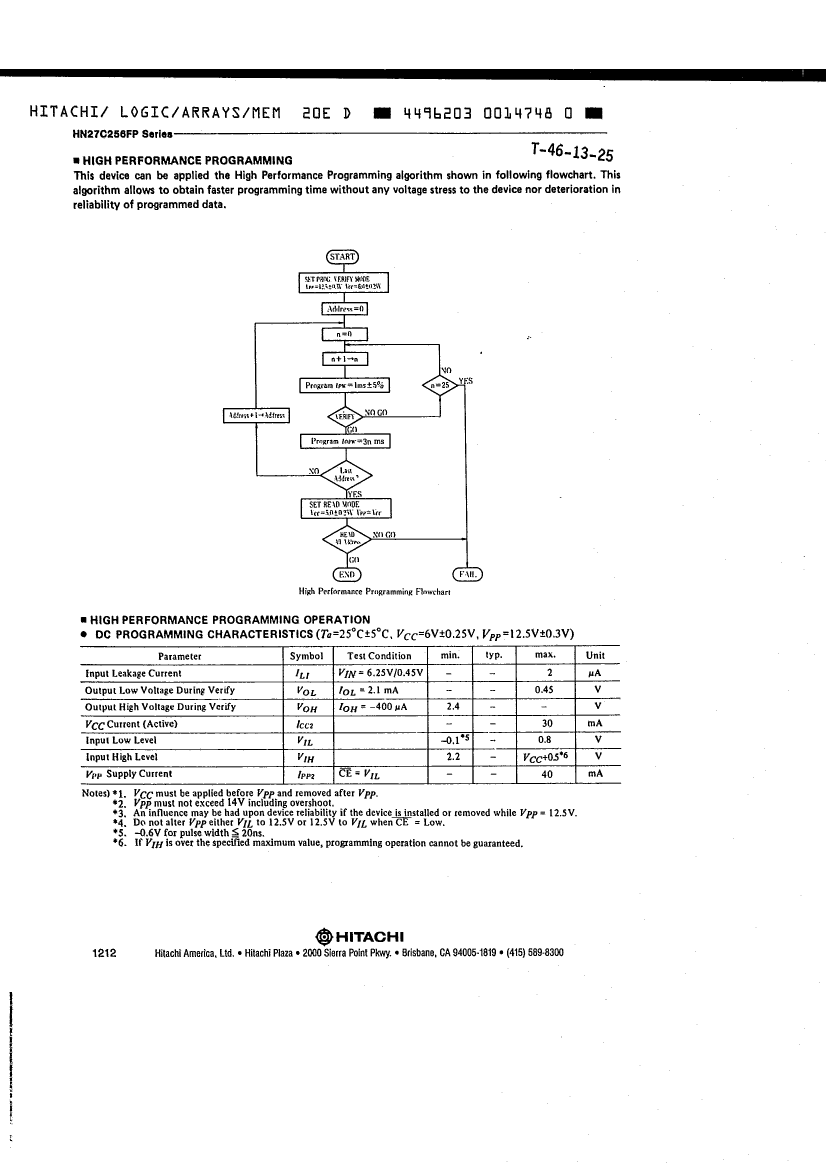

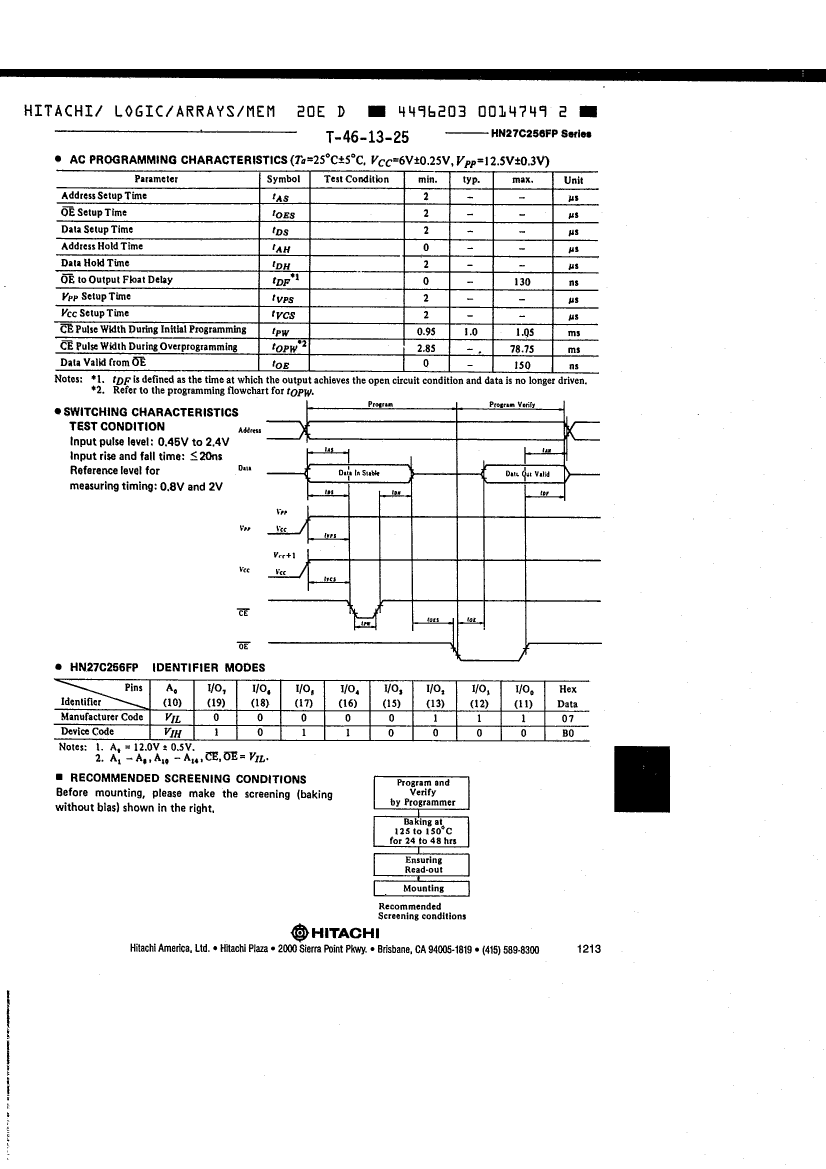

Preview

Download Datasheet

View All

HN27C256FP-25T Related Products

	HN27C256FP-25T	HN27C256FP	HN27C256FP-30T
Description	32768 WORD X 8 BIT CMOS ONE TIME ELECTICALLY PROGRAMMABLE ROM	32768 WORD X 8 BIT CMOS ONE TIME ELECTICALLY PROGRAMMABLE ROM	32768 WORD X 8 BIT CMOS ONE TIME ELECTICALLY PROGRAMMABLE ROM
Is it Rohs certified?	incompatible	-	incompatible
Parts packaging code	SOIC	-	SOIC
package instruction	SOP, SOP28,.5	-	SOP, SOP28,.5
Contacts	28	-	28
Reach Compliance Code	unknow	-	unknow
ECCN code	EAR99	-	EAR99
Maximum access time	250 ns	-	300 ns
I/O type	COMMON	-	COMMON
JESD-30 code	R-PDSO-G28	-	R-PDSO-G28
JESD-609 code	e0	-	e0
length	18.3 mm	-	18.3 mm
memory density	262144 bi	-	262144 bi
Memory IC Type	OTP ROM	-	OTP ROM
memory width	8	-	8
Number of functions	1	-	1
Number of terminals	28	-	28
word count	32768 words	-	32768 words
character code	32000	-	32000
Operating mode	ASYNCHRONOUS	-	ASYNCHRONOUS
Maximum operating temperature	70 °C	-	70 °C
organize	32KX8	-	32KX8
Output characteristics	3-STATE	-	3-STATE
Package body material	PLASTIC/EPOXY	-	PLASTIC/EPOXY
encapsulated code	SOP	-	SOP
Encapsulate equivalent code	SOP28,.5	-	SOP28,.5
Package shape	RECTANGULAR	-	RECTANGULAR
Package form	SMALL OUTLINE	-	SMALL OUTLINE
Parallel/Serial	PARALLEL	-	PARALLEL
power supply	5 V	-	5 V
Programming voltage	12.5 V	-	12.5 V
Certification status	Not Qualified	-	Not Qualified
Maximum seat height	3 mm	-	3 mm
Maximum standby current	0.00002 A	-	0.00002 A
Maximum slew rate	0.024 mA	-	0.021 mA
Maximum supply voltage (Vsup)	5.25 V	-	5.25 V
Minimum supply voltage (Vsup)	4.75 V	-	4.75 V
Nominal supply voltage (Vsup)	5 V	-	5 V
surface mount	YES	-	YES
technology	CMOS	-	CMOS
Temperature level	COMMERCIAL	-	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)	-	Tin/Lead (Sn/Pb)
Terminal form	GULL WING	-	GULL WING
Terminal pitch	1.27 mm	-	1.27 mm
Terminal location	DUAL	-	DUAL
width	8.4 mm	-	8.4 mm
