30232101 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> 30232101

30232101: Descriptionautomotive connector fem housing 36 ways; CategoryThe connector; File Size112KB，1 Pages; ManufacturerFCI [First Components International]

Download Datasheet Parametric View All

30232101 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	30232101	-	-	View	Buy Now

30232101 Overview

automotive connector fem housing 36 ways

30232101 Parametric

Parameter Name	Attribute value
Maker	FCI [First Components International]
Product Category	automotive connector
product	Receptacle Housings
Number of locations	36
Type	Female
Encapsulation	Bulk

Preview

Download Datasheet

View All

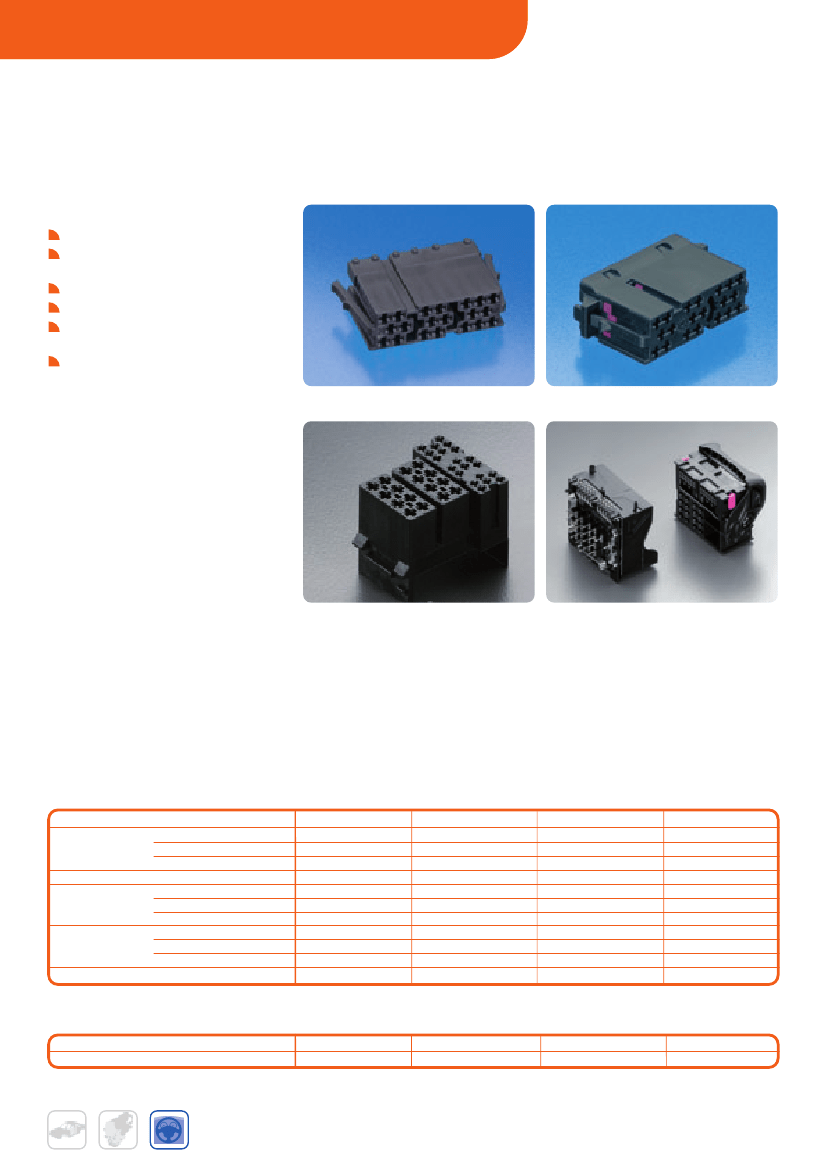

WIRE TO DEVICE CONNECTORS

TITRE

Interior Equipment

Car Radio Connectors

20, 36 & 40 ways

Features

Number of ways: 20, 36, 40

Connector systems compatible

with car radio ISO standards

Unsealed connectors

Mechanical coding and colour coding

Terminal position assurance

(TPA - 40 ways)

40 ways FAKRA male connector

can be equipped with fibre optic

module and mini fuse

20 ways ISO

20 ways ISO with TPA

36 ways ISO

FAKRA 40 ways

Technical characteristics

Number of ways

Terminal size

Temperature range

Terminal

retention force

Terminal

insertion force

Connector mating force

Female

DuoTwin 0.64

DCS 1.5 mm

DCS 2.8 mm

DuoTwin 0.64

DCS 1.5 mm

DCS 2.8 mm

Female DuoTwin 0.64/DCK0.64

Female DCS-2 1.5 mm

Female DCS-2 2.8 mm

20 ways

-40°C to +85°C

> 70 N

< 10 N

Consult us

20 ways with TPA

-40°C to +85°C

> 70 N

< 10 N

Consult us

36 ways

-40°C to +85°C

> 70 N

> 90 N

< 10 N

< 15 N

Consult us

40 ways FAKRA

-40°C to +85°C

> 60 N

> 90 N

<5N

< 15 N

< 75 N

Main Part numbers

Female housings

Pin Header

17402000

3700007189

30221001

3700007189

30232101

3700007189

30235101

30331900

For terminals, please check pages 12, 14, 15
