890-19-002-20-904: DescriptionBoard Connector, 2 Contact(s), 1 Row(s), Male, Right Angle, 0.1 inch Pitch, Solder Terminal, Black Insulator, Receptacle,; CategoryThe connector The connector; File Size372KB，1 Pages; ManufacturerMill-Max; Websitehttps://www.mill-max.com

Download Datasheet Parametric Compare View All

890-19-002-20-904 Overview

Board Connector, 2 Contact(s), 1 Row(s), Male, Right Angle, 0.1 inch Pitch, Solder Terminal, Black Insulator, Receptacle,

890-19-002-20-904 Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Maker	Mill-Max
Reach Compliance Code	compli
ECCN code	EAR99
body width	0.112 inch
subject depth	0.155 inch
body length	0.2 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	TIN LEAD OVER NICKEL
Contact completed and terminated	Tin/Lead (Sn/Pb) - with Nickel (Ni) barrie
Contact point gender	MALE
Contact material	NOT SPECIFIED
contact mode	RECTANGULAR
Contact resistance	6 mΩ
Contact style	SQ PIN-SKT
DIN compliance	NO
Dielectric withstand voltage	1800VAC V
Filter function	NO
IEC compliance	NO
Insulation resistance	10000000000 Ω
Insulator color	BLACK
insulator material	GLASS FILLED POLYAMIDE
JESD-609 code	e0
MIL compliance	NO
Manufacturer's serial number	890
Plug contact pitch	0.1 inch
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of connectors	ONE
PCB row number	1
Number of rows loaded	1
Maximum operating temperature	125 °C
Minimum operating temperature	-40 °C
Options	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR
Plating thickness	10u inch
Rated current (signal)	3 A
Guideline	UL
reliability	COMMERCIAL
Terminal length	0.2 inch
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	2
UL Flammability Code	94V-0
Base Number Matches	1

Preview

Download Datasheet

View All

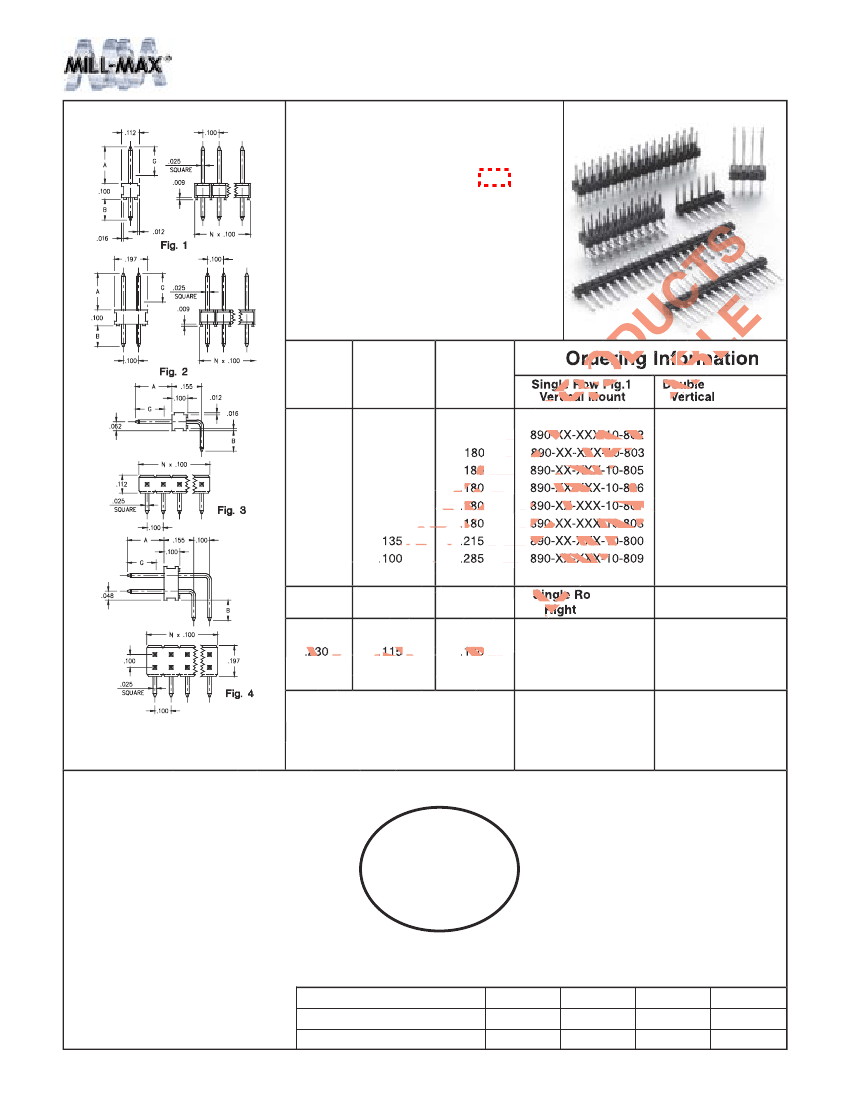

INTERCONNECTS

.025” Square Pin Headers

Single and Double Row

•

Square pin headers may be used

as board-to-board interconnects

using series 801, 803 socket

strips; or as a hardware program-

ming switch with series 999 color

coded jumpers.

Single and double row strips are

available with straight or right

angle solder tails.

Series 890, 892

•

Current rating is 1 amp.

•

Insulator is std. temp.

thermoplastic.

TAIL

LENGTH

LENGTH OF

SELECTIVE

GOLD

W OF

IL 0

L 1/

N 01

FR N

O G

M ER

M B

IL E

L- A

M V

A AI D

X L

LENGTH

rdering

format

min.

gle Row Fig

Vertical Mo

Double

Row Fig.2

Mount

892-XX-XXX-10-802

892-XX-XXX-10-803

892-XX-XXX-10-805

892-XX-XXX-10-806

892-XX-XXX-10-807

892-XX-XXX-10-808

892-XX-XXX-10-800

892-XX-XXX-10-809

.230

.235

.230

.265

.335

.100

.120

.205

.305

.405

.505

.180

180

.18

0-X

X-10-802

XXX-10-80

XX-XXX-10

-XX-XX

890-XX-

0-807

890-X

X-10-808

XXX-10

XX-XXX-1

Single

w Fig.3

Rig

Angle

Double Row Fig.4

Right Angle

892-XX-XXX-20-902

.230

.115

180

890-XX-XXX-20-902

Specify number

of pins XXX:

From 002

036

Specify total

no. of pins XXX:

From 004 (2x2)

072 (2x36)

XX= Plating Code

See Below

SPECIFY PLATING CODE XX=

10µ” Au

30µ” Au

150µ” Sn/Pb

Pin (Dim ‘A’)

Tail (Dim ‘B’)

150µ” Sn/Pb 150µ” Sn/Pb 150µ” Sn/Pb

Mill-Max-Mfg.Corp., P.O. Box 300, 190 Pine Hollow Road, Oyster Bay, NY 11771-0300.Tel: 516-922-6000 Fax: 516-922-9253

890-19-002-20-904 Related Products

	890-19-002-20-904	890-19-002-10-801	890-19-002-20-901	890-19-002-20-903	892-19-004-20-901	892-19-004-20-903	892-19-004-10-801
Description	Board Connector, 2 Contact(s), 1 Row(s), Male, Right Angle, 0.1 inch Pitch, Solder Terminal, Black Insulator, Receptacle,	Board Connector, 2 Contact(s), 1 Row(s), Male, Straight, 0.1 inch Pitch, Solder Terminal, Black Insulator, Receptacle,	Board Connector, 2 Contact(s), 1 Row(s), Male, Right Angle, 0.1 inch Pitch, Solder Terminal, Black Insulator, Receptacle,	Board Connector, 2 Contact(s), 1 Row(s), Male, Right Angle, 0.1 inch Pitch, Solder Terminal, Black Insulator, Receptacle,	Board Connector, 4 Contact(s), 2 Row(s), Male, Right Angle, 0.1 inch Pitch, Solder Terminal, Black Insulator, Receptacle,	Board Connector, 4 Contact(s), 2 Row(s), Male, Right Angle, 0.1 inch Pitch, Solder Terminal, Black Insulator, Receptacle,	Board Connector, 4 Contact(s), 2 Row(s), Male, Straight, 0.1 inch Pitch, Solder Terminal, Black Insulator, Receptacle,
Is it lead-free?	Contains lead	Contains lead	Contains lead	Contains lead	Contains lead	Contains lead	Contains lead
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible
Maker	Mill-Max	Mill-Max	Mill-Max	Mill-Max	Mill-Max	Mill-Max	Mill-Max
Reach Compliance Code	compli	compli	compli	compli	unknown	unknown	unknown
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
body width	0.112 inch	0.112 inch	0.112 inch	0.112 inch	0.197 inch	0.197 inch	0.197 inch
subject depth	0.155 inch	0.1 inch	0.155 inch	0.155 inch	0.255 inch	0.255 inch	0.1 inch
body length	0.2 inch	0.2 inch	0.2 inch	0.2 inch	0.2 inch	0.2 inch	0.2 inch
Body/casing type	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE
Connector type	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR
Contact to complete cooperation	TIN LEAD OVER NICKEL	TIN LEAD OVER NICKEL	TIN LEAD OVER NICKEL	TIN LEAD OVER NICKEL	TIN LEAD OVER NICKEL	TIN LEAD OVER NICKEL	TIN LEAD OVER NICKEL
Contact completed and terminated	Tin/Lead (Sn/Pb) - with Nickel (Ni) barrie	Tin/Lead (Sn/Pb) - with Nickel (Ni) barrie	Tin/Lead (Sn/Pb) - with Nickel (Ni) barrie	Tin/Lead (Sn/Pb) - with Nickel (Ni) barrie	Tin/Lead (Sn/Pb) - with Nickel (Ni) barrier	Tin/Lead (Sn/Pb) - with Nickel (Ni) barrier	Tin/Lead (Sn/Pb) - with Nickel (Ni) barrier
Contact point gender	MALE	MALE	MALE	MALE	MALE	MALE	MALE
Contact material	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
contact mode	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Contact resistance	6 mΩ	6 mΩ	6 mΩ	6 mΩ	6 mΩ	6 mΩ	6 mΩ
Contact style	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT
DIN compliance	NO	NO	NO	NO	NO	NO	NO
Dielectric withstand voltage	1800VAC V	1800VAC V	1800VAC V	1800VAC V	1800VAC V	1800VAC V	1800VAC V
Filter function	NO	NO	NO	NO	NO	NO	NO
IEC compliance	NO	NO	NO	NO	NO	NO	NO
Insulation resistance	10000000000 Ω	10000000000 Ω	10000000000 Ω	10000000000 Ω	10000000000 Ω	10000000000 Ω	10000000000 Ω
Insulator color	BLACK	BLACK	BLACK	BLACK	BLACK	BLACK	BLACK
insulator material	GLASS FILLED POLYAMIDE	GLASS FILLED POLYAMIDE	GLASS FILLED POLYAMIDE	GLASS FILLED POLYAMIDE	GLASS FILLED POLYAMIDE	GLASS FILLED POLYAMIDE	GLASS FILLED POLYAMIDE
JESD-609 code	e0	e0	e0	e0	e0	e0	e0
MIL compliance	NO	NO	NO	NO	NO	NO	NO
Manufacturer's serial number	890	890	890	890	892	892	892
Plug contact pitch	0.1 inch	0.1 inch	0.1 inch	0.1 inch	0.1 inch	0.1 inch	0.1 inch
Plug information	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO	NO	NO	NO	NO	NO	NO
Installation method	RIGHT ANGLE	STRAIGHT	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	STRAIGHT
Installation type	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD
Number of connectors	ONE	ONE	ONE	ONE	ONE	ONE	ONE
PCB row number	1	1	1	1	2	2	2
Number of rows loaded	1	1	1	1	2	2	2
Maximum operating temperature	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C
Minimum operating temperature	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Plating thickness	10u inch	10u inch	10u inch	10u inch	10u inch	10u inch	10u inch
Rated current (signal)	3 A	3 A	3 A	3 A	3 A	3 A	3 A
Guideline	UL	UL	UL	UL	UL	UL	UL
reliability	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL
Terminal length	0.2 inch	0.4 inch	0.1 inch	0.135 inch	0.125 inch	0.135 inch	0.4 inch
Terminal pitch	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm
Termination type	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER
Total number of contacts	2	2	2	2	4	4	4
UL Flammability Code	94V-0	94V-0	94V-0	94V-0	94V-0	94V-0	94V-0
Base Number Matches	1	1	1	1	-	-	-
