Y14740R12700B9W datasheet, PDF

Datasheet> All Categories > Passive components> The resistor> Y14740R12700B9W

Y14740R12700B9W: DescriptionFixed Resistor, Metal Foil, 3W, 0.127ohm, 0.1% +/-Tol, -15,15ppm/Cel,; CategoryPassive components The resistor; File Size1MB，5 Pages; ManufacturerVishay; Websitehttp://www.vishay.com; Environmental Compliance

Download Datasheet Parametric View All

Y14740R12700B9W Overview

Fixed Resistor, Metal Foil, 3W, 0.127ohm, 0.1% +/-Tol, -15,15ppm/Cel,

Y14740R12700B9W Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Objectid	286189156
Reach Compliance Code	compliant
Country Of Origin	Israel
ECCN code	EAR99
YTEOL	10
structure	Rectangular
Number of terminals	2
Maximum operating temperature	170 °C
Minimum operating temperature	-65 °C
Package shape	RECTANGULAR PACKAGE
Package form	SMT
method of packing	Waffle Pack
Rated power dissipation(P)	3 W
Guideline	MIL-PRF-49465
resistance	0.127 Ω
Resistor type	FIXED RESISTOR
series	CSM3637P
technology	METAL FOIL
Temperature Coefficient	15 ppm/°C
Tolerance	0.1%

Preview

Download Datasheet

View All

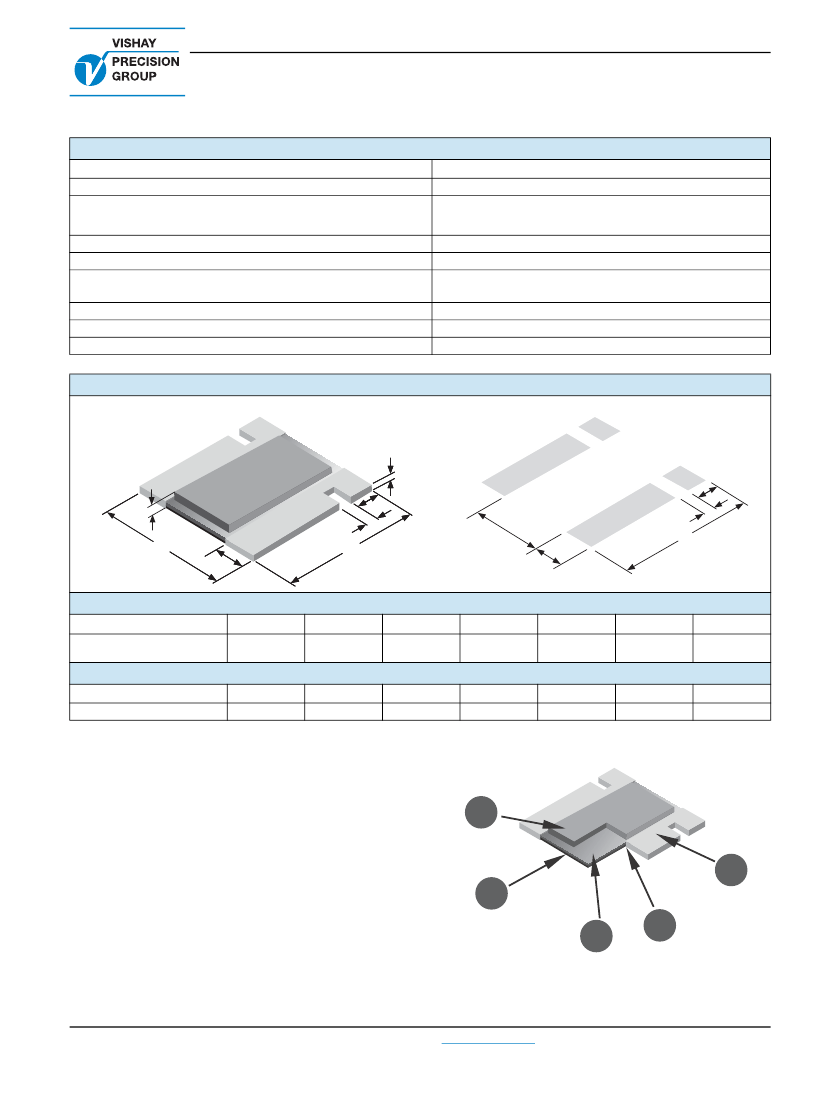

CSM3637P

Vishay Foil Resistors

Ultra High Precision, Surface Mount 4-Terminal Precision Resistor with

Increased Power to 5W (40A max), Resistance Values from 3 m,

and TCR to ± 15 ppm/°C

FEATURES

NEW



Resistance range: 3 m to 200 m



Temperature coefficient of resistance (TCR):

3 mto 150m : 15 ppm/°C maximum

150 m to 200m : 25 ppm/°C maximum

INTRODUCTION

The CSM3637P is a low value current sense resistor,

providing power and precision in a four terminal, surface

mount configuration. Its all welded construction is made up

of a Bulk Metal

resistive element with plated copper

terminations.

There are many current sense resistors on the market. Until

now the combination of very stable and precise resistors

with low TCR of ± 15 ppm/°C maximum, tight tolerance of

± 0.1 % and load life stability of ± 0.2 % (2000 h, + 70 °C at

rated power) was not easily available.

The key performance of the new CSM3637P is its high rated

power up to 5W. This option became available due to a

special design which consists of a heat sink on the top of the

resistive element, thus allowing a better heat dissipation.

These specifications are based on tests performed in

accordance with methods prescribed by appropriate

MIL-PRF standards (MIL-PRF-55342 and MIL-PRF-49465).

The four terminal device separates the current leads from

the voltage sensing leads. This configuration eliminates the

effect of the lead wire resistance from points A to B and

C to D.

In addition, a key feature of the CSM3637P is its low thermal

EMF design (very important for low ohmic value DC

applications). The welded terminals make intimate contact

with the chip thereby minimizing temperature differentials.

Our application engineering department is available to

advise and make recommendations.

For non-standard technical requirements and special

applications, please contact:

foil@vishaypg.com



Load life stability: ± 0.2 % (70 °C, 2000 h at rated

power)



Power rating: to 5 W (see Table 1)



Resistance tolerance: to ± 0.1 %



Vishay Foil resistors are not restricted to standard values;

specific “as required” values can be supplied at no extra

cost or delivery (e.g. 10.2345 m vs. 10 m)



Short time overload: ± 0.2 % typical



Proprietary processing technique produces extremely low

resistance values with improved stability



All welded construction



Solderable terminations



Very low inductance 0.5 nH



Excellent frequency response to 50 MHz



Low thermal EMF < 3 µV/°C (DC offset error, significant for

low values)



Maximum current: up to 40 A



Four terminal (Kelvin) design: allows for precise and

accurate measurements



Terminal finishes available: lead (Pb)-free, tin/lead alloy



Prototype quantities available in just 5 working days

or sooner. For more information, please contact

foil@vishaypg.com



For better performances, please contact us

FIGURE 1 - POWER DERATING CURVE

+ 70 °C

100

Rated Power (%)

- 65 - 50

- 25

100

125

150

170

∞

* Pb containing terminationOPDs are RoHS compliant, exemptions may apply

Ambient Temperature (°C)

Document Number: 63210

Revision: 15-Aug-13
