PN3642 datasheet, PDF - EEWORLD Datasheet

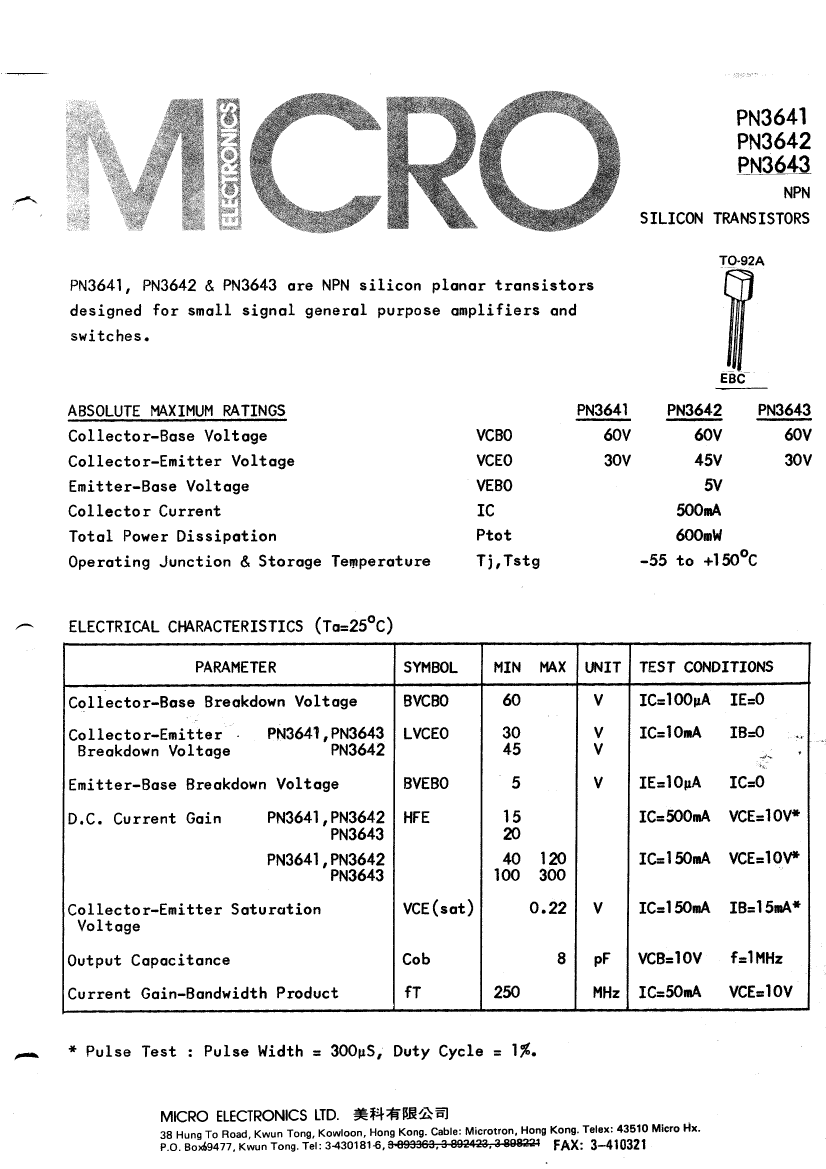

PN3642: Description500 mA, 30 V, NPN, Si, SMALL SIGNAL TRANSISTOR, TO-92; CategoryDiscrete semiconductor The transistor; File Size145KB，1 Pages; ManufacturerMicro Electronics; Websitehttp://www.microelectr.com.hk

Download Datasheet Parametric Compare View All

PN3642 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	PN3642	-	-	View	Buy Now

500 mA, 30 V, NPN, Si, SMALL SIGNAL TRANSISTOR, TO-92

Parameter Name	Attribute value
Maker	Micro Electronics
package instruction	CYLINDRICAL, O-PBCY-W3
Reach Compliance Code	unknown
ECCN code	EAR99
Maximum collector current (IC)	0.5 A
Collector-emitter maximum voltage	45 V
Configuration	SINGLE
Minimum DC current gain (hFE)	40
JEDEC-95 code	TO-92
JESD-30 code	O-PBCY-W3
Number of components	1
Number of terminals	3
Maximum operating temperature	150 °C
Package body material	PLASTIC/EPOXY
Package shape	ROUND
Package form	CYLINDRICAL
Polarity/channel type	NPN
Maximum power dissipation(Abs)	0.6 W
Certification status	Not Qualified
surface mount	NO
Terminal form	WIRE
Terminal location	BOTTOM
transistor applications	SWITCHING
Transistor component materials	SILICON
Nominal transition frequency (fT)	250 MHz

	PN3642	PN3643	PN3641
Description	500 mA, 30 V, NPN, Si, SMALL SIGNAL TRANSISTOR, TO-92	500 mA, 30 V, NPN, Si, SMALL SIGNAL TRANSISTOR, TO-92	500 mA, 30 V, NPN, Si, SMALL SIGNAL TRANSISTOR, TO-92
Maker	Micro Electronics	Micro Electronics	Micro Electronics
package instruction	CYLINDRICAL, O-PBCY-W3	CYLINDRICAL, O-PBCY-W3	CYLINDRICAL, O-PBCY-W3
Reach Compliance Code	unknown	unknow	unknow
ECCN code	EAR99	EAR99	EAR99
Maximum collector current (IC)	0.5 A	0.5 A	0.5 A
Collector-emitter maximum voltage	45 V	30 V	30 V
Configuration	SINGLE	SINGLE	SINGLE
Minimum DC current gain (hFE)	40	100	40
JEDEC-95 code	TO-92	TO-92	TO-92
JESD-30 code	O-PBCY-W3	O-PBCY-W3	O-PBCY-W3
Number of components	1	1	1
Number of terminals	3	3	3
Maximum operating temperature	150 °C	150 °C	150 °C
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
Package shape	ROUND	ROUND	ROUND
Package form	CYLINDRICAL	CYLINDRICAL	CYLINDRICAL
Polarity/channel type	NPN	NPN	NPN
Maximum power dissipation(Abs)	0.6 W	0.6 W	0.6 W
Certification status	Not Qualified	Not Qualified	Not Qualified
surface mount	NO	NO	NO
Terminal form	WIRE	WIRE	WIRE
Terminal location	BOTTOM	BOTTOM	BOTTOM
transistor applications	SWITCHING	SWITCHING	SWITCHING
Transistor component materials	SILICON	SILICON	SILICON
Nominal transition frequency (fT)	250 MHz	250 MHz	250 MHz
