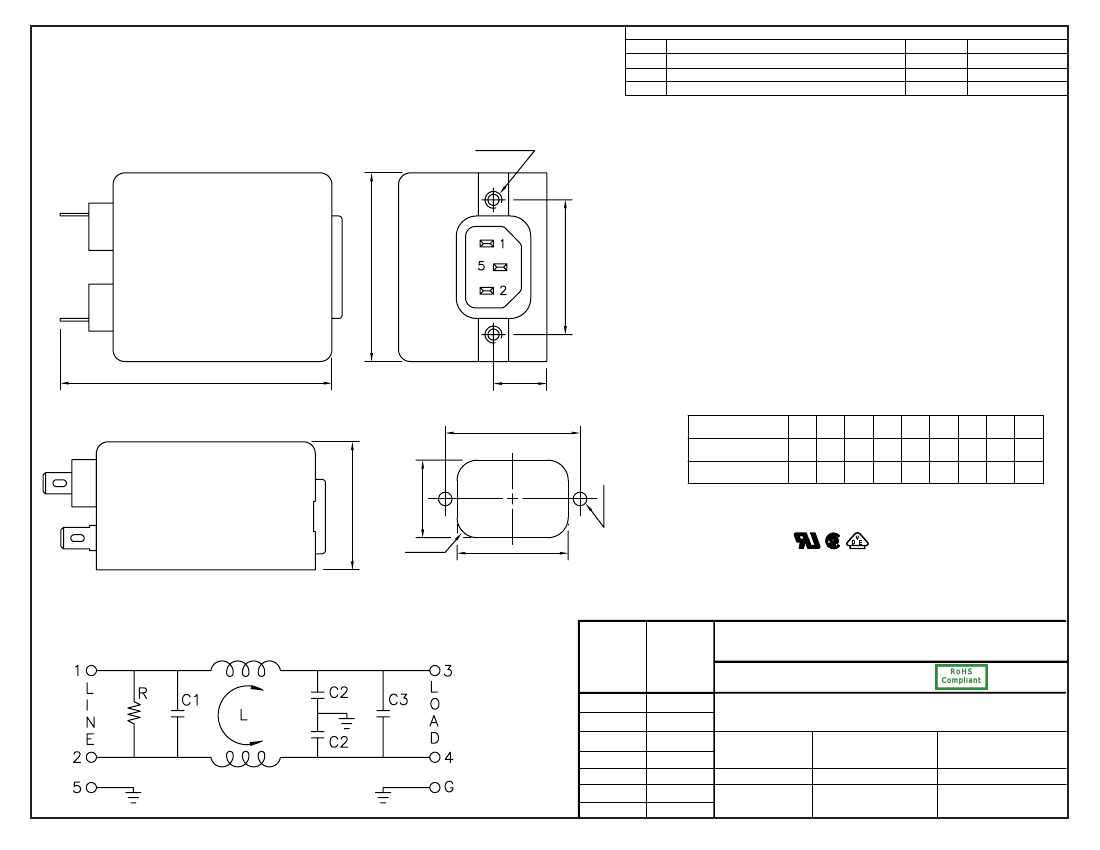

1. PHYSICAL DIMENSIONS
#6-32x1/4
REVISION
REV.
B
DESCRIPTION
RoHS Compliancy
DATE
06-01-06
APPROVED
LY
ELECTRICAL CHARACTERISTICS:
1-1.
VOLTAGE RATING...................................115/250VAC
1-2.
CURRENT RATING
A. @ 115 VAC........................................3 A RMS MAX
B. @ 250 VAC........................................3 A RMS MAX
OPERATING FREQUENCY......................50/60Hz
LEAKAGE CURRENT: EACH LINE TO GROUND
A. @ 115 VAC 60Hz............................0.25 mA MAX
B. @ 250 VAC 50Hz.............................0.45 mA MAX
HIPOT RATING (FOR ONE MINUTE)
A. LINE TO GROUND...........................2250 VDC
B. LINE TO LINE.....................................1450 VDC
MINIMUM INSERTION LOSS IN dB: (AT 50 OHM SYSTEM)
.01
15
1
.05
25
2
.10
30
25
.15
30
35
.50
35
45
1.0
40
50
5.0
45
45
10
48
55
30
35
50
1.575 ± 0.02
2.24MAX
1-3.
1-4.
1-5.
3.22MAX
0.63
1.575 ± 0.005
0.91 ±
0.005
0
1-6.
FREQ. MHz
COM. MODE dB
DIF. MODE dB
1.54MAX
Ø0.157
1-7.
1-8.
OPERATING TEMPERATURE.................-25° TO +100° C
SAFETY:
RoHS COMPLIANT
G
R0.234
1.22 ± 0.005
PANEL CUTOUT
1-9.
2. ELECTRICAL SCHEMATIC
Dim
range
Tolerance
+/-
(mm)
0.15
0.20
0.30
0.50
0.70
0.90
1.20
CONTROLLED
Qualtek Electronics Corp.
Part Number:
Description:
L: 11.5mH
C1: 0.33uF
C2: 3300pF
C3: 0.33uF
R: 470KΩ
(mm)
0-1
1-6
6-18
18-50
50-120
120-250
250-500
PPC DIVISION
852-03/001
EMI FILTER
UNIT: in
REV. B
Approved / Date
JJH / 07-09-03
Drawn / Date
B.Zhang
07-09-03
Checked / Date
07-09-03
