Product catalogue | PCB connection systems | PCB plug-in connectors | Pitch 5.00 / 5.08 mm (0.197 / 0.200 inch) |
Socket connectors, pressure clamp connection, pitch 5.00/5.08 | BL 5.00/5.08 | BL 5.00
General ordering data
Order No.
Part designation
Version
EAN
Qty.
System parameters
Conductor connection system
Outgoing direction of conductor
Pitch
Pitch in inch
No. of poles
No. of rows
Tightening torque, min.
Tightening torque, max.
Clamping screw
Stripping length
L1 in mm
L1 in inch
Electric shock protection to DIN VDE 0470
Material data
Insulating material
Colour
colour chart
Insulating material group
Flammability class UL 94
CTI
Contact base material
Contact surface
1730820000
BL 5.00/14 SN SW

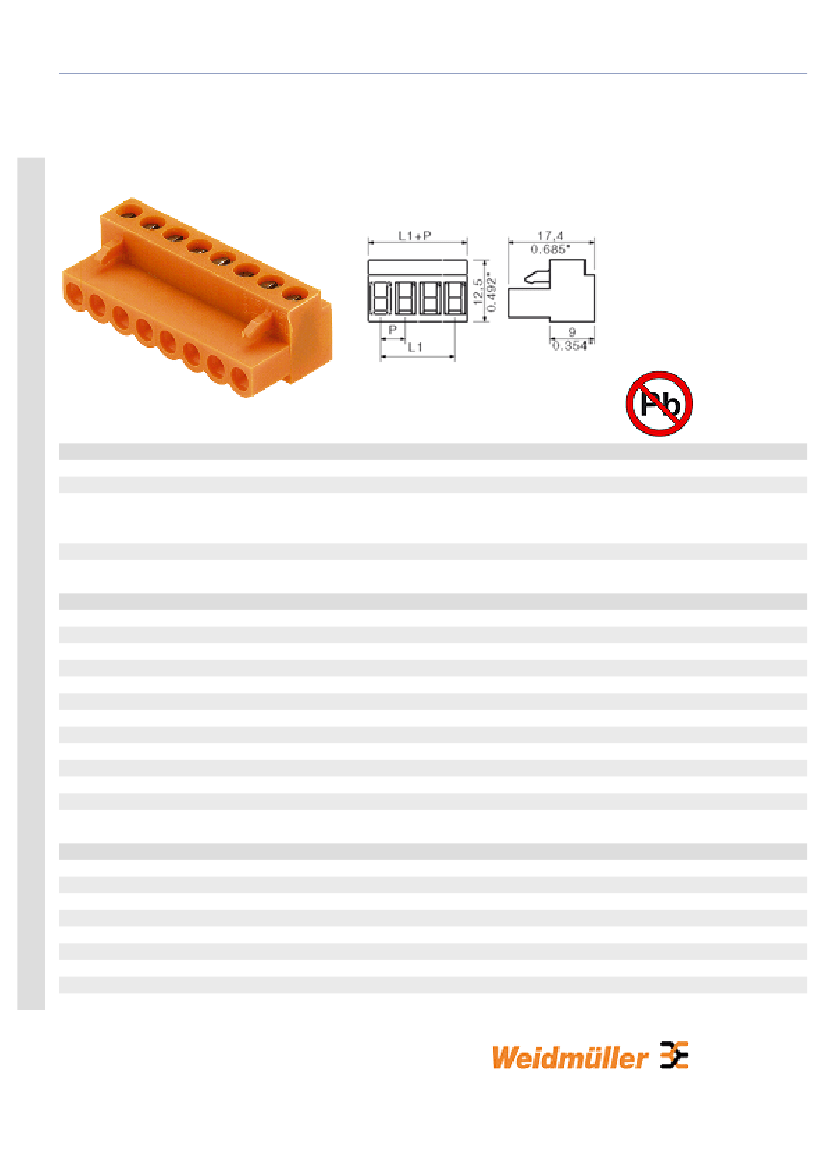

PCB plug-in connector, Female connectors, Leaf
spring connection, Clamping range, max.: 2.08
mm², Pitch: 5.00 mm, No. of poles: 14, 180°, Box
4008190387211
50 pc(s).
Leaf spring connection
180°
5 mm
0.197 inch
14
1
0.4 Nm
0.5 Nm
M 2.5
6 mm
65 mm
2.559 inch
IP 00
PA
black
Similar to RAL 9011
I
V-2
>= 200
CuSn
tinned
-1-
Product catalogue | PCB connection systems | PCB plug-in connectors | Pitch 5.00 / 5.08 mm (0.197 / 0.200 inch) |
Socket connectors, pressure clamp connection, pitch 5.00/5.08 | BL 5.00/5.08 | BL 5.00
Connectable conductors
Clamping range, min.
Clamping range, max.
AWG, min.
AWG, max.
Solid, min. H05(07) V-U
Solid, max. H05(07) V-U
Flexible, min. H05(07) V-K
Flexible, max. H05(07) V-K
With wire end ferrule, acc. to DIN 46 228/1, min.
w. plastic collar ferrule, DIN 46228 pt 4, min.
w. plastic collar ferrule, DIN 46228 pt 4, max.
Gauge to EN 60999 a x b; ø
DIN IEC rating data
Rated current, min. No. pins (Tu=20°C)
Rated current, max. No. pins (Tu=20°C)
Rated current, min. No. pins(Tu=40°C)
Rated current, max. No. pins (Tu=40°C)
Rated voltage for overvoltage class/pollution
severity II/2
Rated voltage for overvoltage class/pollution
severity III/2
Rated voltage for overvoltage class/pollution
severity III/3
Rated impulse withstand voltage for overvoltage
class/pollution severity II/2
Rated impulse withstand voltage for overvoltage
class/pollution severity III/2
Rated impulse withstand voltage for overvoltage
class/pollution severity III/3
CSA rating data
Rated voltage (Use group D)
Rated current (Use group D)
AWG conductor (field wiring), min.
AWG conductor (field wiring), max.
UL 1059 rating data
Rated voltage (Use group D)
Rated current (Use group D)
AWG conductor, min.
AWG conductor, max.
Approvals
Approvals institutes
0.13 mm²
2.08 mm²
26
14
0.5 mm²
1.5 mm²
0.5 mm²
1.5 mm²
0.5 mm²
0.5 mm²
1 mm²
2.4 mm x 1.5 mm;
14 A
12 A
12 A
10 A
400 V
320 V
250 V
4 kV
4 kV
4 kV
300 V
10 A
26
14
300 V
10 A
26
14
-2-
Product catalogue | PCB connection systems | PCB plug-in connectors | Pitch 5.00 / 5.08 mm (0.197 / 0.200 inch) |
Socket connectors, pressure clamp connection, pitch 5.00/5.08 | BL 5.00/5.08 | BL 5.00
Classifications
ETIM 2.0
ETIM 3.0
eClass 4.1
eClass 5.0
eClass 5.1
NK
EC001284
27-26-07-01
27-26-07-01
27-26-07-04
Similar products
Order No.
1762770000
1723110000
1730700000
1723120000
1730710000
1762790000
1723130000
1730720000
1723140000
1730730000
1723150000
1730740000
1723160000
Part designation
BL 5.00/2 SN GR
BL 5.00/2 SN OR
BL 5.00/2 SN SW
BL 5.00/3 SN OR
BL 5.00/3 SN SW
BL 5.00/4 SN GR
BL 5.00/4 SN OR
BL 5.00/4 SN SW
BL 5.00/5 SN OR
BL 5.00/5 SN SW
BL 5.00/6 SN OR
BL 5.00/6 SN SW
BL 5.00/7 SN OR
Version
PCB plug-in connector, Female connectors, Leaf spring connection,
Clamping range, max.: 2.08 mm², Pitch: 5.00 mm, No. of poles: 2,
180°, Box
PCB plug-in connector, Female connectors, Leaf spring connection,
Clamping range, max.: 2.08 mm², Pitch: 5.00 mm, No. of poles: 2,
180°, Box
PCB plug-in connector, Female connectors, Leaf spring connection,
Clamping range, max.: 2.08 mm², Pitch: 5.00 mm, No. of poles: 2,
180°, Box
PCB plug-in connector, Female connectors, Leaf spring connection,
Clamping range, max.: 2.08 mm², Pitch: 5.00 mm, No. of poles: 3,
180°, Box
PCB plug-in connector, Female connectors, Leaf spring connection,
Clamping range, max.: 2.08 mm², Pitch: 5.00 mm, No. of poles: 3,
180°, Box
PCB plug-in connector, Female connectors, Leaf spring connection,
Clamping range, max.: 2.08 mm², Pitch: 5.00 mm, No. of poles: 4,
180°, Box
PCB plug-in connector, Female connectors, Leaf spring connection,
Clamping range, max.: 2.08 mm², Pitch: 5.00 mm, No. of poles: 4,
180°, Box
PCB plug-in connector, Female connectors, Leaf spring connection,
Clamping range, max.: 2.08 mm², Pitch: 5.00 mm, No. of poles: 4,
180°, Box
PCB plug-in connector, Female connectors, Leaf spring connection,
Clamping range, max.: 2.08 mm², Pitch: 5.00 mm, No. of poles: 5,
180°, Box
PCB plug-in connector, Female connectors, Leaf spring connection,
Clamping range, max.: 2.08 mm², Pitch: 5.00 mm, No. of poles: 5,
180°, Box
PCB plug-in connector, Female connectors, Leaf spring connection,
Clamping range, max.: 2.08 mm², Pitch: 5.00 mm, No. of poles: 6,
180°, Box
PCB plug-in connector, Female connectors, Leaf spring connection,
Clamping range, max.: 2.08 mm², Pitch: 5.00 mm, No. of poles: 6,
180°, Box
PCB plug-in connector, Female connectors, Leaf spring connection,
Clamping range, max.: 2.08 mm², Pitch: 5.00 mm, No. of poles: 7,
180°, Box
-3-
Product catalogue | PCB connection systems | PCB plug-in connectors | Pitch 5.00 / 5.08 mm (0.197 / 0.200 inch) |
Socket connectors, pressure clamp connection, pitch 5.00/5.08 | BL 5.00/5.08 | BL 5.00
1730750000
1723170000
1730760000
1723180000
1730770000
1723190000
1730780000
1723200000
1730790000
1723210000
1730800000
1723220000
1730810000
1723230000
1723240000
1730830000
1723250000
BL 5.00/7 SN SW
BL 5.00/8 SN OR
BL 5.00/8 SN SW
BL 5.00/9 SN OR
BL 5.00/9 SN SW
BL 5.00/10 SN OR
BL 5.00/10 SN SW
BL 5.00/11 SN OR
BL 5.00/11 SN SW
BL 5.00/12 SN OR
BL 5.00/12 SN SW
BL 5.00/13 SN OR
BL 5.00/13 SN SW
BL 5.00/14 SN OR
BL 5.00/15 SN OR
BL 5.00/15 SN SW
BL 5.00/16 SN OR
PCB plug-in connector, Female connectors, Leaf spring connection,
Clamping range, max.: 2.08 mm², Pitch: 5.00 mm, No. of poles: 7,
180°, Box
PCB plug-in connector, Female connectors, Leaf spring connection,
Clamping range, max.: 2.08 mm², Pitch: 5.00 mm, No. of poles: 8,
180°, Box
PCB plug-in connector, Female connectors, Leaf spring connection,
Clamping range, max.: 2.08 mm², Pitch: 5.00 mm, No. of poles: 8,
180°, Box
PCB plug-in connector, Female connectors, Leaf spring connection,
Clamping range, max.: 2.08 mm², Pitch: 5.00 mm, No. of poles: 9,
180°, Box
PCB plug-in connector, Female connectors, Leaf spring connection,
Clamping range, max.: 2.08 mm², Pitch: 5.00 mm, No. of poles: 9,
180°, Box
PCB plug-in connector, Female connectors, Leaf spring connection,
Clamping range, max.: 2.08 mm², Pitch: 5.00 mm, No. of poles: 10,
180°, Box
PCB plug-in connector, Female connectors, Leaf spring connection,
Clamping range, max.: 2.08 mm², Pitch: 5.00 mm, No. of poles: 10,
180°, Box
PCB plug-in connector, Female connectors, Leaf spring connection,
Clamping range, max.: 2.08 mm², Pitch: 5.00 mm, No. of poles: 11,
180°, Box
PCB plug-in connector, Female connectors, Leaf spring connection,
Clamping range, max.: 2.08 mm², Pitch: 5.00 mm, No. of poles: 11,
180°, Box
PCB plug-in connector, Female connectors, Leaf spring connection,
Clamping range, max.: 2.08 mm², Pitch: 5.00 mm, No. of poles: 12,
180°, Box
PCB plug-in connector, Female connectors, Leaf spring connection,
Clamping range, max.: 2.08 mm², Pitch: 5.00 mm, No. of poles: 12,
180°, Box
PCB plug-in connector, Female connectors, Leaf spring connection,
Clamping range, max.: 2.08 mm², Pitch: 5.00 mm, No. of poles: 13,
180°, Box
PCB plug-in connector, Female connectors, Leaf spring connection,
Clamping range, max.: 2.08 mm², Pitch: 5.00 mm, No. of poles: 13,
180°, Box
PCB plug-in connector, Female connectors, Leaf spring connection,
Clamping range, max.: 2.08 mm², Pitch: 5.00 mm, No. of poles: 14,
180°, Box
PCB plug-in connector, Female connectors, Leaf spring connection,
Clamping range, max.: 2.08 mm², Pitch: 5.00 mm, No. of poles: 15,
180°, Box
PCB plug-in connector, Female connectors, Leaf spring connection,
Clamping range, max.: 2.08 mm², Pitch: 5.00 mm, No. of poles: 15,
180°, Box
PCB plug-in connector, Female connectors, Leaf spring connection,
Clamping range, max.: 2.08 mm², Pitch: 5.00 mm, No. of poles: 16,
180°, Box
-4-
Product catalogue | PCB connection systems | PCB plug-in connectors | Pitch 5.00 / 5.08 mm (0.197 / 0.200 inch) |
Socket connectors, pressure clamp connection, pitch 5.00/5.08 | BL 5.00/5.08 | BL 5.00
1730840000
BL 5.00/16 SN SW
PCB plug-in connector, Female connectors, Leaf spring connection,
Clamping range, max.: 2.08 mm², Pitch: 5.00 mm, No. of poles: 16,
180°, Box
-5-
