DLCBS3-10-19 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > accessories> DLCBS3-10-19

DLCBS3-10-19: Descriptioncbs dual locking FR/nylon 5/8"; Categoryaccessories; File Size177KB，1 Pages; ManufacturerEssentra Components; Environmental Compliance

Download Datasheet Parametric View All

DLCBS3-10-19 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	DLCBS3-10-19	-	-	View	Buy Now

DLCBS3-10-19 Overview

cbs dual locking FR/nylon 5/8"

DLCBS3-10-19 Parametric

Parameter Name	Attribute value
Datasheets
DLCBS3 Series
Product Training Modules
Engineering Technology
Injection Molding and Plastics
Plastic Materials
Standard Package	1,000
Category	Hardware, Fasteners, Accessories
Family	Board Supports
Holding Type	Snap Lock
Mounting Type	Snap Lock
Between Board Heigh	0.625" (15.88mm) 5/8"
Length - Overall	1.287" (32.70mm)
Support Hole Diamete	0.156" (3.96mm) 5/32"
Support Panel Thickness	0.031 ~ 0.078" (0.79 ~ 1.98mm)
Mounting Hole Diamete	0.187" (4.75mm) 3/16"
Mounting Panel Thickness	0.031 ~ 0.078" (0.79 ~ 1.98mm)
Features	Winged
Material	Nyl
Other Names	21065032DLCBS31019

Preview

Download Datasheet

View All

.56 14.3

REF

7/32 5.6

.11 2.8

REF

.28 7.1

7/32 5.6

MATERIAL: NYLON 6/6 MATERIAL: NYLON 6/6

UL 94 V-0 (RMS-19)

DIM.

UL 94 V-2 (RMS-01)

COLOR: NATURAL

"A"±.015 [0.4]

COLOR: NATURAL

PART NO.

DLCBS3-3-01

DLCBS3-3-19

3/16 [4.8]

DLCBS3-4-01

DLCBS3-4-19

1/4 [6.4]

DLCBS3-6-01

DLCBS3-6-19

3/8 [9.5]

DLCBS3-8-01

DLCBS3-8-19

1/2 [12.7]

DLCBS3-10-01

DLCBS3-10-19

5/8 [15.9]

DLCBS3-12-01

DLCBS3-12-19

3/4 [19.1]

DLCBS3-14-01

DLCBS3-14-19

7/8 [22.2]

"A"

TO SNAP-LOCK IN A .156±.003

[4±0.08] DIA. HOLE, IN A

.031-.078 [0.79-1.98] PANEL THICKNESS

7/32 5.6

.11 2.8

REF

.56 14.3

REF

7/32 5.6

.28 7.1

TO SNAP-LOCK IN A .187±.003

[4.75±0.08] DIA. HOLE, IN A

.031-.078 [0.79-1.98] PANEL THICKNESS

NOTES:

1. MATERIAL: NYLON 6/6 UL 94 HB (RMS-73)

COLOR: NATURAL.

AVAILABLE BY SPECIAL ORDER ONLY.

TO ORDER USE P/N DLCBS3-X-73

AVAILABLE BY SPECIAL ORDER- NAFTA

2. MATERIAL; NYLON 6/6, UL 94 V-0, UV STABILIZED, (RMS-46)

COLOR: BLACK.

TITLE:

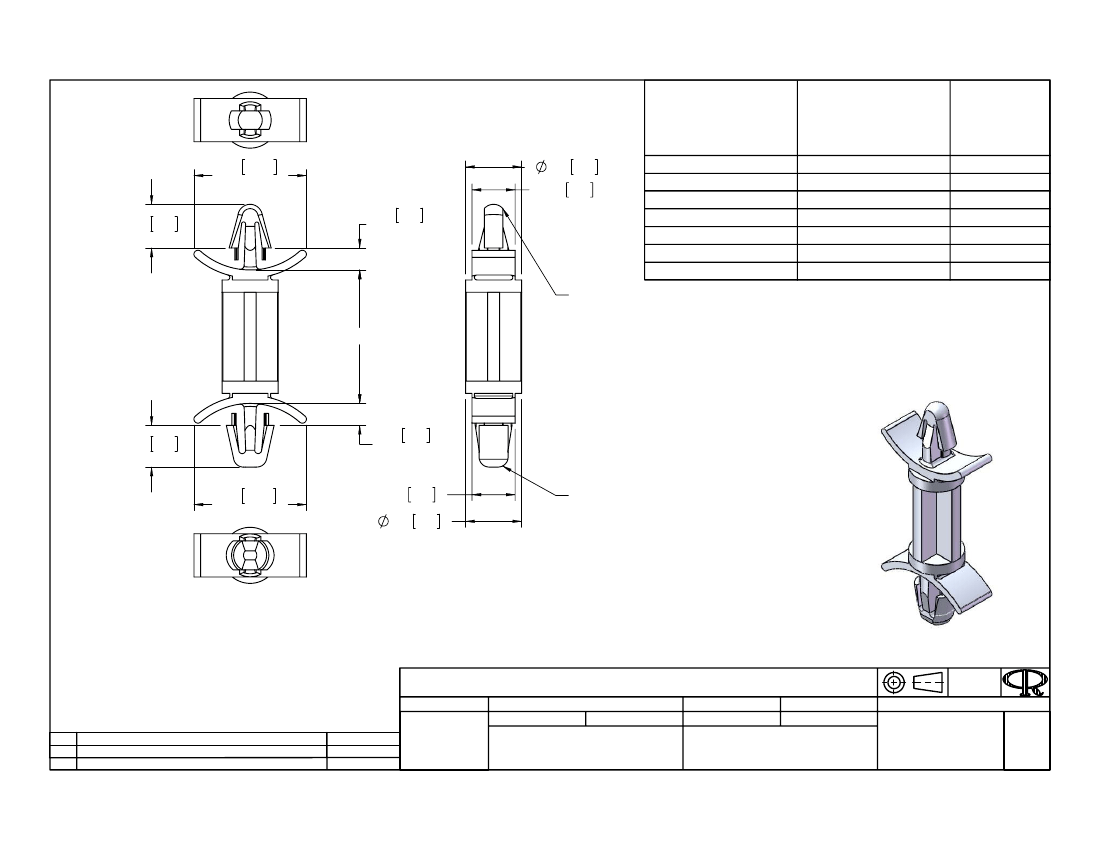

DUAL LOCKING CIRCUIT BOARD SUPPORT, TYPE 3

AVAILABLE BY SPECIAL ORDER ONLY.

TO ORDER USE P/N: DLCBS3-X-UVB

CREATED USING

FILE #: DLCBS3

DWN: SK

APP: RT

SOLIDWORKS

3. ALTERNATE UNITS FOR REFERENCE ONLY.

TOLERANCES

REV.

REDRAWN, SEE ECN #1208 FOR CHANGES

SEE ENGINEERING FOR REVISIONS A-F

DESCRIPTION

11/29/06

---

------

ENGR. DATE

UNLESS NOTED

.XX=±.010

.XXX=±.005

FRAC.=±1/64

ANG.=±1°

REGION ONLY

DWG IN

IN [MM]

FINAL

TYPE

SHEET: 1 OF 1

RE:

SHEET SIZE: A

DT: 11/27/06

RICHCO, INC.

ENG@RICHCO-INC.COM

CHKD: SJ

PART #

(773) 539-4060

SEE TABLE
