WIMA MKS 02
Metallized Polyester (PET)
Capacitors in PCM 2.5 mm
D
Special Features
˜
High volume/capacitance ratio
and reduced base
˜
PCM 2.5 mm
˜
Self-healing
˜
According to RoHS 2011/65/EC
Electrical Data
Capacitance range:
3300 pF to 1.0
mF
(E12-values on request)
Rated voltages:
50 VDC, 63 VDC, 100 VDC, 250 VDC
Capacitance tolerances:
± 20%, ± 10% (±5% available subject
to special enquiry)
Operating temperature range:
–55+ C to +100+ C (+125° C available
subject to special enquiry)
Test specifications:
In accordance with IEC 60384-2
Climatic test category:
55/100/21 in accordance with IEC
Insulation resistance
at +20+ C:
U
r
50 VDC
63 VDC
100
VDC
Plastic film
Vacuum-deposited
electrode
Metal contact layer
(schoopage)
Terminating wire
Dissipation factors
at + 20) C: tan
d
at f
C0.1
mF
0.1
mF
P
C
1.0
mF
8 x 10
-3
15 x 10
-3
–
1 kHz
8 x 10
-3
10 kHz
15
x 10
-3
100 kHz
30
x 10
-3
Typical Applications
For general DC-applications e.g.
˜
By-pass
˜
Blocking
˜
Coupling and decoupling
˜
Timing
Voltage derating:
A voltage derating factor of 1.25 % per K
must be applied from +85+ C for DC
voltages and from +75+ C for AC
voltages.
Reliability:
Operational life
300 000 hours
Failure rate
P
2 fit (0.5 x U
r
and 40) C)
0.33
mF
< C
1.0
mF
1250 sec (M¸ x
mF)
(mean value: 3000 sec)
1250 sec (M¸ x
mF)
(mean value: 3000 sec)
–
Construction
Dielectric:
Polyethylene-terephthalate (PET) film
Capacitor electrodes:
Vacuum-deposited
Internal construction:
U
test
10 V
50 V
100 V
C
0.33
mF
3.75 x 10
3
M¸
(mean value: 1 x 10
4
M¸)
3.75 x 10
3
M¸
(mean value: 1 x 10
4
M¸)
1 x 10
4
M¸
(mean value: 2 x 10
4
M¸)
Measuring time: 1 min.
Test voltage:
1.6 U
r
, 2 sec.
Maximum pulse rise time:
Capacitance
pF/mF
3300
0.01
0.033
0.1
0.47
...
...
...
...
...
6800
0.022
0.068
0.33
1.0
Pulse rise time V/msec
max. operation/test
100 / 1000
50 / 500
30 / 300
20 / 200
15 / 150
Encapsulation:
Solvent-resistant, flame-retardant plastic
case with epoxy resin seal, UL 94 V-0
Terminations:
Tinned wire.
Marking:
Colour: Red. Marking: Silver.
Epoxy resin seal: Yellow
for pulses equal to the rated voltage
Mechanical Tests
Pull test on pins:
10 N in direction of pins according to
IEC 60068-2-21
Vibration:
6 hours at 10 ... 2000 Hz and 0.75 mm
displacement amplitude or 10 g in
accordance with IEC 60068-2-6
Low air density:
1kPa = 10 mbar in accordance with
IEC 60068-2-13
Bump test:
4000 bumps at 390 m/sec
2
in
accordance with IEC 60068-2-29

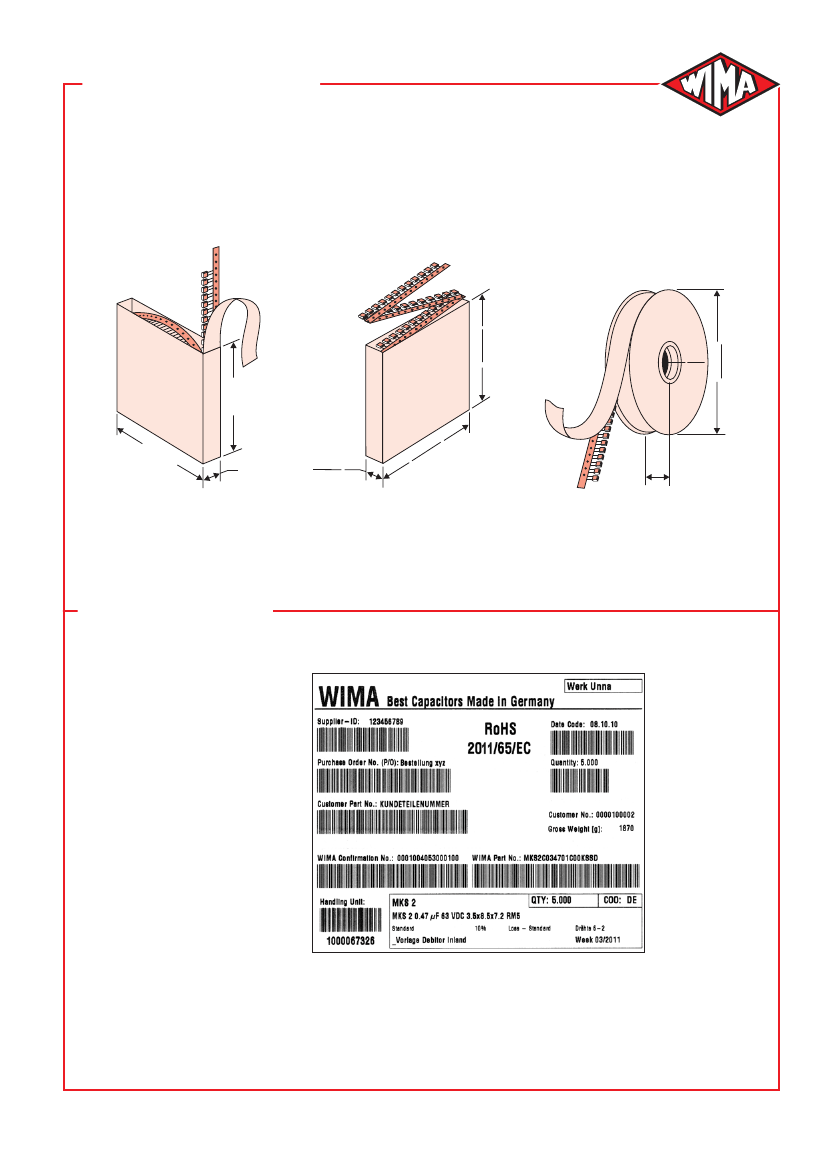

Packing
Available taped and reeled.
Detailed taping information and graphs
at the end of the catalogue.
For further details and graphs please
refer to Technical Information.
11.12
25
D
Recommendation for Processing
and Application of
Through-Hole Capacitors
Soldering Process
A preheating of through-hole WIMA
capacitors is allowed for temperatures
T
max
P
100 ° C.
In practice a preheating duration of
t
P
5 min. has been proven to be best.
Single wave soldering
Soldering bath temperature: T
P
260 ° C
Immersion time:
t
P
5 sec
Double wave soldering
Soldering bath temperature: T
P
260 ° C
Immersion time:
2 x t
P
3 sec
Due to different soldering processes and
heat requirements the graphs are to be
regarded as a recommendation only.
Wave soldering
T
260
240
220
200
180
160
140
120
100
80
60
40
20
[°C]
see detail-
enlargement
2s
3s
10 s
t
30
60
90
120
150
180
210
240 [sec]
Typical temperature/time graph for double wave soldering
WIMA Quality and Environmental Philosophy
ISO 9001:2008 Certification
ISO 9001:2008 is an international basic
standard of quality assurance systems for
all branches of industry. The approval
according to ISO 9001:2008 of our
factories by the VDE inspectorate certifies
that organisation, equipment and moni-
toring of quality assurance in our factories
correspond to internationally recognized
standards.
WIMA Environmental Policy
All WIMA capacitors, irrespective of
whether through-hole devices or SMD,
are made of environmentally friendly
materials. Neither during manufacture
nor in the product itself any toxic
substances are used, e.g.
–
–
–
–
–
Lead
PCB
CFC
Hydrocarbon chloride
Chromium 6+
–
–
–
–
–
PBB/PBDE
Arsenic
Cadmium
Mercury
etc.
RoHS Compliance
According to the RoHS Directive 2011/65/EC
certain hazardous substances like e.g. lead,
cadmium, mercury must not be used any
longer in electronic equipment as of July 1st,
2006. For the sake of the environment WIMA
has refraind from using such substances since
years already.
WIMA WPCS
The WIMA Process Control System (WPCS)
is a quality surveillance and optimization
system developed by WIMA. WPCS is a
major part of the quality-oriented WIMA
production. Points of application of WPCS
during production process:
”
”
”
”
”
”
”
incoming material inspection
metallization
film inspection
schoopage
pre-healing
pin attachment
cast resin preparation/
encapsulation
”
100% final inspection
”
AQL check
We merely use pure, recyclable materials
for packing our components, such as:
”
”
”
”
carton
cardboard
adhesive tape made of paper
polystyrene
WIMA Kondensatoren sind bleifrei
