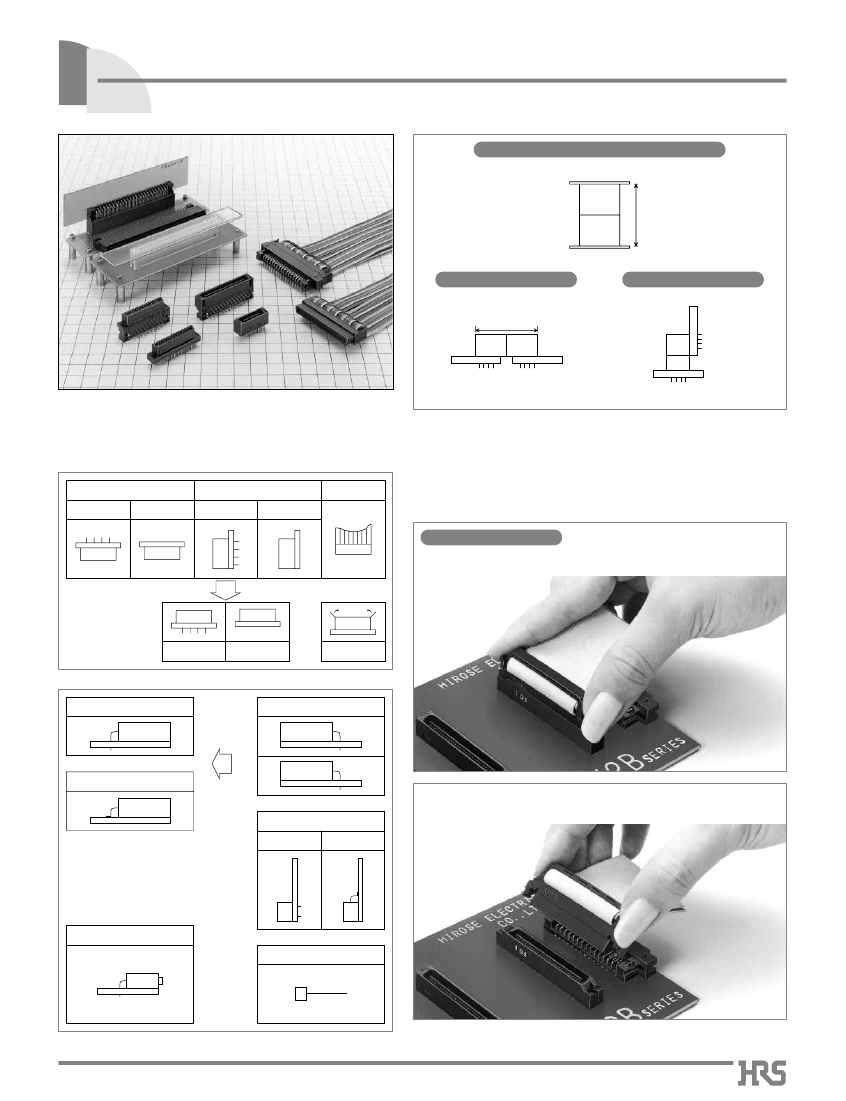

1.27mm Pitch Multi-function Two Piece Connector
FX2 Series
Stacking connection (Stack height: 12~16mm)
12mm~16mm
Horizontal Connection
Vertical Connection
25mm
■Features
1. Various connection with various product line
2. Easy One-Touch Operation
The ribbon cable connection type allows easy one-touch operation
with either single hand.
Stacking connection
Vertical type
Cable connection
Through hole type SMT type Through hole type SMT type
Insersion and Extraction
(1) Pick internal locks with thumb and the index finger.
Through hole type SMT type
Cable only
Through hole type
Horizontal type
SMT type
(2) With unique and preferable click feeling, the cable and
connector can be inserted or withdrawed.
Vertical type
Through hole type SMT type
Cable only
Cable connection
(For insertion, the operation proceeds from procedure (2) to (1).)
A85
The product information in this catalog is for reference only. Please request the Engineering Drawing for the most current and accurate design information.
All non-RoHS products have been discontinued, or will be discontinued soon. Please check
Connector
FX2 Series●1.27mm Pitch Multi-function Two Piece
the products status on the Hirose website RoHS search at www.hirose-connectors.com, or contact your Hirose sales representative.
3. Board to board type
q
Flux swell prevention
The straight through hole type takes the complete flux
tight action from the board back side at solder dipping.
The type is prepared, corresponding to whether or not
cleaning is required.
4. Board to cable type
q
Complete lock with easy operation
Employing the inner lock system, complete lock and eject
actions can be performed with easy operation.
w
Applicable cable
The applicable cable is the <UL2651>AWG#28 flat cable
(7/0.127mm), and the jacket size is 0.9±0.1mm.
w
Stack height 12mm to 16mm
The board stack height can be set to every 1 mm unit up
to 12 to 16mm.
e
Mis-insertion preventive mechanism
The mating area is designed in a mechanism so as to
prevent mis-insertion, and complete countermeasures
have been taken against wrenching.
5. SMT type
Strength security with metaltab
The right angle type is equipped with metaltab to secure
soldering strength, and constructed so as to fix by
screws. The straight type can choose whether or not
metaltab are required.
■Applications
Computers, peripheral equipments, various machines etc.
■Product
Specifications
Rating
Item
1. Insulation Resistance
2. Withstanding Voltage
3. Contact Resistance
4. Vibration
1000M
ohms min
Current rating 0.5A
Operating Temperature Range -55ç
to
+85ç (Note 1) Storage Temperature Range -10ç
to
+60ç (Note 2)
Storage Humidity Range 40
to
70%
Condition
250V DC
300V AC/1 minute
100mA
(Note 2)
Voltage rating 125V AC Operating Humidity Range 40
to
80%
Specification
No flashover or insulation breakdown.
45m
ohms
max.
No electrical discontinuity of 1μs or more
Contact resistance: 55m
ohms
max.
Frequency: 10 to 55 Hz, single amplitude of 0.75 mm, 2 hours in each of the 3 directions.
5.
Humidity (Steady state)
Contact resistance: 55m
ohms
max. Insulation resistance: 100M
ohms
min.
96 hours at temperature of 40ç and humidity of 90% to 95%
6. Temperature Cycle
Insulation resistance: 100M
ohms
min.
(-55ç: 30 minutes→15
to
35ç: 2
to
3 minutes
→
(-85ç:
30 minutes→15
to
35ç: 2
to
3 minutes) 5 cycles
500 cycles
SMT Type
8. Resistance to soldering heat
No deformation of components affecting performance.
DIP Type
No damage, cracks, or parts looseness.
7. Durability (Mating/un-mating) Contact resistance: 55 m
ohms
max.
Reflow: At the recommended temperature profile
Manual soldering: 360ç for 5 seconds
Solder bath: 260ç for 10 seconds
Manual soldering: 360ç for 5 seconds
Note 1: Includes temperature rise caused by current flow.
Note 2: The term "storage" refers to products stored for long period of time prior to mounting and use. Operating Temperature Range and
Humidity range covers non conducting condition of installed connectors in storage, shipment or during transportation.
Note 3: Information contained in this catalog represents general requirements for this Series.Contact us for the drawings and specifications for
a specific part number shown.
■Material
Parts
Insulator
Dip type
Socket
SMT type
Contact
Receptacle
Socket
Header
Phosphor bronze or brass
Unit:mm
SMT type
FX2-*S-1.27SV(L)
12.2
13.2
14.2
12.3
Material
Polyamid
PBT/Polyamid
PPS
Phosphor bronze
Selective gold plated
Light brown
________
Finish
Black
UL94V-0
Remark
■Stacking
Variation
Receptacle
Header
FX2C-*P-1.27DSA(L)
FX2CA-*P-1.27DSA(L)
FX2CA1-*P-1.27DSA(L)
FX2CA2-*P-1.27DSA(L)
FX2-*P-1.27SV(L)
Dip type
FX2C-*S-1.27DSA(L) FX2C2-*S-1.27DSA(L)
FX2CA-*S-1.27DSA(L) FX2CA2-*S-1.27DSA(L)
12.0
13.0
14.0
12.1
14.0
15.0
16.0
14.1
Dip type
SMT type
A86
The product information in this catalog is for reference only. Please request the Engineering Drawing for the most current and accurate design information.
All non-RoHS products have been discontinued, or will be discontinued soon. Please check the products status on the Hirose
FX2 Series●1.27mm Pitch Multi-function Two Piece Connector
website RoHS search at www.hirose-connectors.com, or contact your Hirose sales representative.
■Ordering
Information
●Board
to Board Receptacle
FX2
q
q
Series Name :FX2
w
Blank: Right angle type
C
CA
: Straight non-cleaning type
: Straight cleaning type
CA 2 -
*
S - 1.27 DSA L
w
e
r
t
y
u
i
r
Number of contacts: 20, 32, 40, 52, 60, 68, 80, 100, 120
t
Connector type: S: Receptacle
y
Contact pitch: 1.27mm
u
Contact type
DS
: Right angle type
DSA : Straight type
i
L: Board prefixed pin
e
Product height variation (DSA only)
Blank : Standard product
2
: +2mm
●Board
to Board Header
FX2
q
q
Series Name :FX2
w
None : Right angle type
C
CA
: Straight non-cleaning type
: Straight cleaning type
CA 1 -
*
P - 1.27 DSA L
w
e
r
t
y
u
i
r
Number of contacts: 20, 32, 40, 52, 60, 68, 80, 100, 120
t
Connector type: P: header
y
Contact pitch: 1.27mm
u
Contact type:
DS
: Right angle type
DSA : Straight type
i
L: Board prefixed pin
e
Product height variation (DSA only)
Blank : Standard product
1
: +1mm
2
: +2mm
Note 1. C and CA take complete countermeasures against flux.
Note 2. Cleaning type: the liquid escape hole is added at dip cleaning.
Note 3. No-cleaning type: no liquid escape hole is added at dip cleaning.
●Board
to Cable Socket
FX2
q
q
Series Name : FX2
w
B
BA
: Lock cable type
: No lock cable type
BA -
*
S A - 1.27 R
w
e
r
t
y
u
r
S: Socket
t
A: Contact material: phosphor bronze
y
Contact pitch: 1.27mm
u
R: Insulation displacement
e
Number of contacts: 20, 32, 40, 52, 60, 68, 80, 100
A87
The product information in this catalog is for reference only. Please request the Engineering Drawing for the most current and accurate design information.
All non-RoHS products have been discontinued, or will be discontinued soon. Please check
Connector
FX2 Series●1.27mm Pitch Multi-function Two Piece
the products status on the Hirose website RoHS search at www.hirose-connectors.com, or contact your Hirose sales representative.
●Board
to Cable Header
FX2
q
q
Series Name : FX2
w
B
BA
: Lock straight no cleaning type
: Lock right angle type
: Lock straight cleaning type
BA -
*
P A - 1.27 DSA L
w
e
r
t
y
u
i
t
None : Contact material: phosphor bronze
A
: Contact material: brass
y
Contact pitch: 1.27mm
u
Contact type:
DS
: Right angle type
DSA : Straight type
e
Number of contacts: 20, 32, 40, 52, 60, 68, 80, 100
r
Connector type: P: header
i
L: Board prefixed pin
Note 1. Cleaning type: The liquid escape hole is added at dip cleaning.
Note 2. No cleaning type: No liquid escape hole is added at dip cleaning.
Note 3. Straight 20 and 32 contact types use phosphor bronze for contact material.
●Straight
SMT Type
FX2
q
q
Series Name :FX2
e
Connector type: P: Header
S: Receptacle
-
*
P - 1.27 SV L
w
e
r
t
y
r
Contact pitch: 1.27mm
SV: Straight SMT type
y
L: Board prefixed pin
w
Number of contacts: 20, 32, 40, 52, 60, 68, 80, 100, 120
t
Contact type:
●Header
Right Angle SMT Type
FX2
q
q
Series Name :FX2
w
Blank: With boss
A
: Without boss
e
Number of contacts: 20, 40, 52, 60, 80
A -
*
P - 0.635 SH
w
e
r
t
y
r
Connector type: P: Header
t
Mounting area pitch: 0.635mm
y
Contact type
SH: Right angle SMT type
A88
