MSD50-18: Descriptionmod bridge 3ph 1800v 50a M1; CategoryDiscrete semiconductor diode; File Size201KB，3 Pages; ManufacturerMicrosemi; Websitehttps://www.microsemi.com

Download Datasheet Parametric Compare View All

MSD50-18 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	MSD50-18	-	-	View	Buy Now

MSD50-18 Overview

mod bridge 3ph 1800v 50a M1

MSD50-18 Parametric

Parameter Name	Attribute value
Maker	Microsemi
package instruction	R-XUFM-D5
Contacts	5

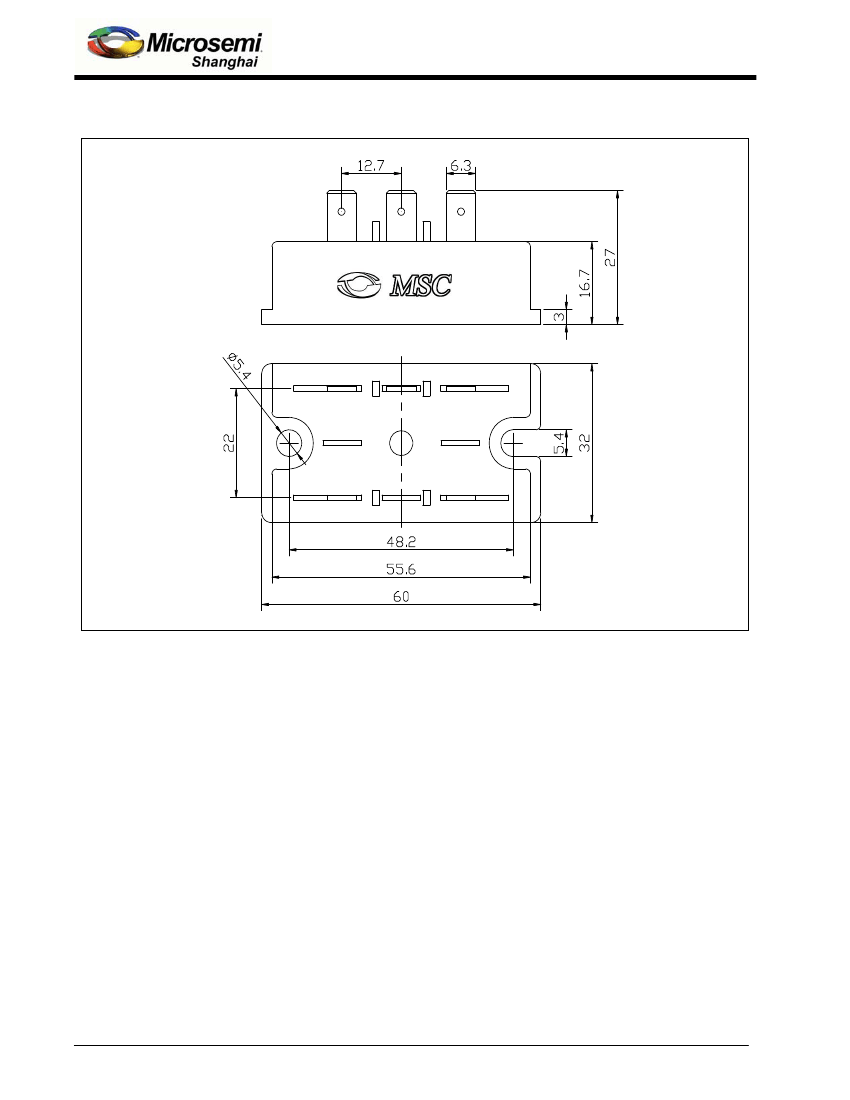

Manufacturer packaging code	CASE M1
Reach Compliance Code	compli
ECCN code	EAR99
Minimum breakdown voltage	1800 V
Configuration	BRIDGE, 6 ELEMENTS
Diode component materials	SILICON
Diode type	BRIDGE RECTIFIER DIODE
Maximum forward voltage (VF)	1.5 V
JESD-30 code	R-XUFM-D5
Maximum non-repetitive peak forward current	420 A
Number of components	6
Phase	3
Number of terminals	5
Maximum operating temperature	150 °C
Minimum operating temperature	-40 °C
Maximum output current	50 A
Package body material	UNSPECIFIED
Package shape	RECTANGULAR
Package form	FLANGE MOUNT
Certification status	Not Qualified
Maximum repetitive peak reverse voltage	1800 V
surface mount	NO
Terminal form	SOLDER LUG
Terminal location	UPPER

Preview

Download Datasheet

View All

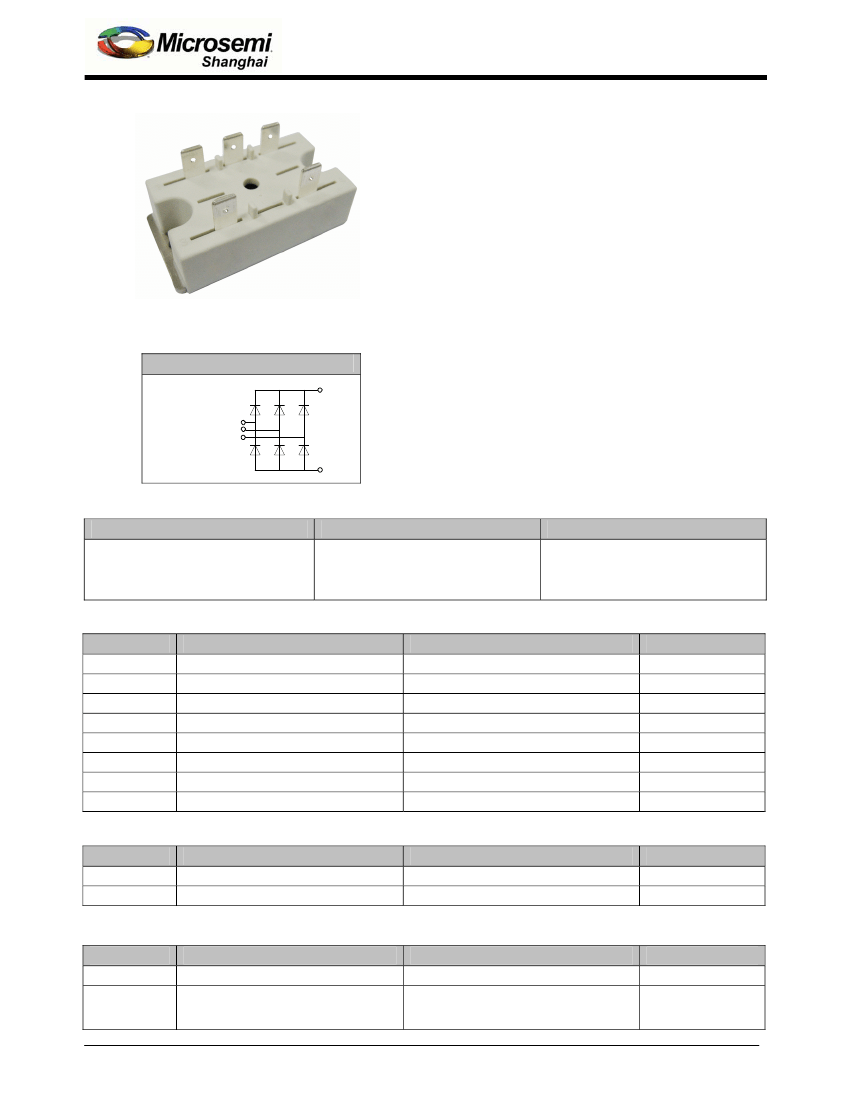

MSD50

Glass Passivated Three

Phase Rectifier Bridge

V

RRM

800 to 1800V

I

D

50 Amp

Applications

Three phase rectifiers for power supplies

Rectifiers for DC motor field supplies

Battery charger rectifiers

Input rectifiers for variable frequency drives

Circuit

3

Features

Three phase bridge rectifier

Blocking voltage:800 to 1800V

Heat transfer through aluminum oxide DCB

ceramic isolated metal baseplate

Glass passivated chip

MSD

1

7

2

4

Module Type

TYPE

MSD50-08

MSD50-12

MSD50-16

MSD50-18

V

RRM

800V

1200V

1600V

1800V

V

RSM

900V

1300V

1700V

1900V

Maximum Ratings

Symbol

ID

IFSM

it

Visol

Tvj

Tstg

Ms

Weight

2

Conditions

Tc=85℃

t=10mS Tvj =45℃

a.c.50Hz;r.m.s.;1min

Values

50

420

880

3000

-40 to 150

-40 to 125

Units

A

2

s

V

℃

Nm

g

To heatsink(M5)

Module

3±5%

78

Thermal Characteristics

Symbol

Conditions

Rth(j-c)

Rth(c-s)

Per diode

Module

Values

1.5

0.2

Units

℃/W

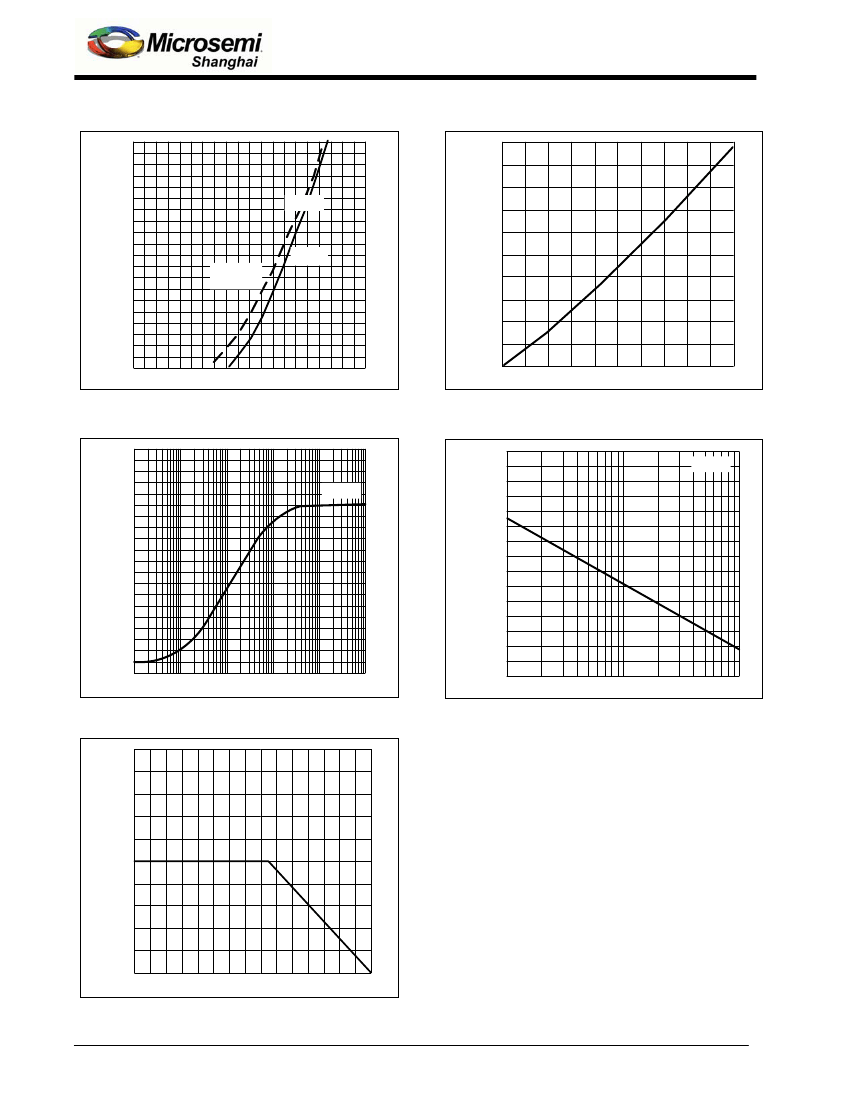

Electrical Characteristics

Symbol

VFM

IRD

Conditions

T=25℃ IFM =100A

Tvj =25℃ VRD=VRRM

Tvj =150℃ VRD=VRRM

Values

1.5

≤0.2

≤3

Units

V

mA

www.microsemi.com

MSD50 – Rev 0

Dec, 2009

1/4
