TMP47C960A datasheet, PDF - EEWORLD Datasheet

TMP47C960A: DescriptionCMOS 4 BIT MICROCONTROLLER; File Size290KB，12 Pages; ManufacturerToshiba Semiconductor; Websitehttp://toshiba-semicon-storage.com/

Download Datasheet Compare View All

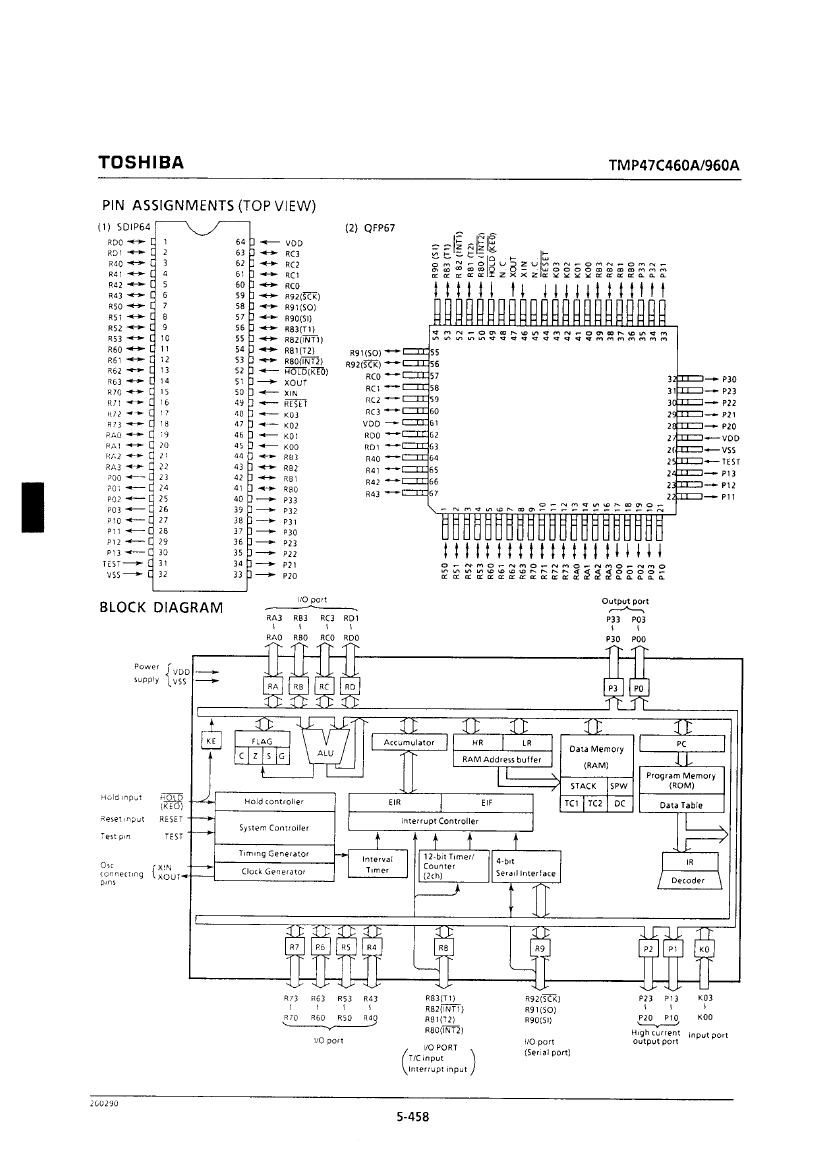

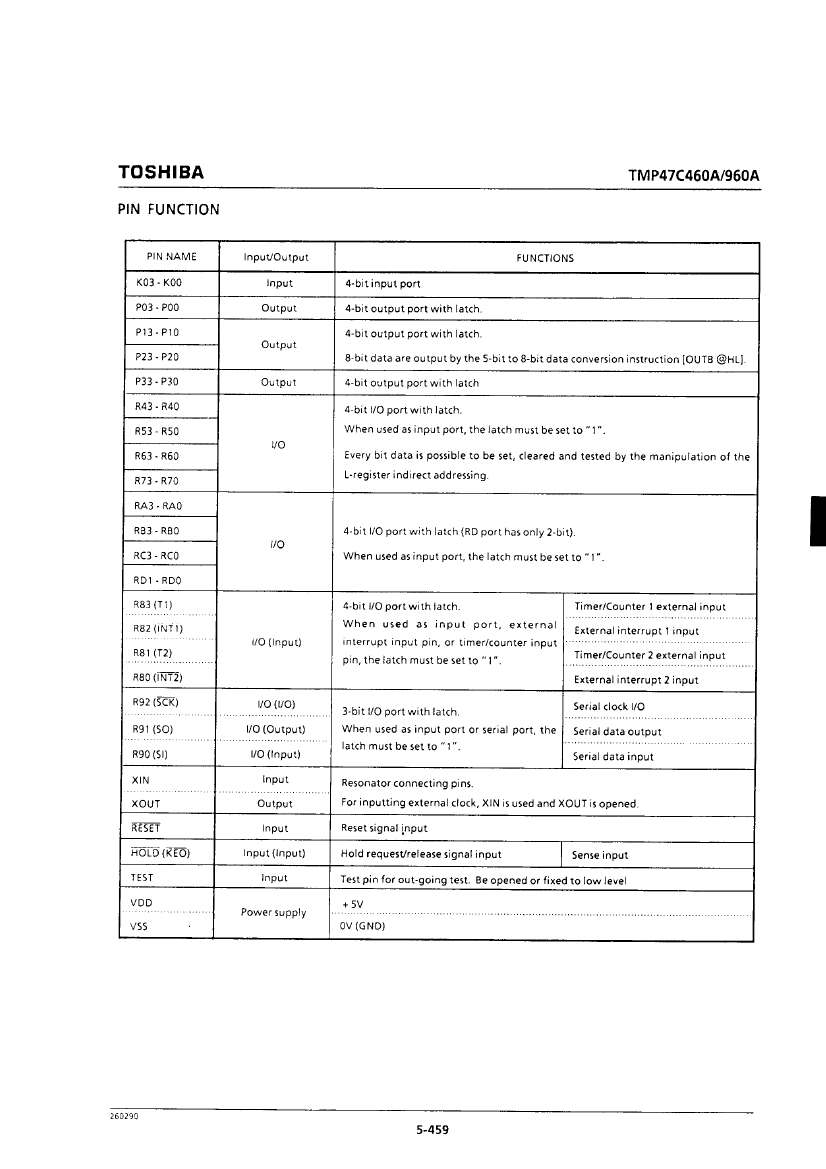

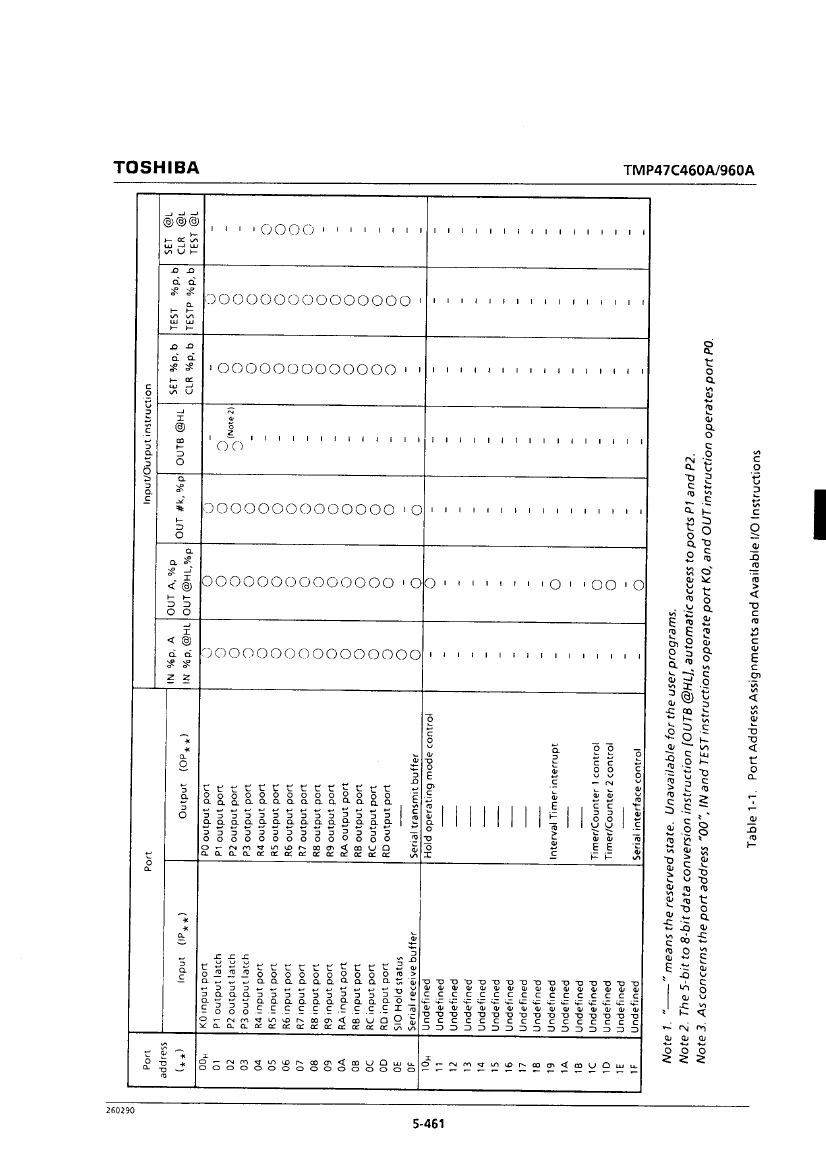

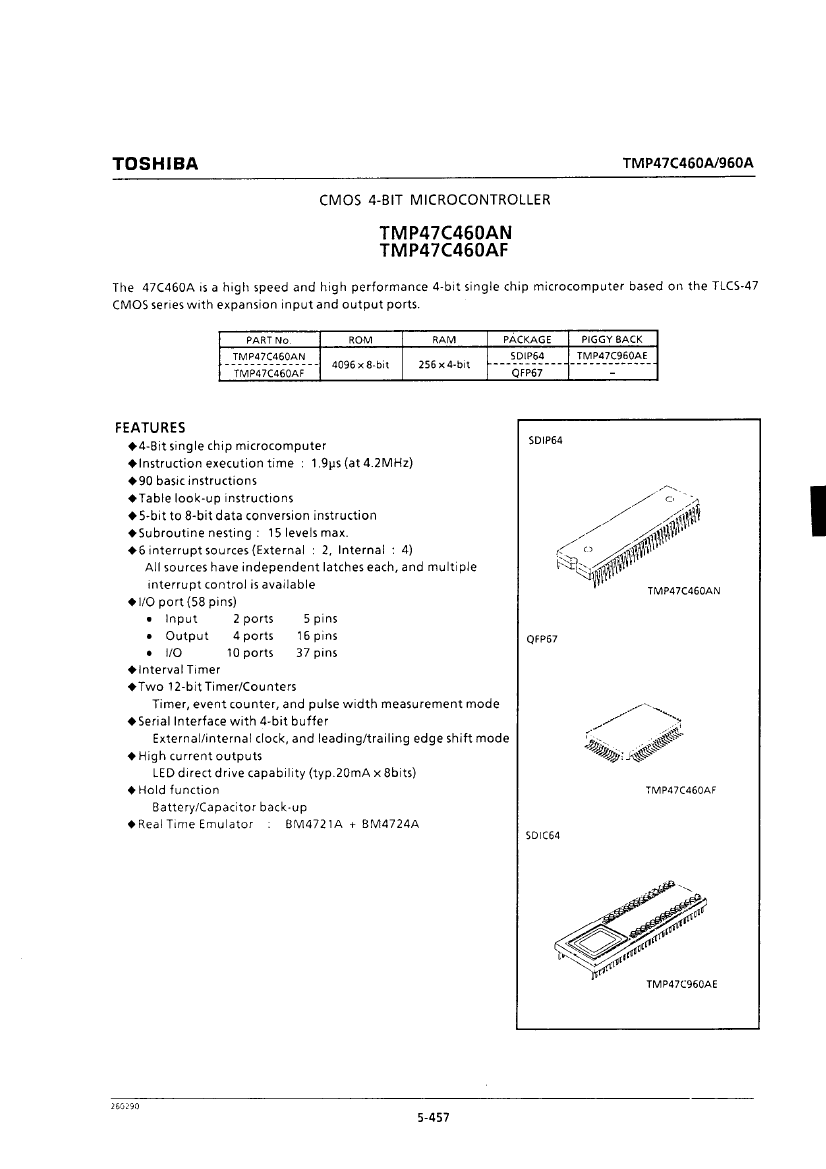

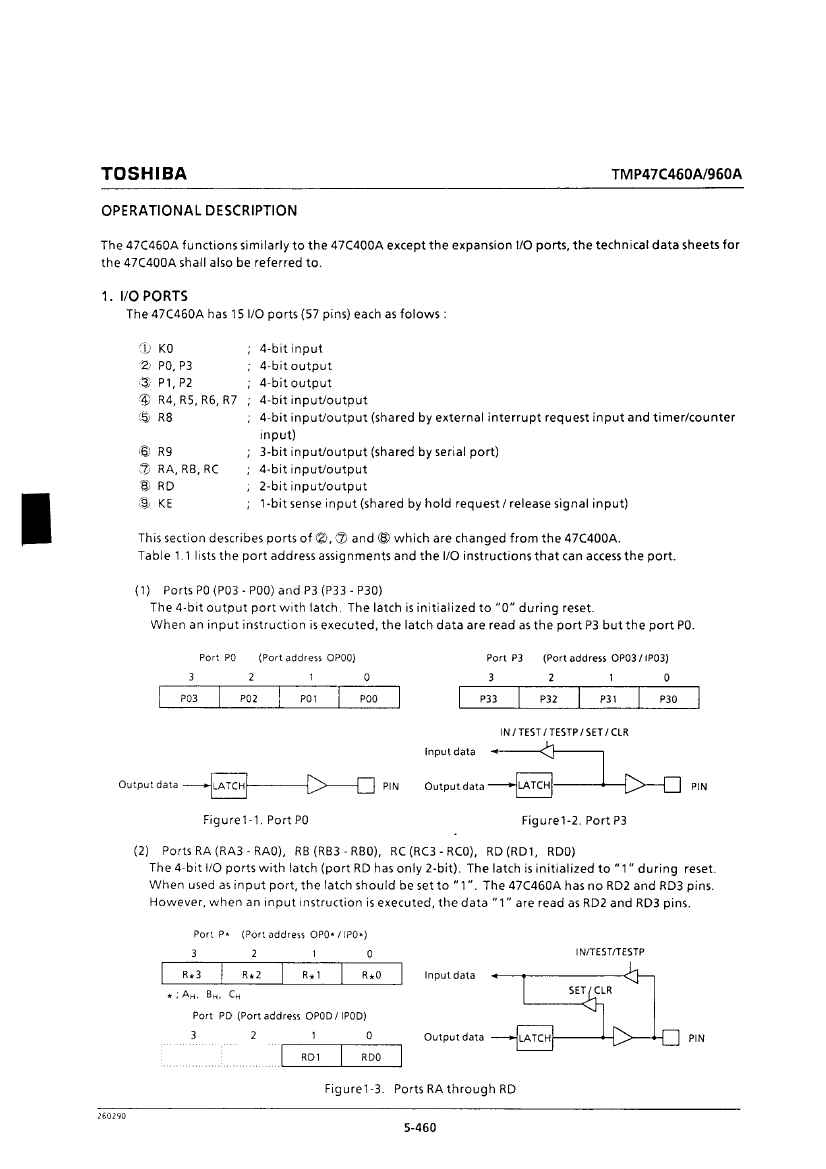

TMP47C960A Overview

CMOS 4 BIT MICROCONTROLLER

	TMP47C960A	TMP47C460AF	TMP47C460AN	TMP47C960AE
Description	CMOS 4 BIT MICROCONTROLLER	CMOS 4 BIT MICROCONTROLLER	CMOS 4 BIT MICROCONTROLLER	CMOS 4 BIT MICROCONTROLLER
Is it Rohs certified?	-	incompatible	incompatible	incompatible
Parts packaging code	-	QFP	DIP	DIP
package instruction	-	QFP,	SDIP,	AWSDIP,
Contacts	-	67	64	64
Reach Compliance Code	-	unknow	unknow	unknow
Has ADC	-	NO	NO	NO
bit size	-	4	4	4
DAC channel	-	NO	NO	NO
DMA channel	-	NO	NO	NO
JESD-30 code	-	R-PQFP-G67	R-PDIP-T64	R-PDIP-T64
JESD-609 code	-	e0	e0	e0
length	-	20 mm	57.5 mm	57.5 mm
Number of I/O lines	-	57	57	57
Number of terminals	-	67	64	64
Maximum operating temperature	-	70 °C	70 °C	70 °C
Minimum operating temperature	-	-30 °C	-30 °C	-30 °C
PWM channel	-	NO	NO	NO
Package body material	-	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	-	QFP	SDIP	AWSDIP
Package shape	-	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	-	FLATPACK	IN-LINE, SHRINK PITCH	IN-LINE, PIGGYBACK, WINDOW, SHRINK PITCH
Certification status	-	Not Qualified	Not Qualified	Not Qualified
Maximum seat height	-	2.25 mm	5 mm	7.07 mm
Maximum supply voltage	-	6 V	6 V	6 V
Minimum supply voltage	-	4.5 V	4.5 V	4.5 V
surface mount	-	YES	NO	NO
technology	-	CMOS	CMOS	CMOS
Temperature level	-	OTHER	OTHER	OTHER
Terminal surface	-	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	-	GULL WING	THROUGH-HOLE	THROUGH-HOLE
Terminal pitch	-	0.8 mm	1.778 mm	1.778 mm
Terminal location	-	QUAD	DUAL	DUAL
width	-	14 mm	19.05 mm	19.05 mm
uPs/uCs/peripheral integrated circuit type	-	MICROCONTROLLER	MICROCONTROLLER	MICROCONTROLLER
Base Number Matches	-	1	1	1
