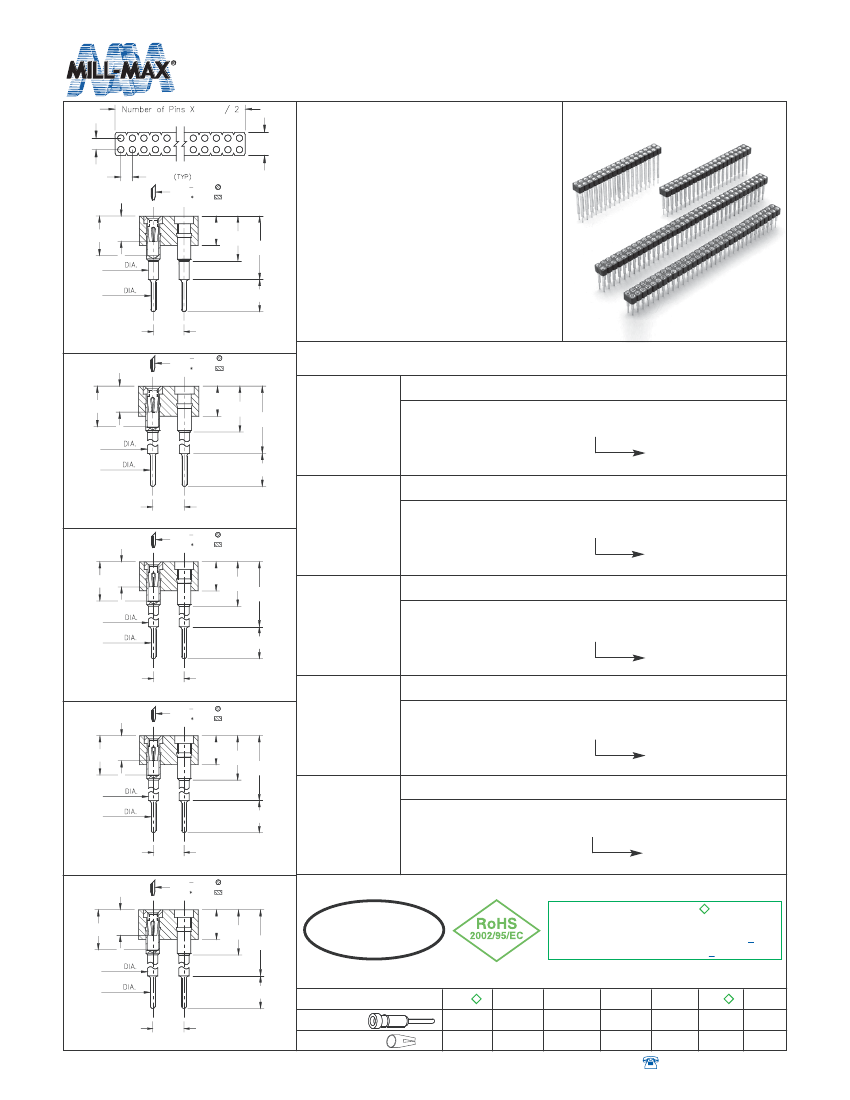

SINGLE-IN-LINE SOCKETS
Elevated
Double Row
2,54
2,54
2,54
5,08
Series 416
●
Elevated sockets are available in
5 different standoff heights.
416...006 uses pin# 0153-1
416...003 uses pin# 0153-2
416...007 uses pin# 0153-3
416...008 uses pin# 0153-4
416...001 uses pin# 0153-5
See page 136 for details.
Hi-Rel, 4-finger BeCu #30 clip
rated at 3 amps. See page 208
for details.
0,38 0,64
0,25 0,46
3,71
2,41
2,79
4,22
5,99
1,02
0,46
3,0
●
2,54
Fig. 1
0,38 0,64
0,25 0,46
Ordering Information
Series 416...006
Standoff Height = 5,99
4,22
8,0
3,71
2,41
2,79
Fig. 1
416-XX-2_ _-41-006000
Specify # of pins
02-64
Standoff Height = 8,0
1,02
0,46
3,0
Series 416...003
2,54
Fig. 2
0,38 0,64
0,25 0,46
Fig. 2
4,22
416-XX-2_ _-41-003000
Specify # of pins
02-64
Standoff Height = 10,21
3,71
2,41
2,79
10,21
Series 416...007
1,02
0,46
3,0
Fig. 3
2,54
416-XX-2_ _-41-007000
Specify # of pins
Series 416...008
02-64
Standoff Height = 11,99
Fig. 3
0,38 0,64
0,25 0,46
Fig. 4
4,22
11,99
416-XX-2_ _-41-008000
Specify # of pins
Series 416...001
02-64
Standoff Height = 15,09
3,71
2,41
2,79
1,02
0,46
3,0
Fig. 5
416-XX-2_ _-41-001000
Specify # of pins
02-64
2,54
Fig. 4
0,38 0,64
0,25 0,46
3,71
2,41
2,79
4,22
15,09
XX=Plating Code
See Below
For RoHS compliance, select
plating code.
For the all gold option (XX=13) also change
part number from 416-XX-2XX-41-00X000
to 416-13-2XX-41-00X100
1,02
0,46
3,0
SPECIFY PLATING CODE XX=
13
0,76µm Au
91
10µ” Au
93
99
41
43
44
2,54
Sleeve (Pin)
Contact (Clip)
0,25µm Au
200µ” Sn/Pb
5,08µm Sn/Pb
200µ” Sn/Pb
0,76µm Au
200µ” Sn/Pb
200µ” Sn
5,08µm Sn
200µ” Sn
10µ” Au
0,76µm Au
200µ” Sn
Fig. 5
w w w. m i l l - m a x . c o m
52
516-922-6000
