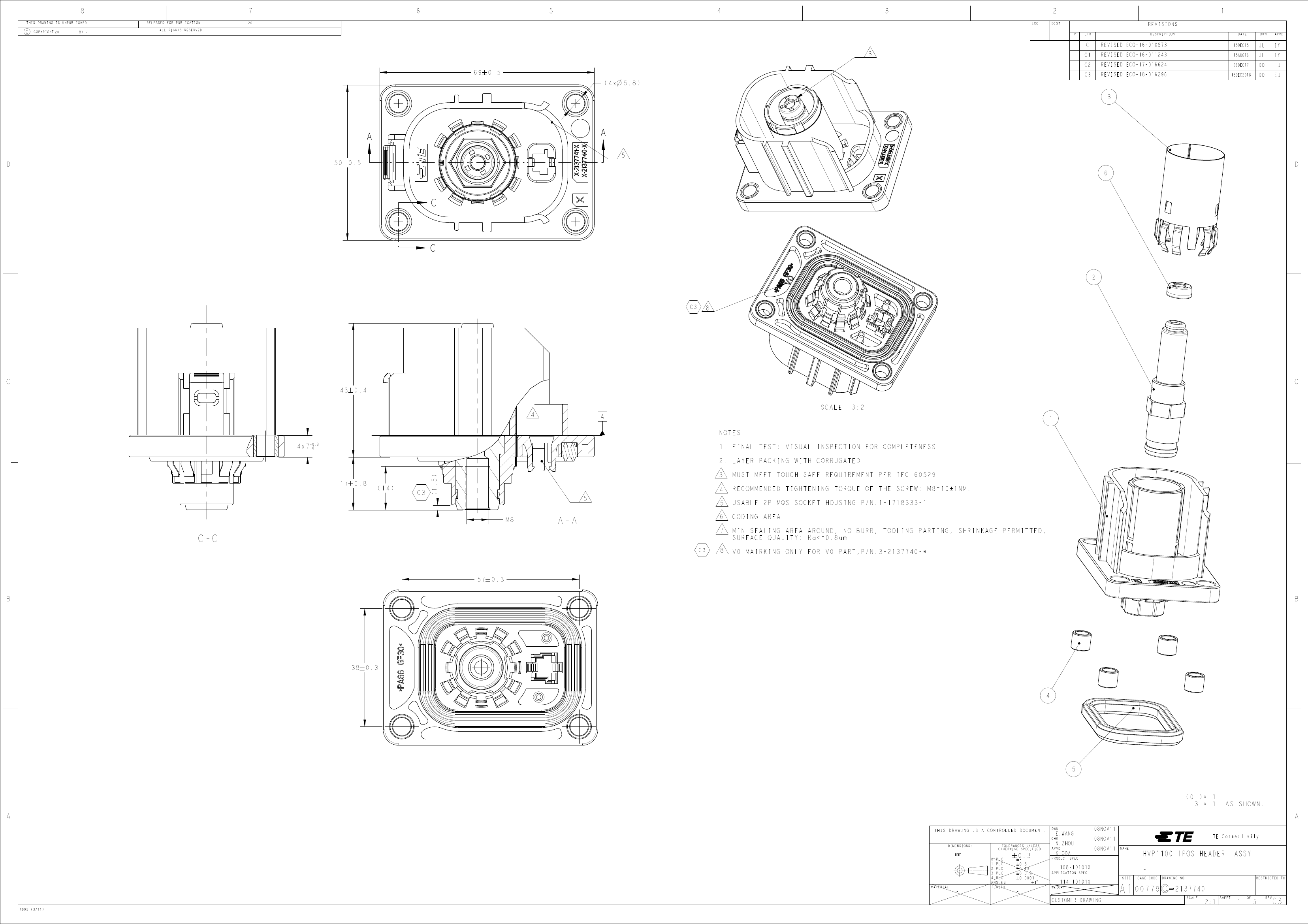

8
THIS DRAWING IS UNPUBLISHED.
RELEASED FOR PUBLICATION
BY -
ALL RIGHTS RESERVED.
7
20
6
5
4
3
LOC
2
DIST
P
LTR
1
REVISIONS
DESCRIPTION
DATE
DWN
APVD
C
COPYRIGHT
20
3
69
0.5
(4x
5.8 )
C
C1
C2
C3
REVISED ECO-16-010873
REVISED ECO-16-011243
REVISED ECO-17-016624
REVISED ECO-18-016296
15DEC15
15AUG16
06DEC17
15DEC2018
JL
JL
DD
DD
IY
IY
EJ
EJ
3
D
50
0.5
5
6
D
2
C3
8
C
43
0.4
4
SCALE
NOTES
3:2
1
C
A
4x 7
+0.3
0
1. FINAL TEST: VISUAL INSPECTION FOR COMPLETENESS
2. LAYER PACKING WITH CORRUGATED
17
0.8
( 1.5 )
3
5
M8
4
5
6
7
C3
MUST MEET TOUCH SAFE REQUIREMENT PER IEC 60529
RECOMMENDED TIGHTENING TORQUE OF THE SCREW: M8=10±1NM.
USABLE 2P MQS SOCKET HOUSING P/N:1-1718333-1
CODING AREA
MIN SEALING AREA AROUND, NO BURR, TOOLING PARTING, SHRINKAGE PERMITTED,
SURFACE QUALITY: Ra<=0.8um
V0 MAIRKING ONLY FOR V0 PART,P/N:3-2137740-*
( 14 )
C3
A-A
C-C
8
57
0.3
B
B
38
0.3
4
5
(0-)*-1
3-*-1
AS SHOWN.
A
THIS DRAWING IS A CONTROLLED DOCUMENT.
DIMENSIONS:
TOLERANCES UNLESS
OTHERWISE SPECIFIED:
DWN
CHK
A
E.WANG
N.ZHOU
K.ODA
08NOV11
08NOV11
08NOV11
NAME
TE Connectivity
mm
APVD
MATERIAL
0 PLC
1 PLC
2 PLC
3 PLC
4 PLC
ANGLES
FINISH
-
0.5
0.13
0.013
0.0001
PRODUCT SPEC
HVP1100 1POS HEADER
CAGE CODE
ASSY
RESTRICTED TO
APPLICATION SPEC
108-101010
114-101010
SIZE
-
1 $
-
-
-
-
WEIGHT
-
CUSTOMER DRAWING
A1
00779
DRAWING NO
2137740
SCALE
4805 (3/11)
2:1
SHEET
1
OF
5
REV
C3

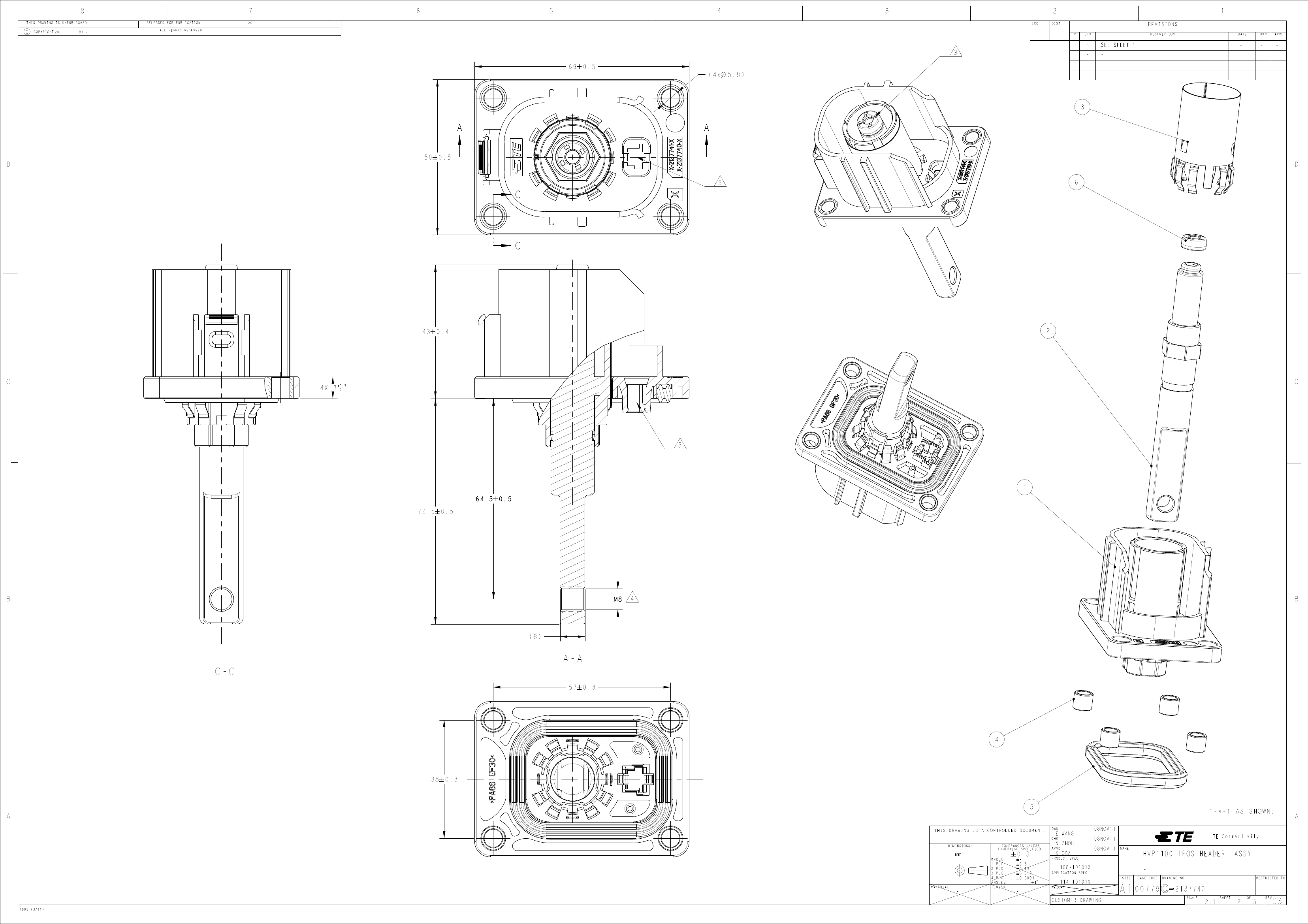

8
THIS DRAWING IS UNPUBLISHED.
RELEASED FOR PUBLICATION
BY -
ALL RIGHTS RESERVED.
7
20
6
5
4
3
LOC
2
DIST
P
LTR
1
REVISIONS
DESCRIPTION
DATE
DWN
APVD
C
COPYRIGHT
20
3
69
0.5
(4x
5.8 )
-
-
SEE SHEET 1
-
-
-
-
-
-
-
3
D
50
0.5
6
D
5
43
0.4
2
C
4X 7
+0.3
0
C
5
1
64.5
72.5
0.5
0.5
B
M8
4
B
(8)
C-C
A-A
57
0.3
4
38
0.3
A
5
THIS DRAWING IS A CONTROLLED DOCUMENT.
DIMENSIONS:
TOLERANCES UNLESS
OTHERWISE SPECIFIED:
DWN
CHK
1-*-1 AS SHOWN.
E.WANG
N.ZHOU
K.ODA
08NOV11
08NOV11
08NOV11
NAME
A
TE Connectivity
mm
APVD
MATERIAL
0 PLC
1 PLC
2 PLC
3 PLC
4 PLC
ANGLES
FINISH
-
0.5
0.13
0.013
0.0001
PRODUCT SPEC
HVP1100 1POS HEADER
CAGE CODE
ASSY
RESTRICTED TO
APPLICATION SPEC
108-101010
114-101010
SIZE
-
1 $
-
-
-
-
WEIGHT
-
CUSTOMER DRAWING
A1
00779
DRAWING NO
2137740
SCALE
4805 (3/11)
2:1
SHEET
2
OF
5
REV
C3

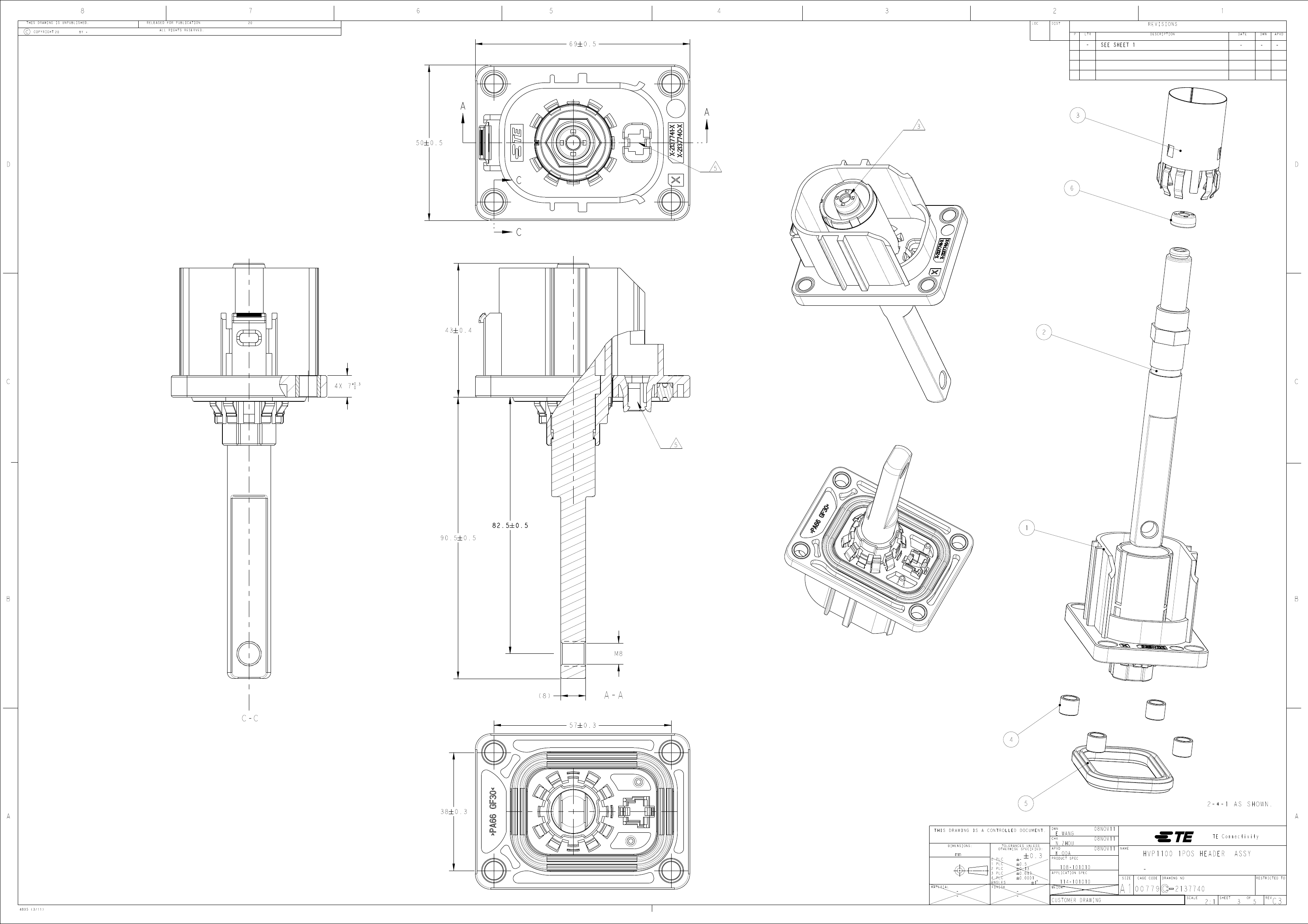

8
THIS DRAWING IS UNPUBLISHED.
RELEASED FOR PUBLICATION
BY -
ALL RIGHTS RESERVED.
7
20
6
5
4
3
LOC
2
DIST
P
LTR
1
REVISIONS
DESCRIPTION
DATE
DWN
APVD
C
COPYRIGHT
20
69
0.5
-
SEE SHEET 1
-
-
-
3
3
50
0.5
D
5
6
D
43
0.4
2
C
4X 7
+0.3
0
C
5
82.5
90.5
0.5
0.5
1
B
B
M8
(8)
A-A
57
0.3
4
C-C
A
38
0.3
5
2-*-1 AS SHOWN.
A
THIS DRAWING IS A CONTROLLED DOCUMENT.
DIMENSIONS:
TOLERANCES UNLESS
OTHERWISE SPECIFIED:
DWN
CHK
E.WANG
N.ZHOU
K.ODA
08NOV11
08NOV11
08NOV11
NAME
TE Connectivity
mm
APVD
MATERIAL
0 PLC
1 PLC
2 PLC
3 PLC
4 PLC
ANGLES
FINISH
-
0.5
0.13
0.013
0.0001
PRODUCT SPEC
HVP1100 1POS HEADER
CAGE CODE
ASSY
RESTRICTED TO
APPLICATION SPEC
108-101010
114-101010
SIZE
-
1 $
-
-
-
-
WEIGHT
-
CUSTOMER DRAWING
A1
00779
DRAWING NO
2137740
SCALE
4805 (3/11)
2:1
SHEET
3
OF
5
REV
C3
8
THIS DRAWING IS UNPUBLISHED.
RELEASED FOR PUBLICATION
BY -
ALL RIGHTS RESERVED.
7
20
6
5
4
3
LOC
2
DIST
P
LTR
1
REVISIONS
DESCRIPTION
DATE
DWN
APVD
C
COPYRIGHT
20
-
SEE SHEET 1
-
-
-
6
CODING A
( 9.75 )
( 9.75 )
CODING B
( 9.75 )
CODING C
CODING D
( 9.75 )
CODING E
( 9.75 )
CODING F
( 9.75 )
D
D
TOP VIEW
( 9.75 )
( 21 )
( 9.5 )
REAR VIEW
( 9.75 )
( 9.75 )
( 18.5 )
( 9.5 )
( 9.75 )
( 9.75 )
( 9.75 )
( 16 )
( 18.5 )
( 9.5 )
( 9.5 )
( 21 )
( 9.5 )
( 18.5 )
( 9.5 )
( 9.5 )
C
( 18.5 )
( 18.5 )
( 9.5 )
( 21 )
( 9.5 )
( 21 )
( 9.5 )
( 16 )
( 9.5 )
( 16 )
( 9.5 )
C
( 18.5 )

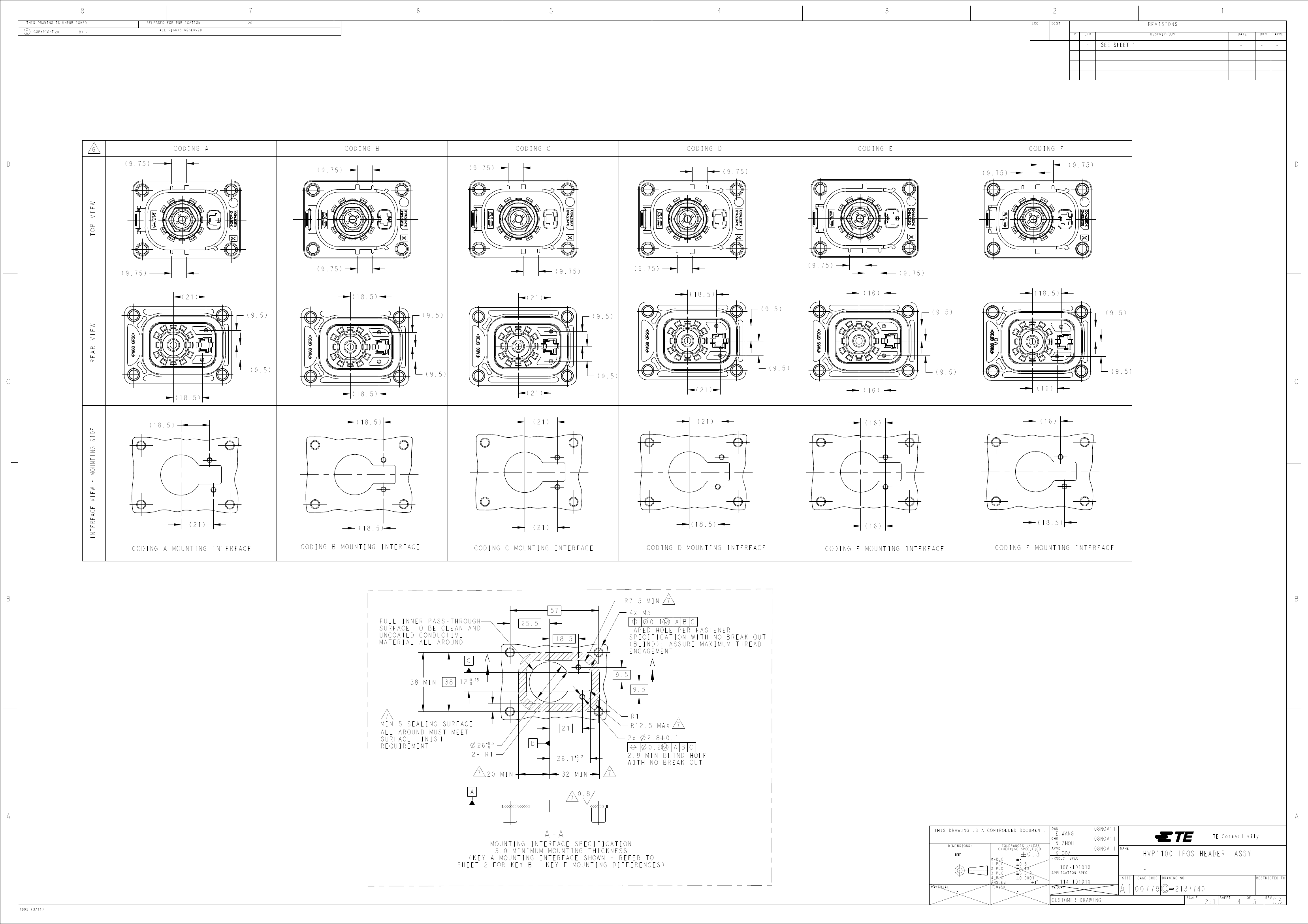

INTERFACE VIEW - MOUNTING SIDE
( 18.5 )
( 21 )
( 21 )
( 16 )
( 16 )
( 21 )
CODING A MOUNTING INTERFACE
( 18.5 )
CODING B MOUNTING INTERFACE
( 21 )
CODING C MOUNTING INTERFACE
( 18.5 )
CODING D MOUNTING INTERFACE
( 16 )
CODING E MOUNTING INTERFACE
( 18.5 )
CODING F MOUNTING INTERFACE
B
57
FULL INNER PASS-THROUGH
SURFACE TO BE CLEAN AND
UNCOATED CONDUCTIVE
MATERIAL ALL AROUND
C
38 MIN
38
12
+0.15
0
R 7.5 MIN
4x M5
7
B
25.5
18.5
TAPED HOLE PER FASTENER
SPECIFICATION WITH NO BREAK OUT
(BLIND); ASSURE MAXIMUM THREAD
ENGAGEMENT
9.5
9.5
7
MIN 5 SEALING SURFACE
ALL AROUND MUST MEET
SURFACE FINISH
REQUIREMENT
21
26
2- R 1
7
A
+0.2
0
R 12.5
2x
+0.2
0
R1
MAX
7
B
26.1
2.8
0.1
2.8 MIN BLIND HOLE
WITH NO BREAK OUT
7
20 MIN
32 MIN
7
0.8
A
A
MOUNTING INTERFACE SPECIFICATION
3.0 MINIMUM MOUNTING THICKNESS
(KEY A MOUNTING INTERFACE SHOWN - REFER TO
SHEET 2 FOR KEY B - KEY F MOUNTING DIFFERENCES)
MATERIAL
A-A
THIS DRAWING IS A CONTROLLED DOCUMENT.
DIMENSIONS:
TOLERANCES UNLESS
OTHERWISE SPECIFIED:
DWN
CHK
E.WANG
N.ZHOU
K.ODA
08NOV11
08NOV11
08NOV11
NAME
TE Connectivity
mm
APVD
0 PLC
1 PLC
2 PLC
3 PLC
4 PLC
ANGLES
FINISH
-
0.5
0.13
0.013
0.0001
PRODUCT SPEC
HVP1100 1POS HEADER
CAGE CODE
ASSY
RESTRICTED TO
APPLICATION SPEC
108-101010
114-101010
SIZE
-
1 $
-
-
-
-
WEIGHT
-
CUSTOMER DRAWING
A1
00779
DRAWING NO
2137740
SCALE
4805 (3/11)
2:1
SHEET
4
OF
5
REV
C3

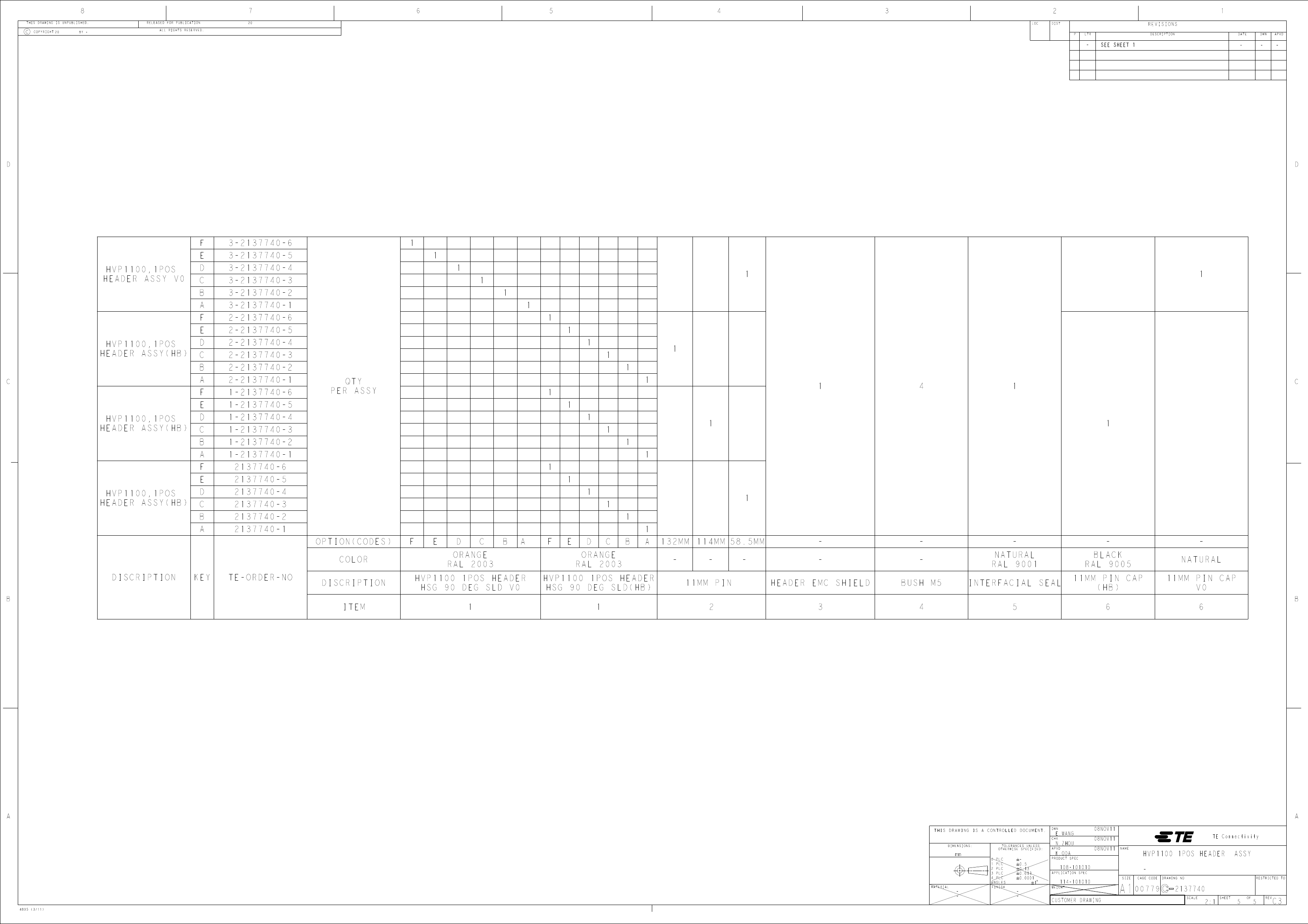

8
THIS DRAWING IS UNPUBLISHED.
RELEASED FOR PUBLICATION
BY -
ALL RIGHTS RESERVED.
7
20
6
5
4
3
LOC
2
DIST
P
LTR
1
REVISIONS
DESCRIPTION
DATE
DWN
APVD
C
COPYRIGHT
20
-
SEE SHEET 1
-
-
-
D
D
F
HVP1100,1POS
HEADER ASSY V0
E
D
B
C
3-2137740-6
3-2137740-5
3-2137740-4
3-2137740-2
3-2137740-3
1
1
1
1
1
1
1
1
E
HVP1100,1POS
HEADER ASSY(HB)
C
F
A
D
2-2137740-5
2-2137740-6
3-2137740-1
1
C
B
A
2-2137740-4
2-2137740-3
2-2137740-2
1-2137740-6
1-2137740-4
1-2137740-3
1-2137740-2
1-2137740-1
2137740-6
2137740-5
1
2-2137740-1
QTY
PER ASSY
1
1
1
1
1
1
1
E
HVP1100,1POS
HEADER ASSY(HB)
F
D
1
4
1
C
1-2137740-5
1
C
B
A
E
1
1
1
1
1
1
F
HVP1100,1POS
HEADER ASSY(HB)
D
C
B
A
2137740-4
2137740-3
2137740-2
2137740-1
OPTION(CODES)
COLOR
F
E
D
C
B
A
F
1
1
1
1
1
B
1
A
DISCRIPTION
B
KEY
TE-ORDER-NO
ORANGE
RAL 2003
E
ORANGE
RAL 2003
D
C
132MM
-
114MM
-
11MM PIN
2
58.5MM
-
-
-
HEADER EMC SHIELD
3
-
-
BUSH M5
4
NATURAL
RAL 9001
INTERFACIAL SEAL
5
-
BLACK
RAL 9005
11MM PIN CAP
(HB)
6
-
-
NATURAL
11MM PIN CAP
V0
6
DISCRIPTION
ITEM
HVP1100 1POS HEADER
HSG 90 DEG SLD V0
1
HVP1100 1POS HEADER
HSG 90 DEG SLD(HB)
1
B
A
THIS DRAWING IS A CONTROLLED DOCUMENT.
DIMENSIONS:
TOLERANCES UNLESS
OTHERWISE SPECIFIED:
DWN
CHK
A
E.WANG
N.ZHOU
K.ODA
08NOV11
08NOV11
08NOV11
NAME
TE Connectivity
mm
APVD
MATERIAL
0 PLC
1 PLC
2 PLC
3 PLC
4 PLC
ANGLES
FINISH
-
0.5
0.13
0.013
0.0001
PRODUCT SPEC
HVP1100 1POS HEADER
CAGE CODE
ASSY
RESTRICTED TO
APPLICATION SPEC
108-101010
114-101010
SIZE
-
1 $
-
-
-
-
WEIGHT
-
CUSTOMER DRAWING
A1
00779
DRAWING NO
2137740
SCALE
4805 (3/11)
2:1
SHEET
5
OF
5
REV
C3
