INSULATOR MATERIAL
Glass filled polyester, type PBT, 94V-O
UL Recognized
CONTACT MATERIAL
Phosphor Bronze Alloy, CA510
CONTACT PLATING
Gold over .000050" Nickel, and Tin-Lead
(See Part Number Coding for thicknesses)
COMPLIANT SECTION INSERTION FORCE
40 lbs maximum per contact
COMPLIANT SECTION WITHDRAWAL FORCE
10 lbs minimum per contact
HOLE SIZE REQUIREMENTS
+
_
Drilled Hole Diameter: .0453 .0010"
Plating: .001" to .003" Copper
and .0003" Minimum Lead
FINISHED HOLE DIAMETER
_
.040
+
.003"
RECOMMENDED MOTHERBOARD THICKNESS
.093" to .125"
FEATURES
* Flat Plate Installation eliminates the need for
secondary operation tooling which can damage the
connector when installed into motherboard
* Extra large chamfered entry
* Conforms to Bellcore specification TR-TSY-00078
* Extended card scoops available
* Selective loading of contacts available
* Available with many plating options
* Many other custom options available including:
- One end open
- Both ends open to accomodate
end to end stackability
- Shorting contacts
- Molded-in polarizing keys
- Make-Before-Break style contacts
PART NUMBER*
EZC05 _ _ _
EZC10 _ _ _
EZC12 _ _ _
EZC15 _ _ _
EZC18 _ _ _
EZC20 _ _ _
EZC22 _ _ _
EZC25 _ _ _
EZC28 _ _ _
EZC30 _ _ _
EZC31 _ _ _
EZC35 _ _ _
EZC36 _ _ _
EZC40 _ _ _
EZC43 _ _ _
EZC50 _ _ _
EZC55 _ _ _
EZC60 _ _ _
EZC65 _ _ _
EZC70 _ _ _
NUMBER
OF
CONTACTS
5/10
10/20
12/24
15/30
18/36
20/40
22/44
25/50
28/56
30/60
31/62
35/70
36/72
40/80
43/86
50/100
55/110
60/120
65/130
70/140
A
0.756
1.256
1.456
1.756
2.056
2.256
2.456
2.756
3.056
3.256
3.356
3.756
3.856
4.256
4.556
5.256
5.756
6.256
6.756
7.256
INCHES
B
0.600
1.100
1.300
1.600
1.900
2.100
2.300
2.600
2.900
3.100
3.200
3.600
3.700
4.100
4.400
5.100
5.600
6.100
6.600
7.100
C
0.400
0.900
1.100
1.400
1.700
1.900
2.100
2.400
2.700
2.900
3.000
3.400
3.500
3.900
4.200
4.900
5.400
5.900
6.400
6.900
A
MILLIMETERS
B
15.24
27.94
33.02
40.64
48.26
53.34
58.42
66.04
73.66
78.74
81.28
91.44
93.98
104.14
111.76
129.54
142.24
154.94
167.64
180.34
C
10.16
22.86
27.94
35.56
43.18
48.26
53.34
60.96
68.58
73.66
76.20
86.36
88.90
99.06
106.68
124.46
137.16
149.86
162.56
175.26
19.20
31.90
36.98
44.60
52.22
57.30
62.38
70.00
77.62
82.70
85.24
95.40
97.94
108.10
115.72
133.50
146.20
158.90
171.60
184.30
* For complete part number add termination type and mounting style from Part Number Coding (e.g. EZC43DJBN).
34
s›’’Œ”™
PHONE 760.744.0125
www.SullinsElectronics.com
FAX 760.744.6081
E Z C 43 D JB N -T#
SERIES
E = PBT/Phosphor Bronze
CONTACT FINISH
Contact Surface
Z = .000010" Gold
X = .000030" Gold
CONTACT CENTERS
C = .100" [2.54 mm]
NUMBER OF CONTACT POSITIONS
5 thru 70
READOUT
D = Dual
H = Half Loaded
Termination
.000100" Tin
.000100" Tin
Underplate
.000050" Nickel
.000050" Nickel
MODIFICATIONS (Consult Factory)
Omit For Standard
Special Number assigned for specials such as:
- Scoops (T7)
- Other Card Slot Depths
- Slim Line Body (.315" [8.00mm])
MOUNTING STYLE
N = No Mounting
B = Open Card Slot
TERMINATION TYPE
Standoffs Row Spacing
JB =
No
.200" [5.08mm]
JC =
No
.200" [5.08mm]
JW = Yes
.200" [5.08mm]
JX = Yes
.200" [5.08mm]
JF =
No
.100" [2.54mm]
JG =
No
.100" [2.54mm]
JY = Yes
.100" [2.54mm]
JZ = Yes
.100" [2.54mm]
Tail Length
.190" [4.83mm]
.625" [15.88mm]
.190" [4.83mm]
.565" [14.35mm]
.190" [4.83mm]
.625" [15.88mm]
.190" [4.83mm]
.565" [14.35mm]
Dimensions in [ ] are in millimeters, all others in inches.

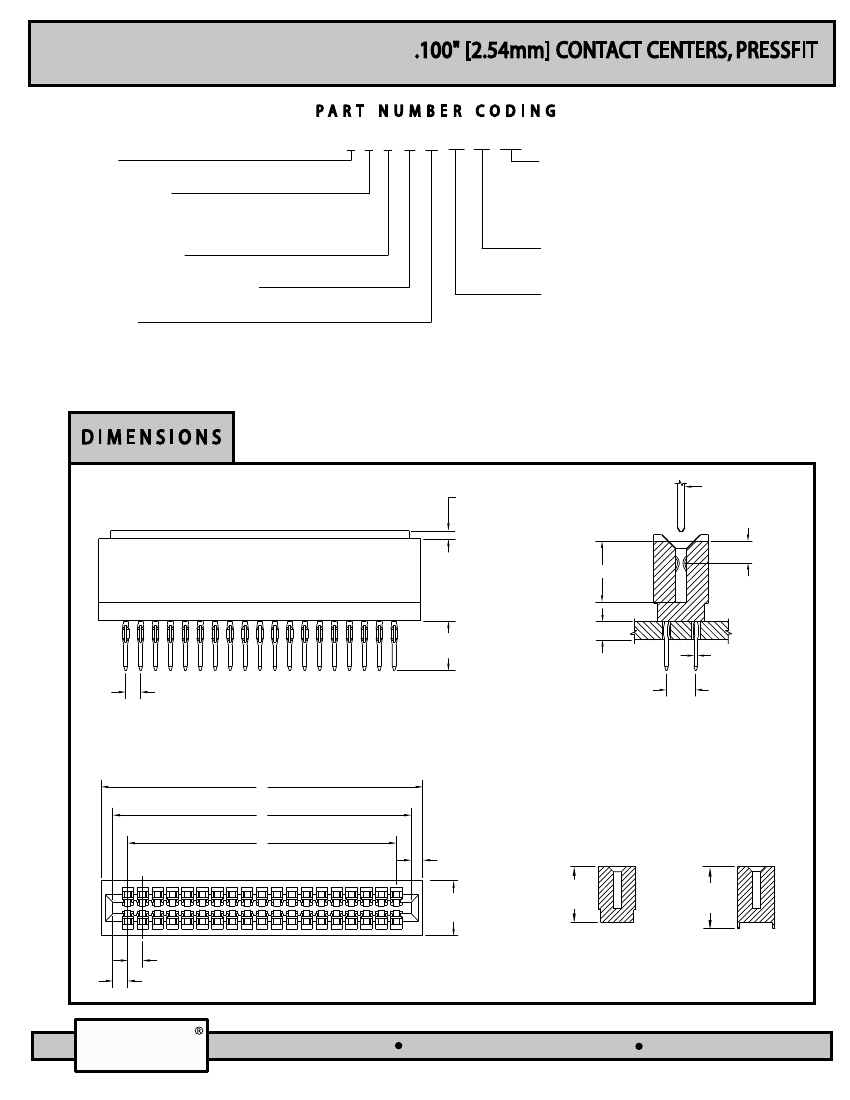

SCOOPS (OPTIONAL)
.050 [1.27] HIGH
ACCEPTS
.054 - .071
[1.37 - 1.80]
P.C. BOARD
.150 [3.81]
.415 [10.54]
TAIL LENGTH
SEE TERMINATION TYPE
P.C. BOARD
.025 [.64] SQ.
.200 [5.08]
.100 [2.54] REF.
A
B
C
.078 [1.98] TYP.
.550
[13.97]
.610
[15.49]
.370
[9.40]
.100 [2.54] TYPICAL
.100 [2.54]
WITHOUT
STANDOFFS
WITH
STANDOFFS
