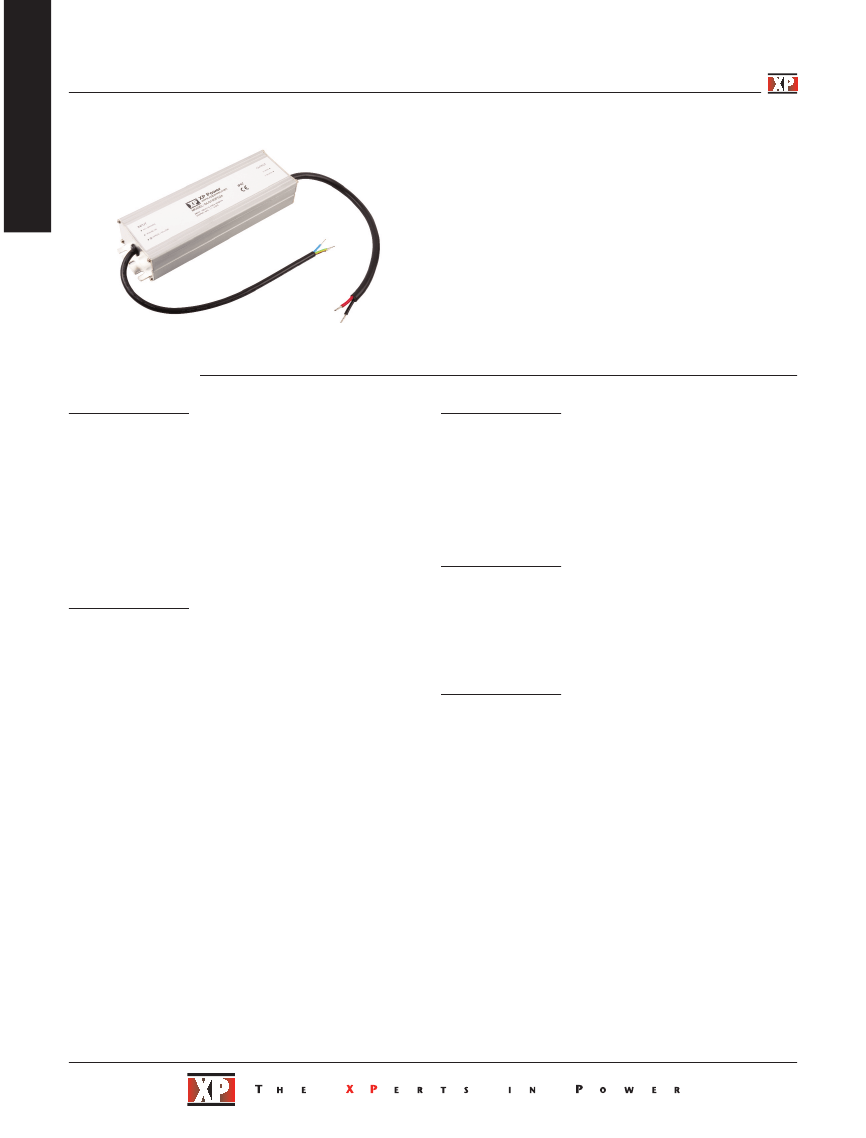

AC-DC

70-150 Watts

DLG-HV Series

•

AC Input LED Driver

Constant Current Operation

High Power Factor

High Efficiency

Water Proof to IP67

xppower.com

90-305 VAC Input Voltage Range

3 Year Warranty

Specification

Input

Input Voltage

Input Frequency

Input Current

• 90-305 VAC, see derating curve

• 47-63 Hz

• 70 W: 1.2 A at 115 VAC, 0.6 A at 230 VAC,

100 W: 1.4 A at 115 VAC, 0.7 A at 230 VAC,

150 W: 2.0 A at 115 VAC, 1.0 A at 230 VAC

Inrush Current

• 65 A at 230 VAC, cold start +25 °C

Power Factor

• >0.94 at 230 VAC, full load

Earth Leakage Current

• 750 µA max at 230 VAC

Input Protection

• DLG70/100 T2.0A/300V fuse fitted in line,

DLG150 T3.5A/300V fuse fitted in line

General

Efficiency

Isolation

• See table

• 3750 VAC Input to Output

1880 VAC Input to Ground

500 VAC Output to Ground

• DLG50/70: 40-80 kHz

DLG100/150: PWM 60-80 kHz,

PFC 55-133 kHz

• >200 kHrs to MIL-HDBK-217F at 25 °C, GB

Switching Frequency

MTBF

Environmental

Operating Temperature

Operating Humidity

Storage Temperature

Operating Altitude

Vibration

•

-30 °C to +70 °C (see derating curve)

5-100% RH, non-condensing

-40 °C to +80 °C

3000 m

10-500 Hz, 2 g, 10 mins/cycle, 6 cycles in

each of 3 axes

Output

See table

No minimum load required

2 s max at 240 VAC

±0.5%

±5.0% of nominal output current

5% max

5% maximum deviation, recovery to within

1% in 10 ms for a 50% load change

Ripple & Noise

• DLG70: 700 mV

DLG100: 1000 mV

DLG150: 2000 mV (see note 2)

Overvoltage Protection

• 110-142%, recycle mains to reset

Overtemperature

• Unit shuts down, recycle mains to reset

Protection

Overload Protection

• 105% maximum, auto recovery

Short Circuit Protection

• Trip and restart (hiccup mode)

Temperature

• 0.04%/°C

Coefficient

Output Voltage

Minimum Load

Start Up Delay

Line Regulation

Load Regulation

Turn On Overshoot

Transient Response

•

EMC & Safety

Emissions

Harmonic Currents

Voltage Flicker

ESD Immunity

Radiated Immunity

EFT/Burst

Surge

Conducted Immunity

Dips & Interruptions

Safety Approvals

• EN55015, class B conducted and radiated

• EN61000-3-2, class A

EN61000-3-2, class C for loads >80%

• EN61000-3-3

• EN61000-4-2, 8 kV air and 4 kV contact,

Perf Criteria A

• EN61000-4-3, level 2 Perf Criteria B

• EN61000-4-4, level 2 Perf Criteria B

• EN61000-4-5, installation class 3,

Perf Criteria B

• EN61000-4-6, level 2 Perf Criteria A

• EN61547, >95% 10 ms, 30% 200 ms, Perf

Criteria B, B for 70/100 W, A, A for 150 W

• EN61347, UL8750, CE Mark
