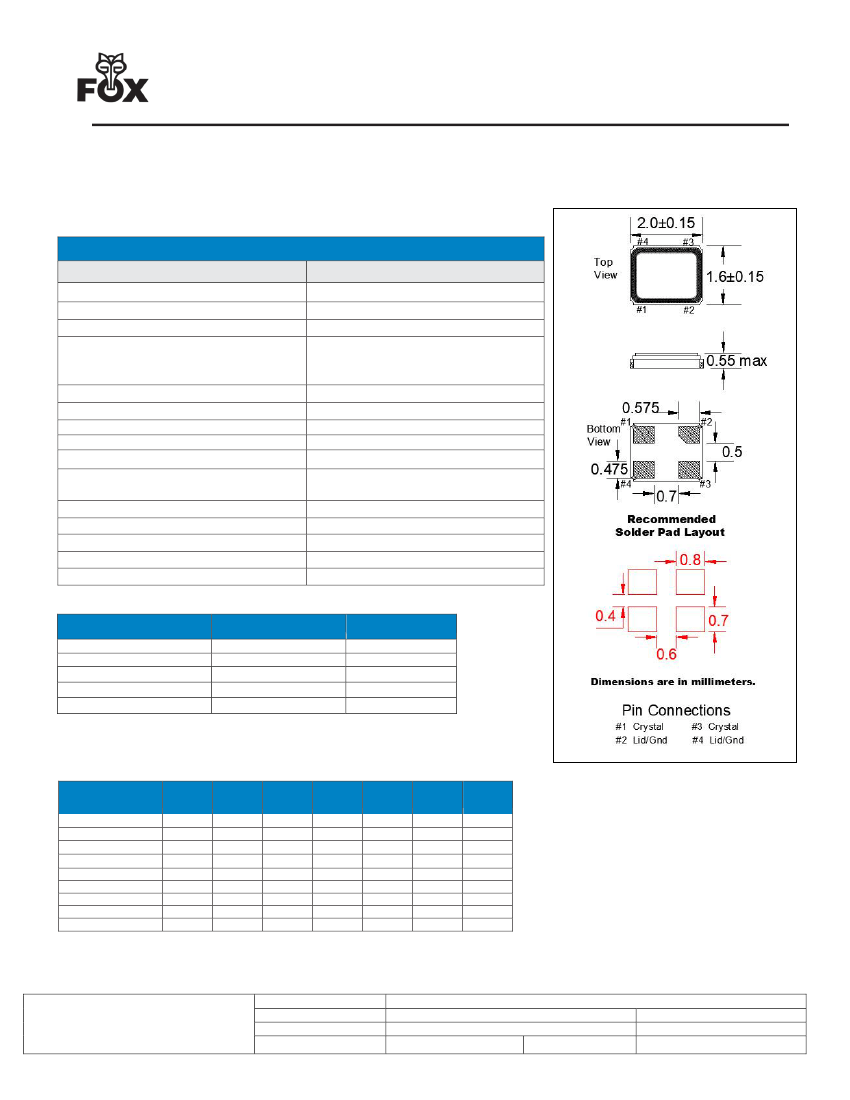

2.0x1.6mm Ceramic SMD Crystal C1BS
(former FX216B)
DATASHEET
•
•
•
Tolerances down to ±10 PPM
Stabilities down to ±10 PPM
Temperature Ranges as wide as
-55ºC
to +125ºC
• SPECIFICATIONS
PARAMETERS
Frequency Range
Frequency Tolerance @ 25ºC
Frequency Stability, ref @ 25ºC
Temperature Range
Operating (T
OPR
)
Storage
(T
STG
)
Shunt Capacitance (C
O
)
Load Capacitance (C
L
)
Drive Level
Aging per year
Maximum Soldering Temp / Time
Moisture Sensitivity Level (MSL) per J-
STD-033
Termination Finish
Seal Method
Lead (Pb) Free
RoHS Compliant
REACH Compliant (latest version)
Frequency Range
(MHz)
16.000 ~ 19.999999
20.000 ~ 23.999999
24.000 ~ 29.999999
30.000 ~ 39.999999
40.000 ~ 200.000
.
MAX
(unless otherwise noted)
16.000 ~ 200.000 MHz
(See options on page 2)
(See options below)
(See options below)
-55ºC ~ +125ºC
3 pF
(See options on page 2)
0.1 mW
±5 PPM
260ºC / 10 Seconds x 2
N/A
Au (0.3~1µm) over Ni (1.27~8.89µm)
Seam Seal
Yes
Yes, no exemptions
Yes
Operating Mode
Fundamental
Fundamental
Fundamental
Fundamental
Fundamental
Max ESR
Ω
200
120
100
80
60
•Available Operating Temperatures and Stabilities
Operating
Temperature
±10
PPM
±15
PPM
±20
PPM
±25
PPM
±30
PPM
O
O
O
O
O
O
X
X
X
±50
PPM
O
O
O
O
O
O
O
O
O
±100
PPM
N/A
N/A
N/A
N/A
N/A
N/A
O
O
O
O
0 ~ +70ºC
O
O
O
O
-10 ~+60ºC
O
O
O
O
-10 ~+70ºC
O
O
O
O
O
-20 ~+70ºC
O
O
O
O
O
O
-30 ~+85ºC
O
X
O
O
-40 ~+85ºC
X
X
X
X
-40 ~+105ºC
X
X
X
X
-40 ~+125ºC
X
X
X
X
-55 ~+125ºC
Key: O=Available, X=Not Available, N/A = Not Applicable
Note: Dimensional drawing is for reference to critical specifications
defined by size measurements. Certain non-critical visual attributes,
such as side castellations, etc. may vary.
7/23/2020 – Added thickness info to termination metals,
adjusted MSL info to include J-STD-033 and N/A.
Increased freq range to 200MHz.
© Copyright 2020 Fox Electronics. All rights reserved
Title / Description:
C1BS SERIES STANDARD SPECIFICATIONS
Drawing Number:
C1BS-DOC-1
Size: A
Part Number:
Cage:
61429
Draftsperson:
BEC
Approved:
MAJ
Revision Date:
07/23/2020
Page
1
of
2
2.0x1.6mm Ceramic SMD Crystal C1BS
(former FX216B)
DATASHEET

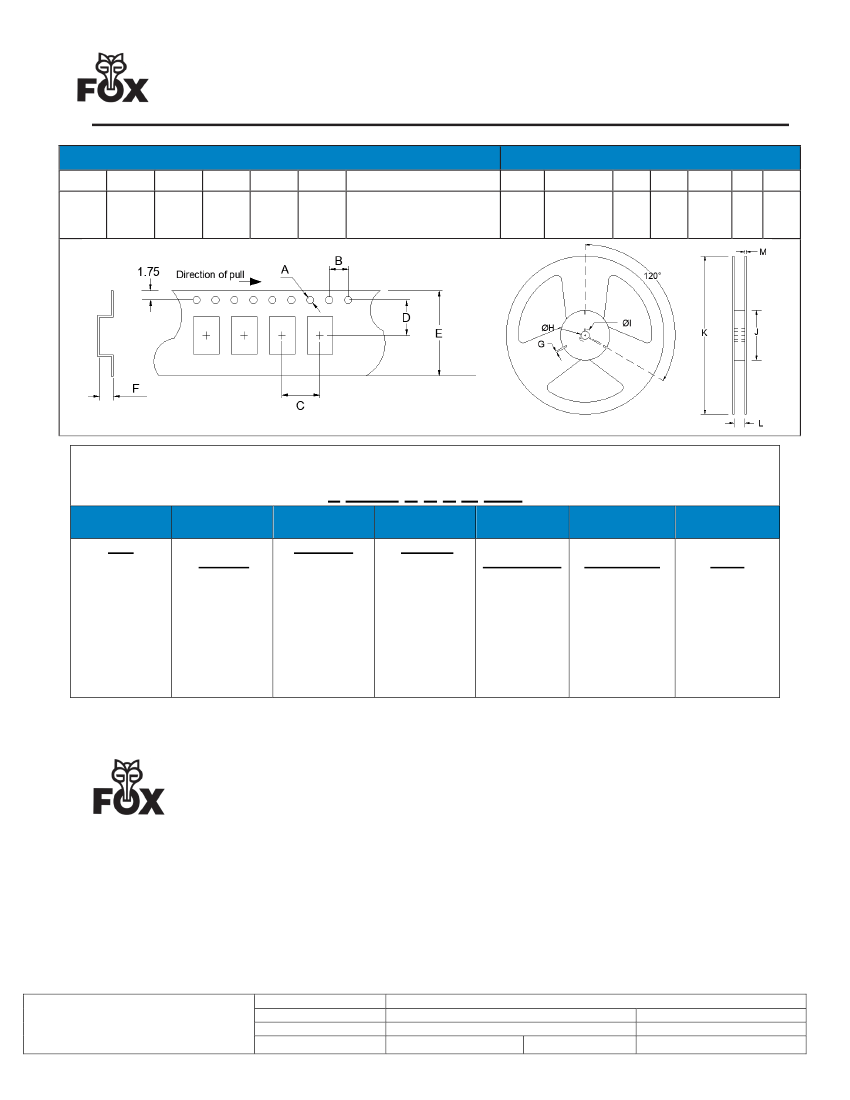

• TAPE SPECIFICATIONS
(millimeters)
A
1.55
B
4.0
C
4.0
D
3.5
E
8.0
F
0.65
Reel QTY
• REEL SPECIFICATIONS
(millimeters)
-T3 = 3,000 default
-T2 = 2,000
-T1 = 1,000
G
2.0
H
13.0
I
J
K
L
M
21.0 60.0 180.0 9.0 2.0
Available Options & Part Identification for Crystal Model C1BS
1
F C1BS E E E M 32.0
F
FOX
C1BS
Model
Number
E
Tolerance
B = ±50 PPM
C = ±30 PPM
D = ±25 PPM
E = ±20 PPM
F = ±15 PPM
H = ±10 PPM
E
Stability
B = ±50 PPM
C = ±30 PPM
D = ±25 PPM
E = ±20 PPM
F = ±15 PPM
H = ±10 PPM
E
Load
Capacitance
2
V = 7 pF
D = 8 pF
W = 9 pF
E = 10 pF
G = 12 pF
J = 15 pF
L = 18 pF
M = 20 pF
M
Operating
Temperature
C = 0 ~ +70ºC
D = -10 ~ +60ºC
E = -10 ~ +70ºC
F = -20 ~ +70ºC
K = -30 ~+85ºC
M = -40 ~ +85ºC
P = -40 ~ +105ºC
I = -40 ~ +125ºC
T = -55 ~ +125ºC
32.0
Frequency
(MHz)
1
2
Not all frequency, tolerance, stability, load, and operating temperature combinations may be available.
Listed load capacitances represent the most commonly used.
Other load capacitances are available. Contact Fox Technical Support for assistance.
Corporate Headquarters
5570 Enterprise Parkway
Fort Myers, FL 33905
http://www.FOXONLINE.com
Sales
1-888-GET-2-FOX (1-888-438-2369) or
1-239-693-0099
http://www.FOXONLINE.com/repdisty
Tech Support
http://www.FOXONLINE.com/email
PRODUCT USE:
Fox Electronics reserves the right to modify the products and/or specifications described herein at any time and at Fox Electronics' sole
discretion. All information in this document, including descriptions of product features and performance, is subject to chang e without notice. Performance
specifications and the operating parameters of the described products are determined in the independent state and are not guaranteed to perform the same way
when installed in customer products. The information contained herein is provided without representa tion or warranty of any kind, whether express or implied,
including, but not limited to, the suitability of Fox Electronics' products for any particular purpose, an implied warranty o f merchantability, or non-infringement of
the intellectual property rights of others. This document is presented only as a guide and does not convey any license under intellectual property rights of Fox
Electronics or any third parties.
Fox Electronics' products are not intended for use in applications involving extreme environ mental conditions or in life support systems or similar devices where
the failure or malfunction of a Fox Electronics product can be reasonably expected to significantly affect the health or safe ty of users. Anyone using a Fox
Electronics product in such a manner does so at their own risk, absent an express, written agreement by Fox Electronics.
Fox Electronics and the Fox logo are registered trademarks of Fox Electronics. Product specification is subject to change without notice. Other trademarks and
service marks used herein, including protected names, logos and designs, are the property of Fox Electronics or their respective third-party owners. For
datasheet type definitions and a glossary of common terms, visit http://www.foxonline.com/tgcrystals.html .
7/23/2020 – Added thickness info to termination metals,
adjusted MSL info to include J-STD-033 and N/A.
Increased freq range to 200MHz.
© Copyright 2020 Fox Electronics. All rights reserved
Title / Description:
C1BS SERIES STANDARD SPECIFICATIONS
Drawing Number:
C1BS-DOC-1
Size: A
Part Number:
Cage:
61429
Draftsperson:
BEC
Approved:
MAJ
Revision Date:
07/23/2020
Page
2
of
2
