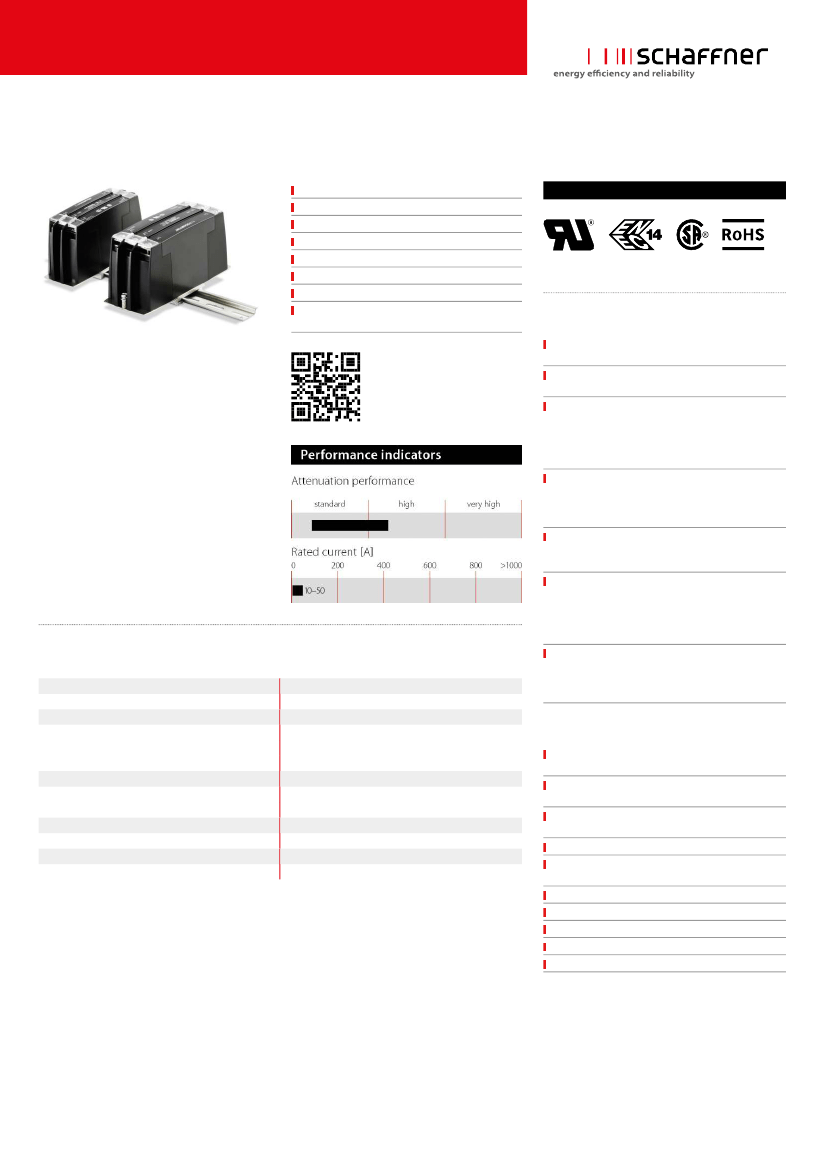

DIN-Rail EMC/RFI Filter with Minimum Leakage Current
3-Phase Filters FN 3025 / FN 3026
Compact state-of-the-art filter concept
Light weight plastic enclosure design
Minimized filter leakage current
Hinged safety covers
Approvals
Revolutionary embedded filter terminals
Chassis or DIN-rail mounting option
Selectable performance level
Design protected by European patent (EP 1727280)
Environmental friendly design without potting
compound
Features and benefits
FN 3025 filters are designed for traditional chassis
mounting
For extra fast installation, FN 3026 filters can
comfortably be snapped-in on TS 35 DIN-rails
Two different performance levels are of- fered (L
types, P types). The suitable filter can be selected by
choosing the required performance level, the
admissible leakage current and the preferred
installation style
A plastic housing and a metal ground plate are
cleverly combined to get the lowest possible
product weight without compromizing EMC
behavior
The embedded jump-terminal system from
Schaffner guarantees user-friendly hand- ling as well
as fast and reliable electrical connection
Captive hinged protective covers contri- bute to
overall safety by offering protection against
unintended contact with life con- ductors. They are
included in the standard delivery package without
causing extra cost
Technical specifications
Maximum continuous operating voltage
Operating frequency
Rated currents
High potential test voltage
3x 520/300 VAC
dc to 60 Hz
Very low leakage current values make these filter
ranges ideally suitable for use in Japanese electricity
networks as well as in applications which set value
on safety and reliability
10 to 50 A @ 50 °C
P –> E 2000 VAC for 2 sec (HL types)
Protection category
Overload capability
Temperature range (operation and storage)
Flammability corresponding to
Design corresponding to
P –> E 3000 VDC for 2 sec (HP types)
P –> P 2250 VDC for 2 sec
Typical applications
Applications with the requirement for extremely
compact filter solutions
Applications with tough leakage current
requirements or sensitive earth leakage detectors
Applications with insufficient internal filtering or
moderate interference levels
Automation equipment
Motor drives and servo drives with short motor
cables
Applications including stepping motors
Electrical cabinets
Semiconductor manufacturing equipment
Three-phase power supplies
IP00 (protection according to VBG 4)
4x rated current at switch on,
1.5x rated current for 1 minute, once per hour
-25 °C to +100 °C (25/100/21)
UL 94 V-2 or better
UL 1283, CSA 22.2 No. 8 1986, IEC/EN 60939
>200,000 hours
MTBF @ 50°C/400V (Mil-HB-217F)
Medical equipment (not patient-coupled)
2
EMC/EMI Products
Schaffner Group
Datasheets
2014
Filter selection table
Filter
@ 50 °C (40 °C)
10 (10.7)
20 (21.4)
30 (32.1)
50 (53.5)
10 (10.7)
20 (21.4)
30 (32.1)
50 (53.5)
10 (10.7)
20 (21.4)
30 (32.1)
50 (53.5)
10 (10.7)
20 (21.4)
30 (32.1)
50 (53.5)
[A]
Rated current
power rating*
Typical drive
[kW]
Leakage current**
@ 480 VAC/50 Hz
[mA]
0.4
0.4
@ 25 °C/50 Hz
[W]
4.8
7.0
Power loss
Input/Output
connections
-71
-71
Weight
[kg]
FN 3025HL-10-71
FN 3025HL-20-71
FN 3025HL-30-71
FN 3025HL-50-72
FN 3025HP-10-71
FN 3025HP-20-71
FN 3025HP-30-71
FN 3025HP-50-72
FN 3026HL-10-71
FN 3026HL-20-71
FN 3026HL-30-71
FN 3026HL-50-72
FN 3026HP-10-71
FN 3026HP-20-71
FN 3026HP-30-71
FN 3026HP-50-72
5.5
11
30
11
30
18.5
5.5
18.5
0.4
0.4
2.5
2.5
6.2
-71
0.52
0.52
0.54
2.5
2.5
10.5
6.2
4.8
10.5
7.0
-71
-71
-72
-72
-71
0.52
0.52
0.93
0.93
0.54
5.5
18.5
5.5
18.5
30
11
30
11
0.4
0.4
2.5
2.5
0.4
0.4
6.2
4.8
2.5
2.5
10.5
6.2
4.8
7.0
-71
-71
10.5
7.0
-71
-71
-72
-71
0.56
0.56
-72
-71
0.56
0.56
0.98
0.58
0.98
0.58
* Calculated at rated current, 480 VAC and cos phi = 0.8. The exact value depends upon the efficiency of the drive, the motor and the entire application.
** Maximum leakage under normal operating conditions. Note: if two phases are interrupted, worst case leakage could reach up to 10 times higher levels (at 520 VAC/60 Hz).

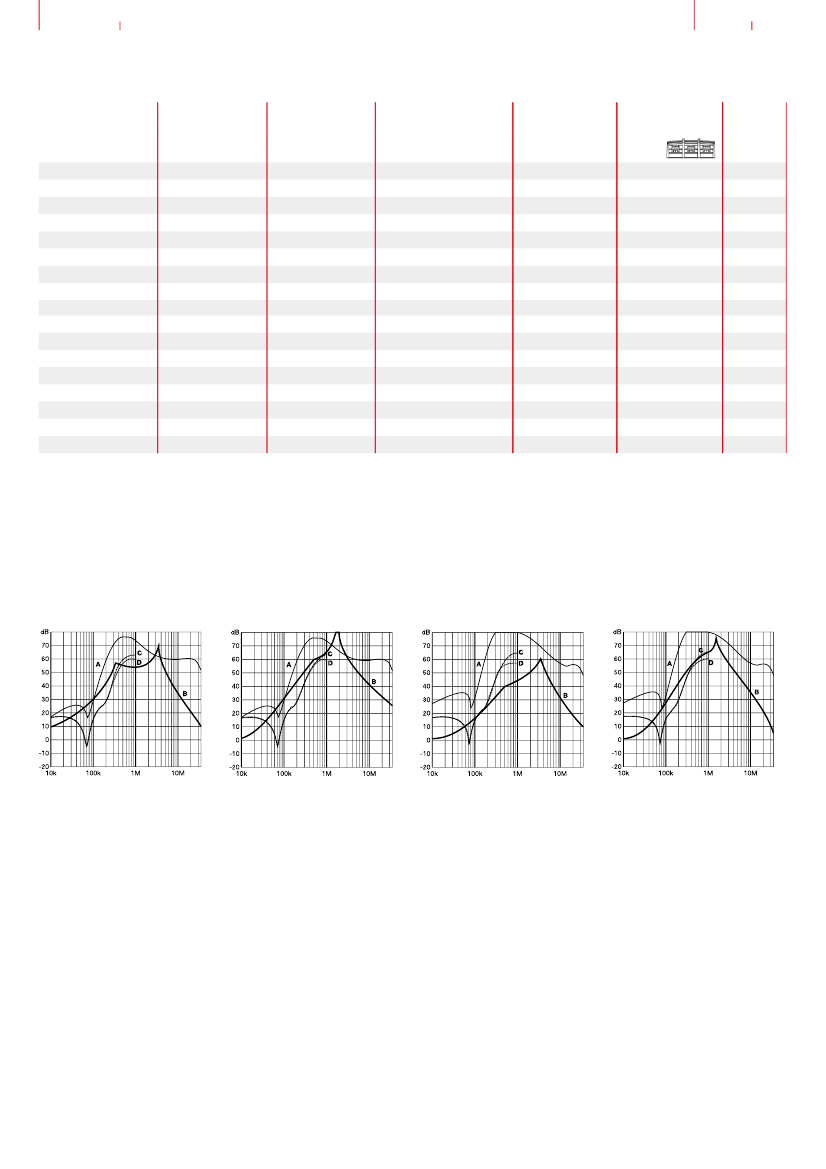

Typical filter attenuation
10 and 20 A HL types
Per CISPR 17; A = 50 Ω/50 Ω sym; B = 50 Ω/50 Ω asym; C = 0.1 Ω/100 Ω sym; D = 100 Ω/0.1 Ω sym
10 and 20 A HP types
30 and 50 A HL types
30 and 50 A HP types
3
EMC/EMI Products
Schaffner Group
Datasheets
2014
Installation
FN 3025/FN 3026 are delivered with closed plastic
covers and unfastened terminals. To install the filter
please proceed as follows:
Mount the filter on a metal surface with four screws
or snap it onto a TS 35 DIN- rail.
First connect the green/yellow wire to the earth stud
of the filter.
Gently lift the two hinged plastic covers.
Connect phase wires with cable lugs by pushing
down and tightening the screws.
Please note the torque recommendation on top of
the filter.
Push the covers back into their locked position to
finish the filter installation.

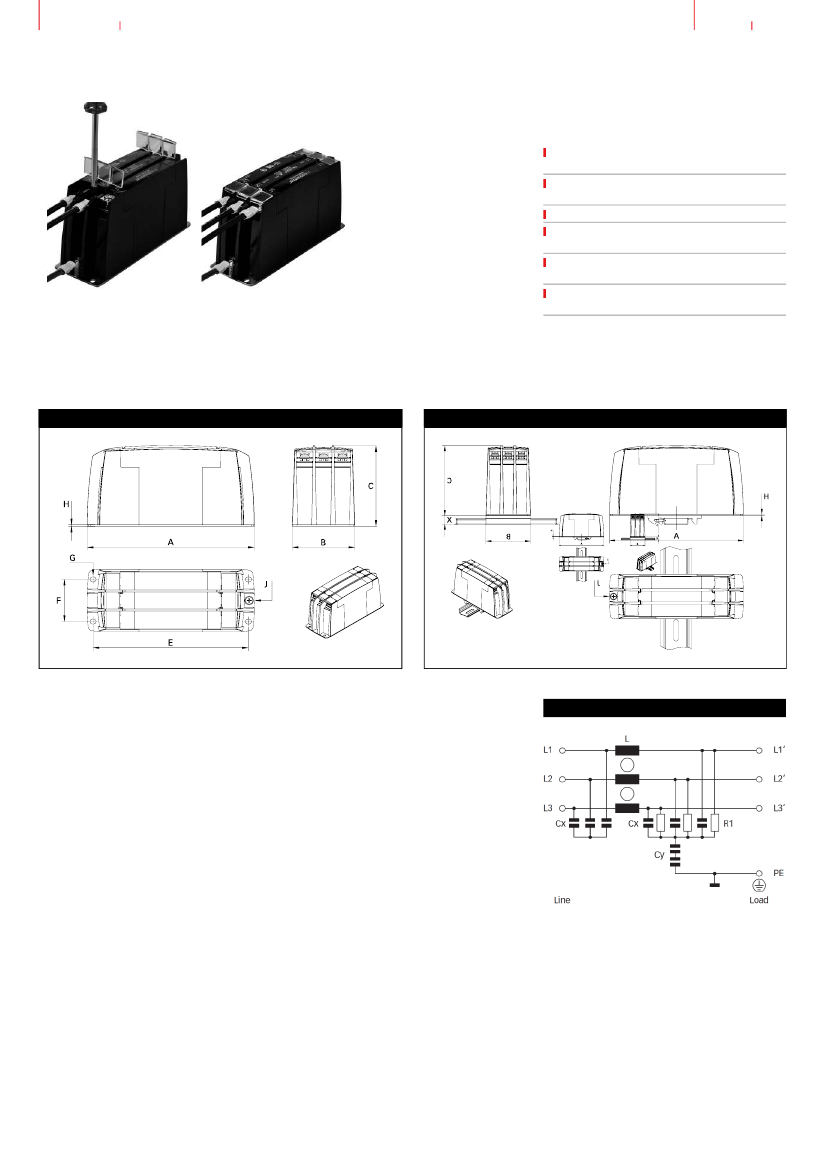

Mechanical data
FN 3025
FN 3026
Typical electrical schematic
4
EMC/EMI Products
Schaffner Group
Datasheets
2014
Dimensions
FN 3025
10 A
20 A
30 A
50 A
FN 3026
10 A
20 A
30 A
50 A
A
B
E
F
C
150
50
78
32
150
50
78
32
150
50
78
32
177
65
84
150
50
78
150
50
78
150
50
78
177
65
84
140
4.3 x 5.5
M4
140
4.3 x 5.5
M4
140
4.3 x 5.5
M4
162
5.3 x 6.5
M5
1.5
44
G
H
J
X
1.5
1.5
1.5
M4
1.5
9.7
M4
1.5
9.7
M4
1.5
9.7
M5
1.5
9.7
All dimensions in mm; 1 inch = 25.4 mm
Tolerances according: ISO 2768-m / EN 22768-m
Filter input/output connector cross sections
-71 (10A)
-71 (20A)
-71 (30A)
-72 (50A)
Flex wire
AWG type wire
Ring/fork lug (W/d)*
Recommended torque
max. 11 mm (9.5 mm)/
min. Ø 4.3 mm**
1.0-1.2 Nm
AWG 16-AWG 13
1.3-2.5 mm
2
max. 11 mm (9.5 mm)/
min. Ø 4.3 mm**
1.0-1.2 Nm
AWG 12-AWG 10
4-6 mm
2
max. 11 mm (9.5 mm)/
min. Ø 4.3 mm**
1.0-1.2 Nm
AWG 8-AWG 7
8-10mm
2
max. 16.5 mm (15 mm)/
AWG 5-AWG 4
16-20mm
2
min. Ø 5.3 mm**
1.9-2.2 Nm
* Schaffner recommends the use of insulated and UL-recognized ring lugs or fork lugs of the appropriate size.
** Specification in () relates to earth connector.
Please visit www.schaffner.com to find more details on filter connectors.
