533425-1 datasheet, PDF - EEWORLD Datasheet

533425-1: DescriptionHEADER CONNECTOR,PCB MNT,PLUG,387 CONTACTS,SKT,0.1 PITCH,PC TAIL TERMINAL,#2-56,NATURAL; CategoryThe connector The connector; File Size125KB，2 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com

Download Datasheet Parametric View All

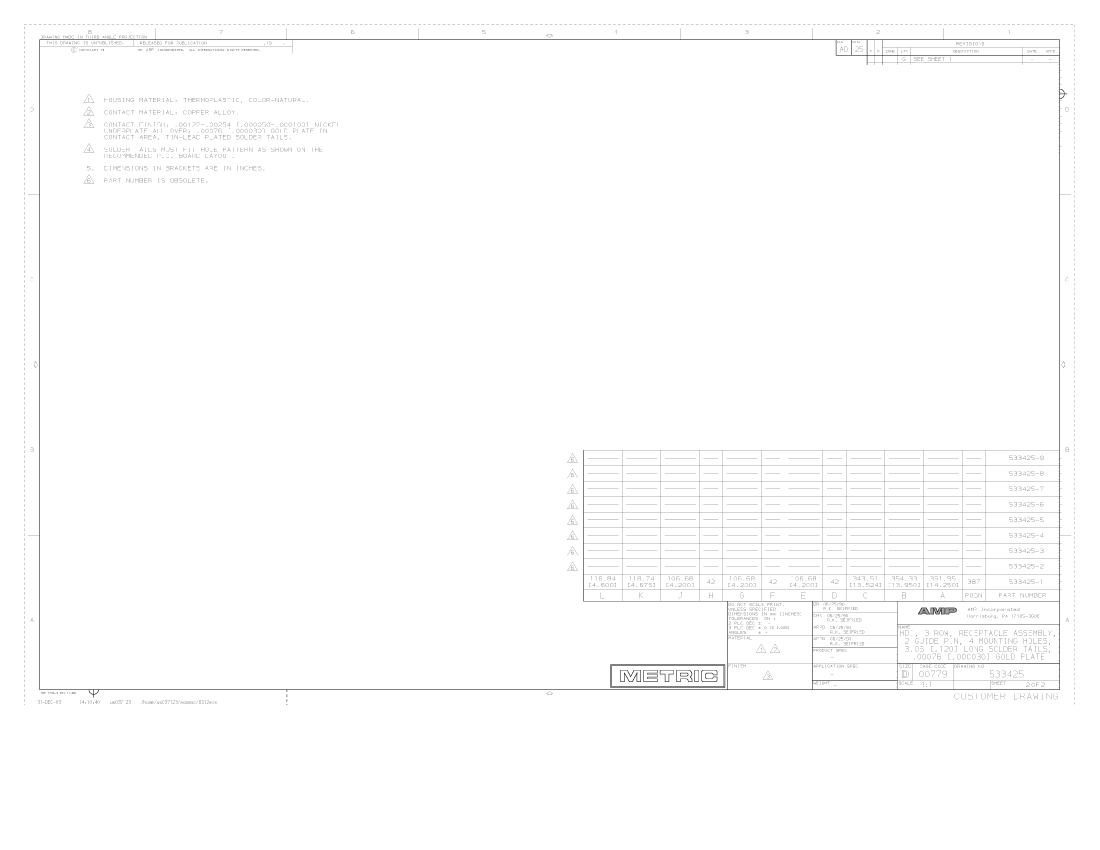

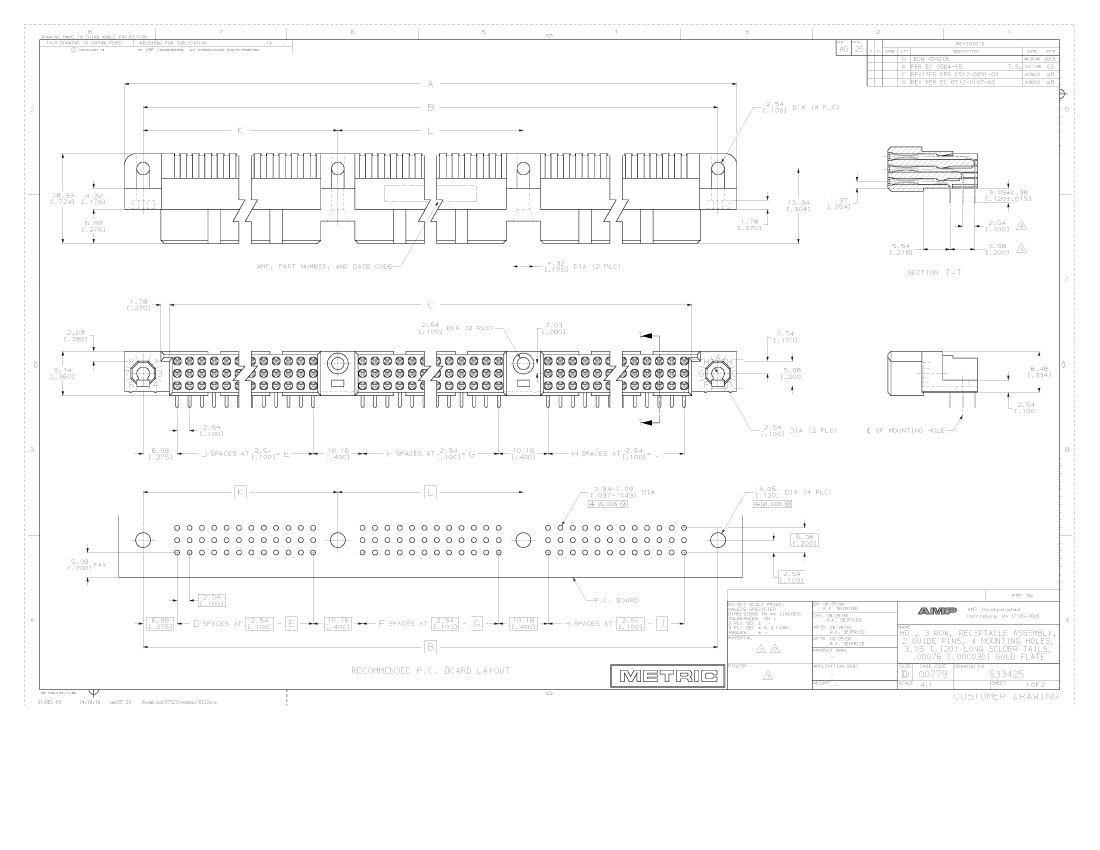

533425-1 Overview

HEADER CONNECTOR,PCB MNT,PLUG,387 CONTACTS,SKT,0.1 PITCH,PC TAIL TERMINAL,#2-56,NATURAL

Parameter Name	Attribute value
Maker	TE Connectivity
Reach Compliance Code	unknown
Board mount options	#2-56 THD HOLE
body width	0.36 inch
subject depth	0.724 inch
body length	14.25 inch
Body/casing type	PLUG
Connector type	BOARD CONNECTOR
Contact to complete cooperation	AU
Contact completed and terminated	NICKEL
Contact point gender	FEMALE
Contact material	BERYLLIUM COPPER
contact mode	RECTANGULAR
Contact style	SQ PIN-SKT
Durability	250 Cycles
Insulator color	NATURAL
insulator material	GLASS FILLED POLYPHENYLENE SULPHIDE
Plug contact pitch	0.1 inch
Match contact row spacing	0.1 inch
Installation option 1	#2-56
Installation option 2	THREADED
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of connectors	ONE
PCB row number	3
Number of rows loaded	3
Maximum operating temperature	125 °C
Minimum operating temperature	-65 °C
PCB contact pattern	RECTANGULAR
PCB contact row spacing	2.54 mm
Plating thickness	30u inch
polarization key	POLARIZED KEY
Guideline	UL, CSA
reliability	COMMERCIAL
Terminal length	0.12 inch
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	387
Base Number Matches	1
