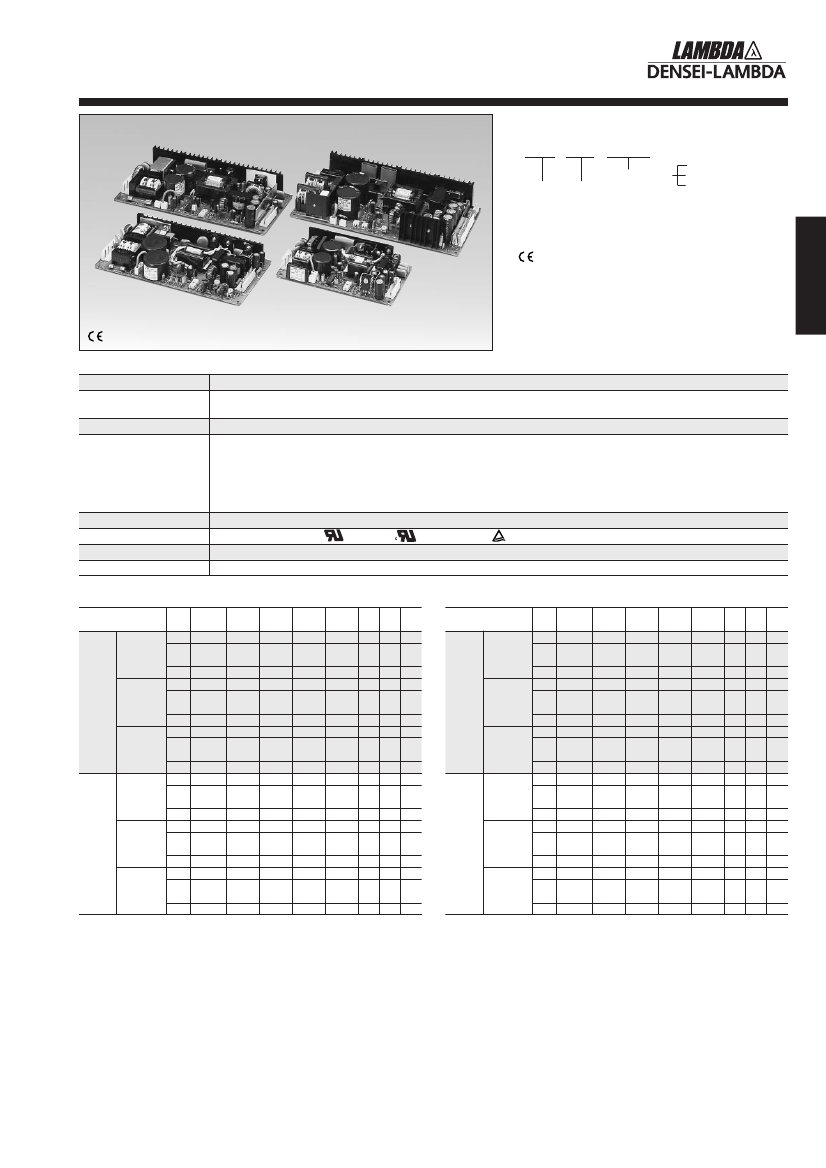

ZT90

Triple output 30W ~ 170W

Model name

ZT170

ZT 30-522

Output voltage code

Name of series Output power: 4 types

in 30W ~ 170W

522: 5V, +12V, –12V

5FF: 5V, +15V, –15V

525: 5V, +12V, –5V

PC Board Type Power Supply

Features

marking (Low Voltage Directive)

Triple output

12 models, 30W, 60W, 90W, 170W

Wide input voltage range:

100/200VAC user selectable

Isolation between CH1 (5V) and ±CH

Compact, low profile and board type

1 year warranty

ZT60

ZT30

(Low Voltage Directive)

1 year warranty

Specifications

1. Input voltage range

2. Output voltage

range

3. Cooling

4. Operating ambient

temperature

(Standard mounting)

85 ~ 132VAC /170 ~ 265VAC (47 ~ 63Hz), 230 ~ 330VDC user selectable

CH1: +5V (5.0 ~ 5.25V), CH2: Fixed, CH3: Fixed

Convection cooling

–10 ~ +60°C

ZT30, 60, 90 Output derating –10 ~ +50°C: 100%, +60°C: 70%

ZT170: Forced air cooling –10 ~ +50°C: 100%, +60°C: 70% (0.7m/S)

ZT170: Convection cooling

CH1 ··· –10 ~ +25°C: 15A, +30°C: 13A, +40°C: 12A, +50°C: 10A, +60°C: 8A

CH2, CH3 ··· –10 ~ +50°C: 100%, +60°C: 70%

Input-output: 3.75kVAC, Input-chassis: 2.5kVAC one minute each

Approved by UL1950

, CSA950

and EN60950

Conforms to VCCI-class B, FCC class B and VDE class B

Over voltage protection (CH1), Over current protection

Note 1

5. Withstand voltage

6. Safety standard

7. EMI

8. Functions

Product lineup

Model name

ZT30-522

ZT30

ZT30-5FF

ZT30-525

ZT60-522

ZT60

ZT60-5FF

ZT60-525

Max.

Nominal

Min.

Max. output

CH output voltage output current output current power

0.3A 3.0A 15.0W

CH1 5V

1.2A

CH2 +12V

0A (2.0A) 14.4W

0.3A 3.6W

CH3 –12V

0.3A 3.0A 15.0W

CH1 5V

1.0A

CH2 +15V

0A (2.0A) 15.0W

0.3A 4.5W

CH3 –15V

0.3A 3.0A 15.0W

CH1 5V

1.2A

CH2 +12V

0A (2.0A) 14.4W

0.3A 1.5W

CH3 –5V

0.5A 5.0A 25.0W

CH1 5V

2.5A

CH2 +12V

0A (3.5A) 30.0W

0.5A 6.0W

CH3 –12V

0.5A 5.0A 25.0W

CH1 5V

2.0A

0A (3.5A) 30.0W

CH2 +15V

0.5A 7.5W

CH3 –15V

0.5A 5.0A 25.0W

CH1 5V

2.5A

0A (3.5A) 30.0W

CH2 +12V

0.5A 2.5W

CH3 –5V

Total max.

output power UL CSA EN

33.0W

34.5W

30.9W

61.0W

62.5W

57.5W

Model name

ZT90-522

ZT90

ZT90-5FF

ZT90-525

ZT170-522

ZT170 ZT170-5FF

ZT170-525

Nominal

Min.

Max.

CH output voltage output current output current

1A 10.0A

CH1 5V

3.0A

CH2 +12V

(4A)

0.5A

CH3 –12V

1A 10.0A

CH1 5V

2.5A

CH2 +15V

(4A)

0.5A

CH3 –15V

1A 10.0A

CH1 5V

3.0A

CH2 +12V

(4A)

0.5A

CH3 –5V

1A 20.0A

CH1 5V

5.0A

CH2 +12V

(6A)

1.0A

CH3 –12V

1A 20.0A

CH1 5V

4.0A

CH2 +15V

(6A)

1.0A

CH3 –15V

1A 20.0A

CH1 5V

5.0A

CH2 +12V

(6A)

1.0A

CH3 –5V

Max. output Total max.

power

output power UL CSA EN

50.0W 92.0W

36.0W 92.0W

6.0W 92.0W

50.0W 92.0W

37.5W 95.0W

7.5W 95.0W

50.0W 88.5W

36.0W 88.5W

2.5W 88.5W

100.0W 172.0W

60.0W 172.0W

12.0W 172.0W

100.0W 175.0W

60.0W 175.0W

15.0W 175.0W

100.0W 165.0W

60.0W 165.0W

5.0W 165.0W

: Safety standard approved

Note 1: Duration of peak current shown in ( ): 5 seconds max.

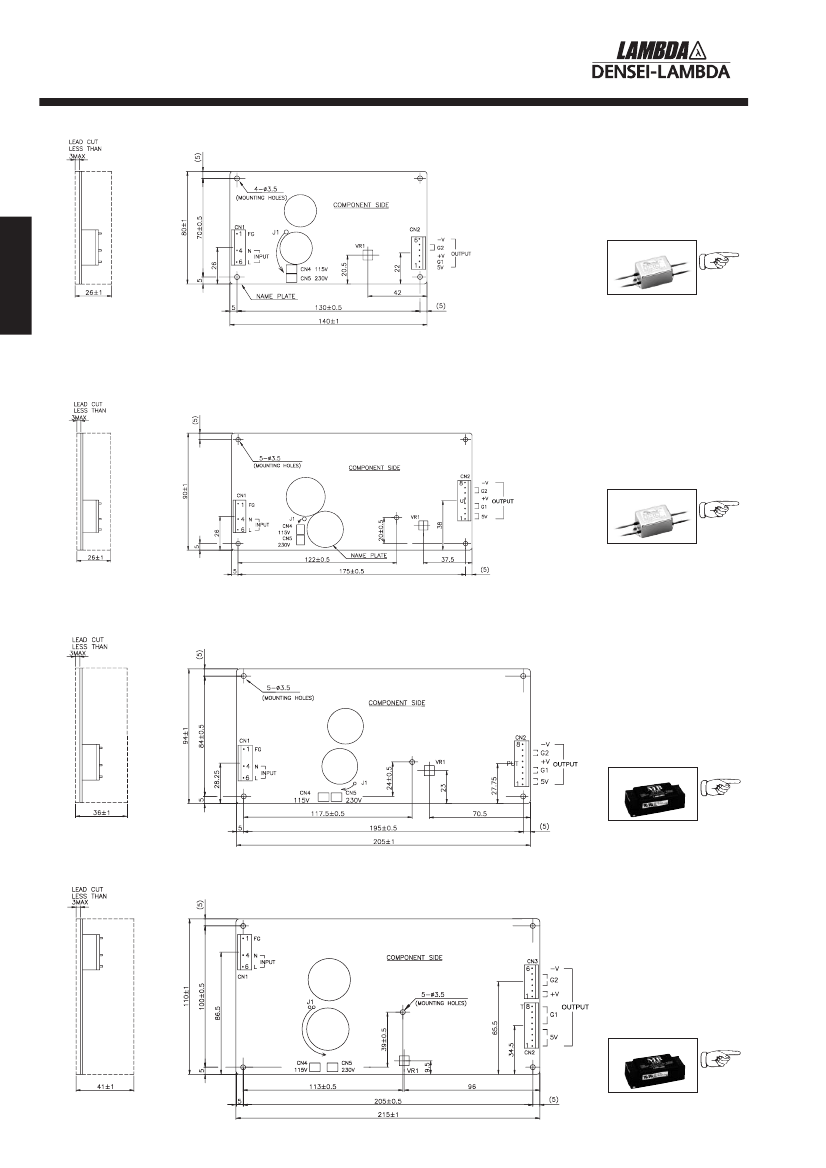

Request customer specification for further details of specifications, outline, characteristics, etc.

Read the instruction manual before usage.
