502250-4120: DescriptionCard Edge Connector, 41 Contact(s), 1 Row(s), Right Angle, 0.012 inch Pitch, Surface Mount Terminal, Locking, Natural Insulator; CategoryThe connector The connector; File Size466KB，6 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home; Environmental Compliance

Download Datasheet Parametric Compare View All

502250-4120 Overview

Card Edge Connector, 41 Contact(s), 1 Row(s), Right Angle, 0.012 inch Pitch, Surface Mount Terminal, Locking, Natural Insulator

502250-4120 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Molex
Reach Compliance Code	unknown
body width	0.035 inch
subject depth	0.139 inch
body length	0.555 inch
Connector type	FFC/FPC CONNECTOR
Contact to complete cooperation	AU ON NI
Contact material	COPPER ALLOY
contact mode	RECTANGULAR
Contact resistance	80 mΩ
Contact style	BELLOWED TYPE
Dielectric withstand voltage	250VAC V
Durability	10 Cycles
Insulation resistance	50000000 Ω
Insulator color	NATURAL
insulator material	GLASS FILLED LIQUID CRYSTAL POLYMER
Plug contact pitch	0.012 inch
Installation option 1	LOCKING
Installation method	RIGHT ANGLE
Installation type	BOARD
PCB row number	2
Number of rows loaded	1
Maximum operating temperature	85 °C
Minimum operating temperature	-25 °C
PCB contact pattern	STAGGERED
PCB contact row spacing	2.794 mm
Rated current (signal)	0.2 A
Guideline	UL
reliability	COMMERCIAL
Terminal pitch	0.6096 mm
Termination type	SURFACE MOUNT
Total number of contacts	41
Base Number Matches	1

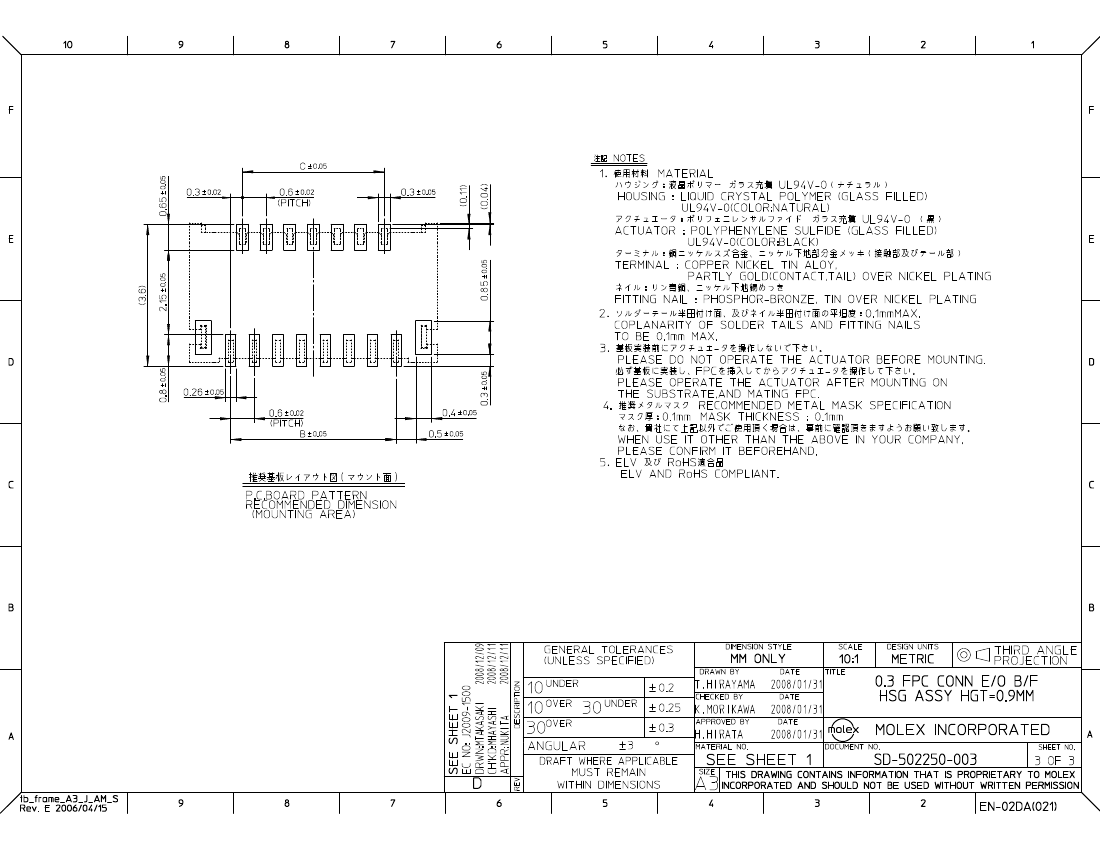

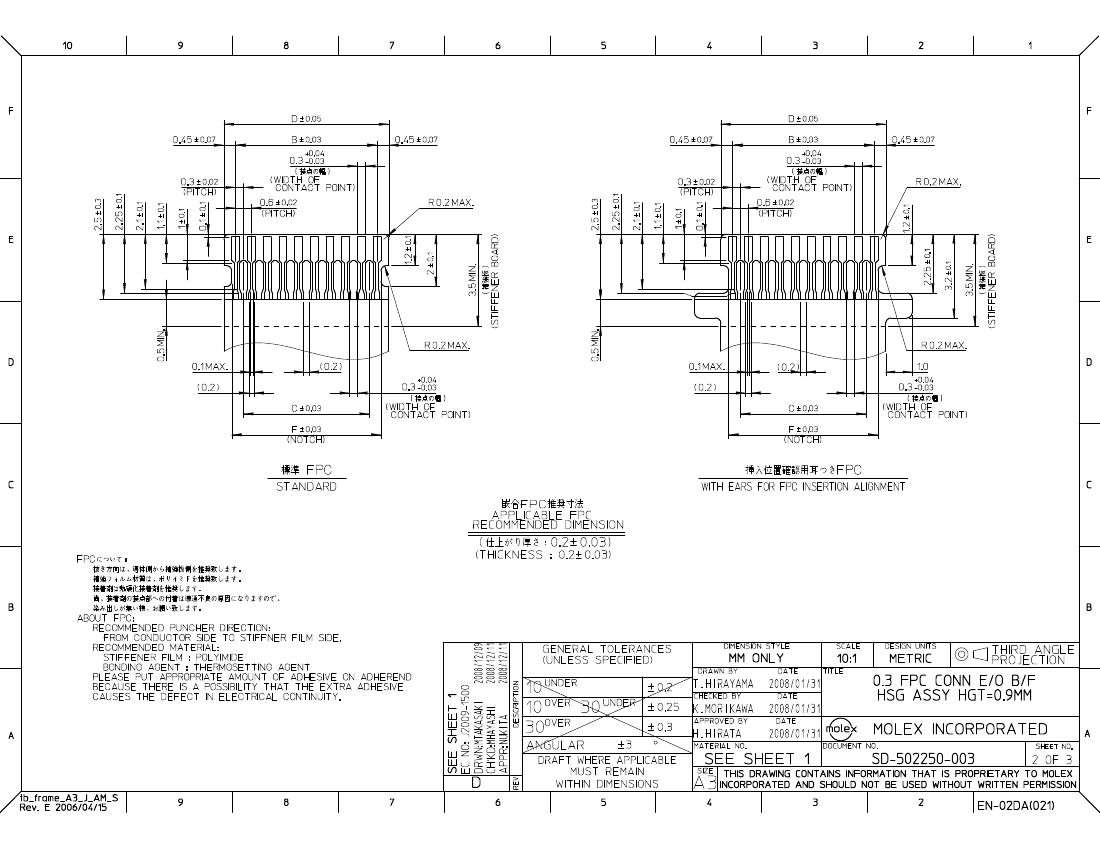

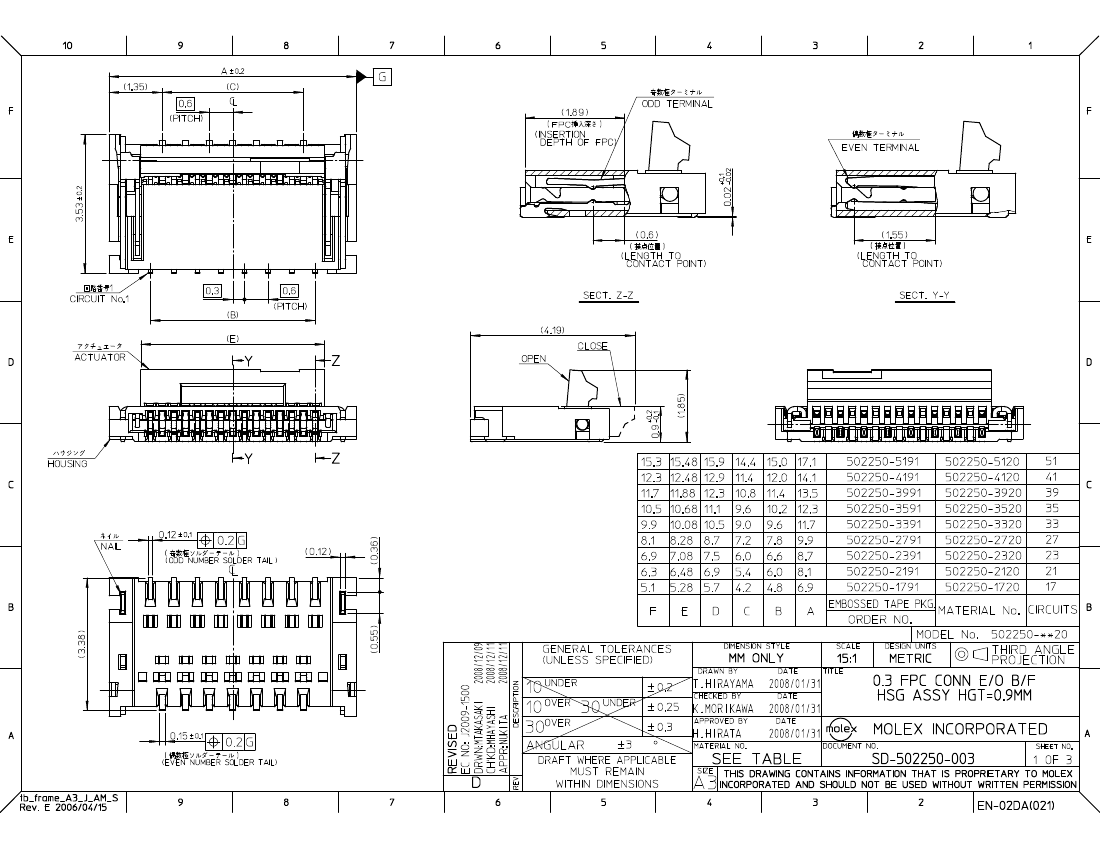

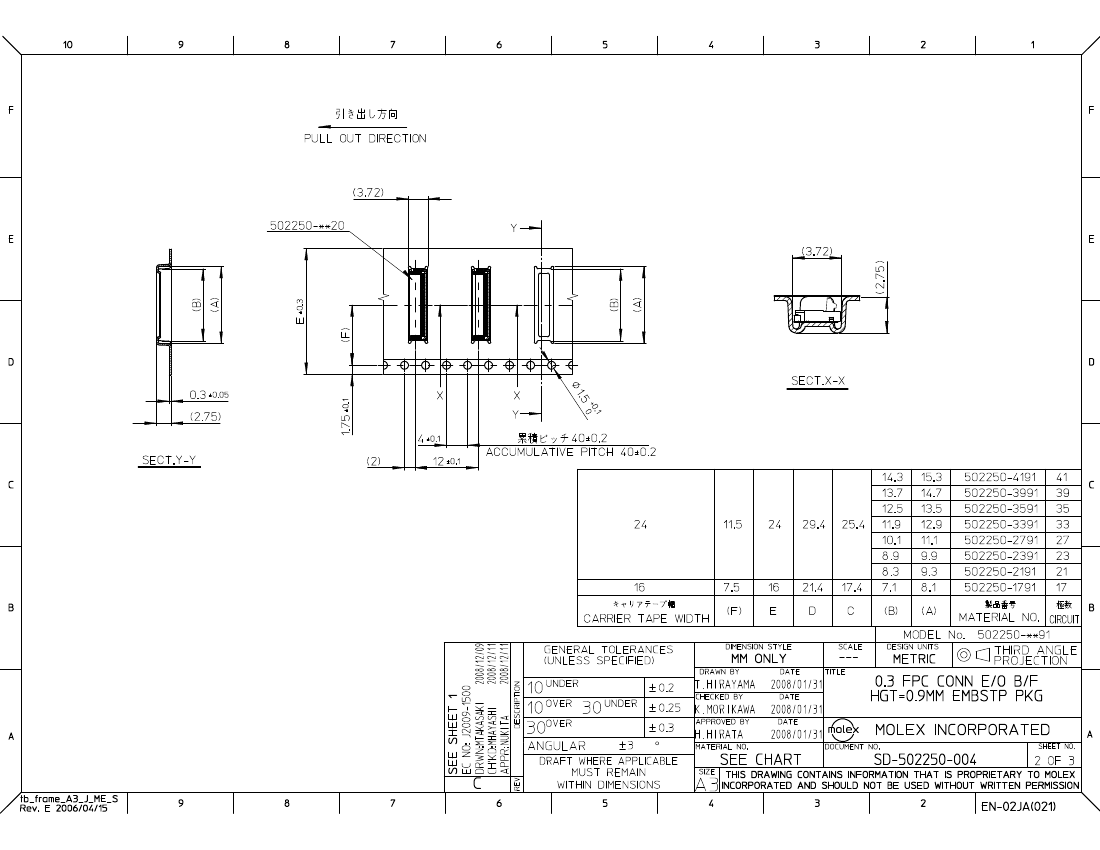

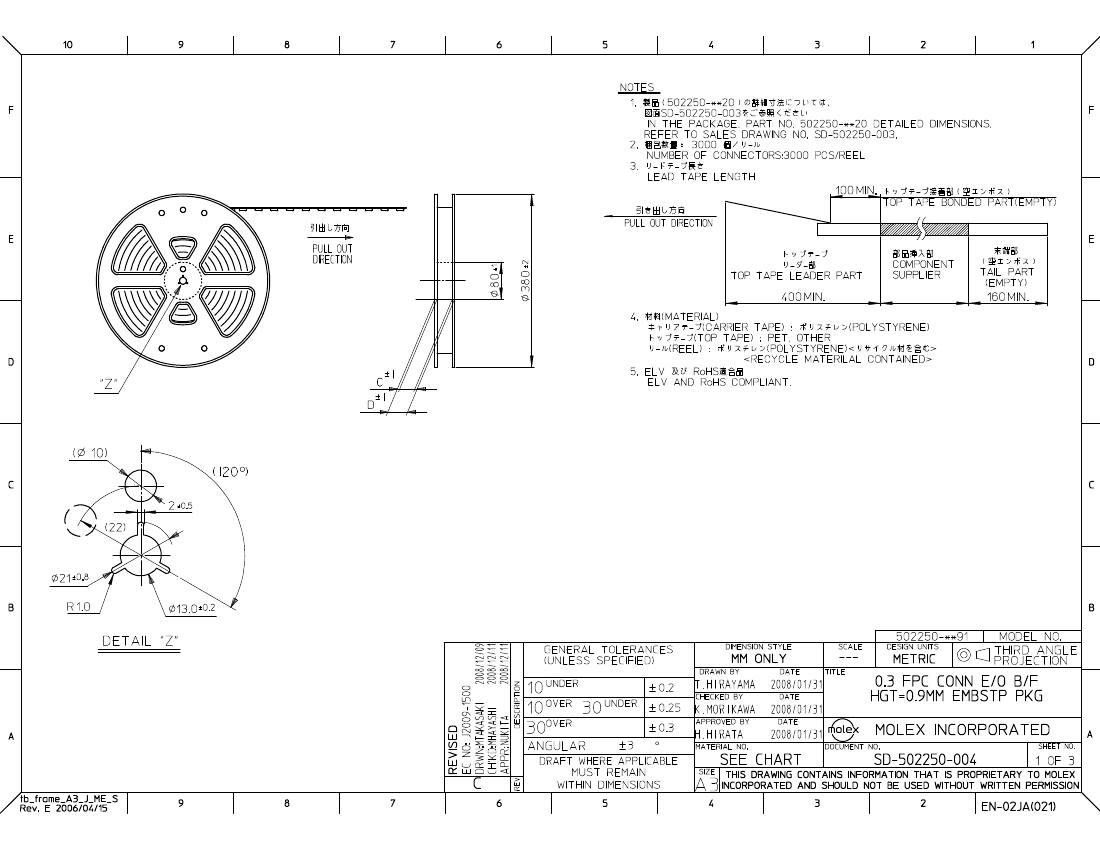

Preview

Download Datasheet

View All

502250-4120 Related Products

	502250-4120	502250-1720	502250-2120
Description	Card Edge Connector, 41 Contact(s), 1 Row(s), Right Angle, 0.012 inch Pitch, Surface Mount Terminal, Locking, Natural Insulator	Card Edge Connector, 17 Contact(s), 1 Row(s), Right Angle, 0.012 inch Pitch, Surface Mount Terminal, Locking, Natural Insulator	Card Edge Connector, 21 Contact(s), 1 Row(s), Right Angle, 0.012 inch Pitch, Surface Mount Terminal, Locking, Natural Insulator
Is it Rohs certified?	conform to	conform to	conform to
Maker	Molex	Molex	Molex
Reach Compliance Code	unknown	unknow	unknown
body width	0.035 inch	0.035 inch	0.035 inch
subject depth	0.139 inch	0.139 inch	0.139 inch
body length	0.555 inch	0.271 inch	0.318 inch
Connector type	FFC/FPC CONNECTOR	FFC/FPC CONNECTOR	FFC/FPC CONNECTOR
Contact to complete cooperation	AU ON NI	AU ON NI	AU ON NI
Contact material	COPPER ALLOY	COPPER ALLOY	COPPER ALLOY
contact mode	RECTANGULAR	RECTANGULAR	RECTANGULAR
Contact resistance	80 mΩ	80 mΩ	80 mΩ
Contact style	BELLOWED TYPE	BELLOWED TYPE	BELLOWED TYPE
Dielectric withstand voltage	250VAC V	250VAC V	250VAC V
Durability	10 Cycles	10 Cycles	10 Cycles
Insulation resistance	50000000 Ω	50000000 Ω	50000000 Ω
Insulator color	NATURAL	NATURAL	NATURAL
insulator material	GLASS FILLED LIQUID CRYSTAL POLYMER	GLASS FILLED LIQUID CRYSTAL POLYMER	GLASS FILLED LIQUID CRYSTAL POLYMER
Plug contact pitch	0.012 inch	0.012 inch	0.012 inch
Installation option 1	LOCKING	LOCKING	LOCKING
Installation method	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE
Installation type	BOARD	BOARD	BOARD
PCB row number	2	2	2
Number of rows loaded	1	1	1
Maximum operating temperature	85 °C	85 °C	85 °C
Minimum operating temperature	-25 °C	-25 °C	-25 °C
PCB contact pattern	STAGGERED	STAGGERED	STAGGERED
PCB contact row spacing	2.794 mm	2.794 mm	2.794 mm
Rated current (signal)	0.2 A	0.2 A	0.2 A
Guideline	UL	UL	UL
reliability	COMMERCIAL	COMMERCIAL	COMMERCIAL
Terminal pitch	0.6096 mm	0.6096 mm	0.6096 mm
Termination type	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT
Total number of contacts	41	17	21
ECCN code	-	EAR99	EAR99
