5962F9565202VCC datasheet, PDF

5962F9565202VCC: DescriptionNAND Gate, AC Series, 3-Func, 3-Input, CMOS, CDIP14; Categorylogic logic; File Size231KB，8 Pages; ManufacturerHarris; Websitehttp://www.harris.com/

Download Datasheet Parametric View All

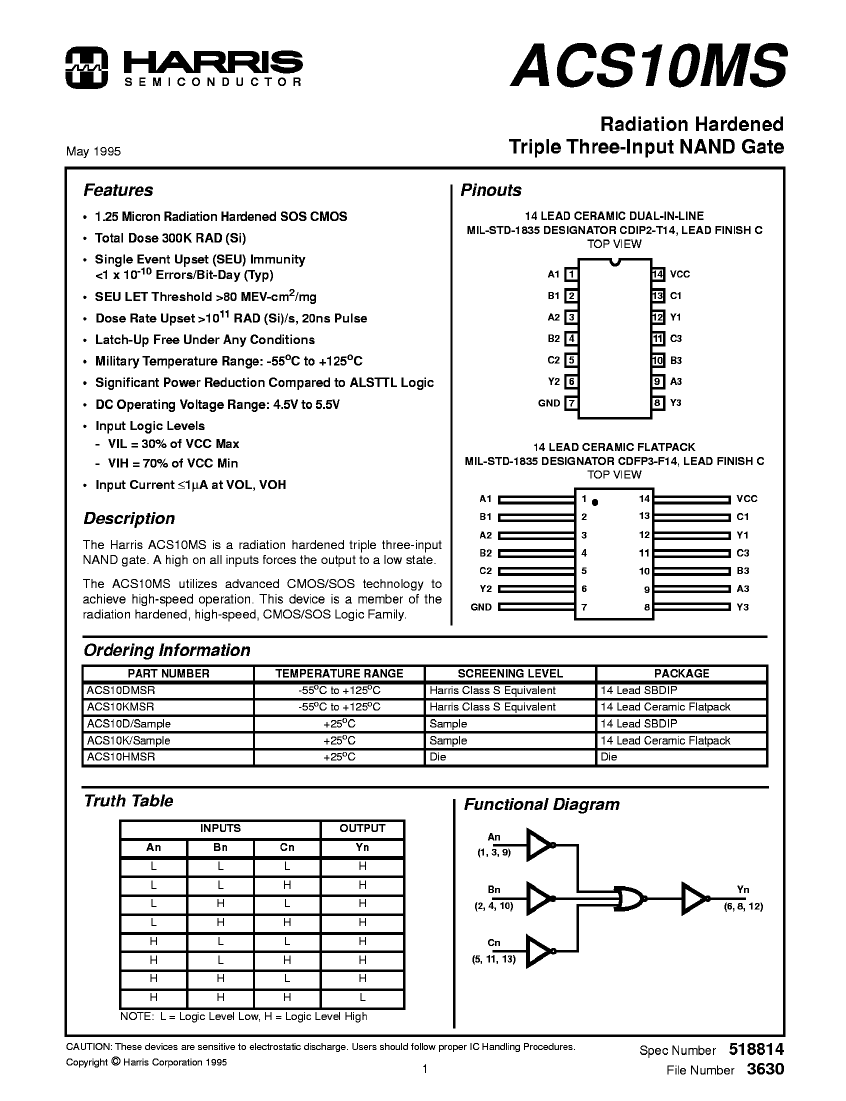

5962F9565202VCC Overview

NAND Gate, AC Series, 3-Func, 3-Input, CMOS, CDIP14

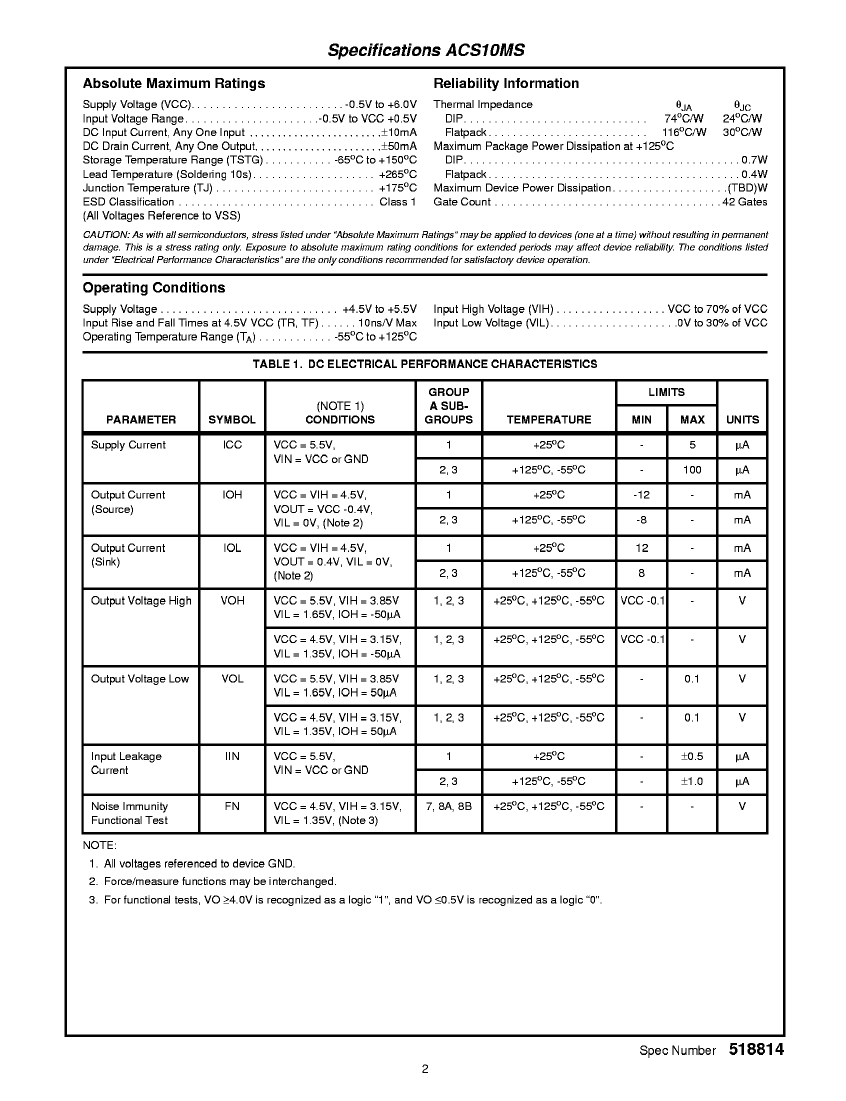

Parameter Name	Attribute value
package instruction	,
Reach Compliance Code	unknown
series	AC
JESD-30 code	R-CDIP-T14
JESD-609 code	e4
Load capacitance (CL)	50 pF
Logic integrated circuit type	NAND GATE
Number of functions	3
Number of entries	3
Number of terminals	14
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package body material	CERAMIC, METAL-SEALED COFIRED
Package shape	RECTANGULAR
Package form	IN-LINE

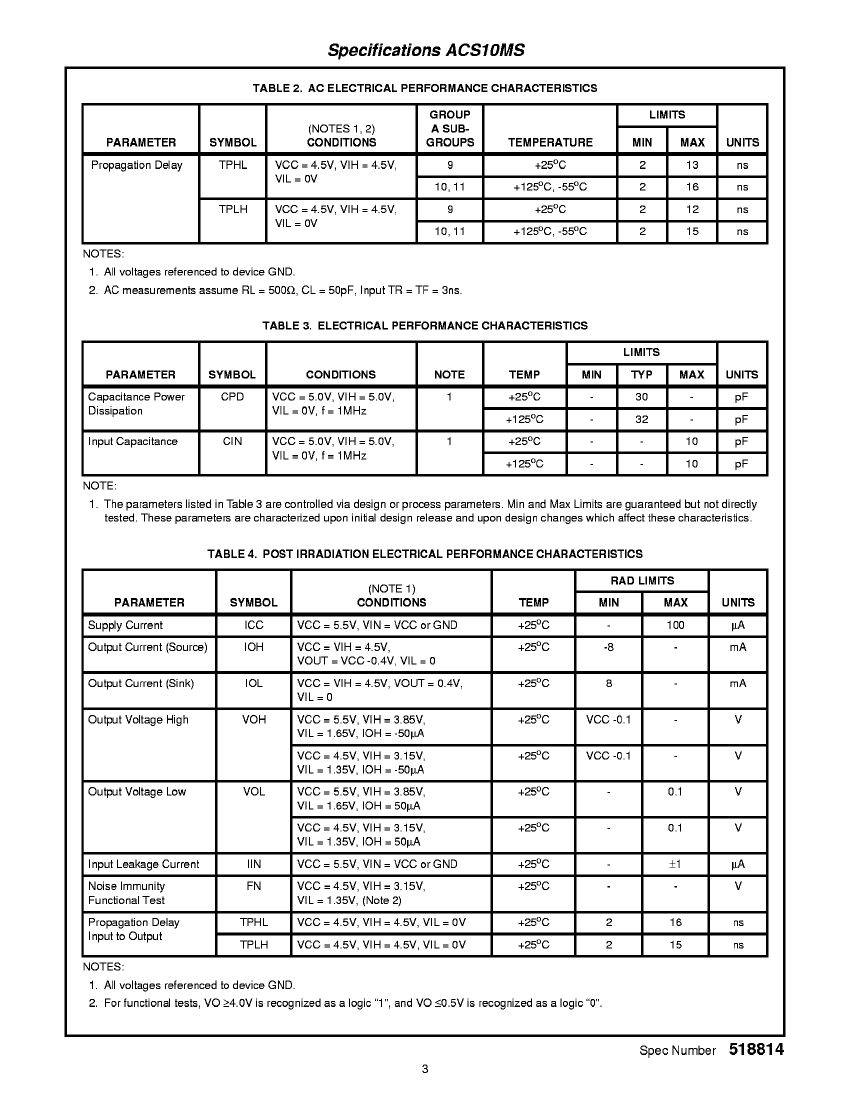

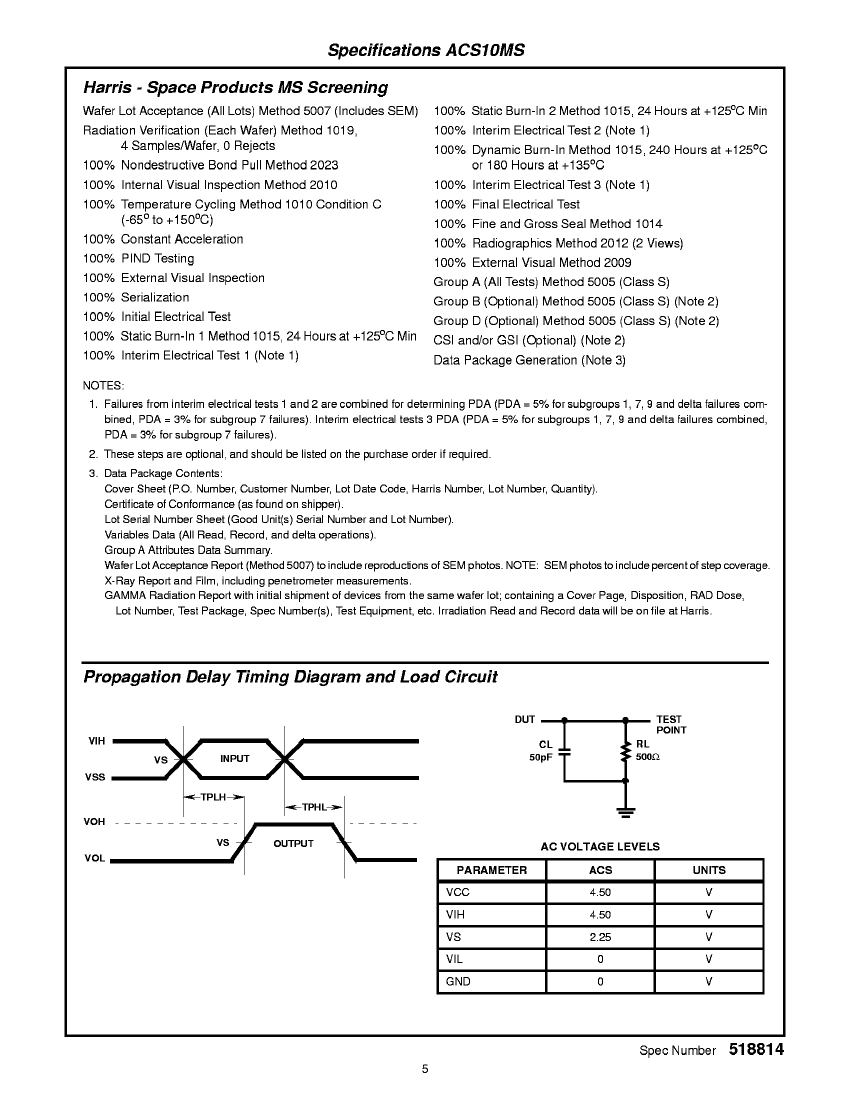

propagation delay (tpd)	16 ns
Certification status	Not Qualified
Maximum supply voltage (Vsup)	5.5 V
Minimum supply voltage (Vsup)	4.5 V
Nominal supply voltage (Vsup)	5 V
surface mount	NO
technology	CMOS
Temperature level	MILITARY
Terminal surface	GOLD
Terminal form	THROUGH-HOLE
Terminal location	DUAL

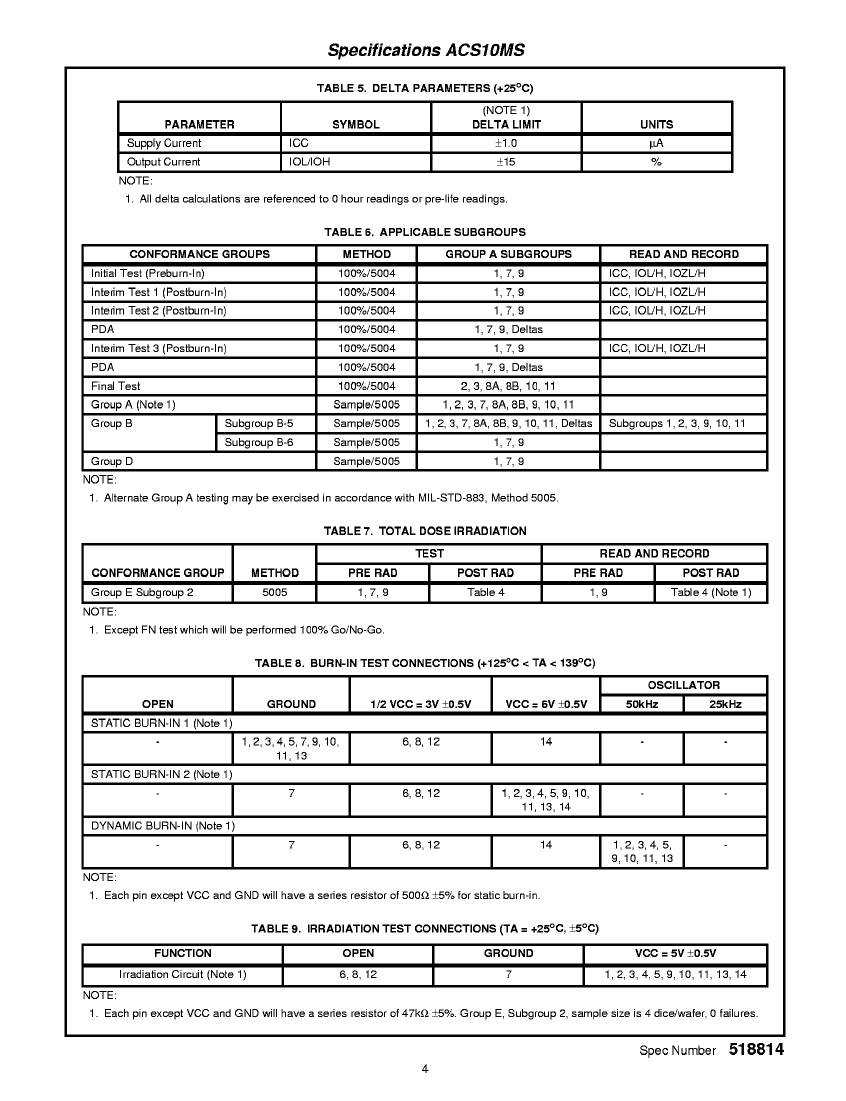

total dose	300k Rad(Si) V
Base Number Matches	1
